4.8 inch Capacitive Touchscreen for Industrial,G+G, IIC, 5 point Touch

COD: DS40052-1-1
Dimensioni:

Interfaccia:

Thickness

1.1 mm

Structure

G+G

Touch IC

microchip

abc

4.8 inch Capacitive Touchscreen Industrial grade, G+G structure, I²C interface, 5 point touch, idea for industrial, automotive, commercial display.

Richiesta di prezzi a volume







    Descrizione

    4.8 inch Capacitive Touchscreen:

    Introduce this 4.8 inch Capacitive Touchscreen, supports 5-point multi-touch with touch + gesture operation.it operates reliably within a -20 ~ 70 °C temperature range, withstand diverse environments, suitable for industrial, commercial, or consumer applications.
    Advanced Features:
    ✓ Multi-touch capability with fast response and precise positioning
    Enables smooth interaction with rapid feedback and high-precision touch localization.
    ✓ Passed rigorous tests for high/low temperature, vibration, and heavy ball drop
    Proven durability under extreme environmental conditions and mechanical impacts.
    ✓ 24/7 online technical support from an in-house team, the factory-direct advantage, and worry-free after-sales service
    Immediate expert assistance, vertically integrated manufacturing, and comprehensive post-sales support.

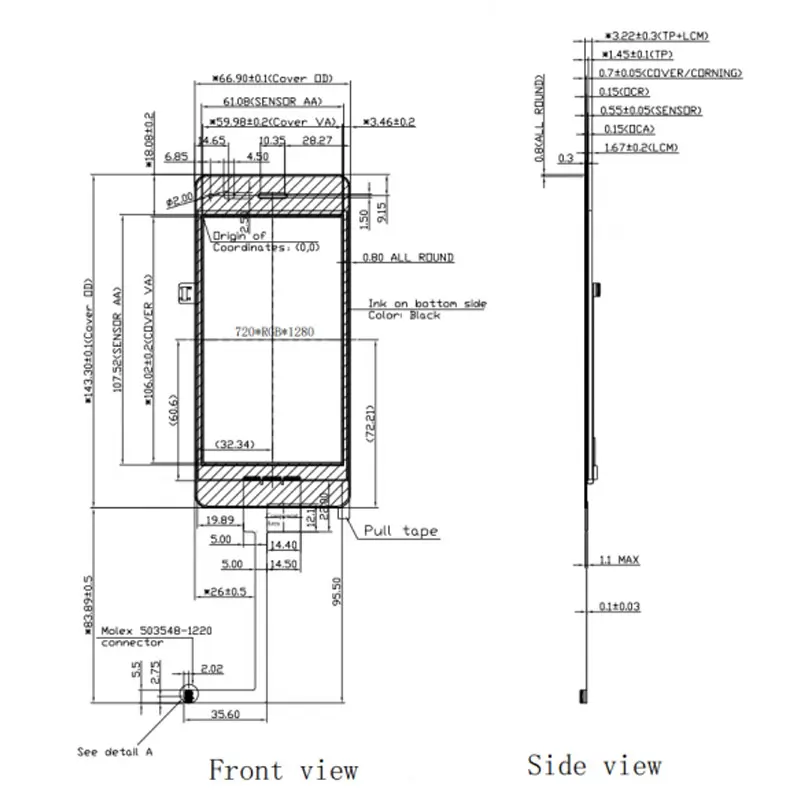

    4.8 inch Capacitive Touchscreen
    Construction Cover Glass Thickness: 0.7 mm±0.05mm
    OCR Thickness: 0.15mm ± 0.05mm
    Sensor Thickness: 0.7mm ± 0.05mm
    Machanical Characteristics Touch size 4.8 inch
    Outer Dimension 143.3*66.9 mm
    View Area 106.02*59.98 mm
    Area attiva 107.52*61.08 mm
    TP Thickness 1.45 mm±0.1
    Number of Touch 5
    Interfaccia IIC
    Controller Microchip

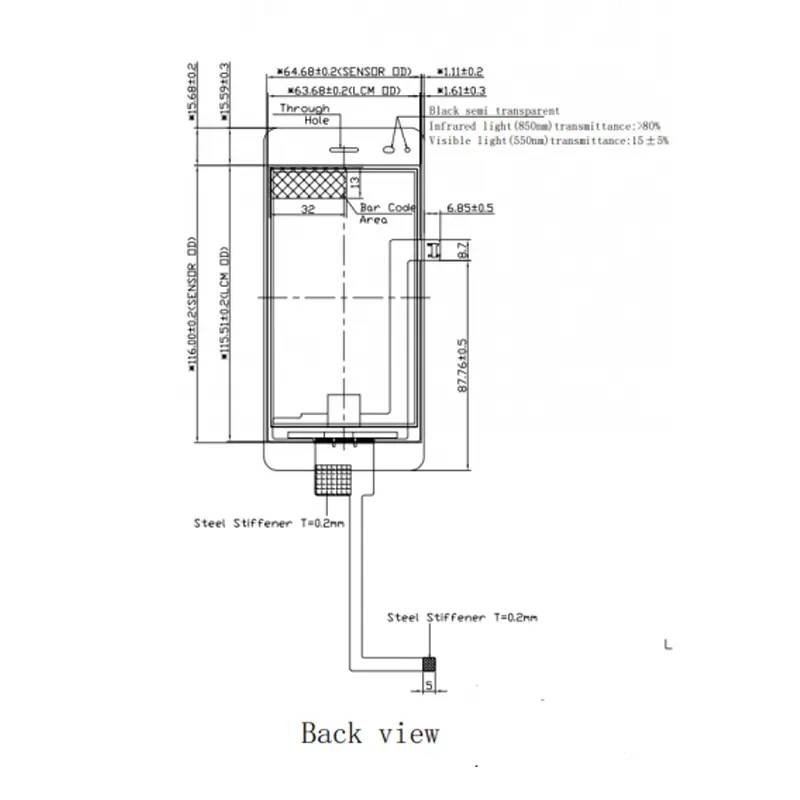

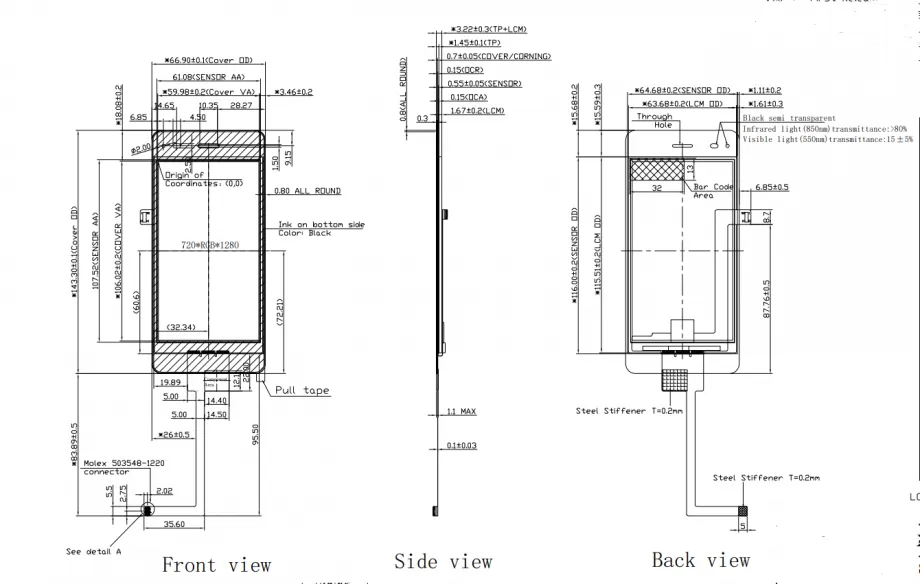

    capacitive touch drawings

    Scaricare

    4.8-Inch I²C Display Module FAQ

    Will this display fit my enclosure and show the whole interface?

    Use the 4.8-inch diagonal to shortlist display modules, then check the exact drawing for fit. Overlay the visible area, module outline and flex exit on your enclosure drawing. Get the native pixel layout first, then try your menus and text at that layout before committing to the enclosure.

    What must my controller support to drive this display module?

    For the listed I²C interface, check the controller address, logic levels and bus pull-ups on the intended host. Before connecting it, check the power rails and reset sequence in the module documentation.

    How should I compare this display with a similar module for my device?

    Compare the candidates with the same content, cover and lighting, then select against your minimum contrast and viewing-angle requirements. Judge readability on the assembled product with its final cover and ambient lighting. Compare the cost and space of any changes to the cable, host board or front cover.

    Can I change the flex cable, add a cover, or integrate touch?

    Send us the mounting drawing, permitted flex exit, connector and cover or touch requirements. We can review which of those changes can be made around the existing display and which require a different module.

    What determines the cost and lead time of a custom display sample?

    Include your display outline, interface, target sample date and estimated annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.
