5 inch Wide Viewing Angle 720*1280 IPS TFT Display

COD: DS20041
Dimensioni:

Risoluzione:

Interfaccia:

Temperatura di esercizio:

-20℃~70℃

Luminosità (cd/m²):

450

Supporto per touchscreen:

Tipo di display:

5 tft lcd screen  720*1280 Pixels  Serial MIPI Interface  30pin FFC Connection  Customized touch screen

Richiesta di prezzi a volume







    Descrizione

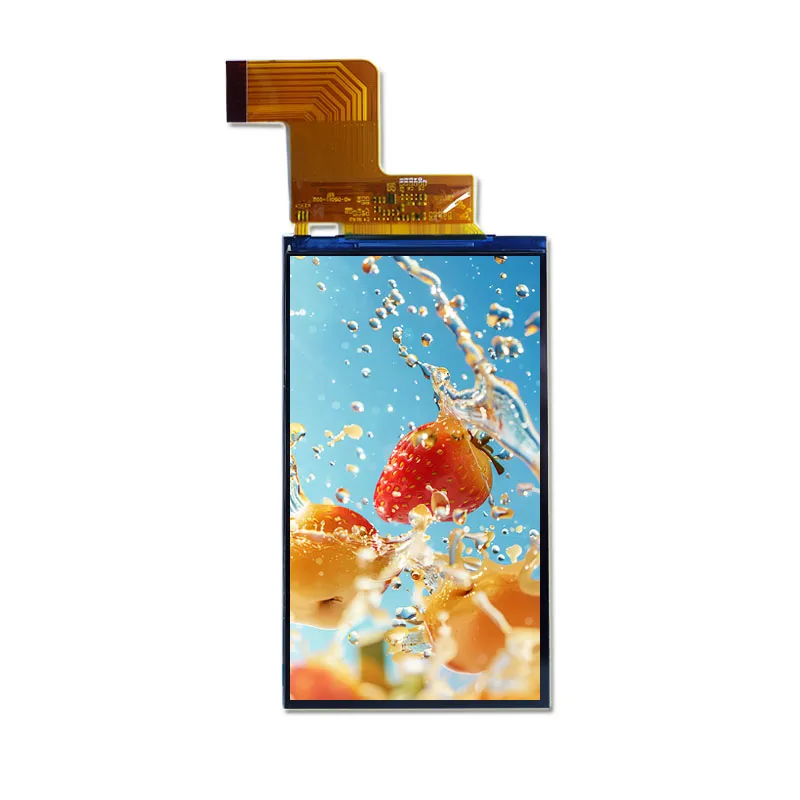

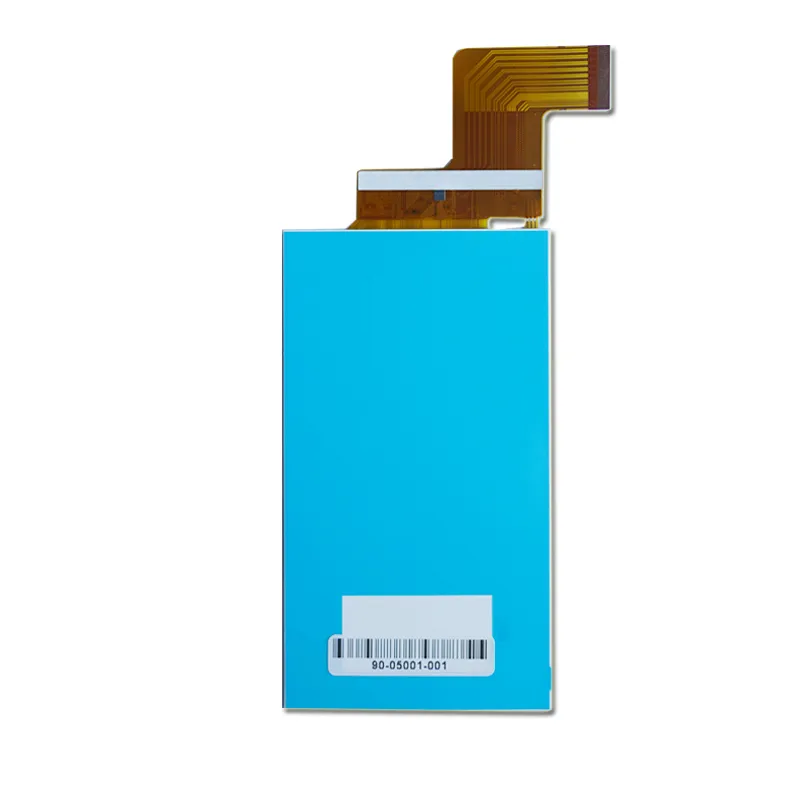

    5" TFT LCD Screen Overview

    The 5 inch IPS TFT Display features a resolution of 720 x 1280 pixels, delivering crisp and vibrant images for an enhanced viewing experience. With an active area of 61.78 mm x 109.82 mm and outline dimensions of 64.15 mm x 117.25 mm x 1.49 mm, it offers a thin profile for easy integration into various devices. The display provides an 85° viewing angle in all directions, ensuring consistent visibility, and boasts a brightness of 450 cd/m² and a contrast ratio of 1000:1 for rich colors and sharp image quality. Designed for durability, it has an LED lifetime of 20,000 hours, operates within a temperature range of -20°C to 70°C, and can be stored between -30°C to 80°C, with an MIPI 30 interface for seamless

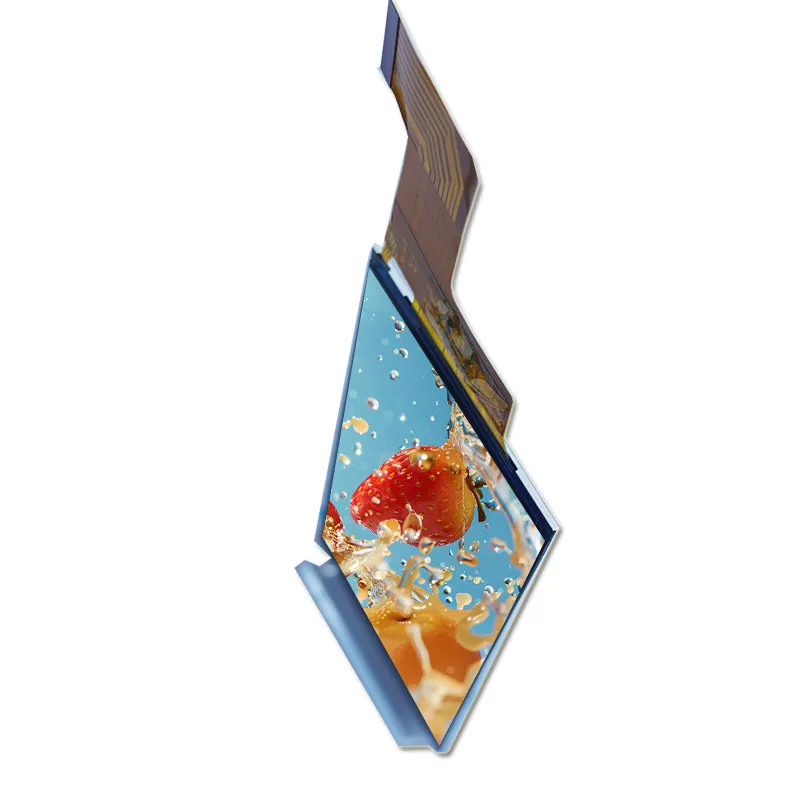

    5" Bar Type TFT LCD Display with IPS Technology

    The 5-inch TFT LCD display utilizes IPS technology, which offers wide viewing angles of 85° in all directions, ensuring consistent color reproduction and brightness from various perspectives—ideal for collaborative settings. This technology also provides enhanced color accuracy compared to traditional TN panels, resulting in richer, more vibrant colors suitable for applications like graphic design and multimedia presentations. Additionally, advancements in IPS technology have improved response times, minimizing motion blur and ghosting, making the display effective for video playback and gaming.

    5.0" TFT-LCD Product Specifications

    Numero di modello  90-05001-001
    Dimensione 5.0
    Risoluzione 720*1280

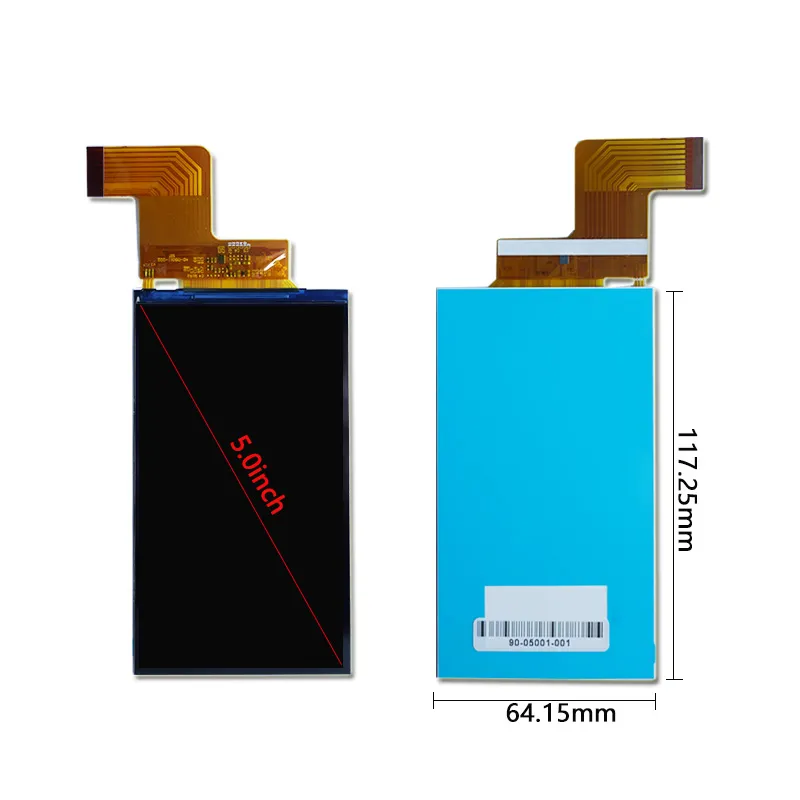

    Dimensione del contorno 64.15*117.25*1.49
    Area attiva 61.78*109.82
    Luminosità (cd/m²) 450
    Interfaccia MIPI
    Visualizza la direzione ALL
    Temperatura di esercizio -20~70
    Temperatura di stoccaggio -30~80
    Durata del LED 20000
    Supporto per touchscreen Witout
    Rapporto di contrasto 1000:1
    Alimentazione 3.3V
    Tipo di display LCD a colori

    5.0" TFT LCD Custom Solutions

    Ottimizzate le vostre soluzioni via cavo

    Regolate la lunghezza, la posizione e la piedinatura dei vostri cavi o aggiungete connettori supplementari per migliorare la funzionalità. Ottenete una soluzione di cavi personalizzata, progettata per semplificare le connessioni e garantire prestazioni sicure e affidabili.

    Personalizzazione dell'interfaccia LCD

    Scegliete tra una vasta gamma di opzioni di interfaccia o consultate i nostri esperti per trovare quella ideale per il vostro progetto. Possiamo integrare HDMI, USB, SPI, VGA e altro ancora nel vostro display, aiutandovi a raggiungere i vostri obiettivi di progettazione in modo efficiente.

    Elevare l'esperienza dell'utente con la tecnologia touch screen

    Migliorate la vostra esperienza utente con la tecnologia touch screen capacitiva o resistiva. Personalizzeremo lo spessore del vetro e la forma del pannello tattile per garantire un adattamento perfetto ai vostri requisiti di progettazione.

    custom touch

    Vetro di copertura personalizzato

    Equipaggiate il vostro display con un vetro di copertura tagliato su misura per aumentare la durata e le prestazioni. Scegliete tra vari spessori e optate per l'incollaggio ottico per proteggere il display da umidità e detriti, garantendo una soluzione affidabile e duratura.

    5-Inch 720 × 1280 MIPI TFT LCD Display Module FAQ

    Will this display fit my enclosure and show the whole interface?

    Use the 5-inch diagonal to shortlist display modules, then check the exact drawing for fit. Overlay the visible area, module outline and flex exit on your enclosure drawing. Try your menus and text on a 720 × 1280 canvas before committing to the enclosure.

    What must my controller support to drive this display module?

    For the listed MIPI interface, match the display lane count, lane mapping, operating mode and panel initialization sequence. Before connecting it, check the power rails and reset sequence in the module documentation.

    How should I compare this display with a similar module for my device?

    For the listed LCD, compare viewing-angle shifts and dark-screen appearance through the front cover. Use the listed 450 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting. Compare the cost and space of any changes to the cable, host board or front cover.

    Can I change the flex cable, add a cover, or integrate touch?

    Send us the mounting drawing, permitted flex exit, connector and cover or touch requirements. We can review which of those changes can be made around the existing display and which require a different module.

    What determines the cost and lead time of a custom display sample?

    Include your display outline, interface, target sample date and estimated annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Soluzioni espositive personalizzate

    Informazioni aggiuntive

    Dimensioni:

    Risoluzione:

    Interfaccia:

    Temperatura di esercizio:

    -20℃~70℃

    Luminosità (cd/m²):

    450

    Supporto per touchscreen:

    Tipo di display:

    Soluzioni espositive personalizzate

    Collaborate con i nostri esperti di progettazione per creare il display perfetto per la vostra applicazione.
