56.6 inch Stretched LCD Monitors 3840*430 Sunlight Readable

COD: DS30018
Dimensioni:

Risoluzione:

Interfaccia:

, , , ,

Luminosità (cd/m²):

700

Temperatura di esercizio:

-0℃~50℃

56.6 inch Stretched LCD Monitors, offering resolution 3840*430, Contrast Ratio 4000:1,Brightness 700cd/m2, Interface with Audio/RJ45/HDMI/USB*2/TF/DC IN, Optional Android motherboard

Richiesta di prezzi a volume







    Descrizione

    56.6 inch Streched LCD monitors main features:

    • 178° ultra-wide viewing angle, 4000:1 high contrast ratio
    • High-definition picture quality, smooth playback
    • Long-strip display, can be hung horizontally or vertically
    • Sheet metal frame, protects screen from bumps
    • Brightness 700cd/m2 adjustable, appearance color customizable, driver motherboard solution customizable
    56.6 inch Stretched LCD Monitors



    56.6 inch Streched LCD monitors Specification

    Display LCD Dimensioni dello schermo 56.6 inch
    Area attiva 1428.48(W)×159.96(H)(mm)
    Outline 1451.28*182.76*45(mm)
    Screen Type a-Si TFT-LCD
    Pixel Number 3840*430
    Aspect Ratio 3:1
    Luminance 700 cd/m2
    Rapporto di contrasto 4000:1
    Viewing Angle 89/89/89/89 (Typ.)(CR≥10)
    Profondità del colore 1.07B   68% NTSC
    Response 8 (Typ.)(G to G) ms
    Pixel Pitch 0.372*0.372(mm)
    Mainboard CPU T972
    Ram -
    Flash -
    O/S -
    Interfaccia Audio/RJ45/HDMI/USB*2/TF/DC IN
    Machine Appearance and Structure Sheet Metal
    Colore Black
    Peripheral WIFI/Speaker*2
    Power supply AC100~230V
    Power consumption ≦70W
    Temperatura di esercizio 0℃~50℃
    Temperatura di stoccaggio -20℃~60℃
    Installation method Wall hanging
    Peso netto 18Kg
    Corton size -
    Number of boxes 2PCS/Corton
    Corton weight 40Kg

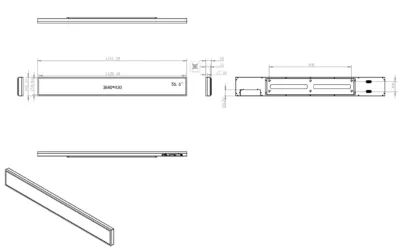

    Drawing and photo 56.6 inch Streched LCD monitors

    56.6-Inch 3840 × 430 Monitor FAQ

    Will this monitor fit with the cables and controls accessible?

    Use the 56.6-inch diagonal to shortlist monitors, then check the exact drawing for fit. Compare the case depth, mount or stand, cable bend and access to the controls against your setup. Test the actual cable exit before approving a tight installation.

    Industrial touch monitor selection guide

    Can my computer, media player, or controller run this monitor?

    For the listed HDMI interface, confirm the source can output a mode accepted by the supplied controller and check separately how the display is powered.

    How should I compare this monitor with another for my installation?

    Try your typical desktop, menu or signage layout on a 3840 × 430 canvas before choosing a monitor. Compare readable text size at the intended distance, connector access and whether the installation needs a portable stand or fixed mounting. Use the listed 700 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting.

    Can I specify the mount, ports, power adapter, or touch configuration?

    Share the enclosure or stand drawing, input sources, orientation and required ports. We can check available mounts, power and touch configurations and confirm which parts can be quoted together.

    What should I send for a monitor quote and sample schedule?

    Include the source ports and modes, mounting setup, accessories, quantities and required date. Ask for the hardware, accessories and any one-time setup itemized, with sample cost, production quantity breaks and separate delivery dates.

    Informazioni aggiuntive

    Dimensioni:

    Risoluzione:

    Interfaccia:

    , , , ,

    Luminosità (cd/m²):

    700

    Temperatura di esercizio:

    -0℃~50℃
