38.5 inch Stretched Digital Signage AA 940.9mm (H) x264.62mm (V)

COD: DS30007
Dimensioni:

Risoluzione:

Interfaccia:

, , , ,

Temperatura di esercizio:

-0℃~50℃

Luminosità (cd/m²):

500

Supporto per touchscreen:

Tipo di display:

38.5 inch Stretched Digital Signage offering resolution 1920*540 pixels CPU RK3288 Memory 2GB Operating System android 7.1

Richiesta di prezzi a volume







    Descrizione

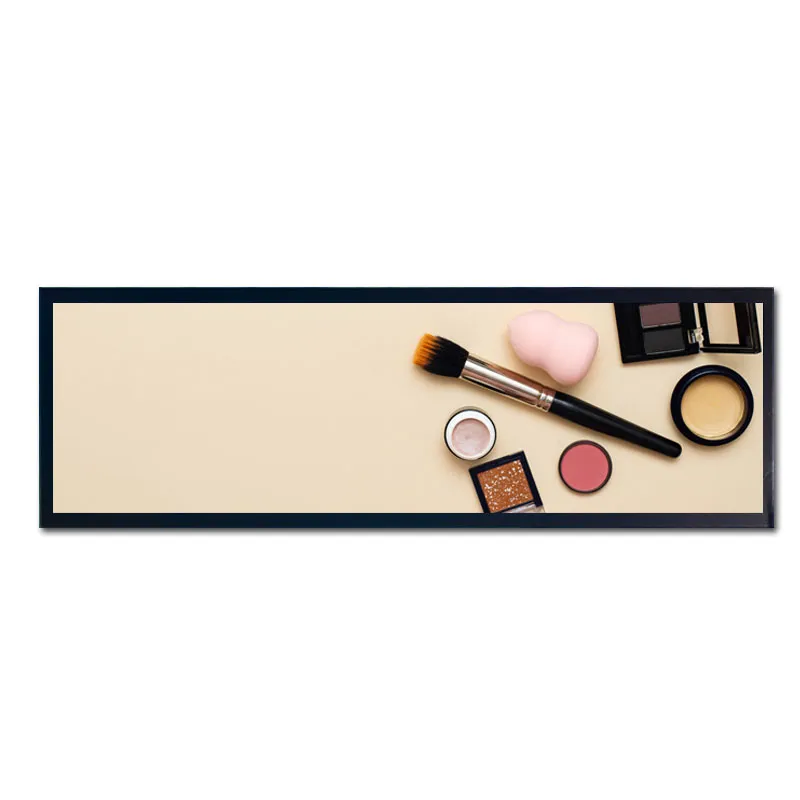

    38.5" Stretched LCD Monitors Features

    This 38.5 inch Stretched Digital Signage features an LED backlight with a brightness range of 300 to 450 cd/m² and a resolution of 1920 x 540 pixels, delivering vibrant visuals with a typical contrast ratio of 1100:1. It offers wide viewing angles of 89° in all directions and a response time of 8 ms (G to G) for smooth image transitions. Supporting 1.07 billion colors with 68% NTSC coverage, the display is housed in a durable frame made from high gloss profile and tempered materials. The active area measures 940.9 mm in height and 264.62 mm in vertical width, with overall dimensions of 989.8 mm x 313.6 mm x 50 mm. The shell color is standard black, with options available for customization to meet specific design preferences.



    38.5" Stretched LCD Monitors Application

    The device is powered by an RK3288 CPU and features 2GB of memory along with 8GB of built-in storage, running on Android 7.1. It supports network connectivity via Ethernet and Wi-Fi. The device is compatible with a variety of video formats, including WMV, AVI, FLV, RM, RMVB, MPEG, TS, and MP4, as well as image formats such as BMP, JPEG, PNG, and GIF. Connectivity options include 2 USB ports, a TF card slot, audio output, RJ45 for Ethernet, HDMI OUT, and DC IN. It features 3 serial port sockets (with at least one supporting RS232) and provides 1 RJ45 port for 100M adaptive Ethernet. Additionally, it supports 1080P output via its RS232 interface, making it a versatile multimedia solution for various applications.

    38.5" Stretched LCD Monitors Product Specifications

    Diagonal Size 38.5"(Diagonal)
    Pixel Number 1920*540 Pixels
    Area attiva 940.9mm (H) x264.62mm (V)

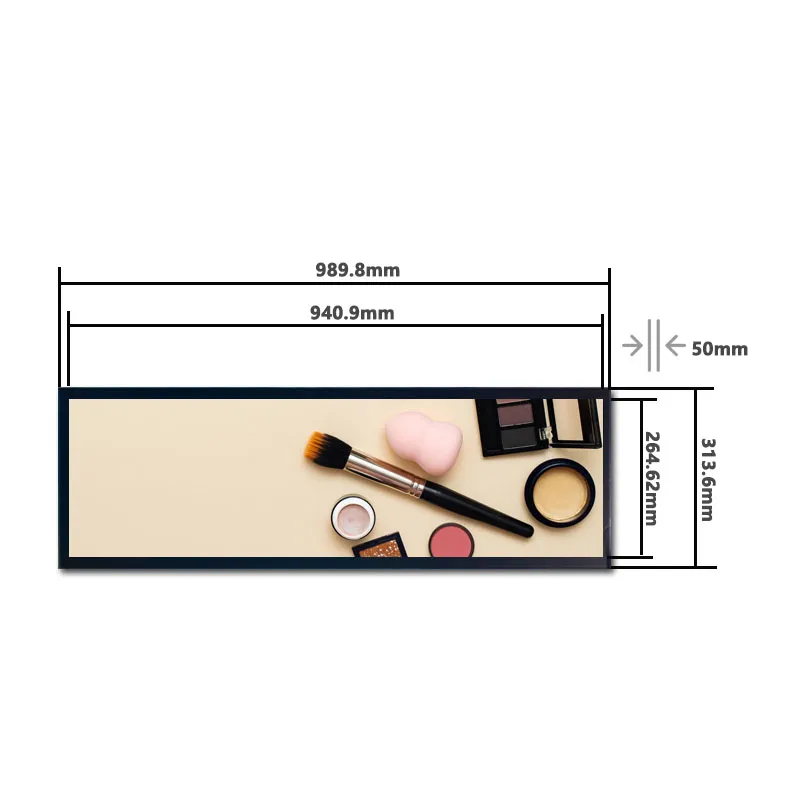

    Outline Dimensions 989.8mm*313.6mm*50mm
    CPU RK3288
    Memory 2GB
    Operating System Android 7.1
    Network support Ethernet, WIFI
    Video Format Support wmv、avi、flv、rm、rmvb、mpeg 、ts、mp4
    Image Format Support BMP、JPEG、PNG、GIF
    Interfaccia USB*2/TF/Audio/RJ45/HDMI OUT/DC IN
    Serial Ports 3 serial port sockets (support at least RS232*1)
    HDMI 1 RJ45, 100M adaptive Ethernet
    RS232 1, support 1080P output
    Touch G+G Capacitive Touch

    38.5" Stretched LCD Monitors Custom Solutions

    Ottimizzate le vostre soluzioni via cavo

    Regolate la lunghezza, la posizione e la piedinatura dei vostri cavi o aggiungete connettori supplementari per migliorare la funzionalità. Ottenete una soluzione di cavi personalizzata, progettata per semplificare le connessioni e garantire prestazioni sicure e affidabili.

    Personalizzazione dell'interfaccia LCD

    Scegliete tra una vasta gamma di opzioni di interfaccia o consultate i nostri esperti per trovare quella ideale per il vostro progetto. Possiamo integrare HDMI, USB, SPI, VGA e altro ancora nel vostro display, aiutandovi a raggiungere i vostri obiettivi di progettazione in modo efficiente.

    Elevare l'esperienza dell'utente con la tecnologia touch screen

    Migliorate la vostra esperienza utente con la tecnologia touch screen capacitiva o resistiva. Personalizzeremo lo spessore del vetro e la forma del pannello tattile per garantire un adattamento perfetto ai vostri requisiti di progettazione.

    custom touch

    Vetro di copertura personalizzato

    Equipaggiate il vostro display con un vetro di copertura tagliato su misura per aumentare la durata e le prestazioni. Scegliete tra vari spessori e optate per l'incollaggio ottico per proteggere il display da umidità e detriti, garantendo una soluzione affidabile e duratura.

    38.5-Inch 1920 × 540 Monitor FAQ

    Will this monitor fit with the cables and controls accessible?

    Use the 38.5-inch diagonal to shortlist monitors, then check the exact drawing for fit. Compare the case depth, mount or stand, cable bend and access to the controls against your setup. Test the actual cable exit before approving a tight installation.

    Industrial touch monitor selection guide

    Can my computer, media player, or controller run this monitor?

    The catalog mentions HDMI and USB. Send us your source model and OS or firmware version and ask us to confirm the role and wiring of each connection on the configuration you plan to order.

    How should I compare this monitor with another for my installation?

    Try your typical desktop, menu or signage layout on a 1920 × 540 canvas before choosing a monitor. Compare readable text size at the intended distance, connector access and whether the installation needs a portable stand or fixed mounting. Compare the candidates with the same content, cover and lighting, then select against your minimum contrast and viewing-angle requirements.

    Can I specify the mount, ports, power adapter, or touch configuration?

    Share the enclosure or stand drawing, input sources, orientation and required ports. We can check available mounts, power and touch configurations and confirm which parts can be quoted together.

    What should I send for a monitor quote and sample schedule?

    Include the source ports and modes, mounting setup, accessories, quantities and required date. Ask for the hardware, accessories and any one-time setup itemized, with sample cost, production quantity breaks and separate delivery dates.

    Informazioni aggiuntive

    Dimensioni:

    Risoluzione:

    Interfaccia:

    , , , ,

    Temperatura di esercizio:

    -0℃~50℃

    Luminosità (cd/m²):

    500

    Supporto per touchscreen:

    Tipo di display:

    Soluzioni espositive personalizzate

    Collaborate con i nostri esperti di progettazione per creare il display perfetto per la vostra applicazione.
