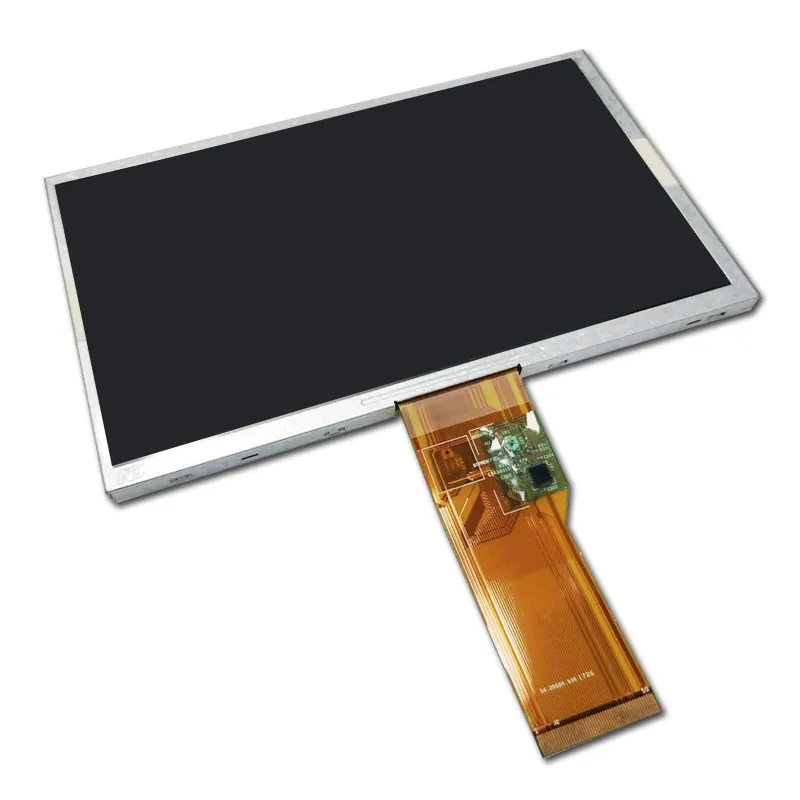

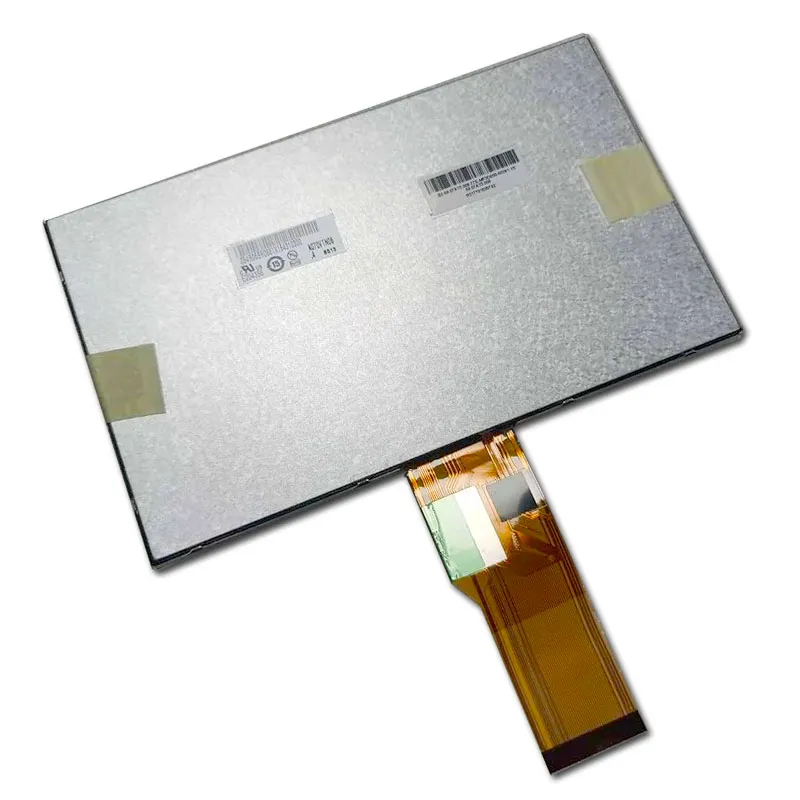

AUO A070VTN06.4 7" Industrial TFT LCD 800x480, 1500nits, RGB, -30°C~80°C, 10K Hrs

COD: DS50122
Dimensioni:

Numero di modello

A070VTN06.4

Risoluzione:

Interfaccia:

Temperatura di esercizio:

-30℃~80℃

Luminosità (cd/m²):

500

Supporto per touchscreen:

Tipo di display:

Rugged 7-inch auo a070vtn06.4 TFT LCD with 500nits brightness, 800x480 resolution, RGB interface. Built for extreme environments (-30°C~80°C) & 10K-hour lifespan. Ideal for industrial applications.

Richiesta di prezzi a volume







    Descrizione

    A070VTN06.4 General Desription

    The AUO A070VTN06.4 is a high-performance 7-inch TFT LCD display engineered for demanding industrial environments. With a resolution of 800×480 pixels and an high brightness of 500 nits, it ensures exceptional visibility even under direct sunlight or harsh lighting conditions. The TN panel delivers fast response times, making it suitable for dynamic applications.
    Designed to operate reliably in extreme temperatures (-30°C to 80°C), this display is built to withstand thermal shocks, vibrations, and prolonged use, backed by a robust 10,000-hour lifespan. The standard RGB interface ensures seamless integration with industrial control systems, IoT devices, and embedded solutions.
    Key features include:
    Sunlight Readable: 500nits brightness for outdoor/industrial use.
    Wide Temperature Range: Stable performance from -30°C to 80°C.
    Longevity: 10K-hour durability for reduced maintenance costs.
    Versatile Connectivity: Compatible with RGB interfaces for flexible deployment.



    A070VTN06.4 Application

    Ideal for industrial automation, transportation systems, heavy machinery, and outdoor digital signage. Elevate your hardware’s reliability with this rugged, high-brightness display solution.

    A070VTN06.4 Product Specifications

    Diagonal Size 7.0"(Diagonal)
    Pixel Number 800×480 Pixels
    Luminance 500
    Module Size 164.9(W)×100(H) ×5.9(D)
    Area attiva 154.08(W)×85.92(H)
    Viewing Direction TN
    View Angle(U/D/R/L) 75/75/55/65
    Interfaccia RGB
    Rapporto di contrasto 500
    Temperatura di esercizio -30~80℃
    Temperatura di stoccaggio -30~80℃
    Durata del LED 50K
    Supporto per touchscreen Senza
    Alimentazione 3.3v
    Tipo di display Color TFT

    AUO LCD Display Custom Solutions

    Ottimizzate le vostre soluzioni via cavo

    Regolate la lunghezza, la posizione e la piedinatura dei vostri cavi o aggiungete connettori supplementari per migliorare la funzionalità. Ottenete una soluzione di cavi personalizzata, progettata per semplificare le connessioni e garantire prestazioni sicure e affidabili.

    PCB Modifications

    Choose from a variety of variations in PCB shape, size, pin and component layout to make it fully suitable for your application.

    Elevare l'esperienza dell'utente con la tecnologia touch screen

    Migliorate la vostra esperienza utente con la tecnologia touch screen capacitiva o resistiva. Personalizzeremo lo spessore del vetro e la forma del pannello tattile per garantire un adattamento perfetto ai vostri requisiti di progettazione.

    custom touch

    Vetro di copertura personalizzato

    Equipaggiate il vostro display con un vetro di copertura tagliato su misura per aumentare la durata e le prestazioni. Scegliete tra vari spessori e optate per l'incollaggio ottico per proteggere il display da umidità e detriti, garantendo una soluzione affidabile e duratura.

    AUO A070VTN06.4 7-Inch LCD Replacement FAQ

    How do I confirm that I need the AUO A070VTN06.4?

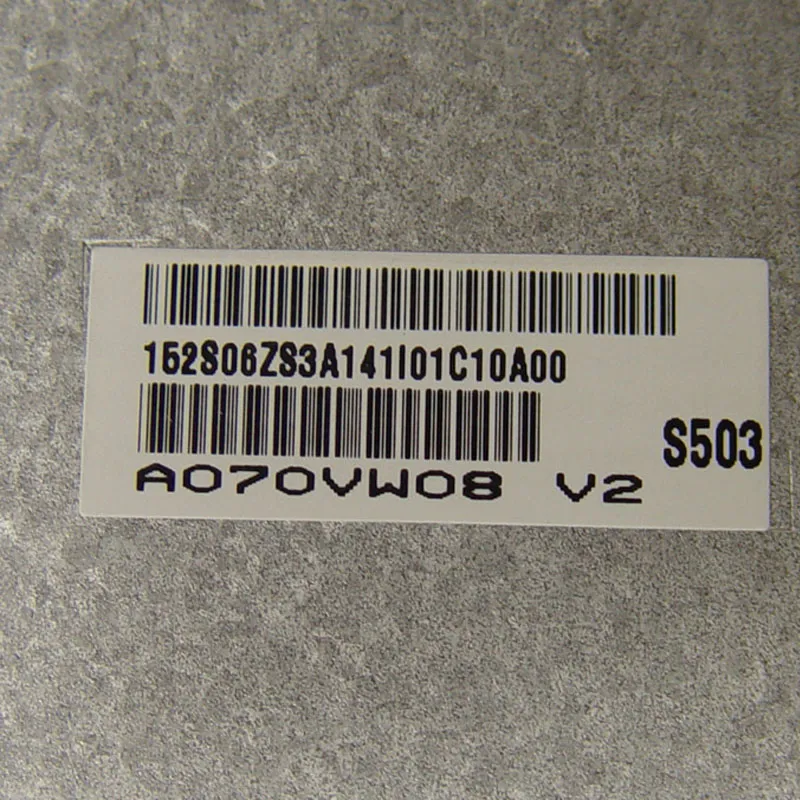

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 7-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing RGB cable and controller with the AUO A070VTN06.4?

    For the listed RGB interface, match data width, pixel clock, sync polarities and blanking to the panel timing sheet. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How does the AUO A070VTN06.4 compare with the Innolux AT070TN92?

    Both catalog listings show 7 inches, 800 × 480 and RGB. The catalog lists −30 °C to +80 °C for the AUO panel and −20 °C to +70 °C for the Innolux panel. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Compare Innolux AT070TN92

    Is the AUO A070VTN06.4 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Informazioni aggiuntive

    Dimensioni:

    Numero di modello

    A070VTN06.4

    Risoluzione:

    Interfaccia:

    Temperatura di esercizio:

    -30℃~80℃

    Luminosità (cd/m²):

    500

    Supporto per touchscreen:

    Tipo di display:

    Soluzioni espositive personalizzate

    Collaborate con i nostri esperti di progettazione per creare il display perfetto per la vostra applicazione.
