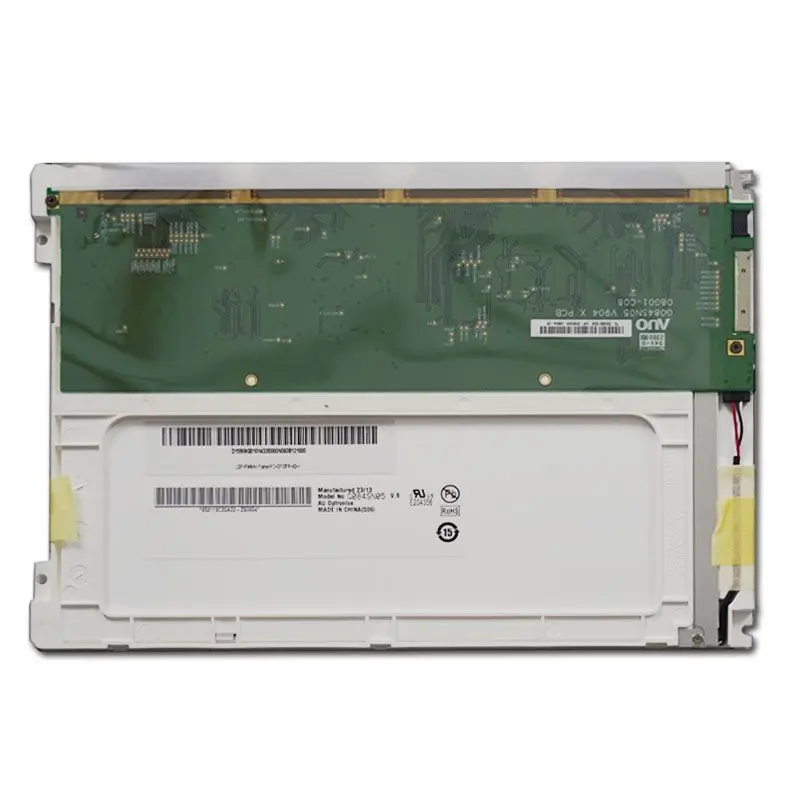

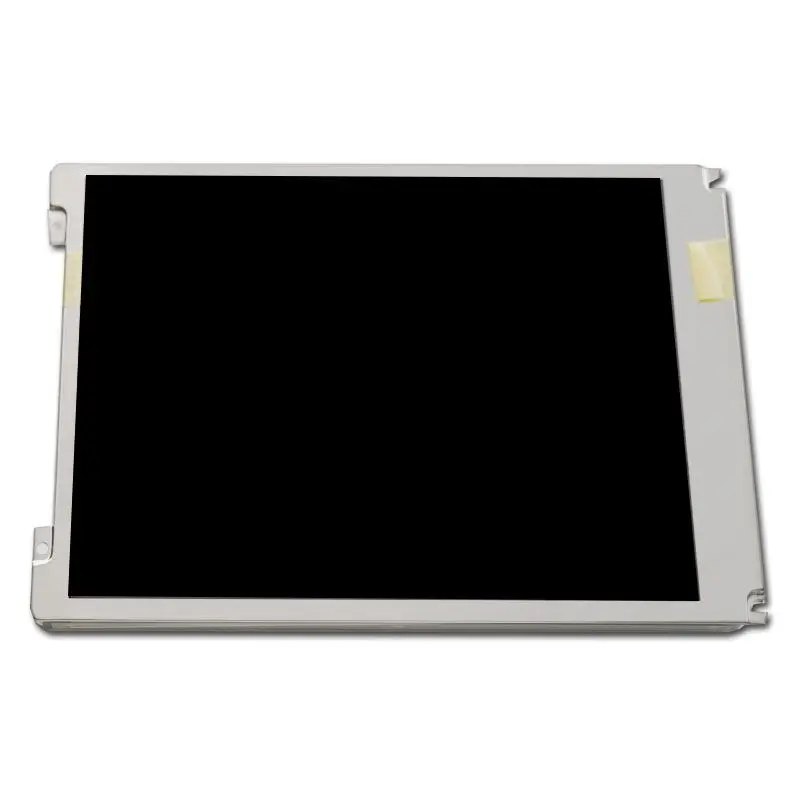

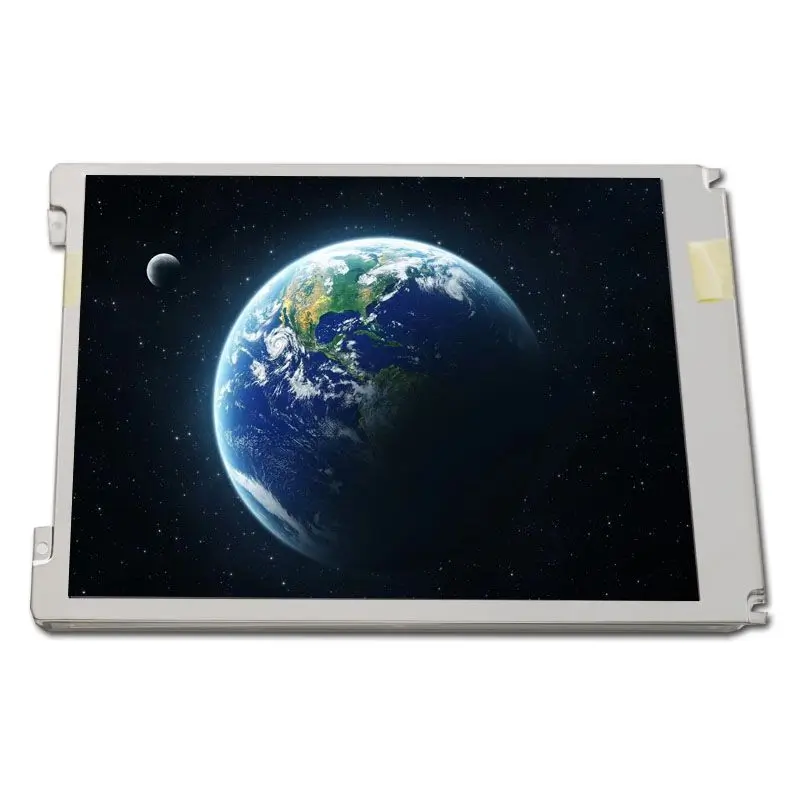

G084SN05 V904 AUO 8.4 inch TFT Screen 800*600

COD: DS50006
Dimensioni:

Numero di modello

G084SN05 V.904

Risoluzione:

Interfaccia:

Luminosità (cd/m²):

450

Temperatura di esercizio:

-30℃~80℃

Supporto per touchscreen:

Tipo di display:

Resources:

G084SN05 V904 from Brand AUO, Resolution 800*600, Wide Temperature from -30~80℃, 1 channel LVDS, Stable supply, Original A grade quality

Richiesta di prezzi a volume







    Descrizione

    G084SN05 V904 General Description

    The 8.4 inch color TFT LCD module G084SN05 V904 designed with wide viewing angle; wide operating temperature and long life LEDs backlight, which is well suited to be the display units for Industrial Applications. LED driving board for backlight unit is included in this panel and the structure of the LED units is replaceable. G084SN05 V904 is built in timing controller and LVDS interface. The screen format is intended to support the SVGA (800(H) x 600(V)) screen and 16.2M (RGB 8-bits) or 262k colors (RGB 6-bits).



    G084SN05 V904 AUO TFT Screen Characteristics

    The 8.4 inch AUO TFT Screen features an active area of 170.4 mm (H) x 127.8 mm (V) and a resolution of 800 x 600 pixels, arranged in a RGB vertical stripe pattern with a pixel pitch of 0.213 mm. Operating in a TN (Twisted Nematic) normally white display mode, it has a nominal input voltage of 3.3V and a typical power consumption of 2.94W. The module weighs approximately 250 grams and has physical dimensions of 203.0 mm (W) x 142.5 mm (H) x 8.0 mm (D). It utilizes a 1-channel LVDS electrical interface and features an anti-glare surface treatment with a hardness rating of 3H, supporting 262K colors (6-bit) and 16.2M colors (8-bit). Designed to operate within a temperature range of -30°C to +80°C, with the same range for storage, the module is also RoHS compliant, ensuring adherence to environmental standards

    8.4" TFT-LCD Product Specifications

    Numero di modello G084SN05 V.904
    Dimensione 8.4
    Risoluzione 800*600
    Dimensione del contorno 203*142.5*8
    Area attiva 170.4*127.8
    Luminosità (cd/m²) 450
    Interfaccia LVDS
    Visualizza la direzione TN
    Temperatura di esercizio -30~80
    Temperatura di stoccaggio -30~80
    Durata del LED 50000
    Supporto per touchscreen Senza
    Rapporto di contrasto 600:1
    Alimentazione 3.3V
    Tipo di display LCD a colori

    8.4" TFT LCD Custom Solutions

    Ottimizzate le vostre soluzioni via cavo

    Regolate la lunghezza, la posizione e la piedinatura dei vostri cavi o aggiungete connettori supplementari per migliorare la funzionalità. Ottenete una soluzione di cavi personalizzata, progettata per semplificare le connessioni e garantire prestazioni sicure e affidabili.

    PCB Modifications

    Choose from a variety of variations in PCB shape, size, pin and component layout to make it fully suitable for your application.

    Elevare l'esperienza dell'utente con la tecnologia touch screen

    Migliorate la vostra esperienza utente con la tecnologia touch screen capacitiva o resistiva. Personalizzeremo lo spessore del vetro e la forma del pannello tattile per garantire un adattamento perfetto ai vostri requisiti di progettazione.

    custom touch

    Vetro di copertura personalizzato

    Equipaggiate il vostro display con un vetro di copertura tagliato su misura per aumentare la durata e le prestazioni. Scegliete tra vari spessori e optate per l'incollaggio ottico per proteggere il display da umidità e detriti, garantendo una soluzione affidabile e duratura.

    AUO G084SN05 V904 8.4-Inch LCD Replacement FAQ

    How do I confirm that I need the AUO G084SN05 V904?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 8.4-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the AUO G084SN05 V904?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How does the AUO G084SN05 V904 compare with the IVO M084GNS1 R1?

    Both catalog listings show 8.4 inches, 800 × 600 and LVDS. The catalog lists −30 °C to +80 °C for the AUO panel and −20 °C to +70 °C for the IVO panel. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Compare IVO M084GNS1 R1

    Is the AUO G084SN05 V904 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Informazioni aggiuntive

    Dimensioni:

    Numero di modello

    G084SN05 V.904

    Risoluzione:

    Interfaccia:

    Luminosità (cd/m²):

    450

    Temperatura di esercizio:

    -30℃~80℃

    Supporto per touchscreen:

    Tipo di display:

    Soluzioni espositive personalizzate

    Collaborate con i nostri esperti di progettazione per creare il display perfetto per la vostra applicazione.
