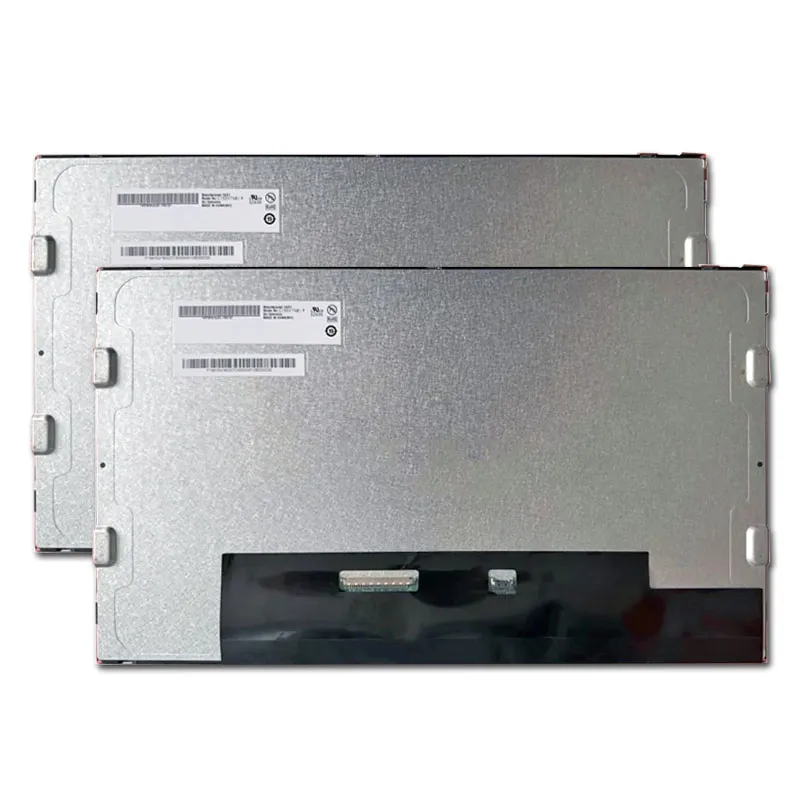

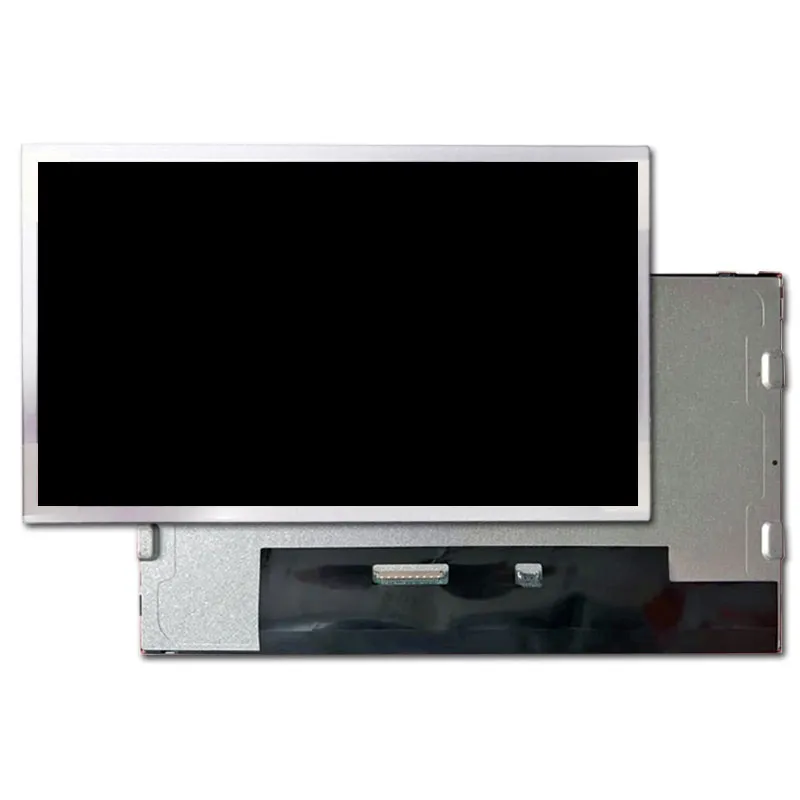

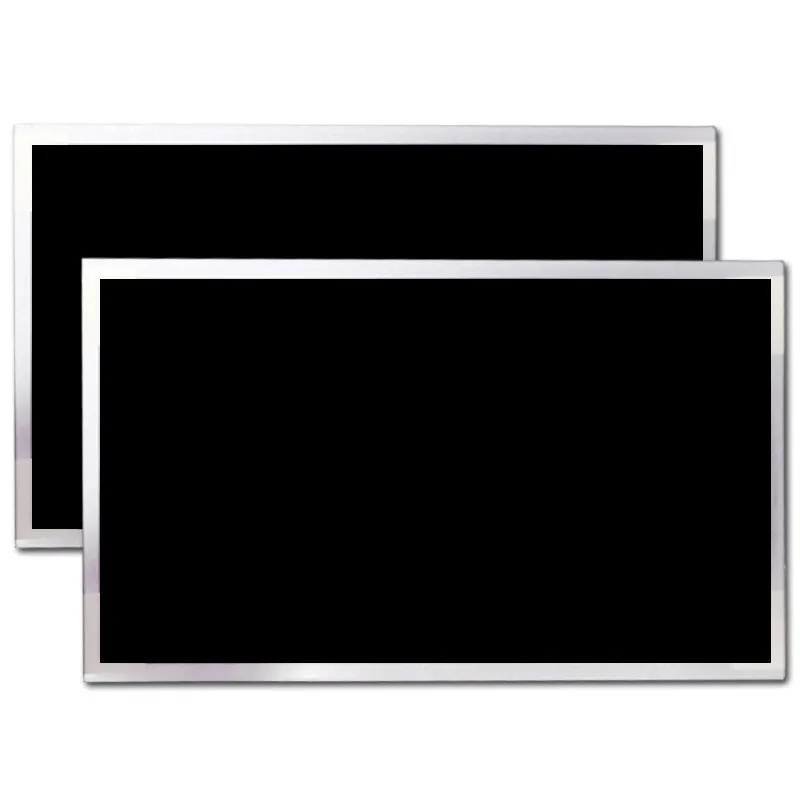

AUO G156XTN01.0 Industrial LCD Panel 1366*768 Luminance 400cd/m²

COD: DS50040
Dimensioni:

Numero di modello

G156XTN01.0

Risoluzione:

Interfaccia:

Luminosità (cd/m²):

400

Temperatura di esercizio:

-30℃~ 85℃

Supporto per touchscreen:

Tipo di display:

Resources:

15.6 inch G156XTN01.0 Industrial LCD Panel  offering Resolution 1366*768  Brightness 400cd/m²  Operating Temperature from -30~85℃ Interface LVDS 30 pin  Stable supply  Original A grade quality

Richiesta di prezzi a volume







    Descrizione

    AUO G156XTN01.0 Key Features

    The 15.6 inch AUO G156XTN01.0 Industrial LCD Panel is designed to meet the demands of industrial applications, featuring a resolution of 1366 x 768 pixels that delivers clear and reliable visuals. With a brightness level of 400 cd/m², this panel ensures good visibility in various lighting conditions, making it suitable for indoor and outdoor use. It operates efficiently within an extensive temperature range of -30 to 85°C, providing dependable performance even in extreme environments. The display utilizes a 30-pin LVDS interface, allowing for seamless integration into various systems and enhancing its versatility across multiple applications. As an original A-grade quality product with a stable supply, the G156XTN01.0 is perfect for industrial automation, control systems, and other demanding applications, ensuring durability and long-lasting performance.



    G156XTN01.0 Application

    The 15.6 inch AUO G156XTN01.0 Industrial LCD Panel is highly versatile and suited for a range of applications across various industries. Its resolution of 1366 x 768 pixels and brightness of 400 cd/m² make it ideal for industrial automation, where clear visuals are essential for control panels and human-machine interfaces (HMIs). The panel's wide operating temperature range of -30 to 85°C allows it to perform reliably in harsh environments, making it suitable for use in outdoor settings and transportation displays. Additionally, its 30-pin LVDS interface facilitates easy integration into consumer electronics and medical devices, providing dependable performance in applications that require durability and high-quality display solutions. This makes the G156XTN01.0 an excellent choice for various sectors, including manufacturing, logistics, and healthcare.

    15.6" TFT-LCD Product Specifications

    Numero di modello G156XTN01.0
    Dimensione 15.6
    Risoluzione 1366*768
    Dimensione del contorno 363.8*215.9*9.6
    Area attiva 344.232*193.536
    Luminosità (cd/m²) 400
    Interfaccia LVDS
    Visualizza la direzione TN
    Temperatura di esercizio -30~85
    Temperatura di stoccaggio -30~85
    Durata del LED 50000
    Supporto per touchscreen Senza
    Rapporto di contrasto 800:1
    Alimentazione 3.3V
    Tipo di display LCD a colori

    15.6" TFT LCD Custom Solutions

    Ottimizzate le vostre soluzioni via cavo

    Regolate la lunghezza, la posizione e la piedinatura dei vostri cavi o aggiungete connettori supplementari per migliorare la funzionalità. Ottenete una soluzione di cavi personalizzata, progettata per semplificare le connessioni e garantire prestazioni sicure e affidabili.

    PCB Modifications

    Choose from a variety of variations in PCB shape, size, pin and component layout to make it fully suitable for your application.

    Elevare l'esperienza dell'utente con la tecnologia touch screen

    Migliorate la vostra esperienza utente con la tecnologia touch screen capacitiva o resistiva. Personalizzeremo lo spessore del vetro e la forma del pannello tattile per garantire un adattamento perfetto ai vostri requisiti di progettazione.

    custom touch

    Vetro di copertura personalizzato

    Equipaggiate il vostro display con un vetro di copertura tagliato su misura per aumentare la durata e le prestazioni. Scegliete tra vari spessori e optate per l'incollaggio ottico per proteggere il display da umidità e detriti, garantendo una soluzione affidabile e duratura.

    AUO G156XTN01.0 15.6-Inch LCD Replacement FAQ

    How do I confirm that I need the AUO G156XTN01.0?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 15.6-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the AUO G156XTN01.0?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How do I qualify a different panel as a replacement for the AUO G156XTN01.0?

    Use 1366 × 768 to shortlist a candidate while keeping the complete interface and mechanical requirements in your acceptance criteria. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Is the AUO G156XTN01.0 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Informazioni aggiuntive

    Dimensioni:

    Numero di modello

    G156XTN01.0

    Risoluzione:

    Interfaccia:

    Luminosità (cd/m²):

    400

    Temperatura di esercizio:

    -30℃~ 85℃

    Supporto per touchscreen:

    Tipo di display:

    Soluzioni espositive personalizzate

    Collaborate con i nostri esperti di progettazione per creare il display perfetto per la vostra applicazione.
