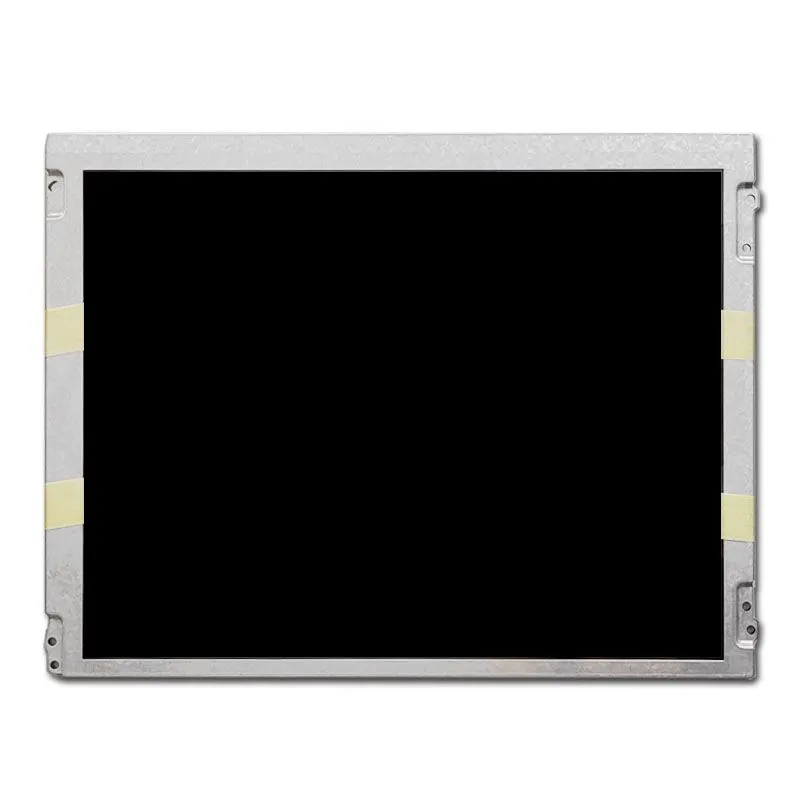

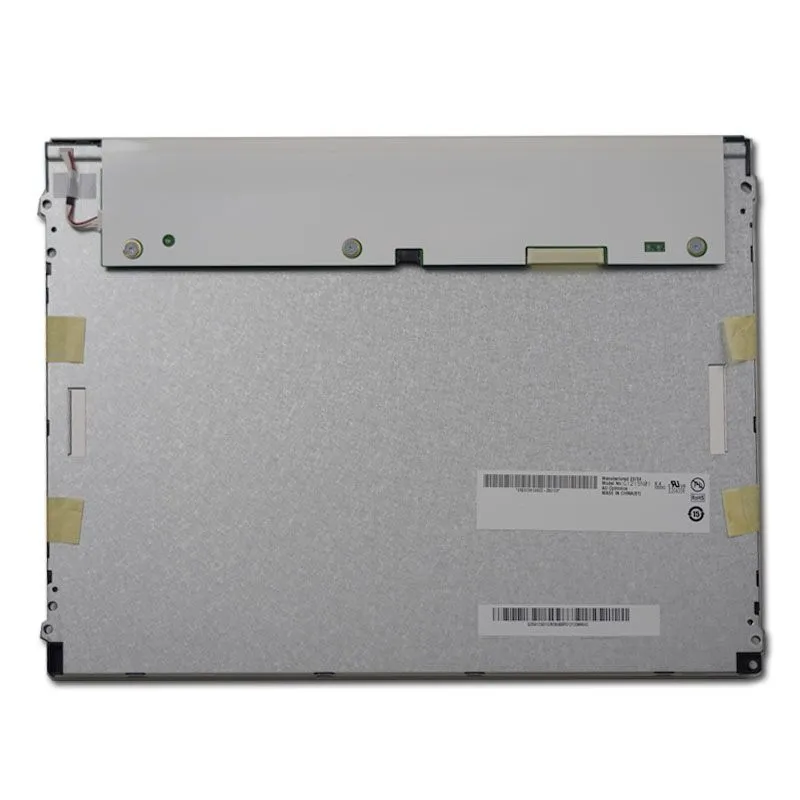

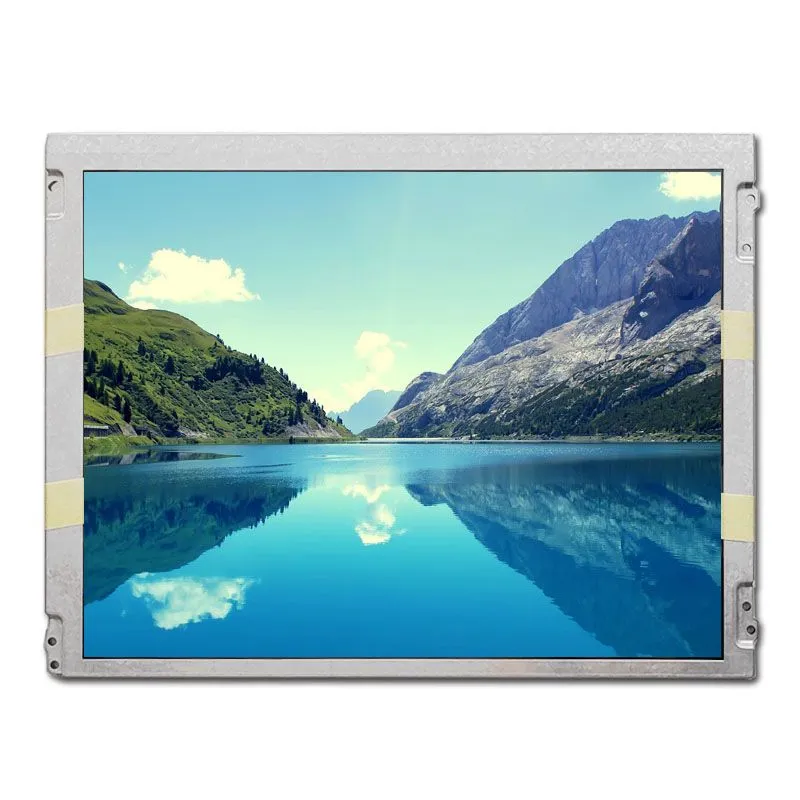

12.1” G121SN01 V403 AUO Panel 800*600 Luminance 500 cd/m²

COD: DS50023
Dimensioni:

Numero di modello

G121SN01 V403

Risoluzione:

Interfaccia:

Luminosità (cd/m²):

500

Temperatura di esercizio:

-30℃~ 85℃

Supporto per touchscreen:

Tipo di display:

Resources:

G121SN01 V403 from Brand AUO, Resolution 800*600, Brightness 500cd/m² Operating Temperature from -30~85℃, LVDS 20 pin, Stable supply, Original A grade quality

Richiesta di prezzi a volume







    Descrizione

    AUO G121SN01 V403 Key Features

    The AUO G121SN01 V403 is a versatile high-quality display featuring a resolution of 800 x 600 pixels and a brightness level of 500 cd/m², ensuring clear and vibrant visuals suitable for both indoor and outdoor environments. Built to operate efficiently in extreme conditions, it supports an operating temperature range of -30 to 85°C, making it reliable for demanding applications. The display utilizes an LVDS 20-pin interface for easy integration into various systems. Known for its stable supply and original A-grade quality, the G121SN01 V403 guarantees durability and long-lasting performance, making it ideal for industrial applications, automotive displays, and consumer electronics.



    AUO G121SN01 V403 Applications

    The G121SN01 V403 TFT LCD display module is highly versatile, suitable for a range of applications. It can be customized with specialized backlight configurations for specific needs, such as industrial control panels, and can be equipped with an anti-glare coating to enhance visibility in bright environments, making it ideal for outdoor use. Additionally, the display can offer a wide color gamut, ensuring vibrant color reproduction for applications requiring accurate color representation, such as graphic design and video editing. Its robust design makes it well-suited for integration into industrial control panels, HMI systems, and other automation applications, providing a durable and reliable display solution.

    12.1" TFT-LCD Product Specifications

    Numero di modello G121SN01 V403
    Dimensione 12.1
    Risoluzione 800*600
    Dimensione del contorno 279*209*9.5
    Area attiva 246*184.5
    Luminosità (cd/m²) 500
    Interfaccia LVDS
    Visualizza la direzione TN
    Temperatura di esercizio -30~85
    Temperatura di stoccaggio -30~85
    Durata del LED 50000
    Supporto per touchscreen Senza
    Rapporto di contrasto 700:1
    Alimentazione 3.3V
    Tipo di display LCD a colori

    12.1" TFT LCD Custom Solutions

    Ottimizzate le vostre soluzioni via cavo

    Regolate la lunghezza, la posizione e la piedinatura dei vostri cavi o aggiungete connettori supplementari per migliorare la funzionalità. Ottenete una soluzione di cavi personalizzata, progettata per semplificare le connessioni e garantire prestazioni sicure e affidabili.

    PCB Modifications

    Choose from a variety of variations in PCB shape, size, pin and component layout to make it fully suitable for your application.

    Elevare l'esperienza dell'utente con la tecnologia touch screen

    Migliorate la vostra esperienza utente con la tecnologia touch screen capacitiva o resistiva. Personalizzeremo lo spessore del vetro e la forma del pannello tattile per garantire un adattamento perfetto ai vostri requisiti di progettazione.

    custom touch

    Vetro di copertura personalizzato

    Equipaggiate il vostro display con un vetro di copertura tagliato su misura per aumentare la durata e le prestazioni. Scegliete tra vari spessori e optate per l'incollaggio ottico per proteggere il display da umidità e detriti, garantendo una soluzione affidabile e duratura.

    AUO G121SN01 V403 12.1-Inch LCD Replacement FAQ

    How do I confirm that I need the AUO G121SN01 V403?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 12.1-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the AUO G121SN01 V403?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How does the AUO G121SN01 V403 compare with the Innolux G121AGE-L03?

    Both catalog listings show 12.1 inches, 800 × 600 and LVDS. The catalog lists 500 cd/m² for the AUO panel and 450 cd/m² for the Innolux panel. Compare readability through the same cover at the intended viewing angle. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Compare Innolux G121AGE-L03

    Is the AUO G121SN01 V403 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Informazioni aggiuntive

    Dimensioni:

    Numero di modello

    G121SN01 V403

    Risoluzione:

    Interfaccia:

    Luminosità (cd/m²):

    500

    Temperatura di esercizio:

    -30℃~ 85℃

    Supporto per touchscreen:

    Tipo di display:

    Soluzioni espositive personalizzate

    Collaborate con i nostri esperti di progettazione per creare il display perfetto per la vostra applicazione.
