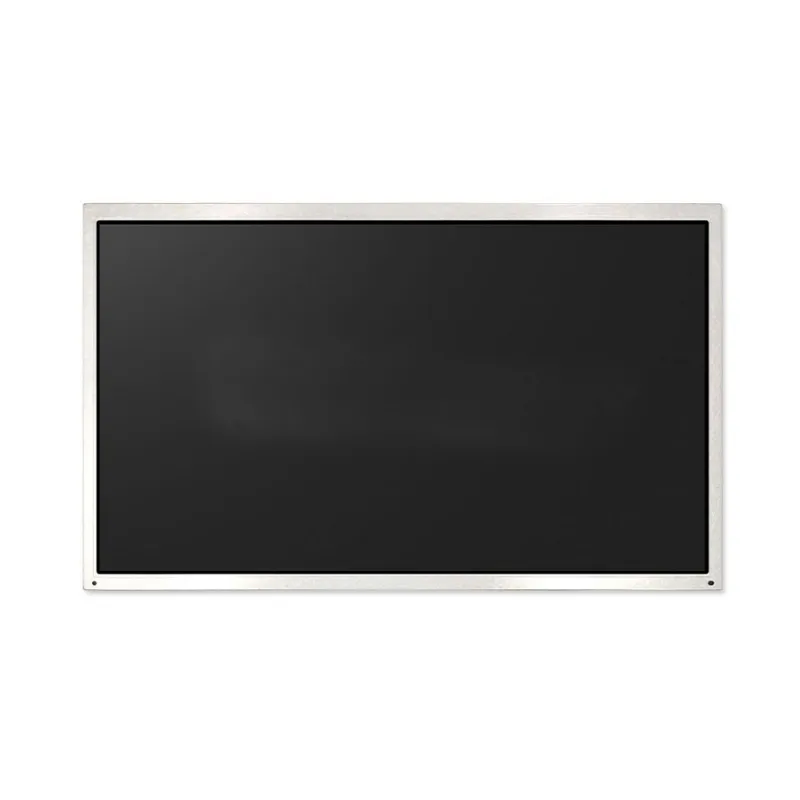

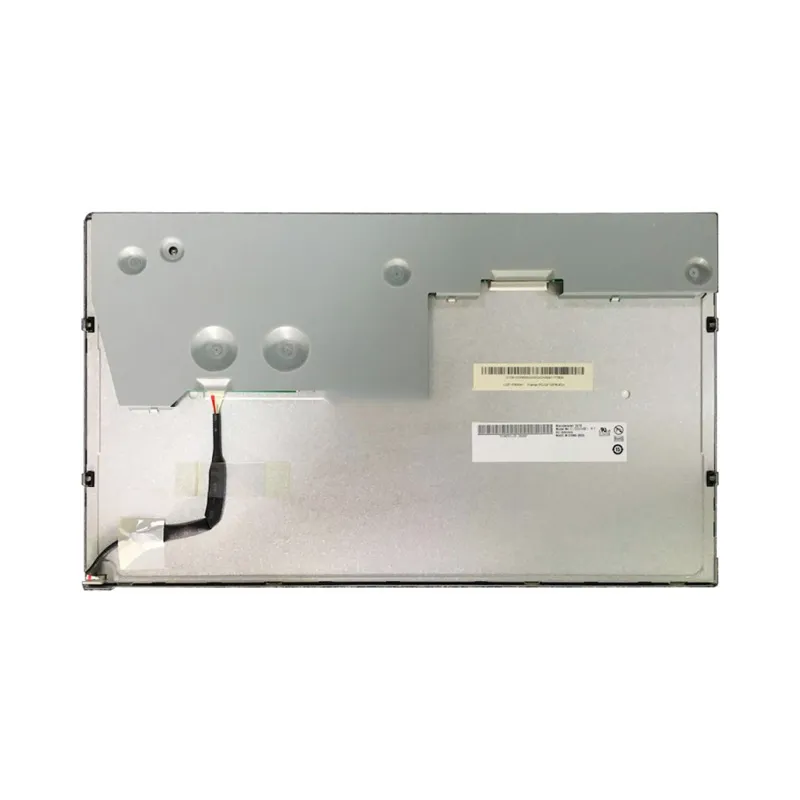

AUO G156XW01 V100 15.6-inch ,Reliable TN LCD Panel – 1366×768 Resolution, 300 Brightness.

COD: DS50097
Dimensioni:

Numero di modello

G156XW01 V100

Risoluzione:

Interfaccia:

Temperatura di esercizio:

-0℃~60℃

Luminosità (cd/m²):

300

Supporto per touchscreen:

Tipo di display:

Resources:

G156XW01 V100 15.6-inch AUO LCD Panel – 1366×768 Resolution, Wide Viewing Angles, LVDS Interface, 5V Low-Power Design for Office & Education.

Richiesta di prezzi a volume







    Descrizione

    Low-Power LCD Key Features:

    The AUO G156XW01 V100 is a 15.6-inch TN LCD panel optimized for indoor applications requiring crisp visuals and energy efficiency. With a 1366×768 resolution and 85/85/80/80 wide viewing angles, it ensures clear readability from multiple orientations. The 300cd/m² brightness and 500:1 contrast ratio deliver balanced color performance for text and graphics. Its 5V low-power design reduces energy consumption, while the LVDS interface guarantees stable signal transmission. Built to last, it operates reliably between 0°C and 60°C and withstands storage temperatures from -20°C to 60°C. The slim 17.35mm profile and compact outline (363.8×215.9mm) enable easy integration into space-limited setups. With a 50,000-hour LED lifespan and TN technology, it’s a cost-effective choice for long-term use in commercial and educational environments.



    Applications & Performance:

    Ideal for indoor environments, the AU Optronics 15.6-inch G156XW01 V100 excels in retail POS systems, digital signage, classroom monitors, and office displays. Its wide viewing angles ensure consistent visibility for collaborative settings like conference rooms or interactive kiosks. The 1366×768 resolution provides sharp detail for spreadsheets, presentations, and multimedia content. The LVDS interface minimizes electromagnetic interference, making it suitable for densely wired setups in offices or public spaces. Its 5V power compatibility simplifies integration with low-voltage systems, while the 50,000-hour lifespan reduces maintenance costs for 24/7 applications like airport information boards or hotel check-in terminals. The panel’s durability and moderate temperature tolerance make it a reliable choice for controlled environments requiring stable performance without extreme ruggedization.

    15.6" TFT-LCD Product Specifications

    Numero di modello G156XW01 V100
    Dimensione 15.6
    Risoluzione 1366×768
    Dimensione del contorno 363.8×215.9×17.35
    Area attiva 344.232×193.536
    Luminosità (cd/m²) 300
    Interfaccia LVDS
    Visualizza la direzione TN
    Temperatura di esercizio -0~60
    Temperatura di stoccaggio -20~60
    Durata del LED 50000
    Supporto per touchscreen Senza
    Rapporto di contrasto 500:1
    Alimentazione 5.0V
    Tipo di display LCD a colori

    15.6" TFT LCD Custom Solutions

    Ottimizzate le vostre soluzioni via cavo

    Regolate la lunghezza, la posizione e la piedinatura dei vostri cavi o aggiungete connettori supplementari per migliorare la funzionalità. Ottenete una soluzione di cavi personalizzata, progettata per semplificare le connessioni e garantire prestazioni sicure e affidabili.

    PCB Modifications

    Choose from a variety of variations in PCB shape, size, pin and component layout to make it fully suitable for your application.

    Elevare l'esperienza dell'utente con la tecnologia touch screen

    Migliorate la vostra esperienza utente con la tecnologia touch screen capacitiva o resistiva. Personalizzeremo lo spessore del vetro e la forma del pannello tattile per garantire un adattamento perfetto ai vostri requisiti di progettazione.

    custom touch

    Vetro di copertura personalizzato

    Equipaggiate il vostro display con un vetro di copertura tagliato su misura per aumentare la durata e le prestazioni. Scegliete tra vari spessori e optate per l'incollaggio ottico per proteggere il display da umidità e detriti, garantendo una soluzione affidabile e duratura.

    AUO G156XW01 V100 15.6-Inch LCD Replacement FAQ

    How do I confirm that I need the AUO G156XW01 V100?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 15.6-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the AUO G156XW01 V100?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How do I qualify a different panel as a replacement for the AUO G156XW01 V100?

    Use 1366 × 768 to shortlist a candidate while keeping the complete interface and mechanical requirements in your acceptance criteria. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Is the AUO G156XW01 V100 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.
