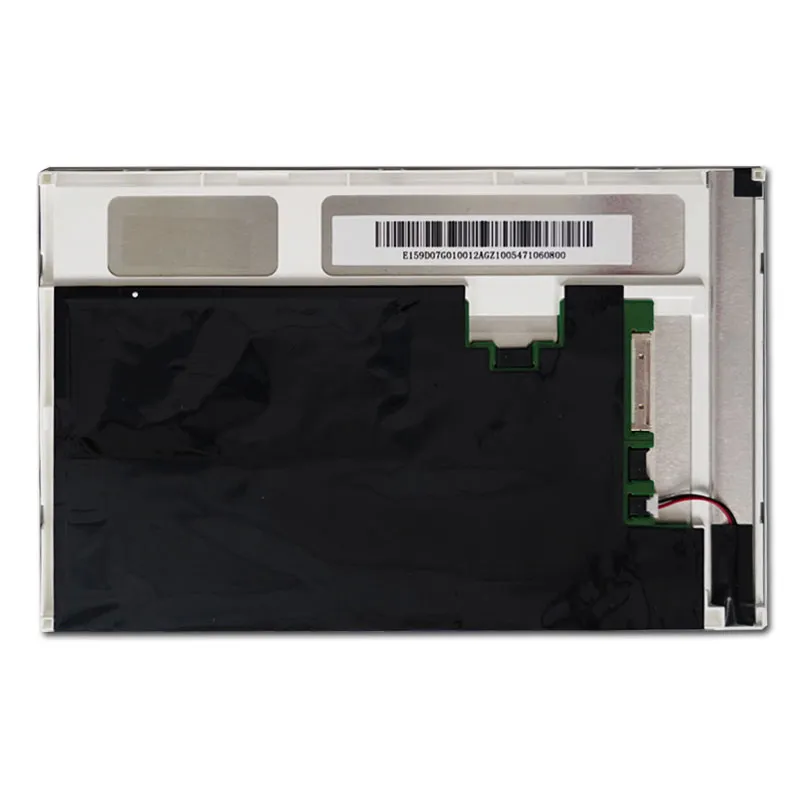

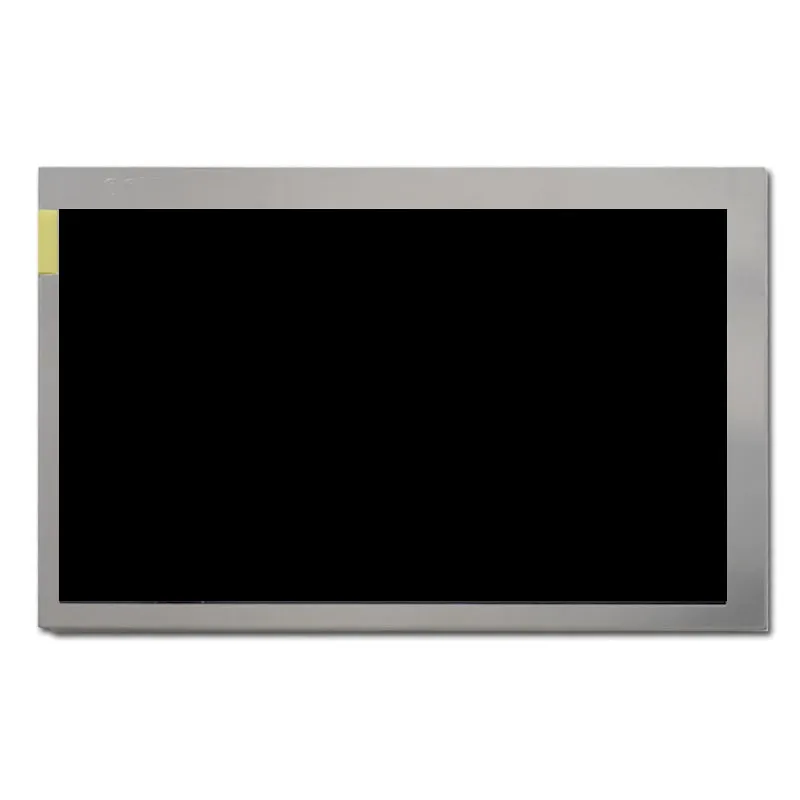

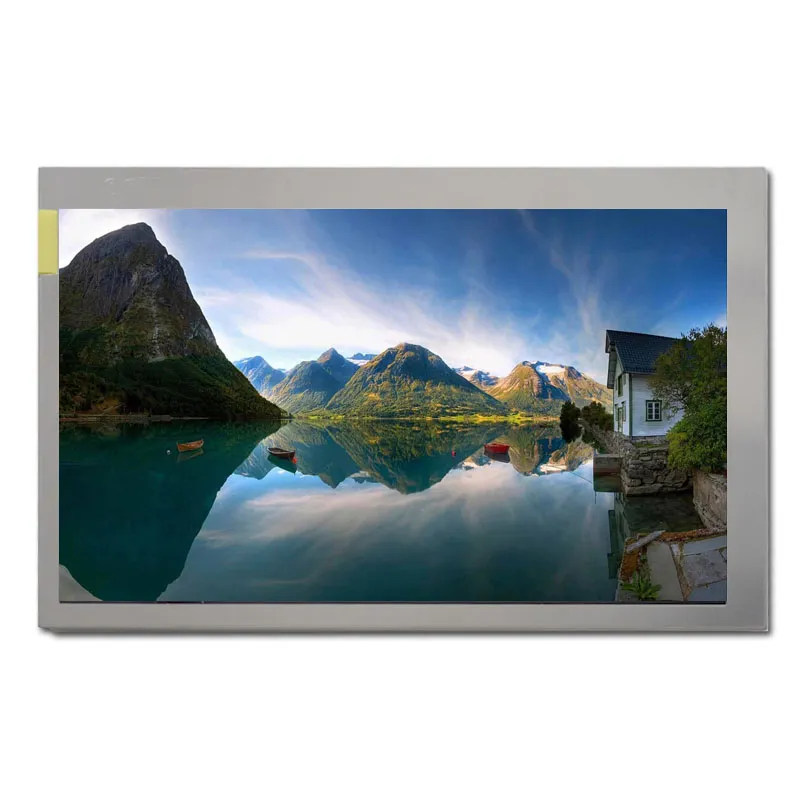

G070VW01 V0 AUO 7 inch TFT Display 800*480 Pixels

COD: DS50004
Dimensioni:

Numero di modello

G070VW01 V012

Risoluzione:

Interfaccia:

Luminosità (cd/m²):

400

Temperatura di esercizio:

-30℃~ 85℃

Supporto per touchscreen:

Tipo di display:

Resources:

G070VW01 V0 from Brand AUO, Resolution 800*480, Wide Temperature from -30~85℃, 1 channel LVDS, Stable supply, Original A grade quality

Richiesta di prezzi a volume







    Descrizione

    G070VW01 V0 General Description

    This specification applies to the 7.0 inch color TFT LCD module G070VW01 V0
    G070VW01 V0 designed with wide viewing angle; wide operating temperature and long life LEDs
    backlight is well suited to be the display units for Industrial Applications.
    LED driving board for backlight unit is included in this panel and the structure of the LED units is
    replaceable.
    G070VW01 V0 is built in timing controller and LVDS interface.
    The screen format is intended to support the WVGA (800(H) x 480(V)) screen and 16.2M (RGB
    8-bits) or 262K colors (RGB 6-bits).
    G070VW01 V0 is a RoHS product.



    G070VW01 V0 AUO Display Characteristics

    The 7 inch LCD Display Module features an active area of 152.40 mm (H) x 91.44 mm (V) and a resolution of 800 x 480 pixels, arranged in a RGB vertical stripe pattern with a pixel pitch of 0.1905 mm. Utilizing AHVA technology with a normally black display mode, it operates at a nominal input voltage of 3.3V. The module has a maximum weight of 157 grams and physical dimensions of 170.0 mm (W) x 111.0 mm (H) x 7.5 mm (D). It utilizes a 1-channel LVDS electrical interface and features an anti-glare surface treatment with a hardness rating of 3H, supporting colors of 262K (6-bit) and 16.2M (8-bit). Designed to operate within a temperature range of -30°C to +85°C, and safe for storage in the same range, the module is also RoHS compliant, ensuring adherence to environmental standards.

    7.0" TFT-LCD Product Specifications

    Numero di modello G070VW01 V012
    Dimensione 7.0
    Risoluzione 800*480
    Dimensione del contorno 170*110*8
    Area attiva 152.4*91.44
    Luminosità (cd/m²) 400
    Interfaccia LVDS
    Visualizza la direzione ALL
    Temperatura di esercizio -30~85
    Temperatura di stoccaggio -30~85
    Durata del LED 50000
    Supporto per touchscreen Senza
    Rapporto di contrasto 1000:1
    Alimentazione 3.3V
    Tipo di display LCD a colori

    7.0" TFT LCD Custom Solutions

    Ottimizzate le vostre soluzioni via cavo

    Regolate la lunghezza, la posizione e la piedinatura dei vostri cavi o aggiungete connettori supplementari per migliorare la funzionalità. Ottenete una soluzione di cavi personalizzata, progettata per semplificare le connessioni e garantire prestazioni sicure e affidabili.

    PCB Modifications

    Choose from a variety of variations in PCB shape, size, pin and component layout to make it fully suitable for your application.

    Elevare l'esperienza dell'utente con la tecnologia touch screen

    Migliorate la vostra esperienza utente con la tecnologia touch screen capacitiva o resistiva. Personalizzeremo lo spessore del vetro e la forma del pannello tattile per garantire un adattamento perfetto ai vostri requisiti di progettazione.

    custom touch

    Vetro di copertura personalizzato

    Equipaggiate il vostro display con un vetro di copertura tagliato su misura per aumentare la durata e le prestazioni. Scegliete tra vari spessori e optate per l'incollaggio ottico per proteggere il display da umidità e detriti, garantendo una soluzione affidabile e duratura.

    AUO G070VW01 V0 7-Inch LCD Replacement FAQ

    How do I confirm that I need the AUO G070VW01 V0?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 7-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the AUO G070VW01 V0?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How does the AUO G070VW01 V0 compare with the Innolux G070ACE-L01?

    Both catalog listings show 7 inches, 800 × 480 and LVDS. The catalog lists 400 cd/m² for the AUO panel and 500 cd/m² for the Innolux panel. Compare readability through the same cover at the intended viewing angle. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Compare Innolux G070ACE-L01

    Is the AUO G070VW01 V0 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.
