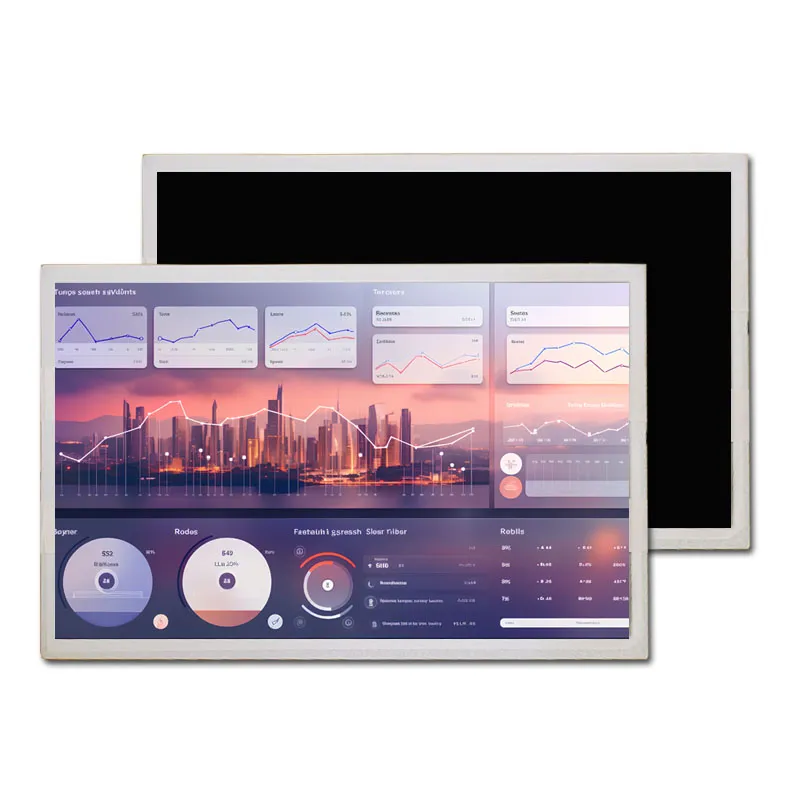

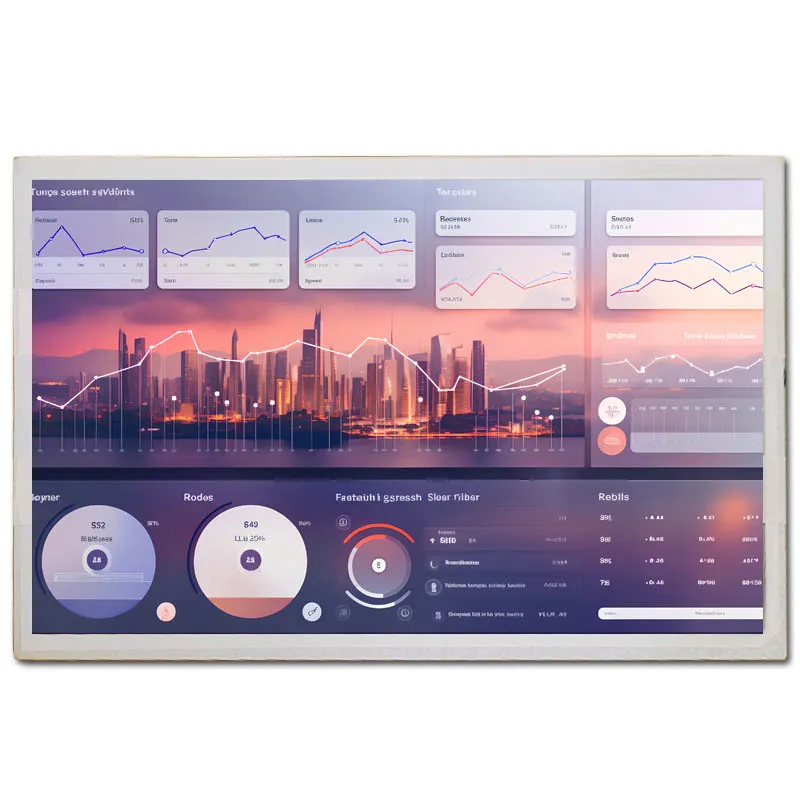

G101ICE-LM1 10.1 inch Ultra-Slim IPS LCD, 350cd/m² Brightness, Commercial & Light Industrial Displays

COD: DS50231
Dimensioni:

Numero di modello

G101ICE-LM1

Risoluzione:

Interfaccia:

Temperatura di esercizio:

-10℃~60℃

Supporto per touchscreen:

Tipo di display:

Innolux G101ICE-LM1 10.1 inch Ultra-Thin Clarity: 1280×800 IPS Screen for Retail Kiosks & Medical Monitors.

Richiesta di prezzi a volume







    Descrizione

    G101ICE-LM1 General Desription

    The Innolux G101ICE-LM1 is a 10.1-inch ultra-thin IPS LCD panel optimized for space-sensitive commercial applications. With a remarkably slim 2.8mm profile and 1280×800 resolution, it delivers crisp visuals while maximizing installation flexibility. The 88/88/88/88 ultra-wide viewing angle ensures consistent color accuracy for multi-user environments like retail kiosks and conference rooms. Operating at 350cd/m² brightness with 800:1 contrast ratio, it balances energy efficiency (5.0V power) with clarity for indoor settings. Engineered for reliability, it withstands -10°C~60°C temperatures and offers 50,000-hour LED lifespan. The LVDS interface ensures stable signal transmission for POS systems and digital signage, while the lightweight design (227.4×147.7mm) simplifies integration into wall-mounted or portable devices.



    Application & Performanc

    Ideal for indoor digital menu boards, medical bedside monitors, and office automation panels, this display excels in controlled environments. Its 350cd/m² brightness suits supermarket shelf labels and hotel lobby info screens, while the 2.8mm thickness enables seamless embedding in smart vending machines and thin-client terminals. The wide temperature range supports pharmacy inventory systems and warehouse management dashboards. IPS clarity enhances collaborative workspaces like co-working hub displays and educational tablets. LVDS compatibility ensures EMI resistance for bank ATM interfaces and library self-checkout stations. The slim form factor adapts to IoT conference room schedulers and minimalist retail signage with zero bezel distractions.

    10.1" Product Specifications

    Diagonal Size 10.1 inch
    Pixel Number 1280×800
    Luminance 350
    Module Size 227.42×147.69×2.8
    Area attiva 216.96×135.6
    Viewing Direction IPS
    View Angle(U/D/R/L) 88/88/88/88
    Interfaccia LVDS
    Rapporto di contrasto 800:1
    Temperatura di esercizio -10 ~ 60 °C
    Temperatura di stoccaggio -20 ~ 70 °C
    Durata del LED 50000
    Supporto per touchscreen Senza
    Alimentazione 3.3V
    Tipo di display Color TFT

    Innolux LCD Display Custom Solutions

    Ottimizzate le vostre soluzioni via cavo

    Regolate la lunghezza, la posizione e la piedinatura dei vostri cavi o aggiungete connettori supplementari per migliorare la funzionalità. Ottenete una soluzione di cavi personalizzata, progettata per semplificare le connessioni e garantire prestazioni sicure e affidabili.

    PCB Modifications

    Choose from a variety of variations in PCB shape, size, pin and component layout to make it fully suitable for your application.

    Elevare l'esperienza dell'utente con la tecnologia touch screen

    Migliorate la vostra esperienza utente con la tecnologia touch screen capacitiva o resistiva. Personalizzeremo lo spessore del vetro e la forma del pannello tattile per garantire un adattamento perfetto ai vostri requisiti di progettazione.

    custom touch

    Vetro di copertura personalizzato

    Equipaggiate il vostro display con un vetro di copertura tagliato su misura per aumentare la durata e le prestazioni. Scegliete tra vari spessori e optate per l'incollaggio ottico per proteggere il display da umidità e detriti, garantendo una soluzione affidabile e duratura.

    Innolux G101ICE-LM1 10.1-Inch LCD Replacement FAQ

    How do I confirm that I need the Innolux G101ICE-LM1?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 10.1-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the Innolux G101ICE-LM1?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How does the Innolux G101ICE-LM1 compare with the AUO G101EAN02.1?

    Both catalog listings show 10.1 inches, 1280 × 800 and LVDS. The catalog lists −10 °C to +60 °C for the Innolux panel and −20 °C to +60 °C for the AUO panel. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Compare AUO G101EAN02.1

    Is the Innolux G101ICE-LM1 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Informazioni aggiuntive

    Dimensioni:

    Numero di modello

    G101ICE-LM1

    Risoluzione:

    Interfaccia:

    Temperatura di esercizio:

    -10℃~60℃

    Supporto per touchscreen:

    Tipo di display:

    Soluzioni espositive personalizzate

    Collaborate con i nostri esperti di progettazione per creare il display perfetto per la vostra applicazione.
