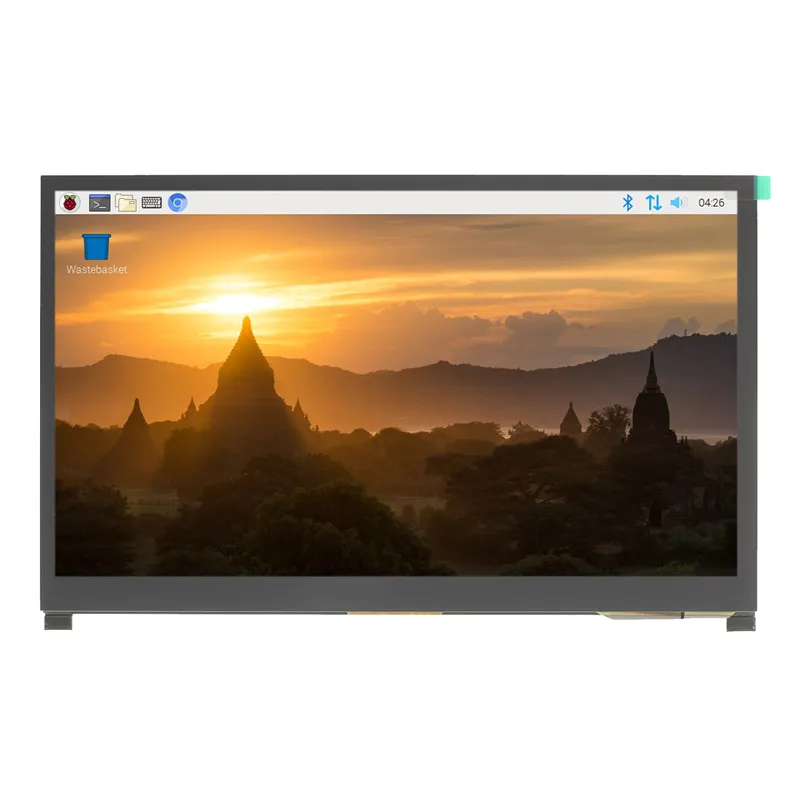

10.1 inch LCD Screens for Raspberry PI with Touch, HDMI Interface

Artikelnummer: DS20224
Größe:

Auflösung:

Schnittstelle:

Touchscreen-Unterstützung:

Board Support

Raspberry Pi, Banana Pi, EAIDK, Jetson Nano, BB Black

10.1 inch LCD Screens for Raspberry PI,Banana Pi、EAIDK、Jetson Nano、BB Black, 1024*600 high resolution IPS panel, can as second screen for pc

Preisanfrage für Volumen







    Beschreibung

    10.1" LCD Screens for Raspberry PI Introduction :

    IPS full-view display screen

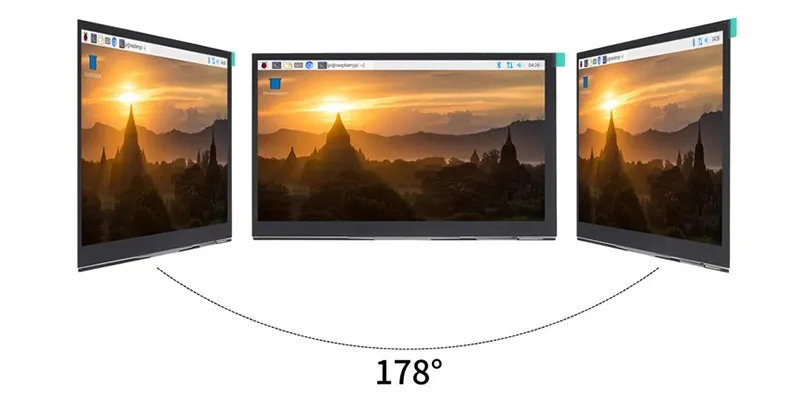

    ○1024X600 HD resolution, up to 178° full-view panel
    Used as a Raspberry Pi display
    ○Supports Raspberry Pi back-to-back direct installation and locking, convenient and fast

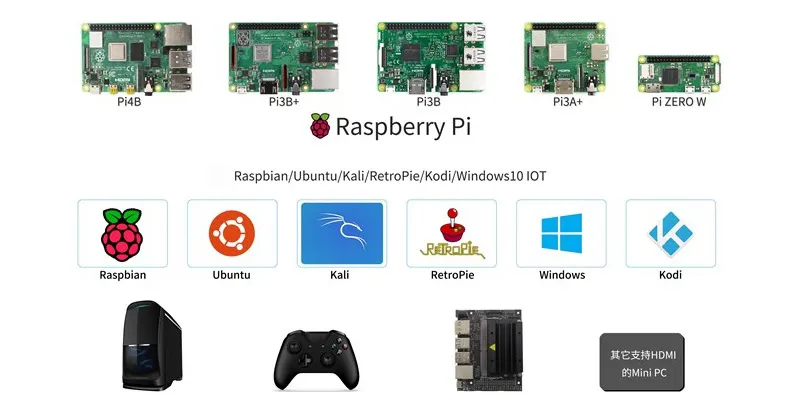

    ○Supports mainstream development boards such as Raspberry Pi, Banana Pi, EAIDK, Jetson Nano, BB Black, etc.

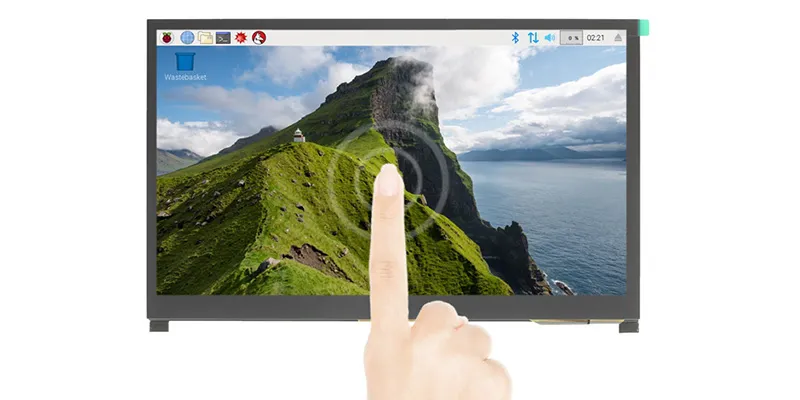

    ○Supports mainstream systems such as Raspbian, Kali linux, Ubuntu, etc. when used with Raspberry Pi, supports touch, plug-and-play and driver-free.
    Used as a mini PC display
    ○Can be used as a computer secondary screen display (Windows supports 5-point touch), with other Mini PC monitors
    Can be installed with a bracket

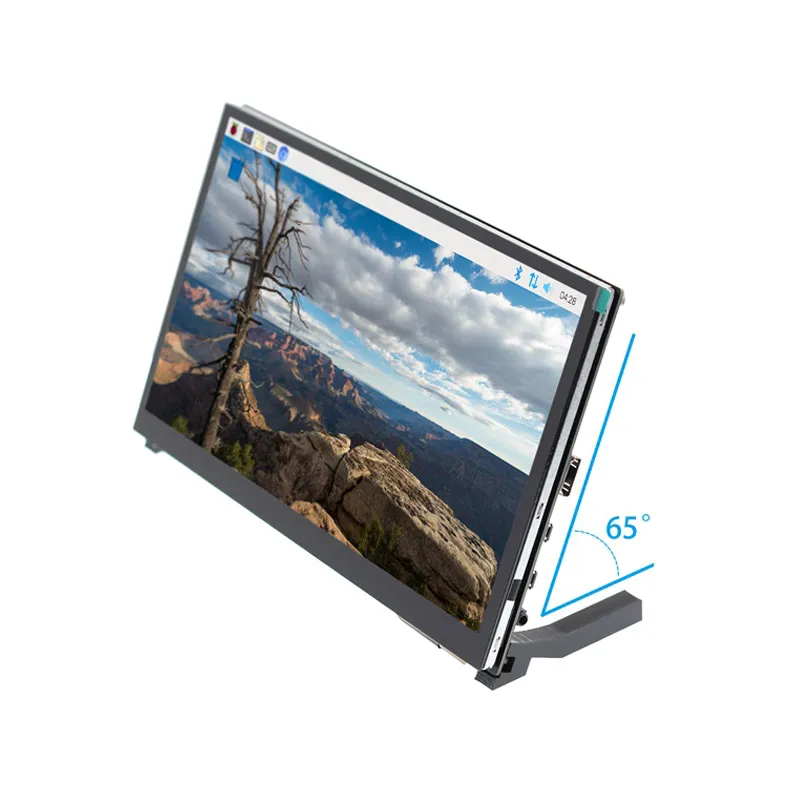

    ○Equipped with a 65° bracket, easy to install, simple and practical, and instantly becomes a vertical display
    Adjustable backlight
    ○Built-in backlight adjustment system, adjustable brightness
    Built-in sound system
    ○Built-in high-fidelity stereo dual-speaker speaker system with sound cavity, adjustable volume

    10.1 Raspberry Pi Touch Screen 1
    10.1 Raspberry Pi Touch Screen 2
    10.1 Raspberry Pi Touch Screen 3
    10.1 Raspberry Pi Touch Screen 4
    10.1 Raspberry Pi Touch Screen 5

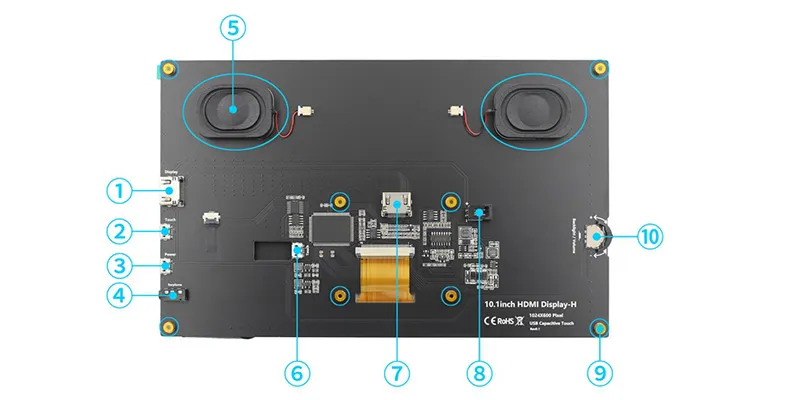

    Interface Function:

    10.1 Raspberry Pi Touch Screen 6



    Button& Interface Note
    ① HDMI interface Input HDMI signal Usually use  HDMI cable to connect to computer, maximum supported resolution 1920x1080
    ② Touch interface Transmit touch signal, use Micro-USB cable to connect, provide touch and power supply functions, often used to connect to computer
    ③ Power interface Use Micro-USB cable to connect power supply, only provide power supply function
    ④ 3.5mm audio output interface Output audio signal, connect audio output device, such as headphones
    ⑤ Stereo dual speakers Large sound cavity, output shocking sound quality
    ⑥ Touch interface Transmit touch signal, use Micro-USB adapter to connect, only used to connect to Raspberry Pi, provide touch and display power supply function
    ⑦ HDMI interface Input HDMI signal, use HDMI adapter to connect, only used to connect to Raspberry Pi, maximum supported resolution 1024x600
    ⑧ Cooling fan interface Connect to cooling fan
    ⑨ SMD copper column x 8 Used to connect Raspberry Pi and bracket
    ⑩ Dial switch Used to adjust the volume and backlight brightness; by default, up is volume +, down is volume -; press once to enter the backlight brightness adjustment menu; press again to enter the volume adjustment menu; press again to close the menu




    10.1" Raspberry Pi Touch Screen Key Parameters :

    Size(inch) 10.1
    Resolution(pixels) 1024*600
    Display material IPS full-view panel
    Berühren Sie USB capacitive touch
    Speaker power 8 ohms 2W x2

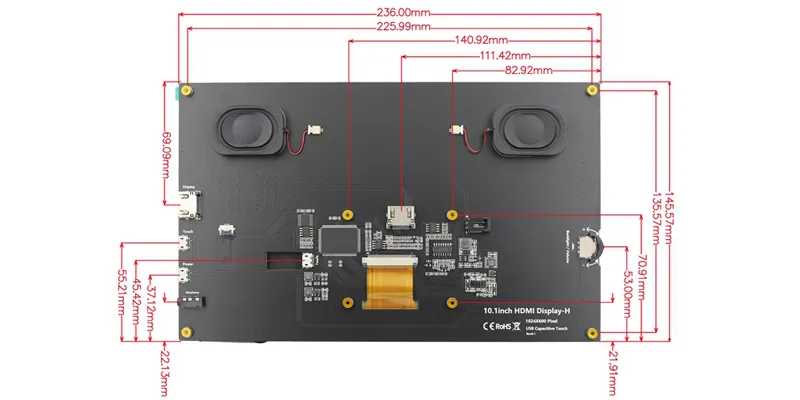

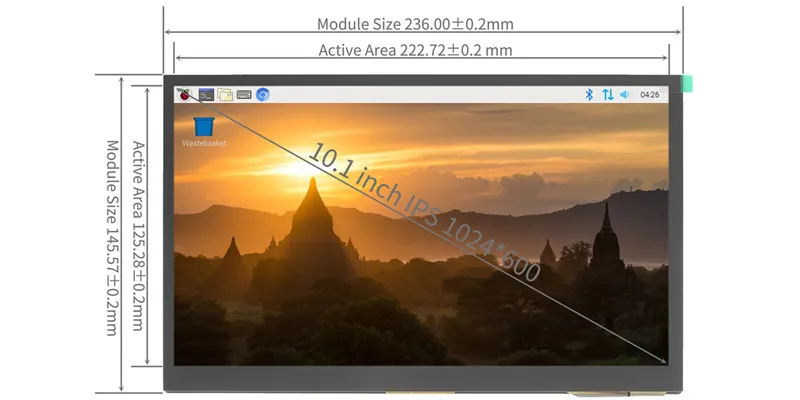

    Module size(mm) 236.00*145.57*20.00
    Packaging size(mm) 295*195*70
    Product weight(g) 900

    Download

    10.1-Inch 1024 × 600 Raspberry Pi Display FAQ

    Can I mount this display with my Raspberry Pi and still reach the connectors?

    Use the 10.1-inch diagonal to shortlist display assemblies, then check the exact drawing for fit. Check the mounting stack, cable exit, port access and clearance for the actual Pi model and enclosure. Test fit with power and data cables plugged in.

    Will this display work with my Raspberry Pi model and OS image?

    For the listed HDMI interface, confirm the source can output a mode accepted by the supplied controller and check separately how the display is powered. Send us the Pi model, OS image and kernel version. Confirm the display mode and any touch driver on that exact setup before committing to the hardware.

    Raspberry Pi screen guide

    How should I compare this screen with another Raspberry Pi display?

    Try your application in its intended orientation on a 1024 × 600 canvas before committing to the enclosure. Compare boot reliability, usable screen area, power budget and the OS setup each option needs. Judge readability on the assembled product with its final cover and ambient lighting.

    Can I change the mounting, cable set, or touch configuration?

    Send the Pi model, OS version, available ports and enclosure drawing. We can review mounting and cable options and confirm how video, power and any touch input will be connected for the proposed configuration.

    What should I send for a Raspberry Pi display sample quote?

    Include the Pi and OS details, panel drawing, sample quantity and expected production volume. Ask for the hardware, accessories and any one-time setup itemized, with sample cost, production quantity breaks and separate delivery dates.
