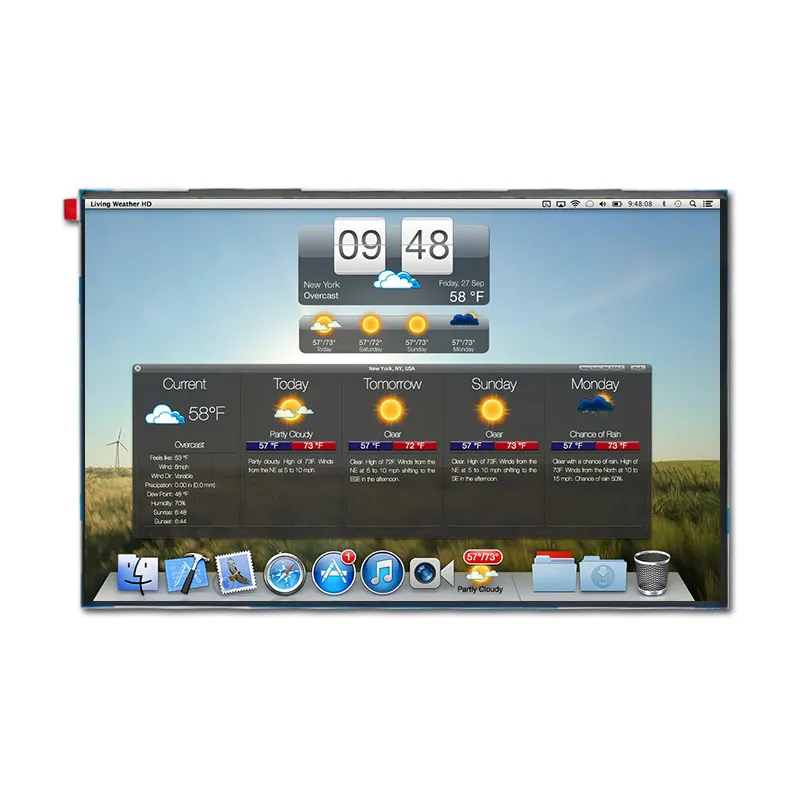

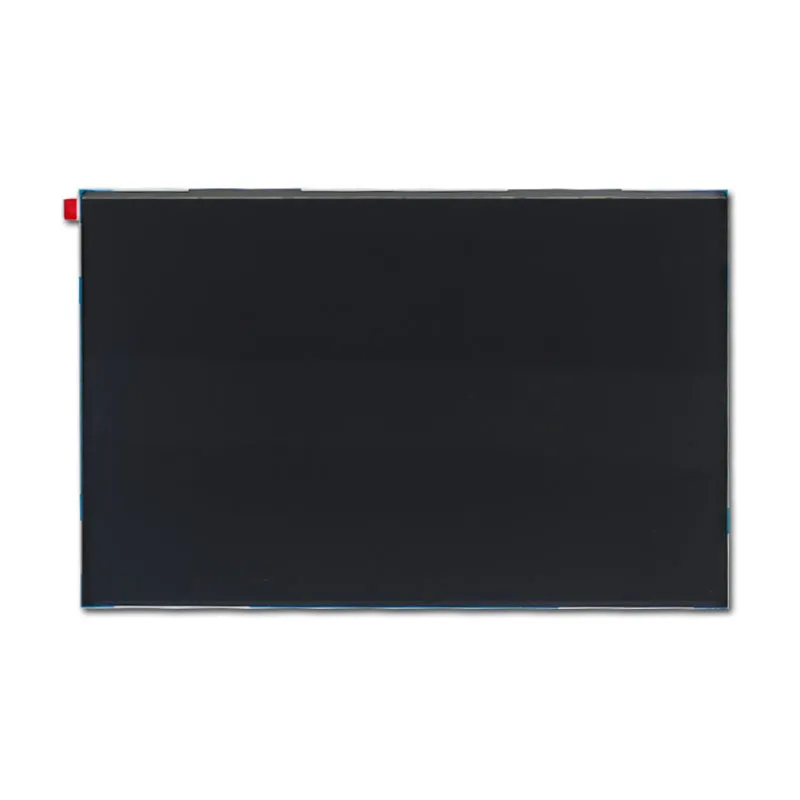

14" AMOLED 1920x1200 Display | EDP Interface | 400nits | Touch Screen

Artikelnummer: DS10050
Größe:

Auflösung:

Schnittstelle:

Betriebstemperatur:

-10℃~60℃

Helligkeit (cd/m²):

400

Touchscreen-Unterstützung:

Anzeige Typ:

Resources:

14" AMOLED with 192x120 resolution, EDP interface & 400nits brightness. -10℃~60℃ operation, 178° full viewing angle, 10-point touch. Ideal for industrial/medical devices.

Preisanfrage für Volumen







    Beschreibung

    14" AMOLED

    14" FHD+ AMOLED Panel with EDP Interface & Industrial-Grade Touch
    Engineered for premium applications, this 14-inch AMOLED delivers 1920x1200 resolution (162 PPI) with 400nits brightness and 100% DCI-P3 color accuracy.



    14" AMOLED Core advantages

    EDP 1.4 Interface: 60Hz refresh rate, 6-lane support for 4K-ready performance
    10-Point Projected Capacitive Touch: Glove/wet-hand operation compatible
    Wide Temp Range: Stable performance from -10℃ to 60℃
    True 178° Viewing Angle: Anti-reflection coating for sunlight readability
    Certified IP65 dust/water resistance (optional). Ideal for aviation HMI, medical monitors, and rugged tablets. Custom OEM solutions with 100000:1 contrast ratio and <1ms response time.
    RoHS/CE/FCC compliant. Contact for volume pricing and technical support.

    14" Amoled Display Product Specifications

    LCD Size(inch) 14(Diagonal)
    Number of Pixels 1920*1200
    Pixel Pitch(um) 157.2*157.2
    Outline Dimension(mm) 67.716*140.654*0.84
    Active Area(mm) 301.824*188.640
    Display type AMOLED
    Schnittstelle EDP
    Ansicht Richtung ALLE
    Power Supply(v) 3.3
    Luminance(cd/m²) 400
    Drive IC HX8874
    Touch IC HX8191
    - -
    - -
    - -

    14" Amoled Custom Solutions

    Optimieren Sie Ihre Kabellösungen

    Passen Sie die Länge, Position und Pinbelegung Ihrer Kabel an, oder fügen Sie zusätzliche Stecker hinzu, um die Funktionalität zu verbessern. Holen Sie sich eine maßgeschneiderte Kabellösung, um Ihre Verbindungen zu optimieren und eine sichere, zuverlässige Leistung zu gewährleisten.

    Anpassung der LCD-Schnittstelle

    Wählen Sie aus einer Vielzahl von Schnittstellenoptionen oder lassen Sie sich von unseren Experten beraten, um die ideale Lösung für Ihr Projekt zu finden. Wir können HDMI, USB, SPI, VGA und mehr in Ihr Display integrieren und Ihnen helfen, Ihre Designziele effizient zu erreichen.

    Erhöhen Sie die Benutzerfreundlichkeit mit Touchscreen-Technologie

    Verbessern Sie Ihr Benutzererlebnis mit kapazitiver oder resistiver Touchscreen-Technologie. Wir passen die Glasdicke und die Form des Touchscreens an, um eine perfekte Anpassung an Ihre Designanforderungen zu gewährleisten.

    custom touch

    Kundenspezifisches Deckglas

    Statten Sie Ihr Display mit einem individuell zugeschnittenen Deckglas aus, um die Haltbarkeit und Leistung zu erhöhen. Wählen Sie aus verschiedenen Stärken und entscheiden Sie sich für eine optische Verklebung, die Schutz vor Feuchtigkeit und Schmutz bietet und eine langlebige und zuverlässige Lösung gewährleistet.

    14-Inch eDP AMOLED Display Module FAQ

    Will this display fit my enclosure and show the whole interface?

    Use the 14-inch diagonal to shortlist display modules, then check the exact drawing for fit. Overlay the visible area, module outline and flex exit on your enclosure drawing. Get the native pixel layout first, then try your menus and text at that layout before committing to the enclosure.

    What must my controller support to drive this display module?

    For the listed eDP interface, match lane count, link rate, power sequencing and connector pinout. Before connecting it, check the power rails and reset sequence in the module documentation.

    How should I compare this display with a similar module for my device?

    For the listed AMOLED, compare dark-scene legibility and how your static icons look in an extended run at the intended brightness. Use the listed 400 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting. Compare the cost and space of any changes to the cable, host board or front cover.

    Can I change the flex cable, add a cover, or integrate touch?

    Send us the mounting drawing, permitted flex exit, connector and cover or touch requirements. We can review which of those changes can be made around the existing display and which require a different module.

    What determines the cost and lead time of a custom display sample?

    Include your display outline, interface, target sample date and estimated annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Individuelle Display-Lösungen

    Zusätzliche Informationen

    Größe:

    Auflösung:

    Schnittstelle:

    Betriebstemperatur:

    -10℃~60℃

    Helligkeit (cd/m²):

    400

    Touchscreen-Unterstützung:

    Anzeige Typ:

    Individuelle Display-Lösungen

    Arbeiten Sie mit unseren technischen Experten zusammen, um das perfekte Display für Ihre Anwendung zu entwickeln.
