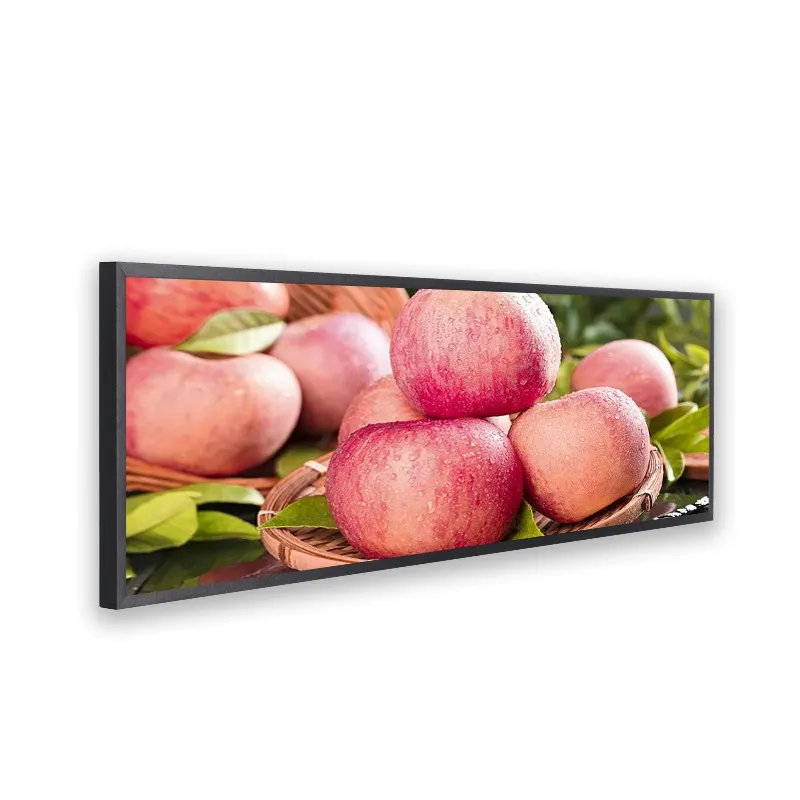

58.4 inch Bar Screen Monitor Resolution 3840*1080 High Contrast Ratio 2000:1

Artikelnummer: DS30010
Größe:

Auflösung:

Schnittstelle:

, , , ,

Helligkeit (cd/m²):

400

Betriebstemperatur:

-0℃~50℃

58.4 inch Bar Screen Monitor, offering resolution 3840*1080, Aspect Ratio 32:9, Brightness 400cd/m2, Interface with Audio/HDMI IN*2/USB/DP IN/DC IN

Preisanfrage für Volumen







    Beschreibung

    58.4 inch Bar screen monitor main features:

    • 178° ultra-wide viewing angle, 2000:1 high contrast ratio
    • High-definition picture quality, smooth playback
    • Long-strip display, can be hung horizontally or vertically
    • Sheet metal frame, protects screen from bumps

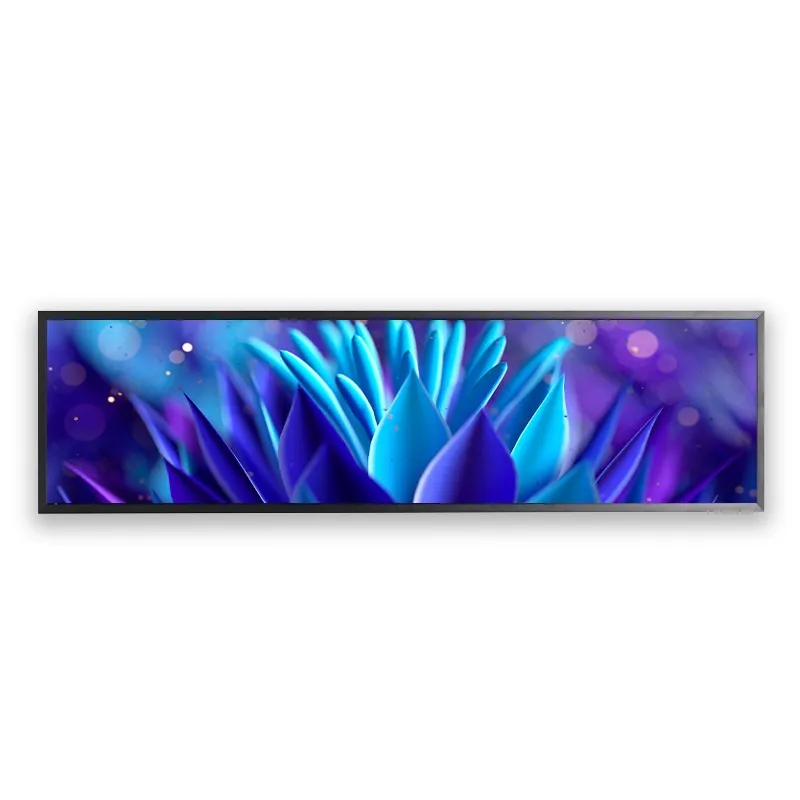

    58.4 inch Bar LCD Display



    56.6 inch Streched LCD monitors Specification
    LCD Display Screen Size 58.4 inch
    Aktiver Bereich 1428*402(mm)
    Outline 1471*445*55(mm)
    Screen Type a-Si TFT-LCD
    Pixel Zahl 3840*1080
    Aspect Ratio 32:9
    Luminance 400 cd/m2
    Kontrastverhältnis 2000:1
    Viewing Angle 89/89/89/89 (Typ.)(CR≥10)
    Color Depth 1.07B   68% NTSC
    Response 8 (Typ.)(G to G) ms
    Pixel Pitch 0.372*0.372(mm)
    Mainboard CPU 9U13
    Ram -
    Flash -
    O/S -
    Schnittstelle Audio/RJ45/HDMI/USB*2/TF/DC IN
    Machine Appearance and Structure Sheet Metal
    Color Black
    Peripheral WIFI/Speaker*2
    Power supply AC100~230V
    Power consumption ≦60W
    Betriebstemperatur 0℃~50℃
    Lagertemperatur -20℃~60℃
    Installation method Wall hanging
    Net weight 25Kg
    Corton size 1575*165*560
    Number of boxes 1PCS/Corton
    Corton weight 28Kg

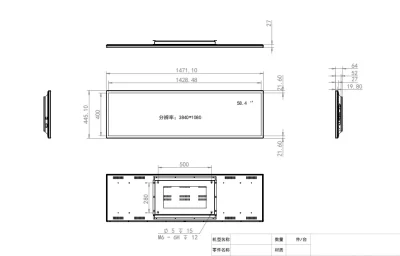

    Drawing and photo 58.4 drawings

    58.4-Inch 3840 × 1080 Monitor FAQ

    Will this monitor fit with the cables and controls accessible?

    Use the 58.4-inch diagonal to shortlist monitors, then check the exact drawing for fit. Compare the case depth, mount or stand, cable bend and access to the controls against your setup. Test the actual cable exit before approving a tight installation.

    Industrial touch monitor selection guide

    Can my computer, media player, or controller run this monitor?

    For the listed HDMI interface, confirm the source can output a mode accepted by the supplied controller and check separately how the display is powered.

    How should I compare this monitor with another for my installation?

    Try your typical desktop, menu or signage layout on a 3840 × 1080 canvas before choosing a monitor. Compare readable text size at the intended distance, connector access and whether the installation needs a portable stand or fixed mounting. Use the listed 400 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting.

    Can I specify the mount, ports, power adapter, or touch configuration?

    Share the enclosure or stand drawing, input sources, orientation and required ports. We can check available mounts, power and touch configurations and confirm which parts can be quoted together.

    What should I send for a monitor quote and sample schedule?

    Include the source ports and modes, mounting setup, accessories, quantities and required date. Ask for the hardware, accessories and any one-time setup itemized, with sample cost, production quantity breaks and separate delivery dates.

    Zusätzliche Informationen

    Größe:

    Auflösung:

    Schnittstelle:

    , , , ,

    Helligkeit (cd/m²):

    400

    Betriebstemperatur:

    -0℃~50℃

    Individuelle Display-Lösungen

    Arbeiten Sie mit unseren technischen Experten zusammen, um das perfekte Display für Ihre Anwendung zu entwickeln.
