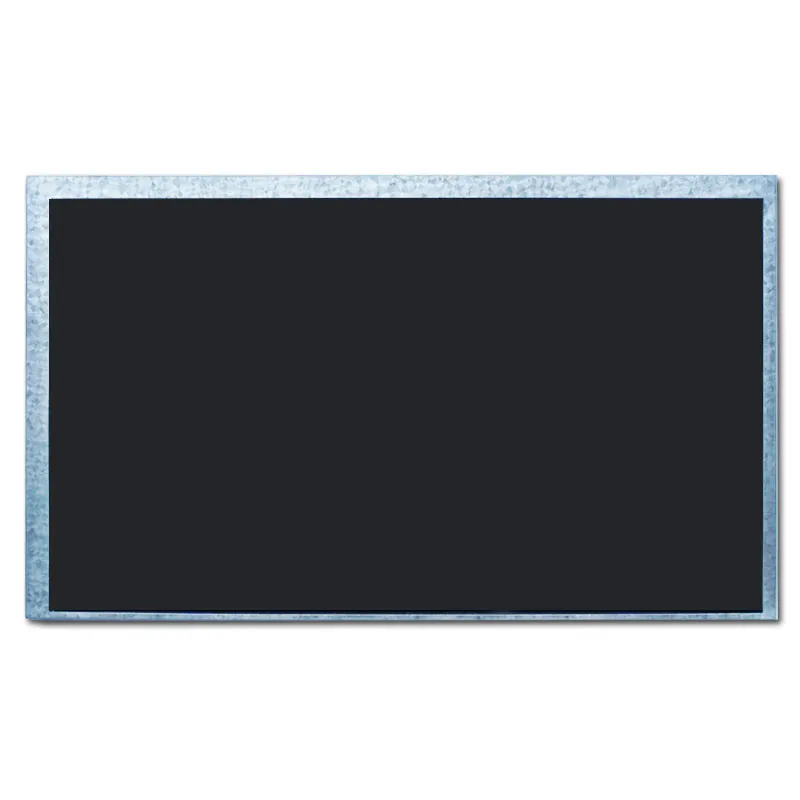

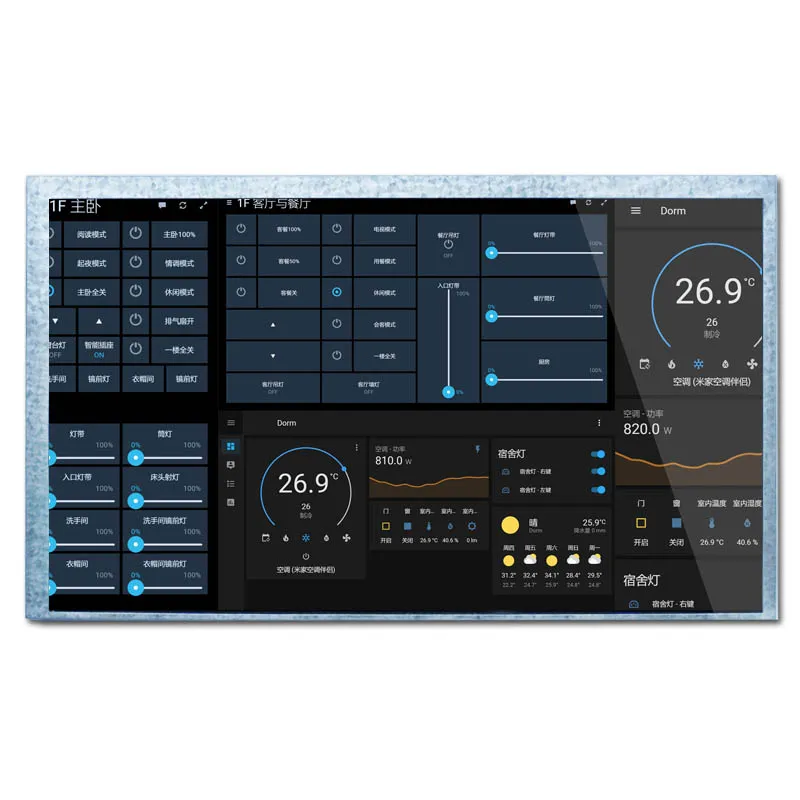

9 inch Automotive LCD Displays 1024*600 LVDS

Artikelnummer: DS20075
Größe:

Auflösung:

Schnittstelle:

Betriebstemperatur:

-30℃~80℃

Helligkeit (cd/m²):

500

Touchscreen-Unterstützung:

Anzeige Typ:

9 inch ips lcd display  1024*600 Pixels  -30℃ to 80℃ Serial LVDS Interface  Customized touch screen

Preisanfrage für Volumen







    Beschreibung



    9" Automotive LCD Displays Features

    This 9 inch Automotive LCD Displays offers a high resolution of 1024x600 pixels, providing sharp and detailed visuals. Its active area of 196.608 mm x 114.15 mm, combined with wide 85° viewing angles from all directions, ensures excellent visibility in various environments. The display features a 60-pin LVDS interface for high-speed communication, 500 cd/m² brightness for clear visibility in bright conditions, and a 30,000-hour LED backlight for long-lasting durability. With a contrast ratio of 800, it delivers enhanced image quality with rich contrasts, making it suitable for a wide range of applications.

    9" LCD Panel with Wide Temperature

    This 9 LCD display Panel is designed to operate reliably in a wide temperature range, making it suitable for challenging environments. It can function effectively in temperatures ranging from -30°C to 80°C, ensuring stable performance in both cold and hot conditions. This makes the display ideal for outdoor, industrial, or automotive applications where temperature fluctuations are common. Additionally, the storage temperature range is also robust, from -30°C to 80°C, meaning the display can withstand extreme conditions during transport or when not in use, without compromising its integrity or functionality.

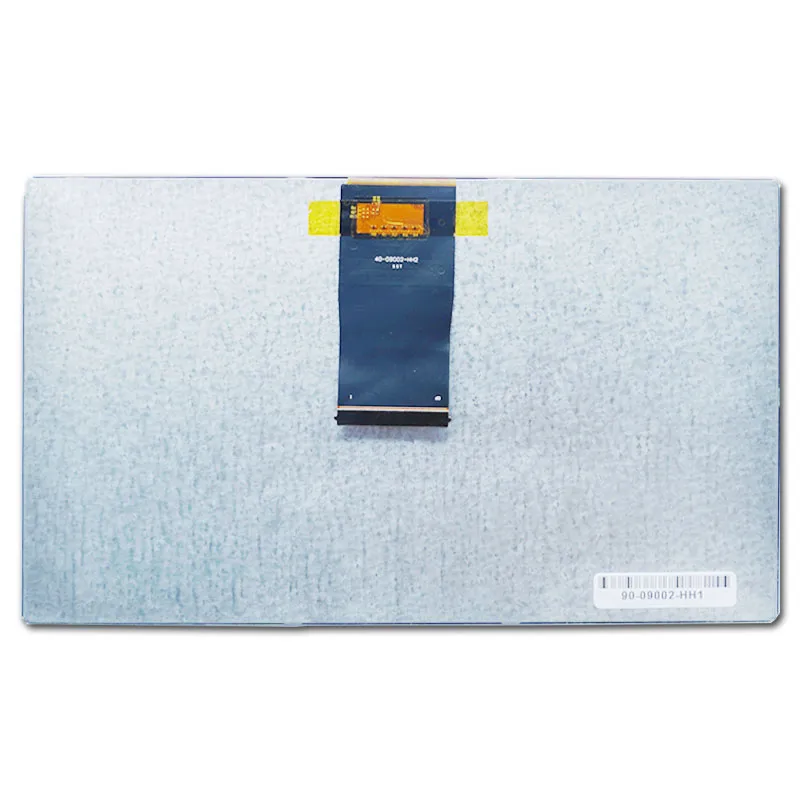

    Modellnummer  90-09002-HH1
    Größe 9.0
    Auflösung 1024*600

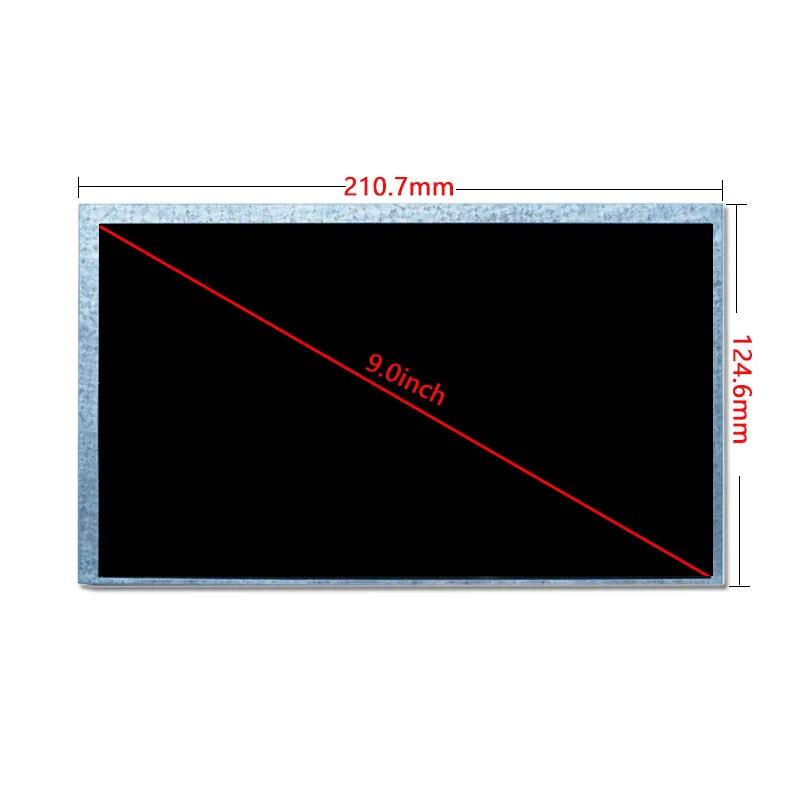

    Umriss Dimension 210.7*126.4*5
    Aktiver Bereich 196.608*114.15
    Helligkeit(cd/m²) 500
    Schnittstelle LVDS
    Ansicht Richtung ALLE
    Betriebstemperatur -30~80
    Lagertemperatur -30~80
    LED-Lebensdauer 20000
    Touchscreen-Unterstützung Ohne
    Kontrastverhältnis 800:1
    Stromversorgung 3.3V
    Anzeige Typ Farb-LCD

    9.0" TFT LCD Custom Solutions

    Optimieren Sie Ihre Kabellösungen

    Passen Sie die Länge, Position und Pinbelegung Ihrer Kabel an, oder fügen Sie zusätzliche Stecker hinzu, um die Funktionalität zu verbessern. Holen Sie sich eine maßgeschneiderte Kabellösung, um Ihre Verbindungen zu optimieren und eine sichere, zuverlässige Leistung zu gewährleisten.

    Anpassung der LCD-Schnittstelle

    Wählen Sie aus einer Vielzahl von Schnittstellenoptionen oder lassen Sie sich von unseren Experten beraten, um die ideale Lösung für Ihr Projekt zu finden. Wir können HDMI, USB, SPI, VGA und mehr in Ihr Display integrieren und Ihnen helfen, Ihre Designziele effizient zu erreichen.

    Erhöhen Sie die Benutzerfreundlichkeit mit Touchscreen-Technologie

    Verbessern Sie Ihr Benutzererlebnis mit kapazitiver oder resistiver Touchscreen-Technologie. Wir passen die Glasdicke und die Form des Touchscreens an, um eine perfekte Anpassung an Ihre Designanforderungen zu gewährleisten.

    custom touch

    Kundenspezifisches Deckglas

    Statten Sie Ihr Display mit einem individuell zugeschnittenen Deckglas aus, um die Haltbarkeit und Leistung zu erhöhen. Wählen Sie aus verschiedenen Stärken und entscheiden Sie sich für eine optische Verklebung, die Schutz vor Feuchtigkeit und Schmutz bietet und eine langlebige und zuverlässige Lösung gewährleistet.

    9-Inch 1024 × 600 High-Brightness LCD Display FAQ

    Will this display be readable through my outdoor enclosure window?

    Use the listed 500 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting. Test your smallest text in direct sun and at the worst reflection angle. Record the cover finish and viewing distance so you can repeat the test on later samples.

    Sunlight Readable TFT Displays

    What must my controller and power supply support in an outdoor installation?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Verify the backlight supply, dimming control and enclosure cooling using the exact panel documentation.

    How should I compare high-brightness displays behind the same cover?

    Use the 9-inch diagonal to shortlist high-brightness displays, then check the exact drawing for fit. Compare readability and temperature inside the same enclosure at the brightness needed to read the UI. Try your actual interface rather than a full-screen test image on a 1024 × 600 canvas before committing to the enclosure.

    Can the cover treatment, touch, or brightness be adapted to my installation?

    Send the opening, viewing distance, ambient light and maximum temperature at the panel. We can review cover finish, optical bonding or touch options and where a different panel or backlight design may be needed.

    What information is needed for a sample quote for an outdoor display?

    Include the cover stack, ambient light, temperature range, annual volume and target sample date. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.
