Beschreibung

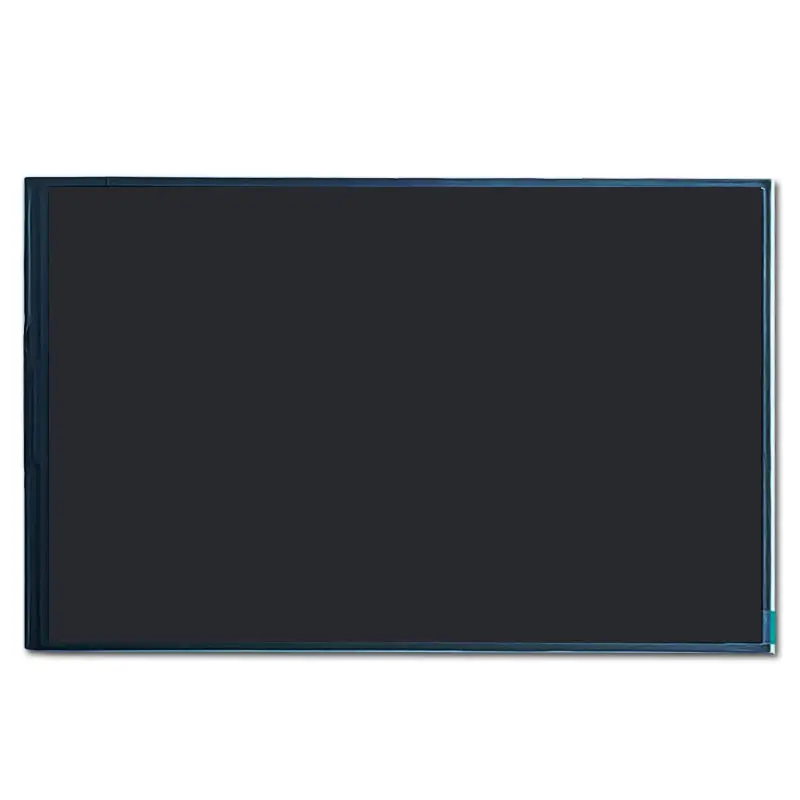

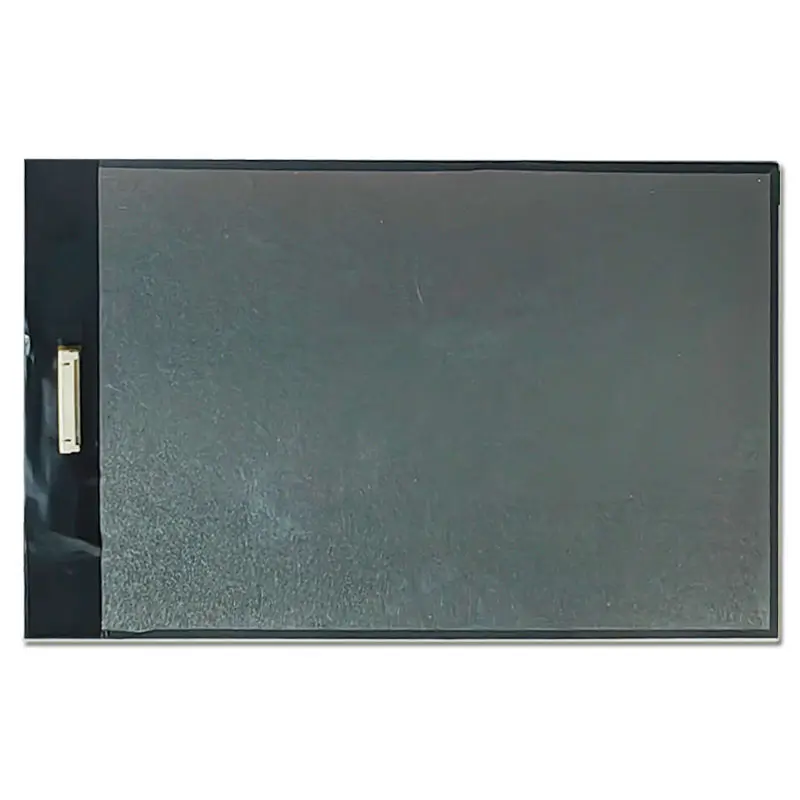

10.1″ Industrial display screens Features
The display offers a brightness level of 600 cd/m², providing excellent visibility in diverse lighting conditions, while the LED backlight has a lifetime of 30,000 hours for reliable performance. A contrast ratio of 1000 enhances clarity and vibrancy.
10.1″ LCD Panels with Wide Temperature
The wide temperature range of -30°C to 80°C in the 10.10-inch display module, enhances its versatility for various applications. It can effectively operate in cold environments, such as outdoor winter settings or refrigeration, making it ideal for industries like transportation, oil and gas, and outdoor signage. Additionally, the module’s ability to withstand high temperatures up to 80°C, ensures reliable performance in environments with elevated ambient temperatures, such as industrial settings or devices exposed to direct sunlight, thereby broadening its applicability across demanding conditions.
10.1″ TFT-LCD Product Specifications
| Model Number | 90-10122-IH1 |
|---|---|
| Größe | 10.1 |
| Auflösung | 1024*600 |
| Outline Dimension | 247.81*145.81*7.1 |
| Active Area | 222.72*125.28 |
| Brightness(cd/m²) | 600 |
| Schnittstelle | LVDS |
| Ansicht Richtung | ALL |
| Betriebstemperatur | -30~80 |
| Storage Temperature | -30~80 |
| LED Lifetime | 30000 |
| Touchscreen-Unterstützung | without |
| Contrast Ratio | 1000:1 |
| Power Supply | 3.3V |
| Anzeige Typ | Color LCD |
10.1″ TFT LCD Custom Solutions
Optimize Your Cable Solutions
Adjust the length, position, and pinout of your cables, or add additional connectors to enhance functionality. Get a customized cable solution designed to streamline your connections and ensure secure, reliable performance.
LCD Interface Customization
Select from a diverse range of interface options or consult our experts to find the ideal fit for your project. We can integrate HDMI, USB, SPI, VGA, and more into your display, helping you meet your design objectives efficiently.
Elevate User Experience with Touch Screen Technology
Enhance your user experience with either capacitive or resistive touch screen technology. We will customize the glass thickness and shape of the touch panel to ensure a perfect fit for your design requirements.
Custom Cover Glass
Equip your display with a custom-cut cover glass to boost durability and performance. Select from various thicknesses and opt for optical bonding to provide protection against moisture and debris, ensuring a long-lasting and reliable solution.
