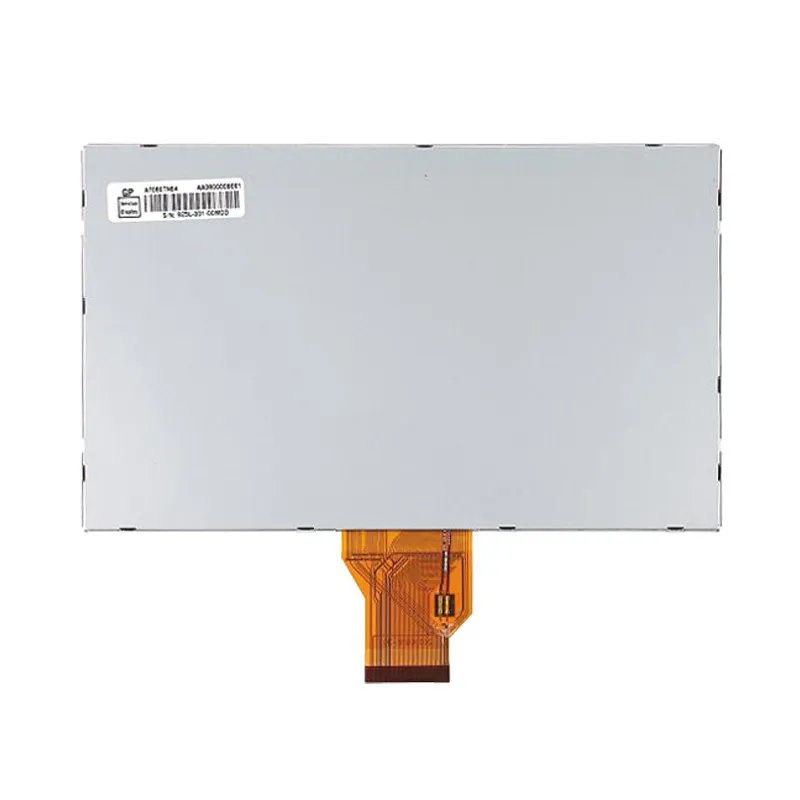

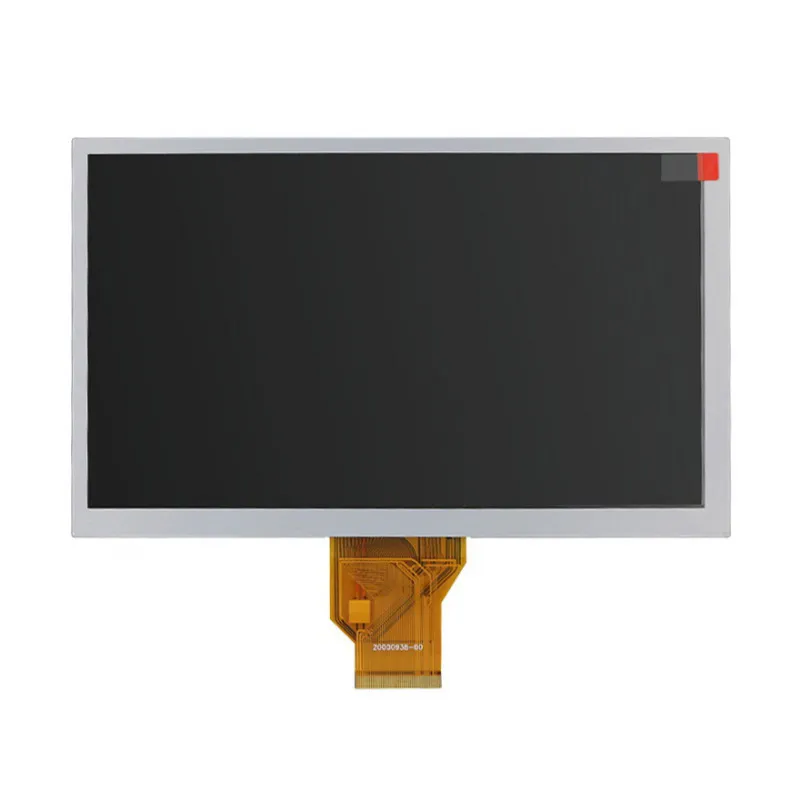

AT080TN64 8 inch 800×480 RGB LCD – 500cd/m² Ultra-Bright, Wide-Temp (-30°C~85°C)

Artikelnummer: DS50214
Größe:

Modellnummer

T080TN64

Auflösung:

Schnittstelle:

Betriebstemperatur:

-30℃~ 85℃

Helligkeit (cd/m²):

500

Touchscreen-Unterstützung:

Anzeige Typ:

Resources:

Innolux AT080TN64 8 inch Industrial Beast: 500cd/m² Sunlight Visibility, 800:1 Contrast – Engineered for Extreme Temperature Machinery Displays.

Preisanfrage für Volumen







    Beschreibung

    AT080TN64 General Desription

    The Innolux AT080TN64 delivers superior visibility with its 8-inch TN panel, offering 500cd/m² brightness and 800:1 contrast ratio – ideal for high-glare environments. Its 800×480 resolution ensures sharp graphics, while the ruggedized design withstands -30°C to 85°C operation for extreme conditions. Featuring a slim 6.7mm profile (192.8×116.9mm outline) and energy-efficient 3.3V~16V power supply, this display excels in space-constrained embedded systems. The RGB interface guarantees stable data transmission, complemented by a 20,000-hour LED lifespan for reduced maintenance. Designed without touchscreen interference, it’s optimized for applications requiring uninterrupted visual feedback in harsh industrial, marine, or transportation settings.



    Application & Performanc

    Built for demanding environments, the AT080TN64 thrives in factory automation control panels, offshore drilling monitors, and railway signaling systems where vibration and temperature extremes challenge standard displays. Its 500cd/m² brightness ensures readability in solar-powered agricultural sensors or desert mining equipment dashboards. The 70/70/50/70 viewing angles enable multi-position visibility in aviation ground support tools or medical diagnostic devices. With IP65-compatible integration potential and 800:1 contrast for crisp text/graphics, it’s ideal for EV charging station interfaces, CNC machine HMIs, and cold-chain logistics tracking. The 6.7mm thickness suits retrofitting legacy industrial consoles or compact IoT edge devices.

    8.0" Product Specifications

    Diagonale Größe 8.0 inch
    Pixel Zahl 800×480
    Luminance 500
    Module Size 192.8×116.9×6.7
    Aktiver Bereich 176.64×99.36
    Viewing Direction TN
    View Angle(U/D/R/L) 70/70/50/70
    Schnittstelle RGB
    Kontrastverhältnis 800:1
    Betriebstemperatur -30~85℃
    Lagertemperatur -30~85℃
    LED-Lebensdauer 20000
    Touchscreen-Unterstützung Ohne
    Stromversorgung 3.3/10.4/16.0/-7.0V
    Anzeige Typ Color TFT

    Innolux LCD Display Custom Solutions

    Optimieren Sie Ihre Kabellösungen

    Passen Sie die Länge, Position und Pinbelegung Ihrer Kabel an, oder fügen Sie zusätzliche Stecker hinzu, um die Funktionalität zu verbessern. Holen Sie sich eine maßgeschneiderte Kabellösung, um Ihre Verbindungen zu optimieren und eine sichere, zuverlässige Leistung zu gewährleisten.

    PCB Modifications

    Choose from a variety of variations in PCB shape, size, pin and component layout to make it fully suitable for your application.

    Erhöhen Sie die Benutzerfreundlichkeit mit Touchscreen-Technologie

    Verbessern Sie Ihr Benutzererlebnis mit kapazitiver oder resistiver Touchscreen-Technologie. Wir passen die Glasdicke und die Form des Touchscreens an, um eine perfekte Anpassung an Ihre Designanforderungen zu gewährleisten.

    custom touch

    Kundenspezifisches Deckglas

    Statten Sie Ihr Display mit einem individuell zugeschnittenen Deckglas aus, um die Haltbarkeit und Leistung zu erhöhen. Wählen Sie aus verschiedenen Stärken und entscheiden Sie sich für eine optische Verklebung, die Schutz vor Feuchtigkeit und Schmutz bietet und eine langlebige und zuverlässige Lösung gewährleistet.

    Innolux AT080TN64 8-Inch LCD Replacement FAQ

    How do I confirm that I need the Innolux AT080TN64?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 8-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing RGB cable and controller with the Innolux AT080TN64?

    For the listed RGB interface, match data width, pixel clock, sync polarities and blanking to the panel timing sheet. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How do I qualify a different panel as a replacement for the Innolux AT080TN64?

    Use 800 × 480 to shortlist a candidate while keeping the complete interface and mechanical requirements in your acceptance criteria. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Is the Innolux AT080TN64 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Zusätzliche Informationen

    Größe:

    Modellnummer

    T080TN64

    Auflösung:

    Schnittstelle:

    Betriebstemperatur:

    -30℃~ 85℃

    Helligkeit (cd/m²):

    500

    Touchscreen-Unterstützung:

    Anzeige Typ:

    Individuelle Display-Lösungen

    Arbeiten Sie mit unseren technischen Experten zusammen, um das perfekte Display für Ihre Anwendung zu entwickeln.
