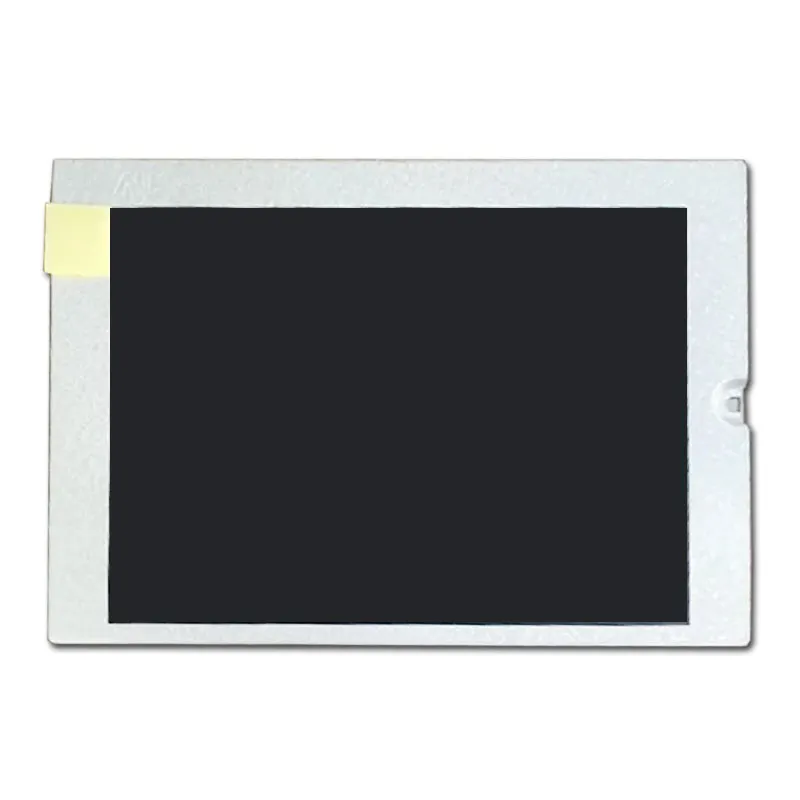

AUO G057QTN01.4 5.7" TN LCD Panel - 320x240, 500nits, CMOS, -30~85°C

Artikelnummer: DS50110
Größe:

Modellnummer

G057QTN01.4

Auflösung:

Schnittstelle:

Betriebstemperatur:

-30℃~ 85℃

Helligkeit (cd/m²):

500

Touchscreen-Unterstützung:

Anzeige Typ:

High brightness 5.7" TN LCD Panel with 320x240 resolution, 500nits, CMOS interface, -30~85°C operation. Ideal for industrial, outdoor, and harsh environment applications.

Preisanfrage für Volumen







    Beschreibung

    G057QTN01.4 Key Features:

    The AUO G057QTN01.4 TN LCD Panel is a rugged 5.7-inch TN LCD display designed for demanding environments. With a resolution of 320x240 pixels and exceptional 500nits brightness, it ensures clear visibility even in direct sunlight. The CMOS interface guarantees stable signal transmission, while its ultra-wide operating temperature range (-30°C to 85°C) and 100,000-hour lifespan make it perfect for industrial controls, outdoor equipment, and automotive systems.



    Application Occasion:

    Built for durability, this display excels in harsh conditions, offering reliable performance for medical devices, transportation displays, and IoT terminals. Its compact design and low power consumption further enhance integration flexibility. Upgrade your hardware with a display engineered for precision and resilience.

    G057QTN01.4 Product Specifications

    Modellnummer G057QTN01.4
    Größe 5.7
    Auflösung 320*240
    Umriss Dimension 144×104.6×9.8
    Aktiver Bereich 115.2×86.4
    Helligkeit(cd/m²) 500
    Schnittstelle CMOS
    Ansicht Richtung TN
    Betriebstemperatur -30~85
    Lagertemperatur -30~85
    LED-Lebensdauer 100000
    Touchscreen-Unterstützung Ohne
    Kontrastverhältnis 700:1
    Stromversorgung 3.3V
    Anzeige Typ Farb-LCD

    5.7" TFT LCD Custom Solutions

    Optimieren Sie Ihre Kabellösungen

    Passen Sie die Länge, Position und Pinbelegung Ihrer Kabel an, oder fügen Sie zusätzliche Stecker hinzu, um die Funktionalität zu verbessern. Holen Sie sich eine maßgeschneiderte Kabellösung, um Ihre Verbindungen zu optimieren und eine sichere, zuverlässige Leistung zu gewährleisten.

    PCB Modifications

    Choose from a variety of variations in PCB shape, size, pin and component layout to make it fully suitable for your application.

    Erhöhen Sie die Benutzerfreundlichkeit mit Touchscreen-Technologie

    Verbessern Sie Ihr Benutzererlebnis mit kapazitiver oder resistiver Touchscreen-Technologie. Wir passen die Glasdicke und die Form des Touchscreens an, um eine perfekte Anpassung an Ihre Designanforderungen zu gewährleisten.

    custom touch

    Kundenspezifisches Deckglas

    Statten Sie Ihr Display mit einem individuell zugeschnittenen Deckglas aus, um die Haltbarkeit und Leistung zu erhöhen. Wählen Sie aus verschiedenen Stärken und entscheiden Sie sich für eine optische Verklebung, die Schutz vor Feuchtigkeit und Schmutz bietet und eine langlebige und zuverlässige Lösung gewährleistet.

    AUO G057QTN01.4 5.7-Inch LCD Replacement FAQ

    How do I confirm that I need the AUO G057QTN01.4?

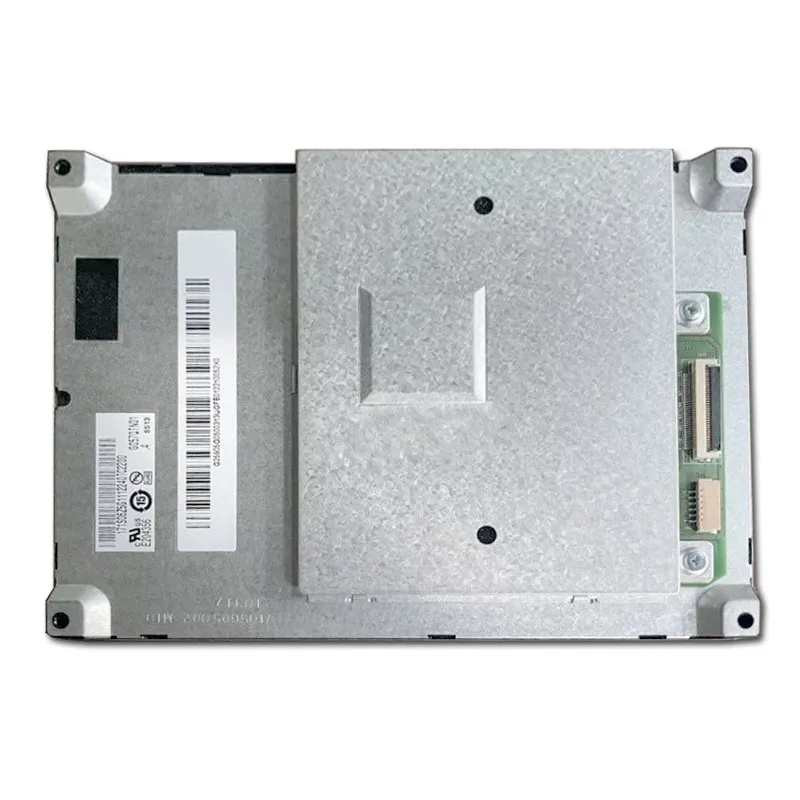

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 5.7-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing cable and controller with the AUO G057QTN01.4?

    Send us your host model so we can check the required interface, pinout and electrical limits against the exact product documentation. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How do I qualify a different panel as a replacement for the AUO G057QTN01.4?

    Use 320 × 240 to shortlist a candidate while keeping the complete interface and mechanical requirements in your acceptance criteria. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Is the AUO G057QTN01.4 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Zusätzliche Informationen

    Größe:

    Modellnummer

    G057QTN01.4

    Auflösung:

    Schnittstelle:

    Betriebstemperatur:

    -30℃~ 85℃

    Helligkeit (cd/m²):

    500

    Touchscreen-Unterstützung:

    Anzeige Typ:
