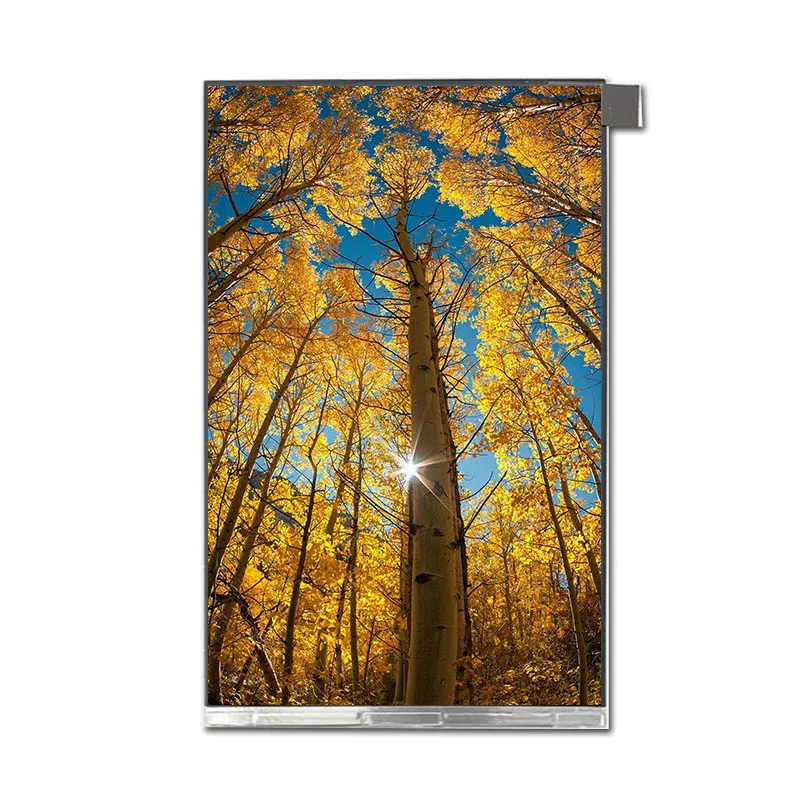

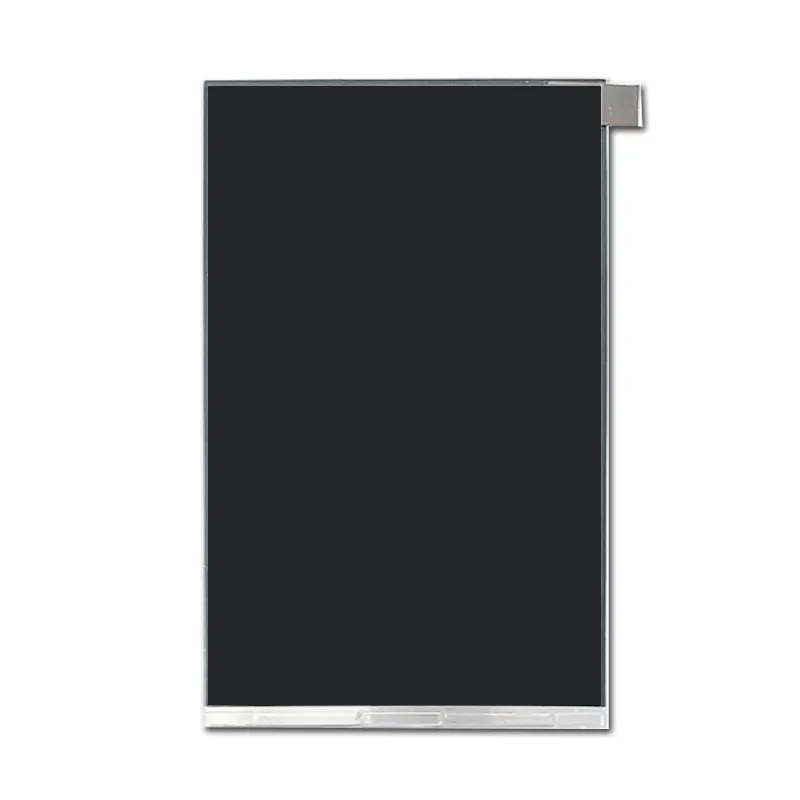

AUO G080UAN02.1 8" MIPI IPS LCD 1200x1920 Portrait, 1000:1, 390nits

Artikelnummer: DS50130
Größe:

Modellnummer

G080UAN02.1

Auflösung:

Schnittstelle:

Betriebstemperatur:

-0℃~50℃

Helligkeit (cd/m²):

390

Touchscreen-Unterstützung:

Anzeige Typ:

AUO G080UAN02.1 8 inch 1200x1920 IPS LCD with MIPI interface, 1000:1 contrast, 390nits brightness. 0-50°C operation, 15K-hour lifespan. Engineering samples available.

Preisanfrage für Volumen







    Beschreibung

    G080UAN02.1 General Desription

    The AUO G080UAN02.1 8-inch IPS LCD delivers vertical 1200x1920 resolution for embedded systems requiring precise color reproduction and wide viewing angles. Designed for R&D teams developing medical imaging equipment and industrial HMIs.
    Key Engineering Advantages:
    MIPI DSI 1.2 Compliance: 4-lane interface (51-pin) supports 24-bit color depth at 60Hz refresh rate
    1000:1 Static Contrast Ratio: Enables 16.7M color accuracy (72% NTSC) for diagnostic displays
    Extended Thermal Performance: Stable gamma curve maintenance from 0°C to 50°C ambient
    15,000-hour Lifespan: Verified at 390nits with <10% brightness degradation (25°C test condition)



    G080UAN02.1 Technical

    ・Portrait orientation with 178° viewing angles (IPS technology)
    ・3.7mm slim profile with metal-frame construction
    ・Embedded PWM-free backlight (LED driver IC included)
    ・RoHS/REACH compliant, supports optical bonding
    Ideal for prototyping:
    Surgical monitor development kits
    Aviation control panel upgrades
    High-end test & measurement equipment
    R&D Support Services:
    Free schematics & timing controller documentation
    Custom EDID programming available

    G080UAN02.1 Product Specifications

    Diagonale Größe 8.0"(Diagonal)
    Pixel Zahl 1200×1920 Pixels
    Luminance 390
    Module Size 114.6(H)×184.125(V) ×3.95(D)
    Aktiver Bereich 107.64(W)×172.224(H)
    Viewing Direction IPS
    View Angle(U/D/R/L) 89/89/89/89
    Schnittstelle MIPI
    Kontrastverhältnis 1000
    Betriebstemperatur -0~50℃
    Lagertemperatur -20~60℃
    LED-Lebensdauer 15K
    Touchscreen-Unterstützung Ohne
    Stromversorgung 3.3v
    Anzeige Typ Color TFT

    AUO LCD Display Custom Solutions

    Optimieren Sie Ihre Kabellösungen

    Passen Sie die Länge, Position und Pinbelegung Ihrer Kabel an, oder fügen Sie zusätzliche Stecker hinzu, um die Funktionalität zu verbessern. Holen Sie sich eine maßgeschneiderte Kabellösung, um Ihre Verbindungen zu optimieren und eine sichere, zuverlässige Leistung zu gewährleisten.

    PCB Modifications

    Choose from a variety of variations in PCB shape, size, pin and component layout to make it fully suitable for your application.

    Erhöhen Sie die Benutzerfreundlichkeit mit Touchscreen-Technologie

    Verbessern Sie Ihr Benutzererlebnis mit kapazitiver oder resistiver Touchscreen-Technologie. Wir passen die Glasdicke und die Form des Touchscreens an, um eine perfekte Anpassung an Ihre Designanforderungen zu gewährleisten.

    custom touch

    Kundenspezifisches Deckglas

    Statten Sie Ihr Display mit einem individuell zugeschnittenen Deckglas aus, um die Haltbarkeit und Leistung zu erhöhen. Wählen Sie aus verschiedenen Stärken und entscheiden Sie sich für eine optische Verklebung, die Schutz vor Feuchtigkeit und Schmutz bietet und eine langlebige und zuverlässige Lösung gewährleistet.

    AUO G080UAN02.1 8-Inch LCD Replacement FAQ

    How do I confirm that I need the AUO G080UAN02.1?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 8-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing MIPI cable and controller with the AUO G080UAN02.1?

    For the listed MIPI interface, match the display lane count, lane mapping, operating mode and panel initialization sequence. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How do I qualify a different panel as a replacement for the AUO G080UAN02.1?

    Use 1200 × 1920 to shortlist a candidate while keeping the complete interface and mechanical requirements in your acceptance criteria. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Is the AUO G080UAN02.1 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Zusätzliche Informationen

    Größe:

    Modellnummer

    G080UAN02.1

    Auflösung:

    Schnittstelle:

    Betriebstemperatur:

    -0℃~50℃

    Helligkeit (cd/m²):

    390

    Touchscreen-Unterstützung:

    Anzeige Typ:

    Individuelle Display-Lösungen

    Arbeiten Sie mit unseren technischen Experten zusammen, um das perfekte Display für Ihre Anwendung zu entwickeln.
