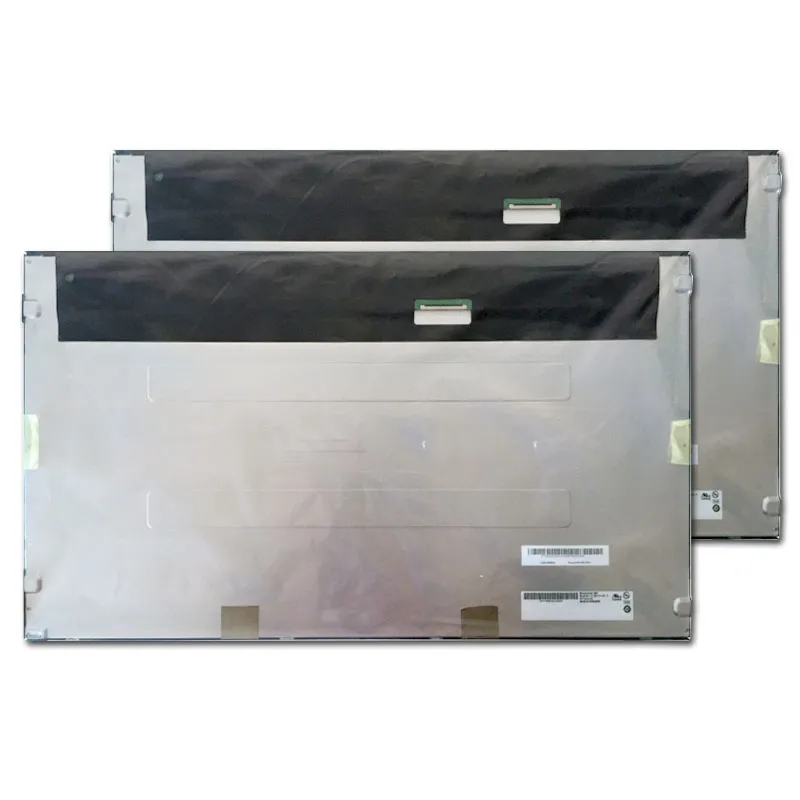

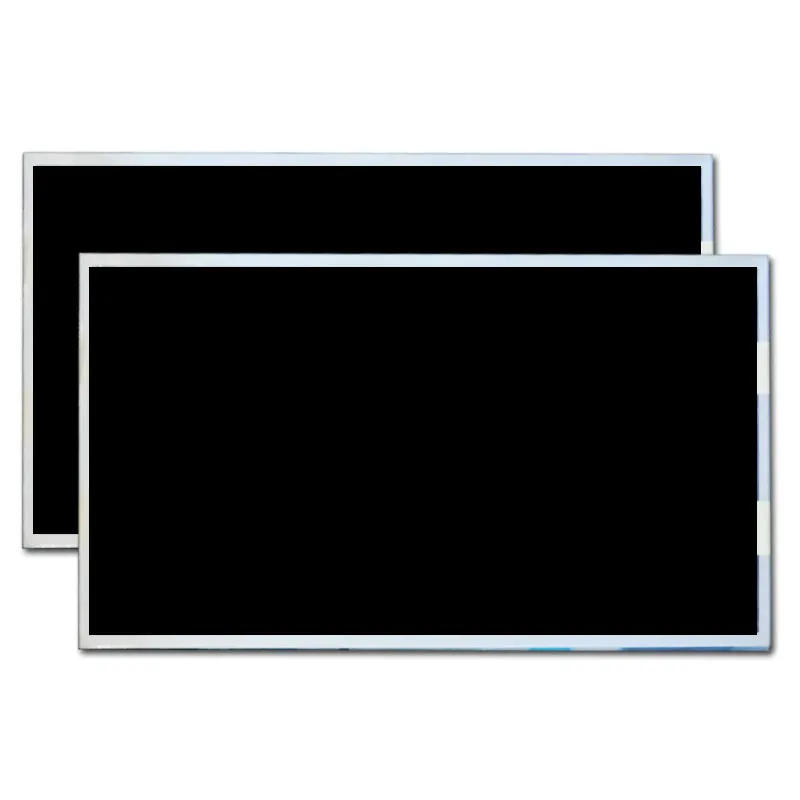

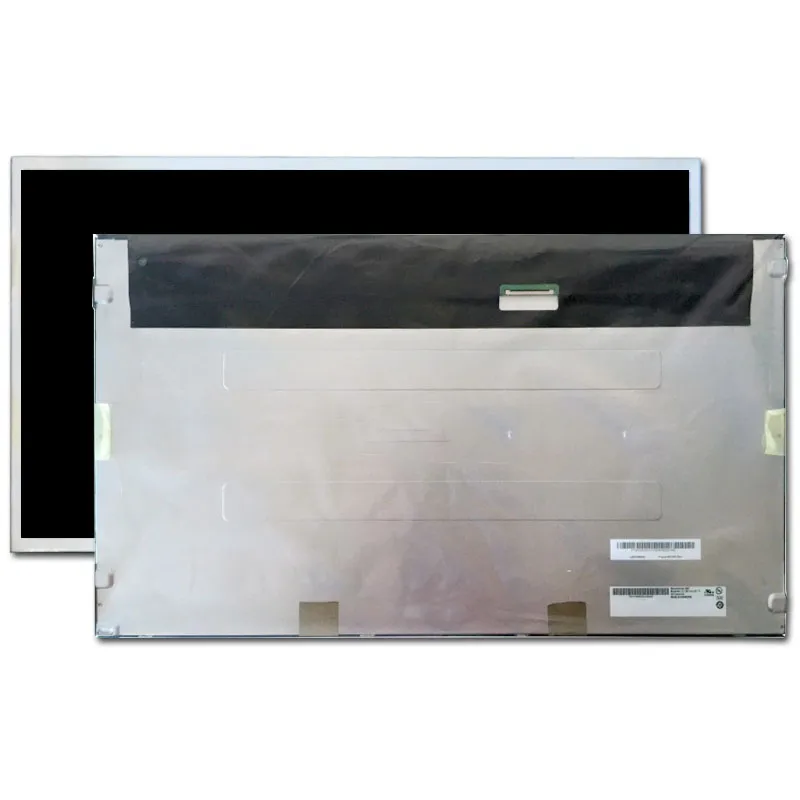

AUO G230HAN01.1 23" IPS LCD – 300cd/m², 89° Viewing Angle, Slim 11mm Design

Artikelnummer: DS50061
Größe:

Modellnummer

G230HAN01.1

Auflösung:

Betriebstemperatur:

-0℃~50℃

Helligkeit (cd/m²):

300

Touchscreen-Unterstützung:

Anzeige Typ:

Resources:

AUO G230HAN01.1 23" IPS LCD – 300cd/m², 89° viewing angle, slim 11mm design, LVDS interface, built for medical, retail, and industrial indoor applications.

Preisanfrage für Volumen







    Beschreibung

    G230HAN01.1 Key Features:

    The AUO G230HAN01.1 is a 23-inch IPS LCD designed for versatile indoor applications, featuring 89°/89°/89°/89° ultra-wide viewing angles for consistent color accuracy in collaborative environments. With 1920×1080 Full HD resolution and 1000:1 contrast ratio, it delivers sharp visuals for detailed data analysis. The ultra-slim 11mm profile (533.2×312mm) enables space-saving integration in compact systems, while 300 cd/m² brightness ensures clarity in office lighting or retail displays. Built for stable operation between -20°C to 60°C, it supports 24/7 use in clinics, factories, and smart buildings. The LVDS interface minimizes EMI interference, and 5V low-power design reduces energy costs. With 30,000-hour LED lifespan, it’s ideal for long-term deployments.



    Applications & Performance:

    Optimized for medical diagnostic monitors, retail POS systems, and industrial control panels, this display excels in environments requiring precise color rendering. The 89° viewing angles make it perfect for conference room dashboards, airport check-in kiosks, and multi-screen control centers. Its slim design suits embedded systems in pharmacy inventory terminals, EV charging UIs, and laboratory equipment. The -20~60°C range supports cold storage monitoring and textile factory HMIs. Applications include digital menu boards in restaurants, hotel lobby information screens, and warehouse management systems. The 300cd/m² brightness balances eye comfort in indoor lighting, while LVDS ensures reliability for automated warehouse robotics and cleanroom manufacturing displays.

    23.0" TN LCD Product Specifications

    Modellnummer G230HAN01.1
    Größe 23.0
    Auflösung 1920*1080
    Umriss Dimension 533.2×312×11
    Aktiver Bereich 509.184×286.416
    Helligkeit(cd/m²) 300
    Schnittstelle LVDS
    Ansicht Richtung IPS
    Betriebstemperatur -0~50
    Lagertemperatur -20~60
    LED-Lebensdauer 30000
    Touchscreen-Unterstützung Ohne
    Kontrastverhältnis 1000:1
    Stromversorgung 5.0V
    Anzeige Typ Farb-LCD

    23.0" TFT LCD Custom Solutions

    Optimieren Sie Ihre Kabellösungen

    Passen Sie die Länge, Position und Pinbelegung Ihrer Kabel an, oder fügen Sie zusätzliche Stecker hinzu, um die Funktionalität zu verbessern. Holen Sie sich eine maßgeschneiderte Kabellösung, um Ihre Verbindungen zu optimieren und eine sichere, zuverlässige Leistung zu gewährleisten.

    PCB Modifications

    Choose from a variety of variations in PCB shape, size, pin and component layout to make it fully suitable for your application.

    Erhöhen Sie die Benutzerfreundlichkeit mit Touchscreen-Technologie

    Verbessern Sie Ihr Benutzererlebnis mit kapazitiver oder resistiver Touchscreen-Technologie. Wir passen die Glasdicke und die Form des Touchscreens an, um eine perfekte Anpassung an Ihre Designanforderungen zu gewährleisten.

    custom touch

    Kundenspezifisches Deckglas

    Statten Sie Ihr Display mit einem individuell zugeschnittenen Deckglas aus, um die Haltbarkeit und Leistung zu erhöhen. Wählen Sie aus verschiedenen Stärken und entscheiden Sie sich für eine optische Verklebung, die Schutz vor Feuchtigkeit und Schmutz bietet und eine langlebige und zuverlässige Lösung gewährleistet.

    AUO G230HAN01.1 23-Inch LCD Replacement FAQ

    How do I confirm that I need the AUO G230HAN01.1?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 23-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the AUO G230HAN01.1?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How do I qualify a different panel as a replacement for the AUO G230HAN01.1?

    Use 1920 × 1080 to shortlist a candidate while keeping the complete interface and mechanical requirements in your acceptance criteria. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Is the AUO G230HAN01.1 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Zusätzliche Informationen

    Größe:

    Modellnummer

    G230HAN01.1

    Auflösung:

    Betriebstemperatur:

    -0℃~50℃

    Helligkeit (cd/m²):

    300

    Touchscreen-Unterstützung:

    Anzeige Typ:
