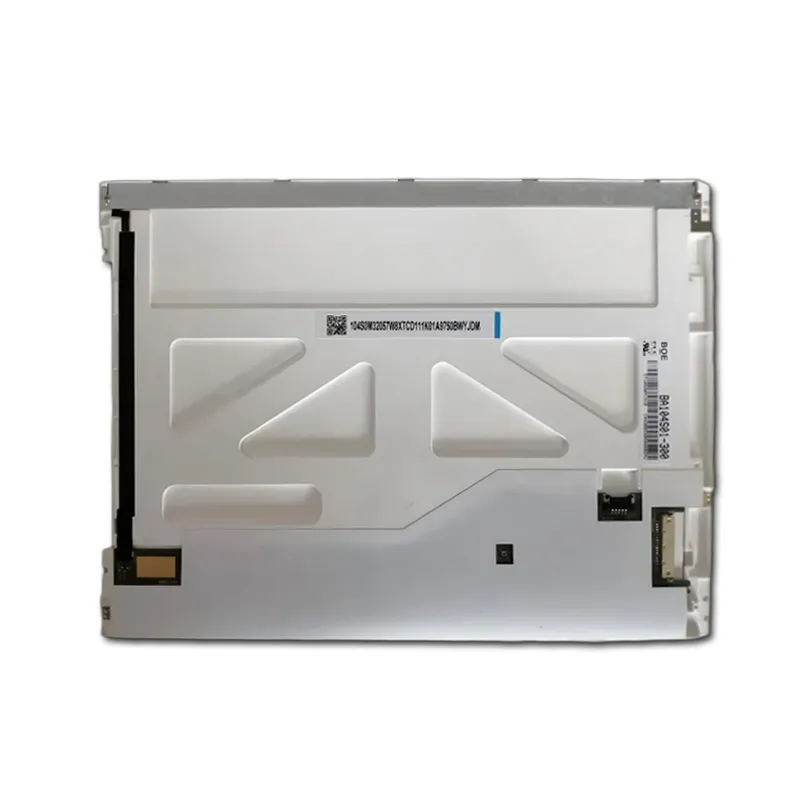

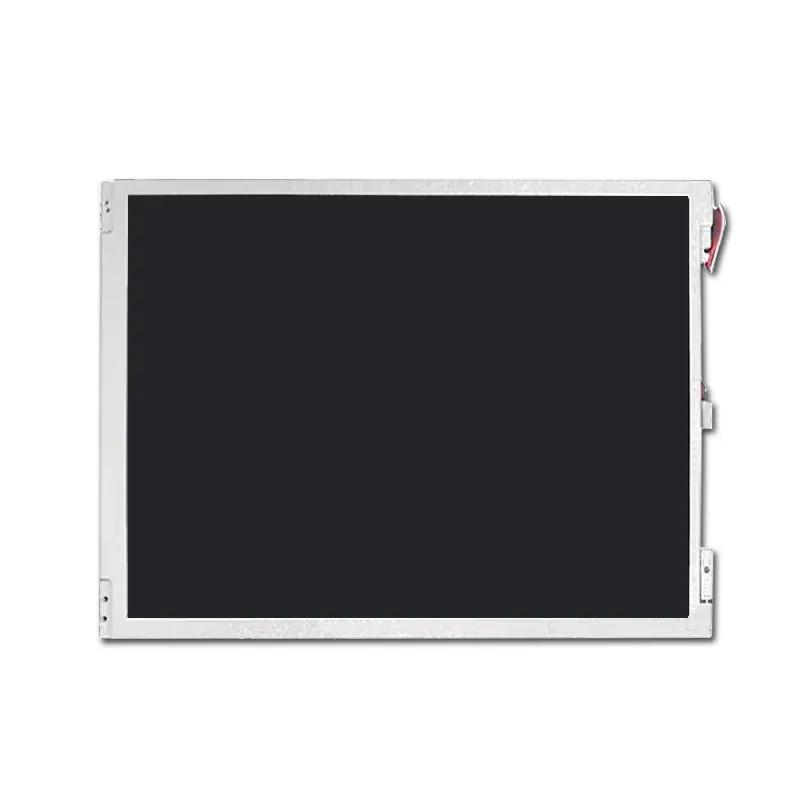

BOE BA104S01-300 10.4" LCD TN Panel 800x600 350nits -20~70°C LVDS

Artikelnummer: DS50207
Größe:

Modellnummer

A104S01-300

Auflösung:

Schnittstelle:

Betriebstemperatur:

-20℃~70℃

Helligkeit (cd/m²):

350

Touchscreen-Unterstützung:

Anzeige Typ:

Resources:

BOE BA104S01-300: 10.4" TN industrial screen, 800x600 resolution, 350nits brightness, LVDS interface, -20~70°C operation

Preisanfrage für Volumen







    Beschreibung

    BA104S01-300 General Desription

    The BOE BA104S01-300 is a 10.4-inch TN industrial LCD designed for rugged environments requiring enhanced brightness. With 350nits luminance and 800x600 resolution, it ensures clear visibility in high-ambient-light conditions such as outdoor kiosks, logistics terminals, and production line monitoring systems.

    Constructed with industrial-grade components, it passes 50G mechanical shock and 5-500Hz vibration tests per IEC 60068-2 standards. Backed by BOE's technical support for batch customization, including:
    Bezel modifications (IP54/IP65 front panel options)
    Extended temperature validation (-30°C cold-start capability)
    On-demand panel bonding solutions



    BA104S01-300 Features

    Enhanced Brightness: 16% higher luminance (350nits vs standard 300nits) for sunlight-readable performance
    Wide Operating Range: Certified for continuous use from -20°C to 70°C
    Longevity: 30,000-hour backlight lifespan (70% brightness maintenance)
    Signal Stability: LVDS interface with EMI shielding for industrial EMI environments
    The panel delivers 500:1 contrast ratio with 6ms response time, optimized for SCADA system dashboards, CNC machine interfaces, and warehouse management displays. Features include:
    9-36V DC wide voltage input (2.9W typical power consumption)
    VESA 75x75mm mounting compatibility
    Anti-static coating (10⁹~10¹¹Ω surface resistance)
    Optional 5-wire resistive touch integration

    BA104S01-300 Product Specifications

    Diagonale Größe 10.4"(Diagonal)
    Pixel Zahl 800×600 Pixels
    Luminance 350
    Module Size 236(H)×176.9(V) ×5.9(D)
    Aktiver Bereich 211.2(W)×158.4(H)
    Viewing Direction 6 o'clock
    View Angle(U/D/R/L) 80/80/65/75
    Schnittstelle LVDS
    Kontrastverhältnis 800
    Betriebstemperatur -20~70℃
    Lagertemperatur -30~80℃
    LED-Lebensdauer 30K
    Touchscreen-Unterstützung Ohne
    Stromversorgung 3.3v
    Anzeige Typ Color TFT

     BOE LCD Display Custom Solutions

    Optimieren Sie Ihre Kabellösungen

    Passen Sie die Länge, Position und Pinbelegung Ihrer Kabel an, oder fügen Sie zusätzliche Stecker hinzu, um die Funktionalität zu verbessern. Holen Sie sich eine maßgeschneiderte Kabellösung, um Ihre Verbindungen zu optimieren und eine sichere, zuverlässige Leistung zu gewährleisten.

    PCB Modifications

    Choose from a variety of variations in PCB shape, size, pin and component layout to make it fully suitable for your application.

    Erhöhen Sie die Benutzerfreundlichkeit mit Touchscreen-Technologie

    Verbessern Sie Ihr Benutzererlebnis mit kapazitiver oder resistiver Touchscreen-Technologie. Wir passen die Glasdicke und die Form des Touchscreens an, um eine perfekte Anpassung an Ihre Designanforderungen zu gewährleisten.

    custom touch

    Kundenspezifisches Deckglas

    Statten Sie Ihr Display mit einem individuell zugeschnittenen Deckglas aus, um die Haltbarkeit und Leistung zu erhöhen. Wählen Sie aus verschiedenen Stärken und entscheiden Sie sich für eine optische Verklebung, die Schutz vor Feuchtigkeit und Schmutz bietet und eine langlebige und zuverlässige Lösung gewährleistet.

    BOE BA104S01-300 10.4-Inch LCD Replacement FAQ

    How do I confirm that I need the BOE BA104S01-300?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 10.4-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the BOE BA104S01-300?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How does the BOE BA104S01-300 compare with the AUO G104STN01.0?

    Both catalog listings show 10.4 inches, 800 × 600 and LVDS. The catalog lists −20 °C to +70 °C for the BOE panel and −30 °C to +80 °C for the AUO panel. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Compare AUO G104STN01.0

    Is the BOE BA104S01-300 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Zusätzliche Informationen

    Größe:

    Modellnummer

    A104S01-300

    Auflösung:

    Schnittstelle:

    Betriebstemperatur:

    -20℃~70℃

    Helligkeit (cd/m²):

    350

    Touchscreen-Unterstützung:

    Anzeige Typ:

    Individuelle Display-Lösungen

    Arbeiten Sie mit unseren technischen Experten zusammen, um das perfekte Display für Ihre Anwendung zu entwickeln.
