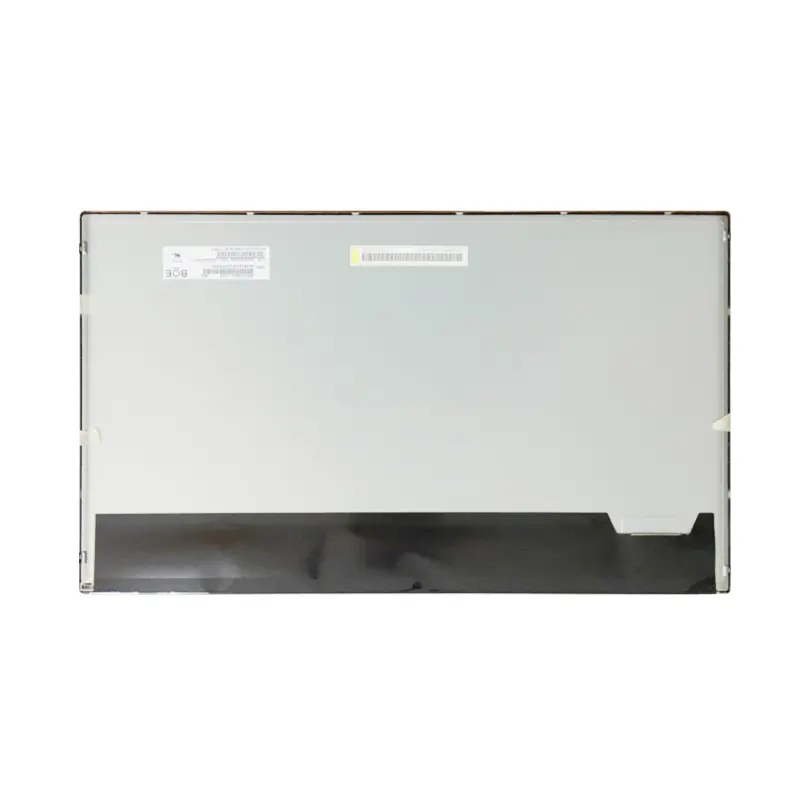

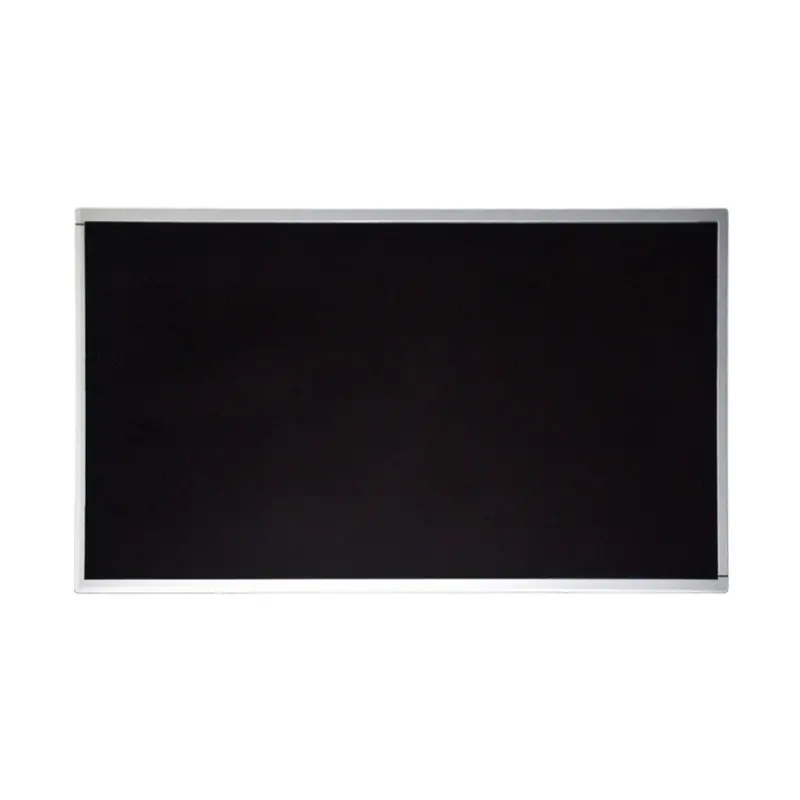

BOE HR215WU1-120 21.5 inch FHD IPS Industrial Display 1920×1080 Wide Viewing Angle, LVDS Interface

Artikelnummer: DS50275
Größe:

Modellnummer

R215WU1-120

Schnittstelle:

Betriebstemperatur:

-0℃~50℃

Helligkeit (cd/m²):

250

Touchscreen-Unterstützung:

Anzeige Typ:

Hr215wu1-120 21.5 inch BOE FHD IPS display with 1920×1080 resolution, and -0°C~50°C operation. LVDS interface. Ideal for industrial medical use.

Preisanfrage für Volumen







    Beschreibung

    Hr215wu1-120 General Description

    The BOE hr215wu1-120 is a 21.5-inch Full HD color LCD display designed for demanding industrial environments. With a 1920×1080 resolution and IPS technology offering 89/89/89/89 ultra-wide viewing angles, it ensures consistent clarity from any perspective. The 250 cd/m² brightness and 1000:1 contrast ratio deliver sharp visuals even in brightly lit settings. Built for reliability, it operates seamlessly in temperatures from -0°C to 50°C and withstands storage conditions as low as -20°C. Featuring an LVDS interface and 5.0V low-power design, it ensures stable performance while reducing energy consumption. With a 30,000-hour LED lifespan, this display minimizes maintenance needs, making it ideal for 24/7 operations.



    BOE hr215wu1-120 Application & Performanc

    BOE Perfect for industrial control panels, medical imaging systems, and public information kiosks, the HR21.5WU1-120 excels in precision-driven environments. Its IPS panel ensures accurate color reproduction for quality control monitors and diagnostic equipment, while the wide temperature range suits factories, laboratories, and outdoor installations. The Full HD resolution enhances detail visibility for security surveillance and logistics dashboards. The slim 11.3mm profile (495.6×292.2mm) allows seamless integration into space-constrained setups, and the rugged LVDS interface guarantees compatibility with industrial automation systems. Durable and energy-efficient, it supports applications requiring long-term reliability, from manufacturing HMI to retail self-service terminals.

    21.5" Product Specifications

    Diagonal Size11.8 21.5 inch
    Pixel Zahl 1920×1080
    Luminance 250
    Module Size 495.6×292.2×11.3
    Aktiver Bereich 476.64×268.11
    Viewing Direction IPS
    View Angle(U/D/R/L) 89/89/89/89
    Schnittstelle LVDS
    Kontrastverhältnis 1000:1
    Betriebstemperatur -0 ~ 50 °C
    Lagertemperatur -20 ~ 60 °C
    LED-Lebensdauer 30000
    Stromversorgung 5.0V
    Touchscreen-Unterstützung Ohne
    Anzeige Typ Color TFT



    BOE LCD Display Kundenspezifische Lösungen

    Optimieren Sie Ihre Kabellösungen

    Passen Sie die Länge, Position und Pinbelegung Ihrer Kabel an, oder fügen Sie zusätzliche Stecker hinzu, um die Funktionalität zu verbessern. Holen Sie sich eine maßgeschneiderte Kabellösung, um Ihre Verbindungen zu optimieren und eine sichere, zuverlässige Leistung zu gewährleisten.

    PCB Modifications

    Choose from a variety of variations in PCB shape, size, pin and component layout to make it fully suitable for your application.

    Erhöhen Sie die Benutzerfreundlichkeit mit Touchscreen-Technologie

    Verbessern Sie Ihr Benutzererlebnis mit kapazitiver oder resistiver Touchscreen-Technologie. Wir passen die Glasdicke und die Form des Touchscreens an, um eine perfekte Anpassung an Ihre Designanforderungen zu gewährleisten.

    custom touch

    Kundenspezifisches Deckglas

    Statten Sie Ihr Display mit einem individuell zugeschnittenen Deckglas aus, um die Haltbarkeit und Leistung zu erhöhen. Wählen Sie aus verschiedenen Stärken und entscheiden Sie sich für eine optische Verklebung, die Schutz vor Feuchtigkeit und Schmutz bietet und eine langlebige und zuverlässige Lösung gewährleistet.

    BOE HR215WU1-120 21.5-Inch LCD Replacement FAQ

    How do I confirm that I need the BOE HR215WU1-120?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 21.5-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the BOE HR215WU1-120?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How does the BOE HR215WU1-120 compare with the AUO G215HAN01.2?

    Both catalog listings show 21.5 inches, 1920 × 1080 and LVDS. The catalog lists 0 °C to +50 °C for the BOE panel and 0 °C to +60 °C for the AUO panel. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Compare AUO G215HAN01.2

    Is the BOE HR215WU1-120 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.
