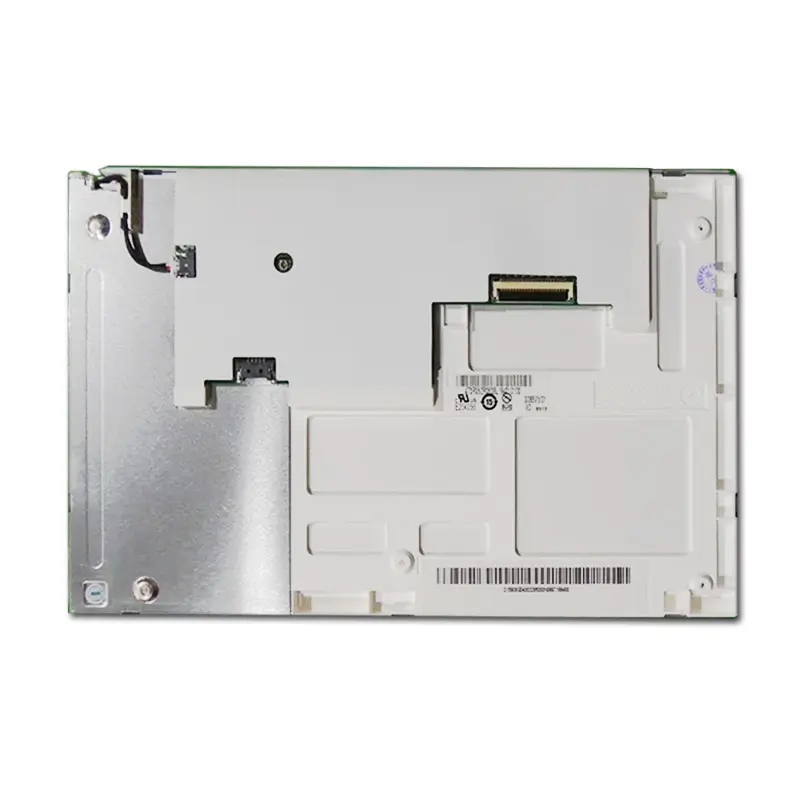

G085VW01 V0 AUO Display Panel 8.5 inch 800×480 High Temperature Display

Artikelnummer: DS50139
Größe:

Modellnummer

G085VW01 V0

Auflösung:

Schnittstelle:

Betriebstemperatur:

-30℃~ 85℃

Helligkeit (cd/m²):

300

Touchscreen-Unterstützung:

Anzeige Typ:

AUO Display Panel, G085VW01 V0, 8.5 inch, 800×480, -30℃~85℃ High temperature lcd display, 50k long life span for Industrial control, automotive display

Preisanfrage für Volumen







    Beschreibung

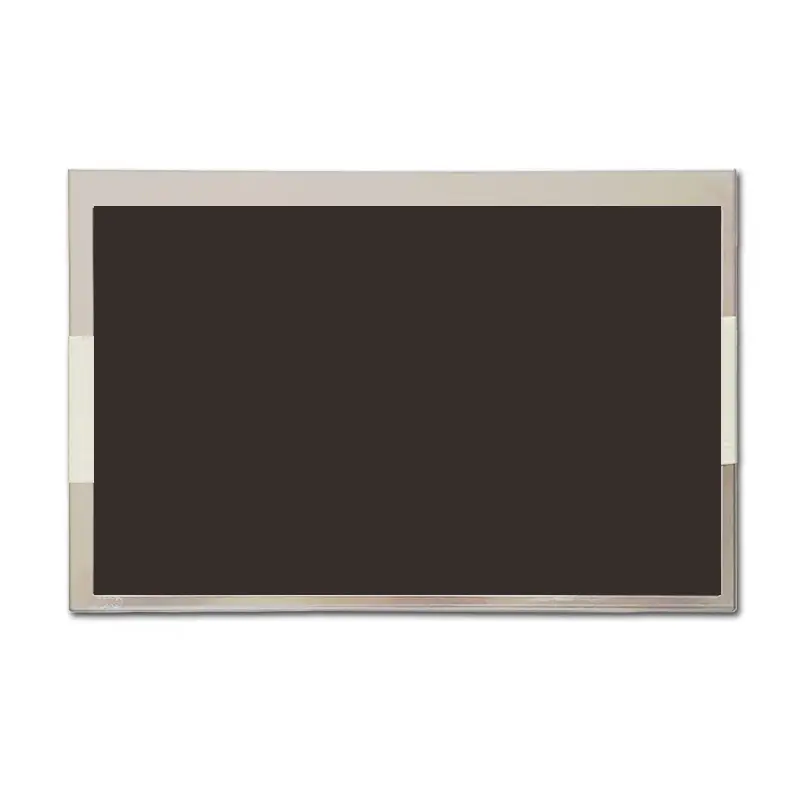

    AUO Display Panel General Desription

    The AUO Display Panel is an 8.5-inch a-Si TFT-LCD module with 800×480 WVGA resolution (109 PPI). Featuring 300 cd/m² brightness, 500:1 contrast ratio, and TN display mode, it has a 184.8×110.88mm active area with antiglare 3H hard coating. Equipped with WLED backlight (50K hours), it supports 60Hz operation and up to 240Hz via MEMC, using a 40-pin CMOS interface and 3.3V input. Weighing 250g, it’s designed for industrial use, operating/storing at -30~85°C, with no touch screen.



    Highlight Advantages for Choosing Our Screen

    1-Genuine A-grade panels from AUO factory, we hold exclusive stock of these rare, high-quality displays
    2-Full-stack solutions including display + touch screen + driver board. Our in-house R&D team provides 1:1 technical support—from schematic design to firmware optimization—to ensure seamless integration for your project.
    3-All products come with a 1-year warranty and worry-free after-sales service, backed by our own manufacturing capabilities for rapid troubleshooting and replacements.

    G085VW01 V0 Product Specifications

    Diagonale Größe 8.5"(Diagonal)
    Pixel Zahl 800×480 Pixels
    Luminance 300
    Module Size 210(W)×134(H) ×10.5(D)
    Aktiver Bereich 184.8(W)×110.88(H)
    Viewing Direction 6 O'CLOCK
    View Angle(U/D/R/L) 80/80/80/60
    Schnittstelle CMOS
    Kontrastverhältnis 500
    Betriebstemperatur -30~85℃
    Lagertemperatur -30~85℃
    LED-Lebensdauer 50K
    Touchscreen-Unterstützung Ohne
    Stromversorgung 3.3v
    Anzeige Typ Color TFT

    AUO LCD Display Kundenspezifische Lösungen

    Optimieren Sie Ihre Kabellösungen

    Passen Sie die Länge, Position und Pinbelegung Ihrer Kabel an, oder fügen Sie zusätzliche Stecker hinzu, um die Funktionalität zu verbessern. Holen Sie sich eine maßgeschneiderte Kabellösung, um Ihre Verbindungen zu optimieren und eine sichere, zuverlässige Leistung zu gewährleisten.

    PCB Modifications

    Choose from a variety of variations in PCB shape, size, pin and component layout to make it fully suitable for your application.

    Erhöhen Sie die Benutzerfreundlichkeit mit Touchscreen-Technologie

    Verbessern Sie Ihr Benutzererlebnis mit kapazitiver oder resistiver Touchscreen-Technologie. Wir passen die Glasdicke und die Form des Touchscreens an, um eine perfekte Anpassung an Ihre Designanforderungen zu gewährleisten.

    custom touch

    Kundenspezifisches Deckglas

    Statten Sie Ihr Display mit einem individuell zugeschnittenen Deckglas aus, um die Haltbarkeit und Leistung zu erhöhen. Wählen Sie aus verschiedenen Stärken und entscheiden Sie sich für eine optische Verklebung, die Schutz vor Feuchtigkeit und Schmutz bietet und eine langlebige und zuverlässige Lösung gewährleistet.

    AUO G085VW01 V0 8.5-Inch LCD Replacement FAQ

    How do I confirm that I need the AUO G085VW01 V0?

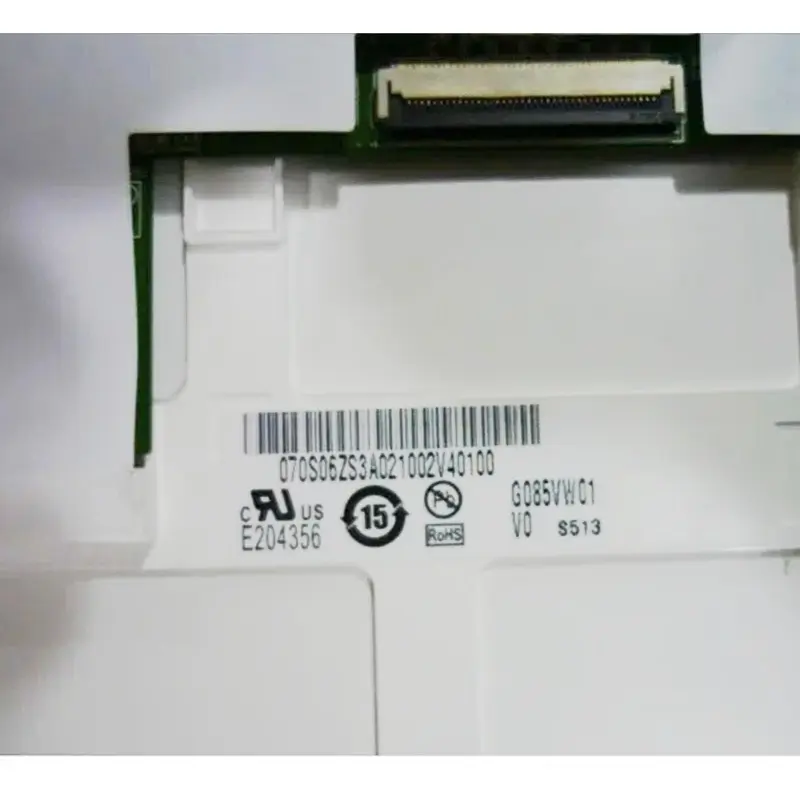

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 8.5-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing cable and controller with the AUO G085VW01 V0?

    Send us your host model so we can check the required interface, pinout and electrical limits against the exact product documentation. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How do I qualify a different panel as a replacement for the AUO G085VW01 V0?

    Use 800 × 480 to shortlist a candidate while keeping the complete interface and mechanical requirements in your acceptance criteria. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Is the AUO G085VW01 V0 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Zusätzliche Informationen

    Größe:

    Modellnummer

    G085VW01 V0

    Auflösung:

    Schnittstelle:

    Betriebstemperatur:

    -30℃~ 85℃

    Helligkeit (cd/m²):

    300

    Touchscreen-Unterstützung:

    Anzeige Typ:

    Individuelle Display-Lösungen

    Arbeiten Sie mit unseren technischen Experten zusammen, um das perfekte Display für Ihre Anwendung zu entwickeln.
