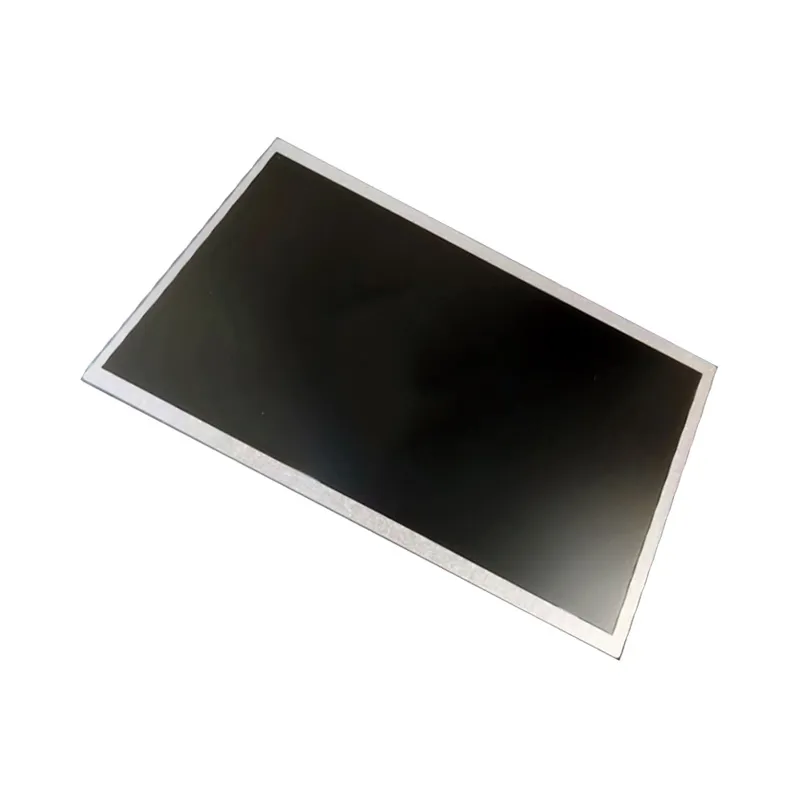

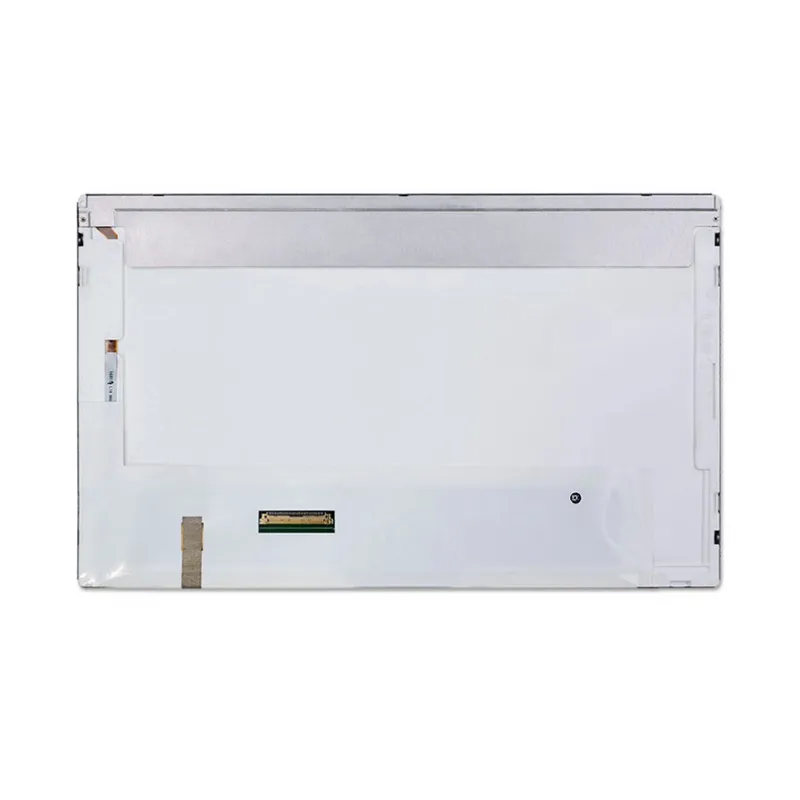

TIANMA TM101DDHG01-00 10.1 inch Ultra-Durable TN Panel Module High-Brightness LVDS Harsh Environments

Artikelnummer: DS50251
Größe:

Modellnummer

M101DDHG01-00

Auflösung:

Schnittstelle:

Betriebstemperatur:

-20℃~70℃

Touchscreen-Unterstützung:

Anzeige Typ:

TIANMA tm101ddhg01-00 10.1 inch Industrial Screen 450cd/m² LCD for Sunlight Use 1024×600 LVDS & -30°C~80°C Storage.

Preisanfrage für Volumen







    Beschreibung

    TM101DDHG01-00 General Desription

    The TIANMA TM101DDHG01-00 is a 10.1-inch TN color LCD module featuring 1024×600 resolution and 450 cd/m² ultra-high brightness, ideal for outdoor and industrial systems requiring sunlight readability. With an 800:1 contrast ratio and 80/80/75/80 viewing angles, it delivers sharper visuals than standard TN panels. The LVDS interface ensures stable signal transmission for modern control systems, while its 3.3V low-power design reduces energy consumption. Built for extreme conditions, it operates in -20°C to 70°C and stores in -30°C to 80°C, backed by a 30,000-hour LED lifespan. The slim 235×143×5.4mm profile suits space-sensitive installations, maintaining clarity in high-glare environments.



    Application & Performanc

    Designed for airport information displays, construction equipment HMIs, and outdoor digital signage, this display excels in direct sunlight for solar farm monitors and EV charging stations. Its 450 cd/m² brightness ensures visibility in desert logistics terminals and maritime navigation panels. The wide temperature range supports arctic oilfield sensors and freezer warehouse controls, while the LVDS interface integrates with modern PLCs in smart factory dashboards and robotic control systems. The enhanced contrast ratio suits medical imaging devices and aviation cockpit displays. Ideal for public transportation ticketing kiosks, mining equipment interfaces, and smart city traffic systems requiring durability and clarity.

    10.1" Product Specifications

    Diagonale Größe 10,1 Zoll
    Pixel Zahl 1024×600
    Luminance 450
    Module Size 235×143×5.4
    Aktiver Bereich 222.72×125.28
    Viewing Direction TN
    View Angle(U/D/R/L) 80/80/75/80
    Schnittstelle LVDS
    Kontrastverhältnis 800 : 1
    Betriebstemperatur -20 ~ 70 °C
    Lagertemperatur -30 ~ 80 °C
    LED-Lebensdauer 30000
    Touchscreen-Unterstützung Ohne
    Stromversorgung 3.3V
    Anzeige Typ Color TFT

    TIANMA LCD Display Custom Solutions

    Optimieren Sie Ihre Kabellösungen

    Passen Sie die Länge, Position und Pinbelegung Ihrer Kabel an, oder fügen Sie zusätzliche Stecker hinzu, um die Funktionalität zu verbessern. Holen Sie sich eine maßgeschneiderte Kabellösung, um Ihre Verbindungen zu optimieren und eine sichere, zuverlässige Leistung zu gewährleisten.

    PCB Modifications

    Choose from a variety of variations in PCB shape, size, pin and component layout to make it fully suitable for your application.

    Erhöhen Sie die Benutzerfreundlichkeit mit Touchscreen-Technologie

    Verbessern Sie Ihr Benutzererlebnis mit kapazitiver oder resistiver Touchscreen-Technologie. Wir passen die Glasdicke und die Form des Touchscreens an, um eine perfekte Anpassung an Ihre Designanforderungen zu gewährleisten.

    custom touch

    Kundenspezifisches Deckglas

    Statten Sie Ihr Display mit einem individuell zugeschnittenen Deckglas aus, um die Haltbarkeit und Leistung zu erhöhen. Wählen Sie aus verschiedenen Stärken und entscheiden Sie sich für eine optische Verklebung, die Schutz vor Feuchtigkeit und Schmutz bietet und eine langlebige und zuverlässige Lösung gewährleistet.

    Tianma TM101DDHG01-00 10.1-Inch LCD Replacement FAQ

    How do I confirm that I need the Tianma TM101DDHG01-00?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 10.1-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the Tianma TM101DDHG01-00?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How does the Tianma TM101DDHG01-00 compare with the AUO G101STN01.C?

    Both catalog listings show 10.1 inches, 1024 × 600 and LVDS. The catalog lists −20 °C to +70 °C for the Tianma panel and −30 °C to +80 °C for the AUO panel. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Compare AUO G101STN01.C

    Is the Tianma TM101DDHG01-00 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Zusätzliche Informationen

    Größe:

    Modellnummer

    M101DDHG01-00

    Auflösung:

    Schnittstelle:

    Betriebstemperatur:

    -20℃~70℃

    Touchscreen-Unterstützung:

    Anzeige Typ:
