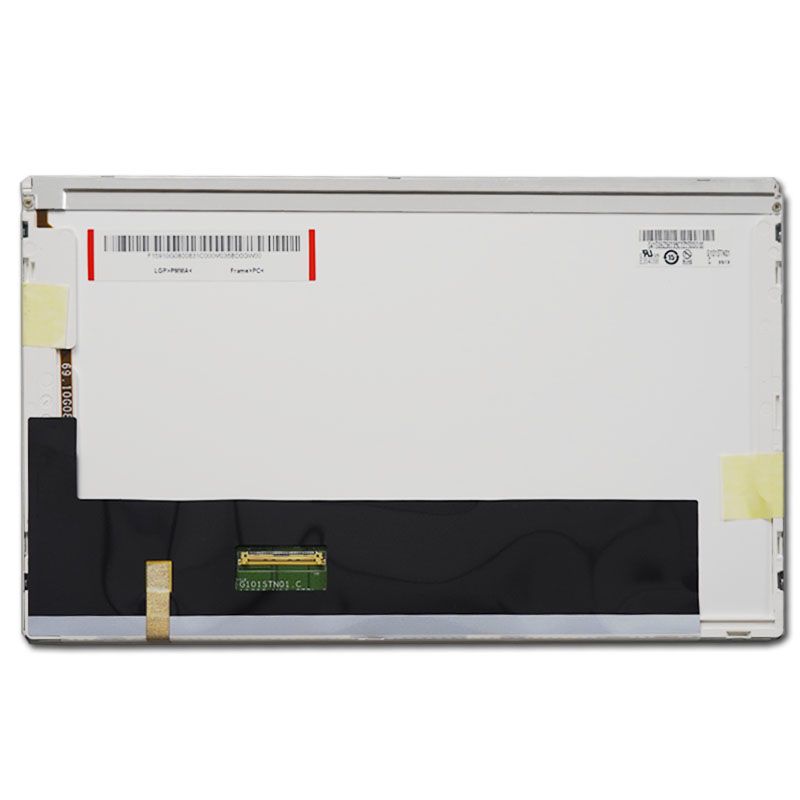

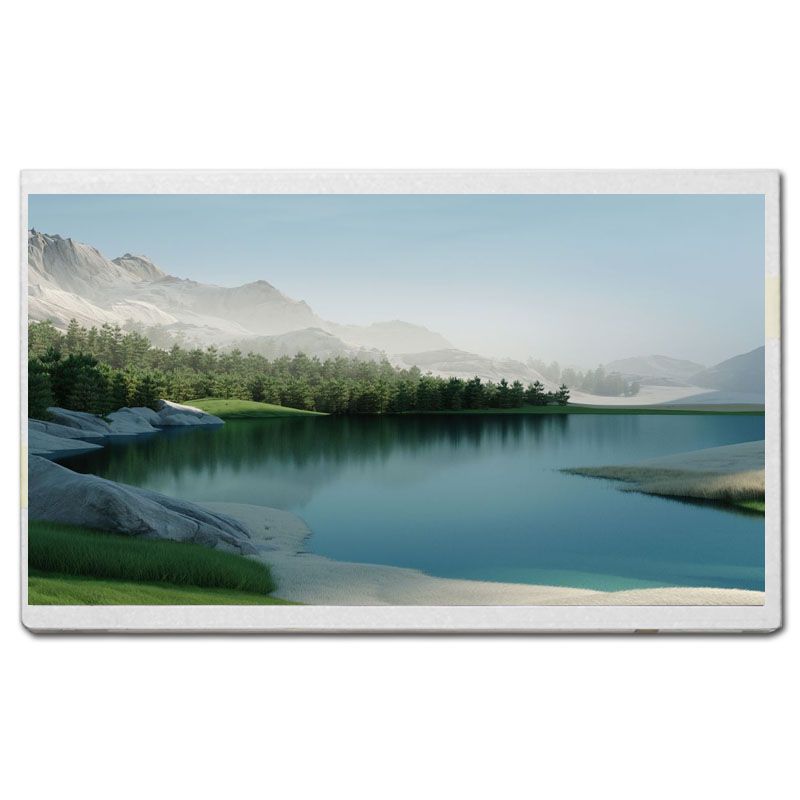

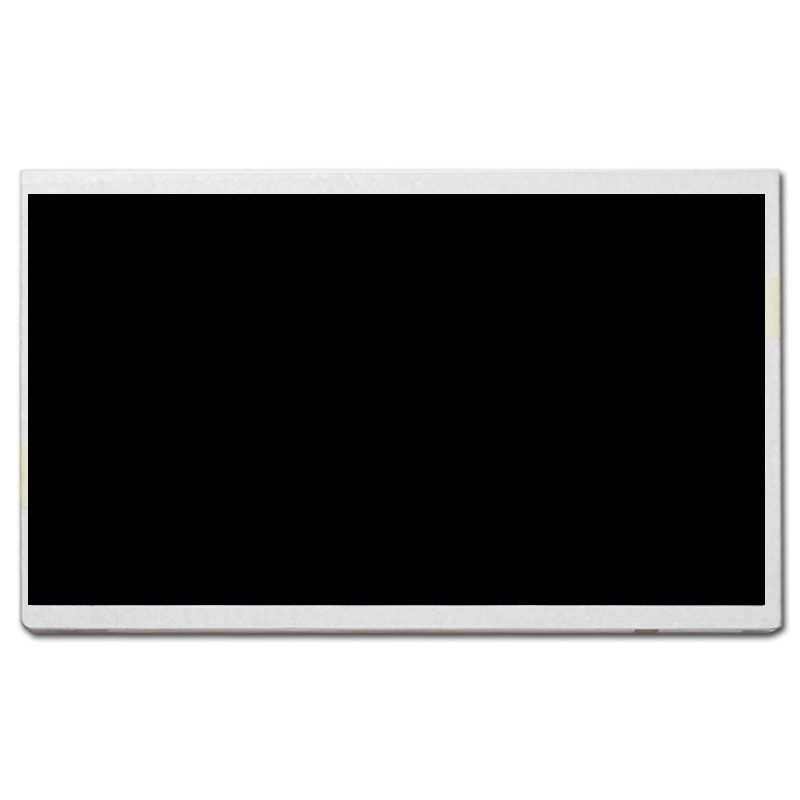

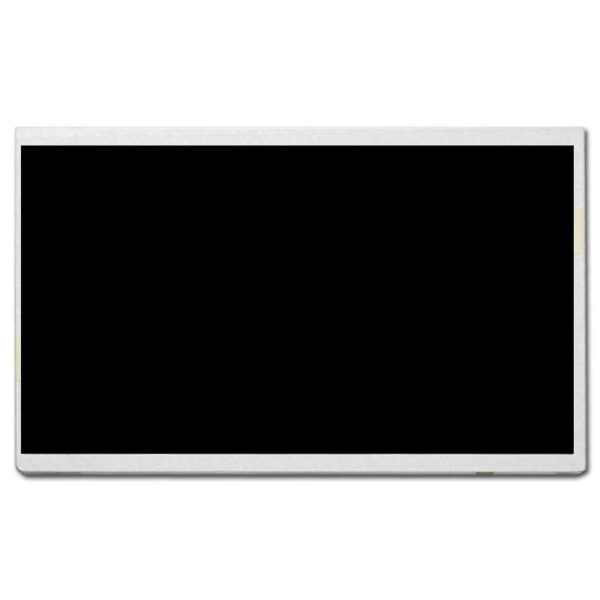

G101STN01.C AUO 10.1 inch LCD Display Panel

Description

G101STN01.C General Description

This specification applies to the Color Active Matrix Liquid Crystal Display G101STN01.C composed of a TFT-LCD display, a driver and power supply circuit, and a LED backlight system. The screen format is intended to support Wide SVGA (1024(H) x 600(V)) screen and 262k/16.7M colors (LVDS 6/8-bits). And LED driving circuit for backlight unit is included in G101STN01.C.

G101STN01.C AUO LCD Display Panel Characteristics

The 10.1 inch LCD Display Panel features an active area of 222.72 mm (H) x 125.28 mm (V) and a resolution of 1024 x 600 pixels arranged in an RGB stripe pattern with a pixel pitch of 0.2175 mm (H) x 0.2088 mm (V). Utilizing a TN (Twisted Nematic) normally white display mode, it operates at a nominal input voltage of 3.3V with a maximum power consumption of 3.83W (including 3.3W for the backlight and 0.53W for logic). The module weighs approximately 180 grams and has physical dimensions of 235 mm (H) x 143 mm (V) x 4.9 mm (T). It employs an LVDS electrical interface and features an anti-glare surface treatment with a hardness rating of 3H. Supporting 262K/16.7 million colors, it operates effectively within a temperature range of -30°C to +80°C for both operating and storage conditions. The module is also RoHS compliant and features grayscale inversion at the 6 o’clock direction.

10.1″ TFT-LCD Product Specifications

Model Number	G101STN01.C
Size	10.1
Resolution	1024*600
Outline Dimension	235*143*5.2
Active Area	222.72*125.28
Brightness(cd/m²)	500
Interface	LVDS
View Direction	TN
Operating Temperature	-30~80
Storage Temperature	-30~80
LED Lifetime	50000
Touchscreen Support	Without
Contrast Ratio	500:1
Power Supply	3.3V
Display Type	Color LCD

10.1″ TFT LCD Custom Solutions

Optimize Your Cable Solutions

Adjust the length, position, and pinout of your cables, or add additional connectors to enhance functionality. Get a customized cable solution designed to streamline your connections and ensure secure, reliable performance.

LCD Interface Customization

Select from a diverse range of interface options or consult our experts to find the ideal fit for your project. We can integrate HDMI, USB, SPI, VGA, and more into your display, helping you meet your design objectives efficiently.

Elevate User Experience with Touch Screen Technology

Enhance your user experience with either capacitive or resistive touch screen technology. We will customize the glass thickness and shape of the touch panel to ensure a perfect fit for your design requirements.

Custom Cover Glass

Equip your display with a custom-cut cover glass to boost durability and performance. Select from various thicknesses and opt for optical bonding to provide protection against moisture and debris, ensuring a long-lasting and reliable solution.
