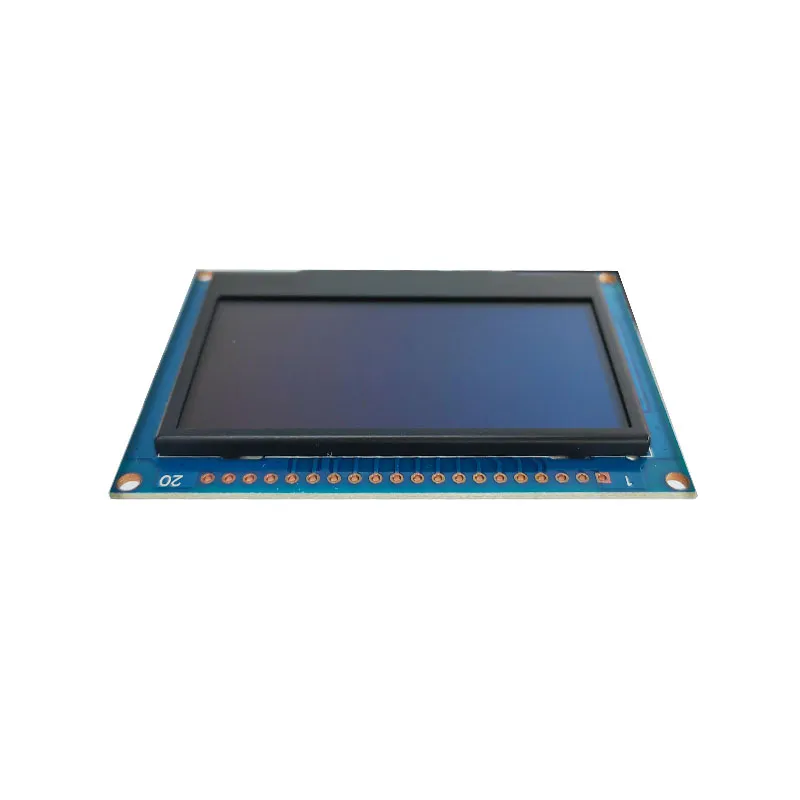

Pantalla Oled de 2,42 pulgadas y 128*64 segmentos SSD1309 compatible con Arduino

SKU: DS10044
Tamaño:

Resolución:

Interfaz:

,

Temperatura de funcionamiento:

-0℃~40℃

Brillo (cd/m²):

200

Compatible con pantallas táctiles:

Tipo de pantalla:

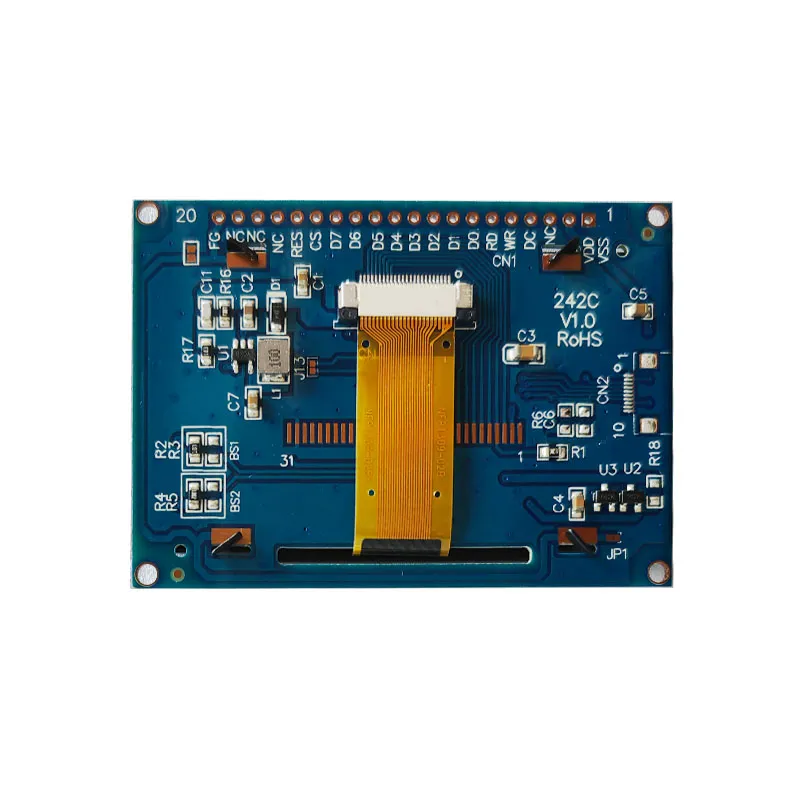

Segment Oled Display   Passive Matrix  Oled with different light color Yellow/White/ Green  2.42 inch monochrome 128x64 oled display module with a PCB board    SSD1309 Controller  IC    8-BIT 68XX/80XX Parallel,4-wire SPI,I2C interface    Four screw holes are designed on the PCB

Solicitar precios por volumen







    Descripción

    2.42" Arduino Oled Display Features

    The 2.42 inch Segment Oled Display is a versatile and high-quality display solution designed for a wide range of applications. Featuring a resolution of 128 x 64 pixels, this passive matrix OLED display offers vibrant visuals in multiple monochrome colors, including yellow, white, and green, making it suitable for various projects that require clear and dynamic output.



    2.42" Arduino Oled Display Application

    The 2.42 inch Segment Oled Display is well-suited for various applications, including wearable devices like smartwatches and fitness trackers, where compact displays and efficient power usage are essential. It is also ideal for embedded systems, such as IoT devices and industrial controls, that require reliable visual outputs. Additionally, this display is a favorite among hobbyists and makers for enhancing DIY projects with Arduino or Raspberry Pi. Furthermore, it can be integrated into medical devices, providing clear and easily interpretable outputs for effective user interaction.

    2.42" Arduino Oled Display Product Specifications

    Panel Size(inch) 2.42(Diagonal)
    Modo de visualización Passive Matrix—OLED&Yellow/White/Green
    Interfaz 8-BIT 68XX/80XX Parallel,4-wire SPI,I2C
    Drive Duty 1/64
    Conductor IC SSD1309
    Shell 0.5T
    Outline Drawing 70.5x49.6x5.9
    View Area 57.0x29.5
    Área activa -
    Lattice 128dots x 64dots
    Paso de píxeles 0.43x0.43
    Pixel Size 0.39x0.39
    - -
    - -
    - -

    2.42" Arduino Oled Display Custom Solutions

    Optimice sus soluciones de cableado

    Ajuste la longitud, la posición y el pinout de sus cables, o añada conectores adicionales para mejorar la funcionalidad. Obtenga una solución de cable personalizada diseñada para agilizar sus conexiones y garantizar un rendimiento seguro y fiable.

    Personalización de la interfaz LCD

    Seleccione entre una amplia gama de opciones de interfaz o consulte a nuestros expertos para encontrar la ideal para su proyecto. Podemos integrar HDMI, USB, SPI, VGA y más en su pantalla, ayudándole a cumplir sus objetivos de diseño de forma eficiente.

    Mejore la experiencia del usuario con la tecnología de pantalla táctil

    Mejore su experiencia de usuario con tecnología de pantalla táctil capacitiva o resistiva. Personalizaremos el grosor del cristal y la forma del panel táctil para garantizar un ajuste perfecto a sus requisitos de diseño.

    custom touch

    Tapa de cristal a medida

    Equipe su pantalla con una cubierta de cristal cortada a medida para aumentar la durabilidad y el rendimiento. Elija entre varios grosores y opte por la adhesión óptica para protegerla de la humedad y la suciedad, garantizando una solución duradera y fiable.

    128 × 64 SPI Embedded Display FAQ

    Can my microcontroller show this interface without clipping or running out of memory?

    Try your smallest text, longest labels and icons on a 128 × 64 canvas before committing to the enclosure. Calculate framebuffer memory for your selected pixel format and buffering strategy, then measure the update time with the intended microcontroller.

    How can I check whether my existing display library will work?

    For the listed SPI interface, check the exact controller, SPI mode, logic levels and update time with a representative screen. Check that the library names the exact display controller and supports its initialization, addressing and orientation. Test a full-screen pattern before porting the UI.

    LCD display interface guide

    Should I choose this display bus or another interface on my controller?

    Compare pin availability, logic levels, code support and measured full-screen update time with your existing host. Compare the candidates with the same content, cover and lighting, then select against your minimum contrast and viewing-angle requirements. Include the space needed for the connector and any adapter.

    Can the connector, flex, or display assembly be adapted to my controller board?

    Send the host schematic or board model, connector, flex length and use case. We can review connector and mounting options and identify the bus mode, logic levels and controller initialization to lock down before sampling.

    What determines the cost and timing of a sample for my MCU project?

    Include the host, preferred controller or bus, cable requirements, sample quantity and target date. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Información complementaria

    Tamaño:

    Resolución:

    Interfaz:

    ,

    Temperatura de funcionamiento:

    -0℃~40℃

    Brillo (cd/m²):

    200

    Compatible con pantallas táctiles:

    Tipo de pantalla:
