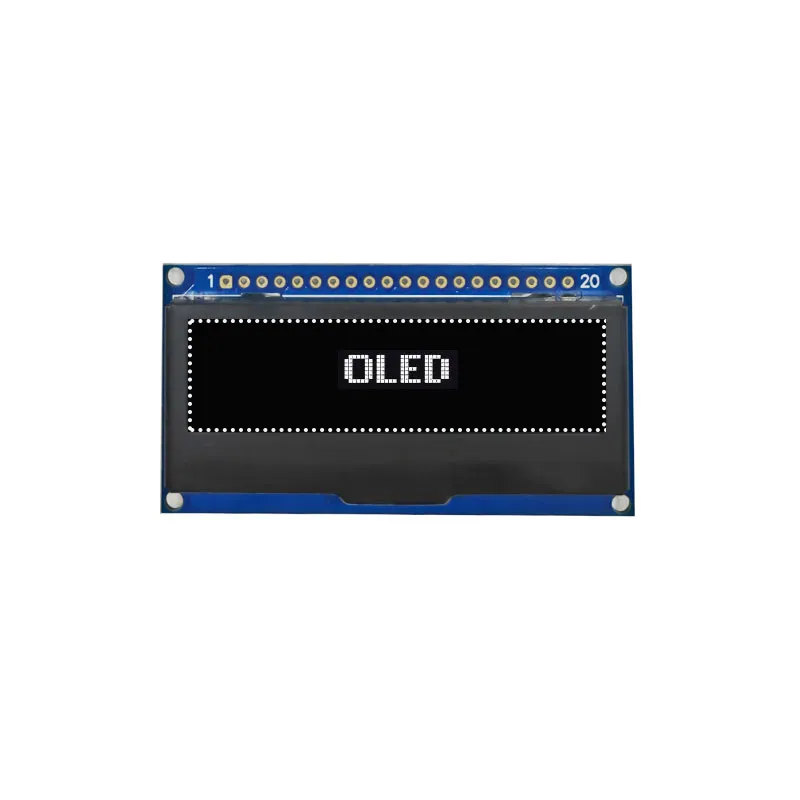

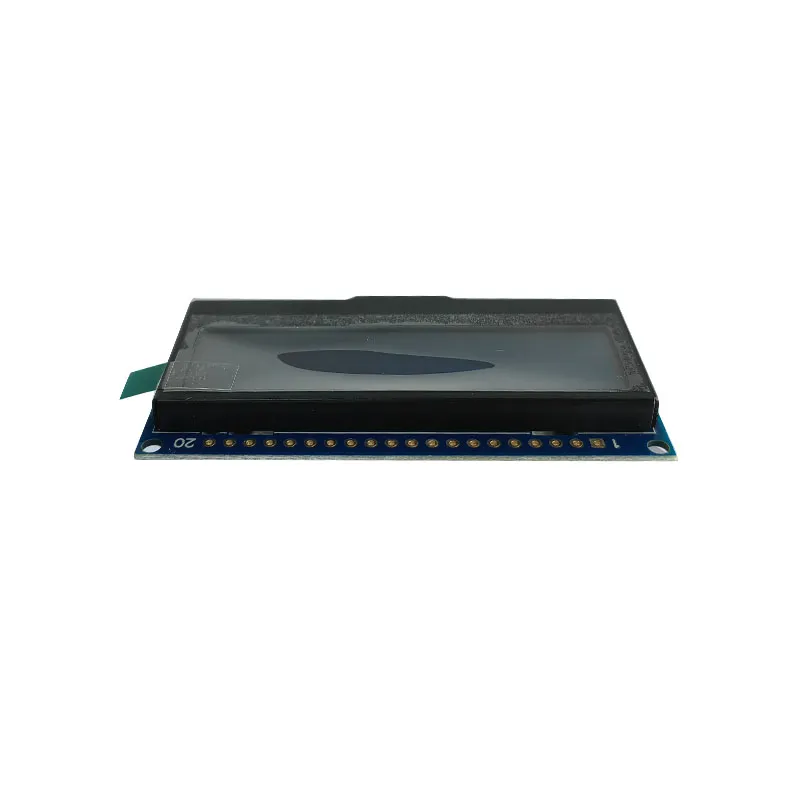

2.23 inch 128*32 Arduino LCD Screen SSD1305

SKU: DS10042
Tamaño:

Resolución:

Interfaz:

,

Temperatura de funcionamiento:

-0℃~40℃

Brillo (cd/m²):

200

Compatible con pantallas táctiles:

Tipo de pantalla:

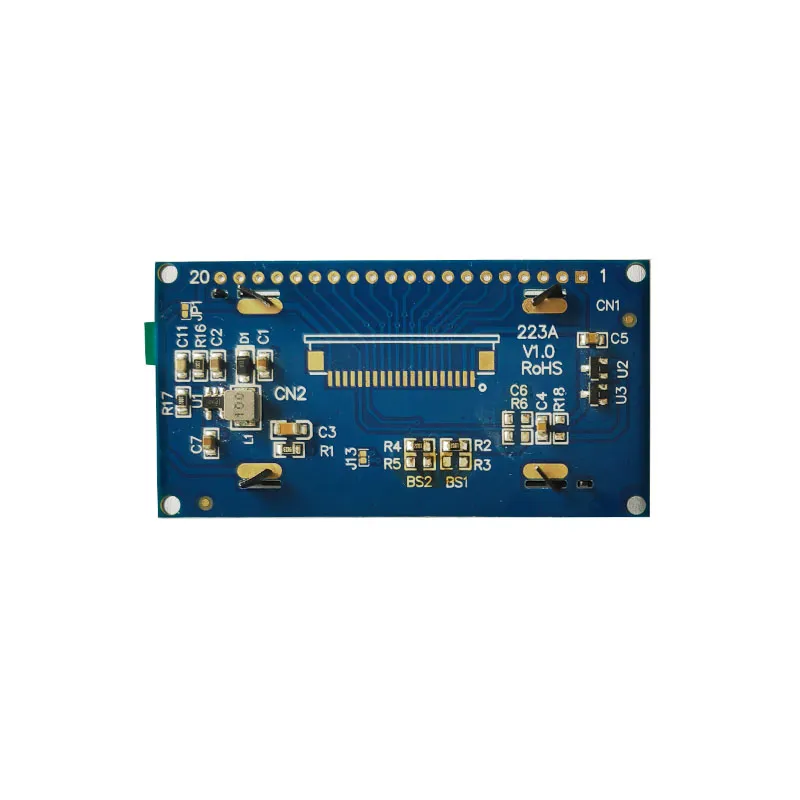

Arduino LCD Screen   Passive Matrix  Oled with  light color Blue  2.32 inch monochrome 128x32 oled display module with a PCB board    SSD1305 Controller  IC    8-BIT 68XX/80XX Parallel,4-wire SPI,I2C interface     Four screw holes are designed on the PCB

Solicitar precios por volumen







    Descripción

    2.23" Arduino Oled Display Features

    The 2.32 inch Arduino LCD Screen is a compact and efficient display solution designed for a variety of applications. This passive matrix OLED screen features a resolution of 128 x 32 pixels and displays vibrant visuals in a striking blue color, making it suitable for projects that require clear and engaging outputs.



    2.23" Arduino Oled Display Application

    The 2.32 inch Arduino LCD Screen is ideal for a variety of applications, making it a valuable component for Arduino projects, where hobbyists and makers can enhance their setups with a high-quality display. It is also well-suited for embedded systems, including IoT devices that require reliable visual outputs. Additionally, this display is perfect for DIY electronics, providing an effective means to showcase information and graphics in various projects. Furthermore, it can be integrated into consumer electronics like remote controls and portable gadgets, significantly enhancing user interfaces with clear and engaging visuals.

    2.23" Arduino Oled Display Product Specifications

    Panel Size(inch) 2.23(Diagonal)
    Modo de visualización Passive Matrix—OLED&Blue
    Interfaz 8-Bit 68XX/80XX Parallel ,4-Wire SPI ,I2C
    Drive Duty 1/32
    Conductor IC SSD1305
    Shell 0.5T
    Outline Drawing 66.5(W)x35(H)x8.5Max(T)
    View Area 57.0(W)x15.1(H)
    Área activa 55.02(W)x13.1(H)
    Lattice 128dots x 32dots
    Paso de píxeles 0.43(W)x0.41(H)
    Pixel Size 0.41(W)x0.39(H)
    - -
    - -
    - -

    2.23" Arduino Oled Display Custom Solutions

    Optimice sus soluciones de cableado

    Ajuste la longitud, la posición y el pinout de sus cables, o añada conectores adicionales para mejorar la funcionalidad. Obtenga una solución de cable personalizada diseñada para agilizar sus conexiones y garantizar un rendimiento seguro y fiable.

    Personalización de la interfaz LCD

    Seleccione entre una amplia gama de opciones de interfaz o consulte a nuestros expertos para encontrar la ideal para su proyecto. Podemos integrar HDMI, USB, SPI, VGA y más en su pantalla, ayudándole a cumplir sus objetivos de diseño de forma eficiente.

    Mejore la experiencia del usuario con la tecnología de pantalla táctil

    Mejore su experiencia de usuario con tecnología de pantalla táctil capacitiva o resistiva. Personalizaremos el grosor del cristal y la forma del panel táctil para garantizar un ajuste perfecto a sus requisitos de diseño.

    custom touch

    Tapa de cristal a medida

    Equipe su pantalla con una cubierta de cristal cortada a medida para aumentar la durabilidad y el rendimiento. Elija entre varios grosores y opte por la adhesión óptica para protegerla de la humedad y la suciedad, garantizando una solución duradera y fiable.

    128 × 32 Embedded Display FAQ

    Can my microcontroller show this interface without clipping or running out of memory?

    Try your smallest text, longest labels and icons on a 128 × 32 canvas before committing to the enclosure. Calculate framebuffer memory for your selected pixel format and buffering strategy, then measure the update time with the intended microcontroller.

    How can I check whether my existing display library will work?

    The catalog mentions SPI and I²C. Send us your host model and ask us to confirm the role and wiring of each connection on the configuration you plan to order. Check that the library names the exact display controller and supports its initialization, addressing and orientation. Test a full-screen pattern before porting the UI.

    LCD display interface guide

    Should I choose this display bus or another interface on my controller?

    Compare pin availability, logic levels, code support and measured full-screen update time with your existing host. Compare the candidates with the same content, cover and lighting, then select against your minimum contrast and viewing-angle requirements. Include the space needed for the connector and any adapter.

    Can the connector, flex, or display assembly be adapted to my controller board?

    Send the host schematic or board model, connector, flex length and use case. We can review connector and mounting options and identify the bus mode, logic levels and controller initialization to lock down before sampling.

    What determines the cost and timing of a sample for my MCU project?

    Include the host, preferred controller or bus, cable requirements, sample quantity and target date. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Información complementaria

    Tamaño:

    Resolución:

    Interfaz:

    ,

    Temperatura de funcionamiento:

    -0℃~40℃

    Brillo (cd/m²):

    200

    Compatible con pantallas táctiles:

    Tipo de pantalla:
