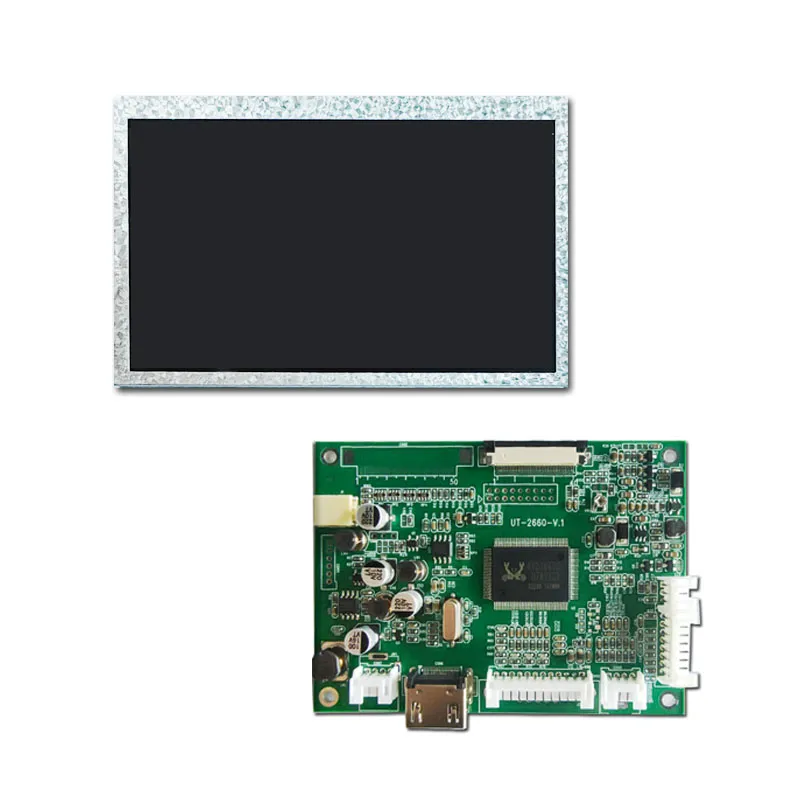

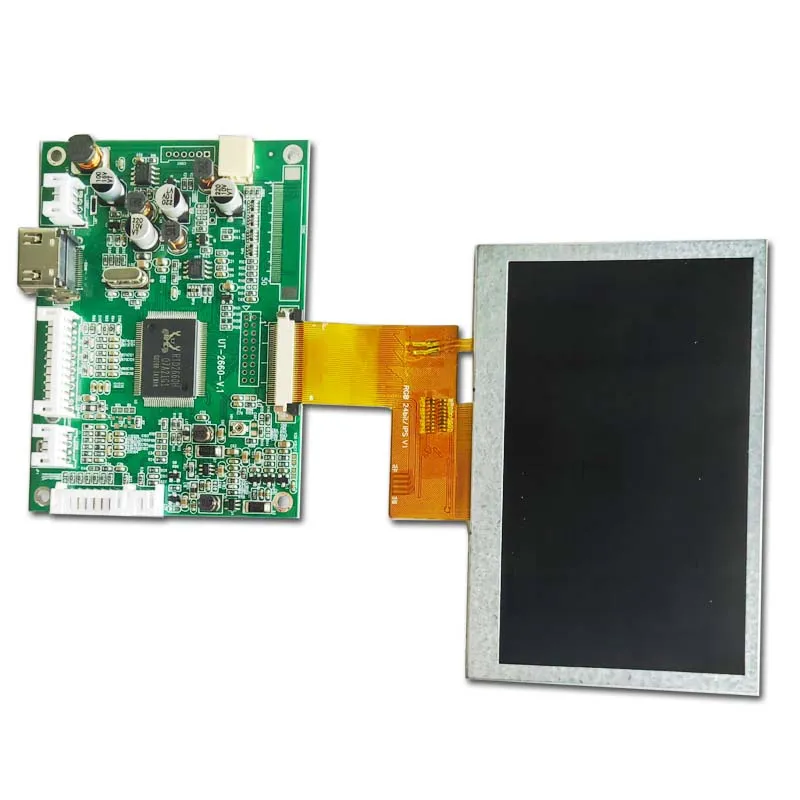

4.3 inch 480*272 HDMI TFT Display with Driver Board

SKU: DS20168
Tamaño:

Resolución:

Interfaz:

Temperatura de funcionamiento:

-30℃~80℃

Brillo (cd/m²):

500

Compatible con pantallas táctiles:

Tipo de pantalla:

HDMI TFT Display  4.3 inch TFT LCD Module Offering Resolution 480*272  Driver Board with HDMI, VGA, CVBS, video signal input

Solicitar precios por volumen







    Descripción

    4.3" HDMI TFT Display Features

    The 4.3-Inch TFT Display features a resolution of 480 x 272 pixels and dimensions of 95.04 mm x 53.86 mm, making it a compact and versatile display option. The driver board supports multiple input signals, including HDMI, VGA, and CVBS, with HDMI conforming to the general 1.2 version. The VGA input supports a resolution of 800 x 480 with a refresh rate between 60 and 75 Hz, while the CVBS input operates at 1.0 Vp-p with a 75Ω impedance. Additional functionalities include a multi-function on-screen display (OSD) operation, an optional remote control feature, and automatic shutdown when no signal is detected, with a power input requirement of DC +12V.



    4.3" HDMI TFT Display Application

    The 90-04306-001 is a versatile 4.3" HDMI TFT Display featuring a resolution of 480x272 pixels and comes equipped with a HDMI/VGA signal driver board. For added functionality, it offers optional touch panel support, including a 4-wire resistive touch panel with a USB driver board and cable, or a capacitive touch panel with a USB controller board and cable.
    Designed for superior image quality, making it an ideal choice for a variety of applications, such as embedded systems, automotive displays, industrial equipment, security systems, and handheld devices where high-quality video output is essential. Its compatibility with Raspberry Pi via HDMI enhances its flexibility, supporting operating systems like Raspbian, Ubuntu, and Windows 10 IoT. The display also supports multi-touch and it is driver-free, ensuring ease of integration.
    Beyond Raspberry Pi, the 90-04306-001 can serve as a computer display, offering compatibility with Windows 11, 10, 8, and 7. Its driver-free functionality and multi-touch capabilities make it a convenient display solution, suitable for a broad spectrum of applications.

    4.3" HDMI TFT Display Product Specifications

    Tamaño diagonal 4.3(Diagonal)
    Display Format 480x272 Pixels
    Interfaz HDMI
    IC or Equivalent RTD2660H
    Connection Plug-in FPC
    Contorno Dimensión 119(W)x56.5(H)X4.3(T)mm
    Área activa 108(W)x43.2(H)mm
    Touch Panel Optional Yes
    Contrast Ratio(Typ) 500
    Dirección de visualización 6
    Viewing Angle Range 70/70 /50/70
    Brightness(Typ) 500cd/m2
    Temperatura de funcionamiento -20℃~70℃
    Temperatura de almacenamiento -30℃~80℃
    - -

    4.3" HDMI TFT Display Custom Solutions

    Optimice sus soluciones de cableado

    Ajuste la longitud, la posición y el pinout de sus cables, o añada conectores adicionales para mejorar la funcionalidad. Obtenga una solución de cable personalizada diseñada para agilizar sus conexiones y garantizar un rendimiento seguro y fiable.

    Personalización de la interfaz LCD

    Seleccione entre una amplia gama de opciones de interfaz o consulte a nuestros expertos para encontrar la ideal para su proyecto. Podemos integrar HDMI, USB, SPI, VGA y más en su pantalla, ayudándole a cumplir sus objetivos de diseño de forma eficiente.

    Mejore la experiencia del usuario con la tecnología de pantalla táctil

    Mejore su experiencia de usuario con tecnología de pantalla táctil capacitiva o resistiva. Personalizaremos el grosor del cristal y la forma del panel táctil para garantizar un ajuste perfecto a sus requisitos de diseño.

    custom touch

    Tapa de cristal a medida

    Equipe su pantalla con una cubierta de cristal cortada a medida para aumentar la durabilidad y el rendimiento. Elija entre varios grosores y opte por la adhesión óptica para protegerla de la humedad y la suciedad, garantizando una solución duradera y fiable.

    4.3-Inch 480 × 272 HDMI Display Kit FAQ

    Will this HDMI display, controller, and harness fit my enclosure?

    Use the 4.3-inch diagonal to shortlist kits, then check the exact drawing for fit. Lay out the panel, controller board, cable bends and access to the input and power connectors. Ask us to confirm the exact kit contents and both drawings before finalizing the enclosure.

    Will this HDMI display start and wake correctly with my video source?

    For the listed HDMI interface, confirm the source can output a mode accepted by the supplied controller and check separately how the display is powered. Confirm the controller’s accepted display mode, then test startup with the source already on and with both devices powered together.

    LCD display interface guide

    Should I order an HDMI kit or pair a bare panel with my own controller?

    Try your menus and test patterns on a 480 × 272 canvas before committing to the enclosure. Compare the installation space, connector access and firmware work for both routes. If you use your own board, you must verify panel timing, cable pinout and backlight power for that pairing.

    Can the kit be supplied with a different cable, mounting, or touch setup?

    Share your controller mounting space, source, cable lengths, access to power and any touch requirement. We can check the exact kit parts and which cable or mounting adjustments can be quoted.

    How should I request pricing and lead time for an HDMI display kit?

    Include the accepted input mode, board and cable requirements, sample quantity and expected production volume. Ask for the hardware, accessories and any one-time setup itemized, with sample cost, production quantity breaks and separate delivery dates.
