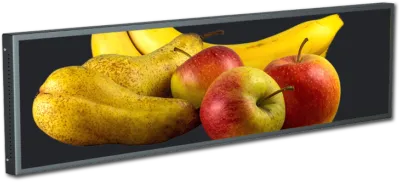

43.8 inch Bar Monitor Screen Resolution 3840*1080 USB*2/TF/Audio/RJ45/DC IN/TF

SKU: DS30016
Tamaño:

Resolución:

Interfaz:

, , ,

Brillo (cd/m²):

500

Temperatura de funcionamiento:

-0℃~50℃

43.8 inch Bar Monitor Screen, offering resolution 3840*1080, Aspect Ratio 32:9,Brightness 500cd/m2, Interface with USB*2/TF/Audio/RJ45//DC IN/TF, Optional Android motherboard

Solicitar precios por volumen







    Descripción

    43.8 inch Bar monitor screen main features:

    • 178° ultra-wide viewing angle, 1000:1 high contrast ratio
    • Calidad de imagen de alta definición, reproducción fluida
    • Expositor de tiras largas, puede colgarse horizontal o verticalmente
    • Marco de chapa, protege la pantalla de los golpes
    • Brightness 500cd/m2 adjustable, appearance color customizable, driver motherboard solution customizable

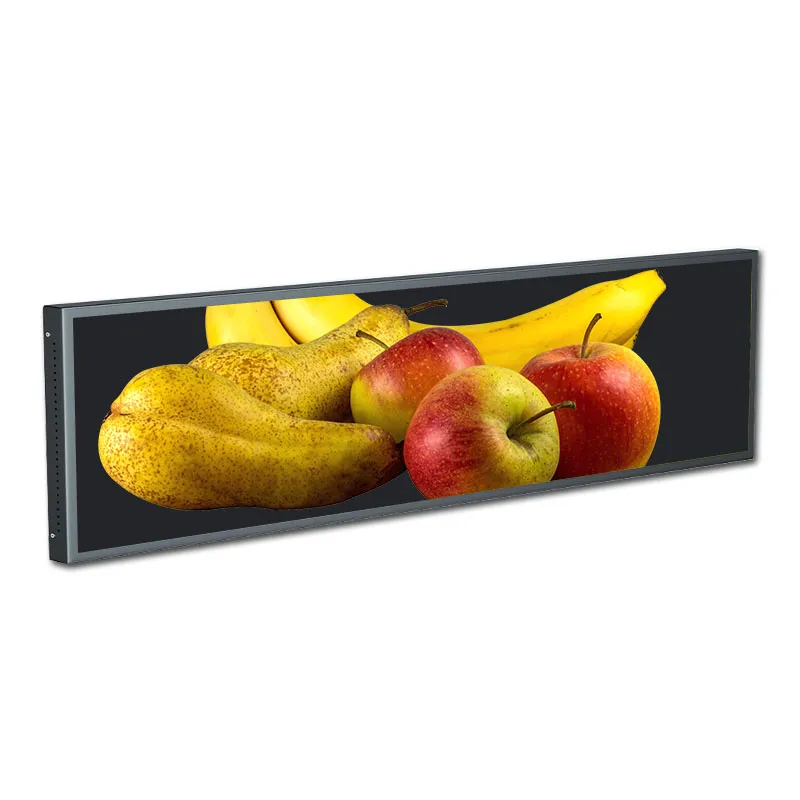

    43.8 inch Bar Monitor Screen



    43.8 inch Bar monitor screen Specification

    Pantalla LCD Tamaño de la pantalla 43.8inch
    Área activa 1071*301(mm)
    Esquema 1101*331*49(mm)
    Tipo de pantalla a-Si TFT-LCD
    Número de píxeles 3840*1080
    Relación de aspecto 32:9
    Luminancia 500 cd/m2
    Relación de contraste 1000:1
    Ángulo de visión 89/89/89/89 (Typ.)(CR≥10)
    Profundidad de color 1.07B  68% NTSC
    Respuesta 14 (Typ.)(G to G) ms
    Paso de píxeles 0.279×0.279 (H×V)
    Placa base CPU 972
    Ram -
    Flash -
    O/S -
    Interfaz USB*2/TF/Audio/RJ45//DC IN/TF
    Máquina Aspecto y estructura Chapa metálica
    Color Black,customizable
    Periférico WIFI, customized capacotive touch
    Alimentación AC110V-220V
    Consumo de energía ≦50W
    Temperatura de funcionamiento 0℃~50℃
    Temperatura de almacenamiento -20℃~60℃
    Método de instalación Colgante de pared
    Peso neto 11Kg
    Tamaño Corton 1230*650*210(mm)
    Número de cajas 2PCS/Corton
    Peso Corton 25Kg

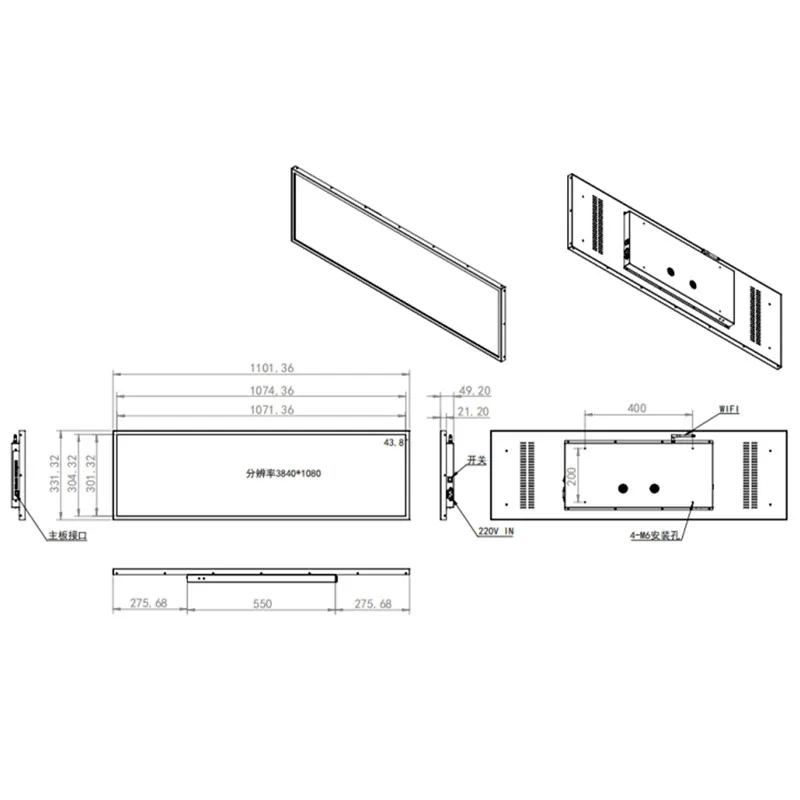

    Dibujo y foto 43.8 inch stretched monitor

    43.8-Inch 3840 × 1080 Monitor FAQ

    Will this monitor fit with the cables and controls accessible?

    Use the 43.8-inch diagonal to shortlist monitors, then check the exact drawing for fit. Compare the case depth, mount or stand, cable bend and access to the controls against your setup. Test the actual cable exit before approving a tight installation.

    Industrial touch monitor selection guide

    Can my computer, media player, or controller run this monitor?

    The catalog mentions USB and RJ45. Send us your source model and OS or firmware version and ask us to confirm the role and wiring of each connection on the configuration you plan to order.

    How should I compare this monitor with another for my installation?

    Try your typical desktop, menu or signage layout on a 3840 × 1080 canvas before choosing a monitor. Compare readable text size at the intended distance, connector access and whether the installation needs a portable stand or fixed mounting. Use the listed 500 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting.

    Can I specify the mount, ports, power adapter, or touch configuration?

    Share the enclosure or stand drawing, input sources, orientation and required ports. We can check available mounts, power and touch configurations and confirm which parts can be quoted together.

    What should I send for a monitor quote and sample schedule?

    Include the source ports and modes, mounting setup, accessories, quantities and required date. Ask for the hardware, accessories and any one-time setup itemized, with sample cost, production quantity breaks and separate delivery dates.

    Información complementaria

    Tamaño:

    Resolución:

    Interfaz:

    , , ,

    Brillo (cd/m²):

    500

    Temperatura de funcionamiento:

    -0℃~50℃
