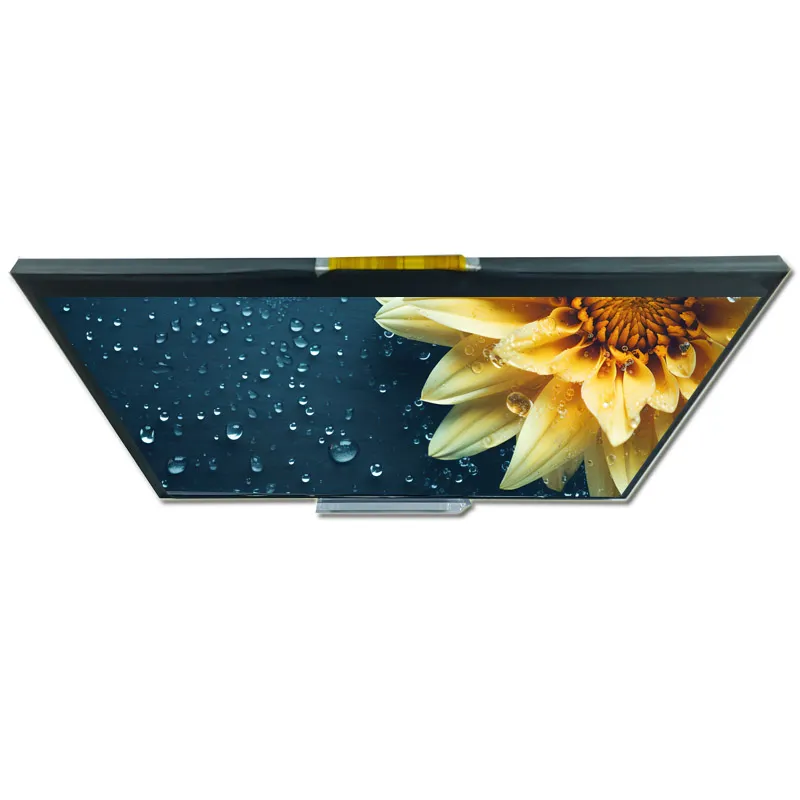

Pantalla LCD de alto brillo de 7 pulgadas 1024*600

SKU: DS20070
Tamaño:

Resolución:

Interfaz:

Temperatura de funcionamiento:

-20℃~70℃

Brillo (cd/m²):

650

Compatible con pantallas táctiles:

Tipo de pantalla:

7 inch lcd display panel  1024*600 Pixels  Serial LVDS Interface  40 pin FFC connection  Customized touch screen

Solicitar precios por volumen







    Descripción

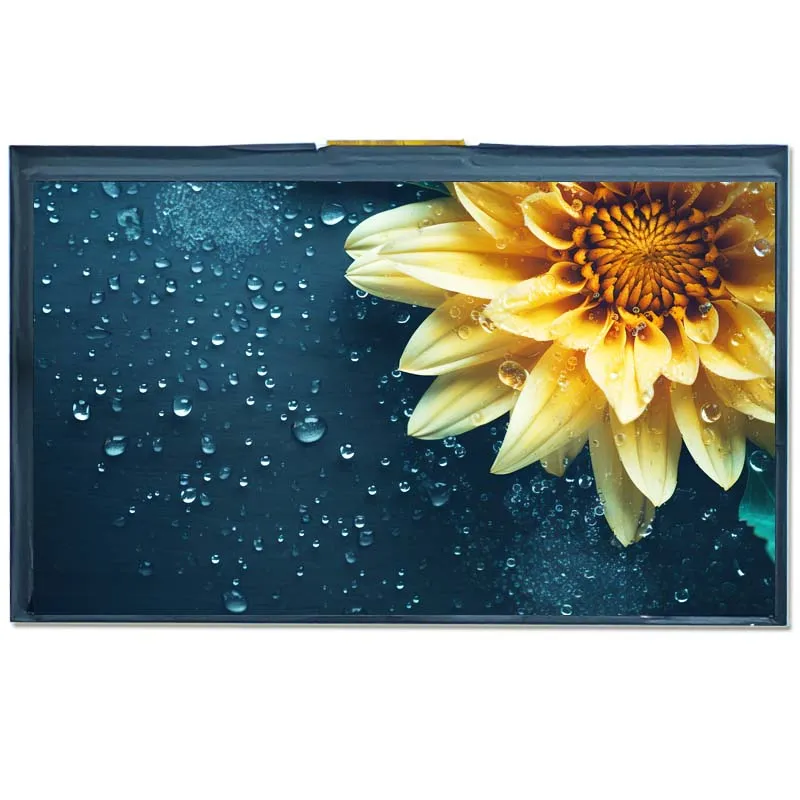

    7" TFT LCD Panel Features

    The 7 inch High Brightness LCD Display offers an 80° viewing angle in all directions for consistent image quality, along with a brightness level of 650 cd/m² for exceptional visibility in bright conditions. Its LED backlight is rated for 20,000 hours, while the contrast ratio of 800 enhances content clarity and vibrancy. Operating within a temperature range of -20°C to 70°C and utilizing a 40-pin LVDS interface, this module ensures reliable performance and seamless integration with modern technology.



    High Brightness of 7" TFT LCD Panel

    The 7 display module features a brightness level of 650 cd/m², making it highly visible in both indoor and outdoor environments. This high brightness enhances visibility in variable indoor lighting and ensures clear views in direct sunlight, making it suitable for applications such as kiosks and navigation systems. Additionally, the increased brightness contributes to more vivid and saturated colors, significantly enhancing the visual experience, which is particularly beneficial for multimedia content, gaming, and detailed graphics.

    7.0" TFT-LCD Product Specifications

    Número de modelo  90-07018-BH1
    Talla 7.0
    Resolución 1024*600
    Contorno Dimensión 164.2*99.2*4.9
    Área activa 154.21*85.92
    Brillo(cd/m²) 650
    Interfaz LVDS
    Ver Dirección ALL
    Temperatura de funcionamiento -20~70
    Temperatura de almacenamiento -30~80
    Vida útil del LED 20000
    Soporte de pantalla táctil Sin
    Relación de contraste 800:1
    Fuente de alimentación 3.3V
    Tipo de pantalla LCD en color

    7.0" TFT LCD Custom Solutions

    Optimice sus soluciones de cableado

    Ajuste la longitud, la posición y el pinout de sus cables, o añada conectores adicionales para mejorar la funcionalidad. Obtenga una solución de cable personalizada diseñada para agilizar sus conexiones y garantizar un rendimiento seguro y fiable.

    Personalización de la interfaz LCD

    Seleccione entre una amplia gama de opciones de interfaz o consulte a nuestros expertos para encontrar la ideal para su proyecto. Podemos integrar HDMI, USB, SPI, VGA y más en su pantalla, ayudándole a cumplir sus objetivos de diseño de forma eficiente.

    Mejore la experiencia del usuario con la tecnología de pantalla táctil

    Mejore su experiencia de usuario con tecnología de pantalla táctil capacitiva o resistiva. Personalizaremos el grosor del cristal y la forma del panel táctil para garantizar un ajuste perfecto a sus requisitos de diseño.

    custom touch

    Tapa de cristal a medida

    Equipe su pantalla con una cubierta de cristal cortada a medida para aumentar la durabilidad y el rendimiento. Elija entre varios grosores y opte por la adhesión óptica para protegerla de la humedad y la suciedad, garantizando una solución duradera y fiable.

    7-Inch 1024 × 600 High-Brightness LCD Display FAQ

    Will this display be readable through my outdoor enclosure window?

    Use the listed 650 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting. Test your smallest text in direct sun and at the worst reflection angle. Record the cover finish and viewing distance so you can repeat the test on later samples.

    Sunlight Readable TFT Displays

    What must my controller and power supply support in an outdoor installation?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Verify the backlight supply, dimming control and enclosure cooling using the exact panel documentation.

    How should I compare high-brightness displays behind the same cover?

    Use the 7-inch diagonal to shortlist high-brightness displays, then check the exact drawing for fit. Compare readability and temperature inside the same enclosure at the brightness needed to read the UI. Try your actual interface rather than a full-screen test image on a 1024 × 600 canvas before committing to the enclosure.

    Can the cover treatment, touch, or brightness be adapted to my installation?

    Send the opening, viewing distance, ambient light and maximum temperature at the panel. We can review cover finish, optical bonding or touch options and where a different panel or backlight design may be needed.

    What information is needed for a sample quote for an outdoor display?

    Include the cover stack, ambient light, temperature range, annual volume and target sample date. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Información complementaria

    Tamaño:

    Resolución:

    Interfaz:

    Temperatura de funcionamiento:

    -20℃~70℃

    Brillo (cd/m²):

    650

    Compatible con pantallas táctiles:

    Tipo de pantalla:
