AUO G185HAN01.0 18.5" Full HD IPS Industrial LCD Panel - 350Brightness, LVDS Interface

SKU: DS50050
Tamaño:

Número de modelo

G185HAN01.0

Resolución:

Interfaz:

Temperatura de funcionamiento:

-20℃~70℃

Brillo (cd/m²):

350

Compatible con pantallas táctiles:

Tipo de pantalla:

Recursos:

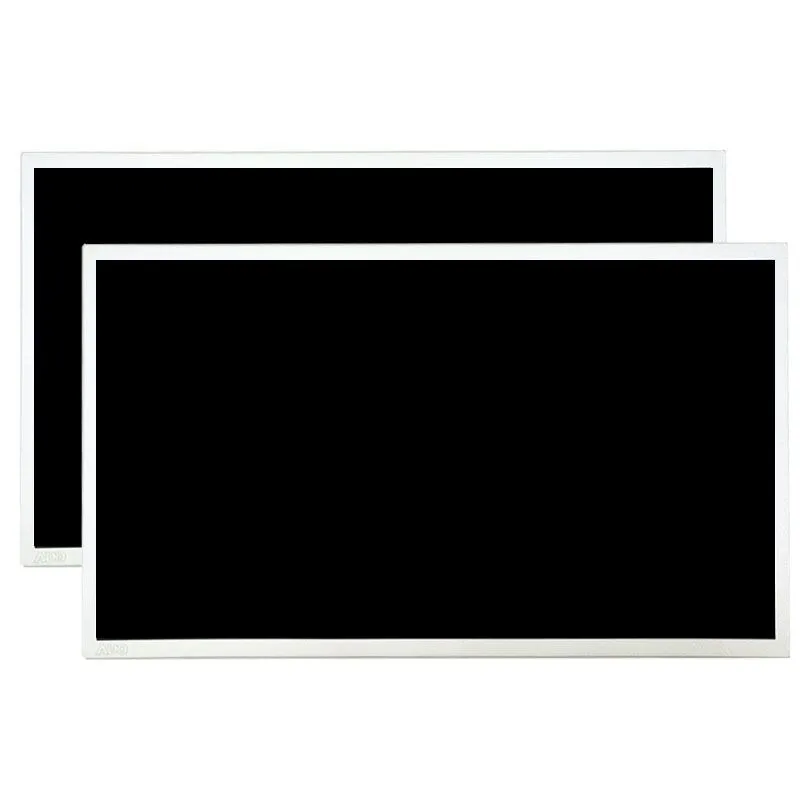

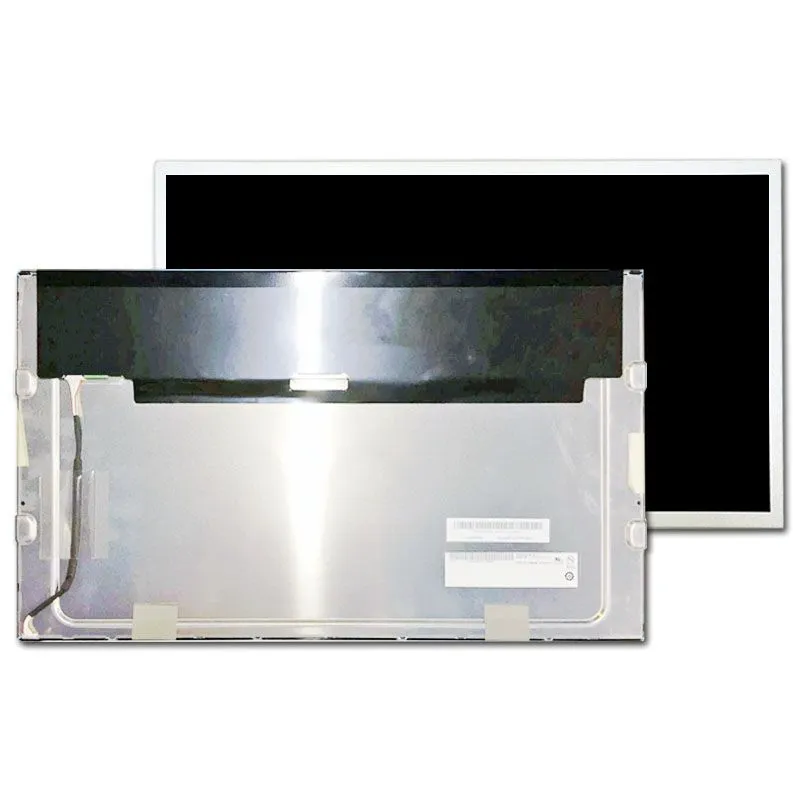

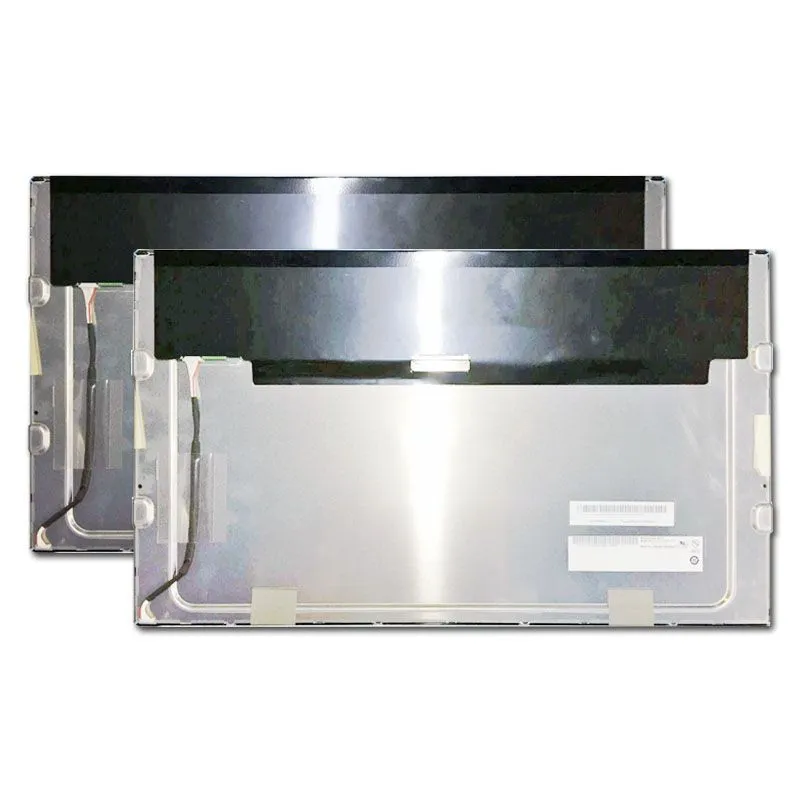

AUO G185HAN01.0 redefines industrial display standards with its 18.5-inch Full HD IPS LCD panel.

Solicitar precios por volumen







    Descripción

    G185HAN01.0 Key Features:

    The AUO G185HAN01.0 is a high-performance 18.5-inch Full HD (1920×1080) LCD display engineered for demanding environments. Featuring IPS technology, it delivers consistent color accuracy and 178° wide viewing angles, ensuring clarity in multi-user settings. With a brightness of 350 cd/m² and a 1000:1 contrast ratio, this panel excels in brightly lit conditions while maintaining vivid image quality. Its rugged design supports operation across a broad temperature range (-20°C to 70°C), ideal for industrial applications. The LVDS interface ensures stable signal transmission, and the ultra-slim profile (12.5mm thickness) enables seamless integration into compact systems. Built with 50,000-hour LED lifespan and 3.3V low-power architecture, it combines durability with energy efficiency. The anti-glare surface minimizes reflections, enhancing readability in dynamic lighting environments.



    Applications & Performance:

    Designed for mission-critical environments, the G185HAN010 thrives in industrial control panels, medical diagnostic equipment, and outdoor digital signage. Its wide temperature tolerance ensures reliability in factory automation (-20°C) or desert solar farms (70°C). The IPS panel's color consistency supports medical imaging accuracy, while high brightness sustains visibility in sunlit retail kiosks. In transportation hubs, the 16:9 widescreen format enables multi-window monitoring of logistics data. The LVDS interface resists electromagnetic interference in heavy machinery dashboards, and the 50000-hour lifespan reduces maintenance costs in 24/7 security systems. Shock-resistant construction (certified for industrial vibration) makes it suitable for ruggedized POS terminals and agricultural machinery.

    18.5" TFT-LCD Product Specifications

    Número de modelo G185HAN01.0
    Talla 18.5
    Resolución 1920*1080
    Contorno Dimensión 430.4×254.6×12.5
    Área activa 408.96×230.04
    Brillo(cd/m²) 350
    Interfaz LVDS
    Ver Dirección IPS
    Temperatura de funcionamiento -20~70
    Temperatura de almacenamiento -20~70
    Vida útil del LED 50000
    Soporte de pantalla táctil Sin
    Relación de contraste 1000:1
    Fuente de alimentación 3.3V
    Tipo de pantalla LCD en color

    18.5" TFT LCD Custom Solutions

    Optimice sus soluciones de cableado

    Ajuste la longitud, la posición y el pinout de sus cables, o añada conectores adicionales para mejorar la funcionalidad. Obtenga una solución de cable personalizada diseñada para agilizar sus conexiones y garantizar un rendimiento seguro y fiable.

    Modificaciones de PCB

    Elija entre una gran variedad de variaciones en la forma de la placa de circuito impreso, el tamaño, la disposición de las patillas y los componentes para que se adapte totalmente a su aplicación.

    Mejore la experiencia del usuario con la tecnología de pantalla táctil

    Mejore su experiencia de usuario con tecnología de pantalla táctil capacitiva o resistiva. Personalizaremos el grosor del cristal y la forma del panel táctil para garantizar un ajuste perfecto a sus requisitos de diseño.

    custom touch

    Tapa de cristal a medida

    Equipe su pantalla con una cubierta de cristal cortada a medida para aumentar la durabilidad y el rendimiento. Elija entre varios grosores y opte por la adhesión óptica para protegerla de la humedad y la suciedad, garantizando una solución duradera y fiable.

    AUO G185HAN01.0 18.5-Inch LCD Replacement FAQ

    How do I confirm that I need the AUO G185HAN01.0?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 18.5-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the AUO G185HAN01.0?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How does the AUO G185HAN01.0 compare with the BOE GV185FHM-N10-3M30?

    Both catalog listings show 18.5 inches, 1920 × 1080 and LVDS. The catalog lists −20 °C to +70 °C for the AUO panel and −30 °C to +80 °C for the BOE panel. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Compare BOE GV185FHM-N10-3M30

    Is the AUO G185HAN01.0 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Información complementaria

    Tamaño:

    Número de modelo

    G185HAN01.0

    Resolución:

    Interfaz:

    Temperatura de funcionamiento:

    -20℃~70℃

    Brillo (cd/m²):

    350

    Compatible con pantallas táctiles:

    Tipo de pantalla:
