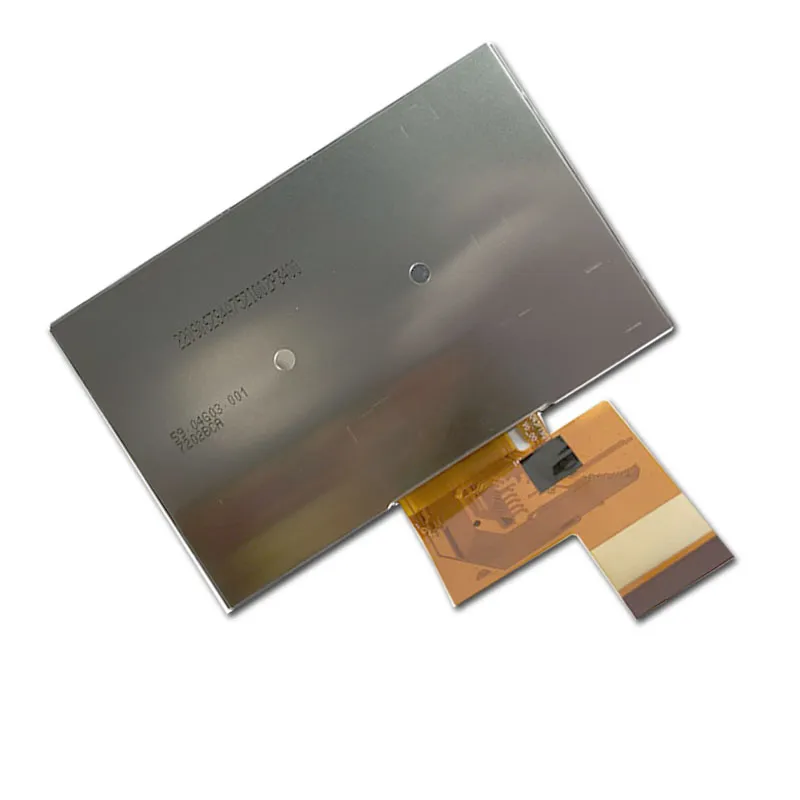

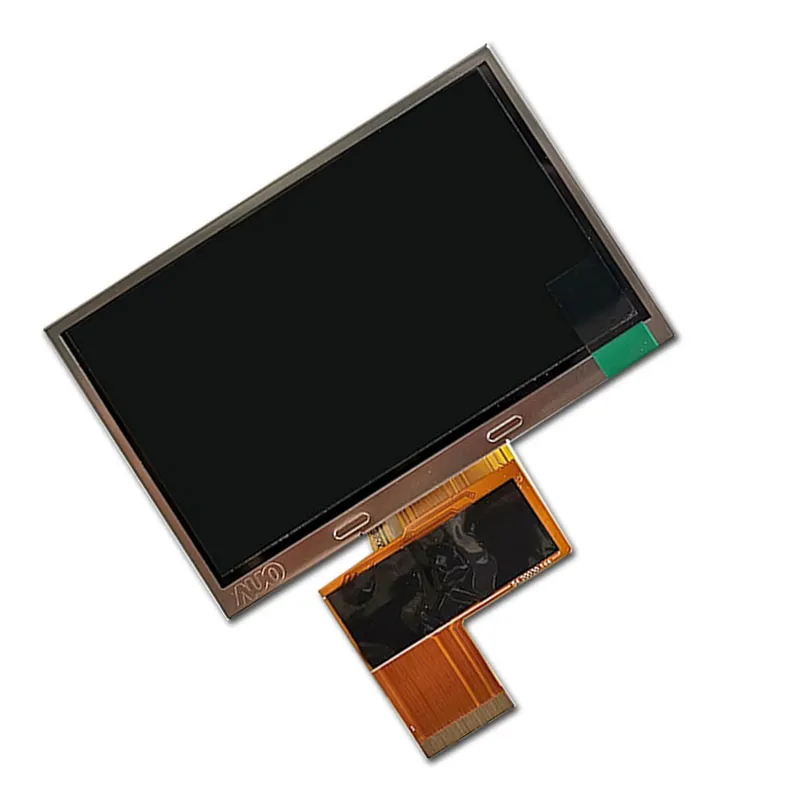

AUO Industrial TN LCD G043FW01 V0 4.3" 480×272 450nits, -20~70℃, RGB Interface

SKU: DS50103
Tamaño:

Número de modelo

G043FW01 V0

Resolución:

Interfaz:

Temperatura de funcionamiento:

-20℃~70℃

Brillo (cd/m²):

500

Compatible con pantallas táctiles:

Tipo de pantalla:

Recursos:

4.3" Industrial TN LCD with 450nits brightness, 480x272 resolution, wide temp range (-20℃~70℃), 65/65/50/55 viewing angles. 30,000hrs lifespan, 24-bit RGB interface.

Solicitar precios por volumen







    Descripción

    G043FW01 V0 Rugged Display Performance:

    4.3" Industrial TN LCD Engineered for extreme environments, maintains stable operation from -20℃ to 70℃. With 450nits brightness and 400:1 contrast ratio, delivers clear visibility in harsh lighting conditions.



    Performance:

    ▲ Industrial Compliance
    Operating Voltage: 3.3V±5%
    Shock Resistance: 50G (MIL-STD-202G)
    Humidity Range: 5%~85% non-condensing
    EMC Certification: EN55032/EN61000-4
    ▲ Cross-Industry Application
    Certified for:
    ✓ Factory automation (IEC 61131-2)
    ✓ Transportation systems (EN 50155)
    ✓ Medical devices (IEC 60601-1-2)
    ✓ Custom touch solutions (PCAP/Resistive)
    CE/FCC/RoHS compliant | IP65 front panel optional | 5-year extended warranty available

    4.3" TN LCD Product Specifications

    Número de modelo G043FW01 V0
    Talla 4.3
    Resolución 480*272
    Contorno Dimensión 105.5×67.2×4.39
    Área activa 95.04×53.856
    Brillo(cd/m²) 450
    Interfaz RGB
    Ver Dirección TN
    Temperatura de funcionamiento -20~70
    Temperatura de almacenamiento -30~80
    Vida útil del LED 30000
    Soporte de pantalla táctil Sin
    Relación de contraste 400:1
    Fuente de alimentación 3.3V
    Tipo de pantalla LCD en color

    4.3" TFT LCD Custom Solutions

    Optimice sus soluciones de cableado

    Ajuste la longitud, la posición y el pinout de sus cables, o añada conectores adicionales para mejorar la funcionalidad. Obtenga una solución de cable personalizada diseñada para agilizar sus conexiones y garantizar un rendimiento seguro y fiable.

    Modificaciones de PCB

    Elija entre una gran variedad de variaciones en la forma de la placa de circuito impreso, el tamaño, la disposición de las patillas y los componentes para que se adapte totalmente a su aplicación.

    Mejore la experiencia del usuario con la tecnología de pantalla táctil

    Mejore su experiencia de usuario con tecnología de pantalla táctil capacitiva o resistiva. Personalizaremos el grosor del cristal y la forma del panel táctil para garantizar un ajuste perfecto a sus requisitos de diseño.

    custom touch

    Tapa de cristal a medida

    Equipe su pantalla con una cubierta de cristal cortada a medida para aumentar la durabilidad y el rendimiento. Elija entre varios grosores y opte por la adhesión óptica para protegerla de la humedad y la suciedad, garantizando una solución duradera y fiable.

    AUO G043FW01 V0 4.3-Inch LCD Replacement FAQ

    How do I confirm that I need the AUO G043FW01 V0?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 4.3-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing RGB cable and controller with the AUO G043FW01 V0?

    For the listed RGB interface, match data width, pixel clock, sync polarities and blanking to the panel timing sheet. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How do I qualify a different panel as a replacement for the AUO G043FW01 V0?

    Use 480 × 272 to shortlist a candidate while keeping the complete interface and mechanical requirements in your acceptance criteria. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Is the AUO G043FW01 V0 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Información complementaria

    Tamaño:

    Número de modelo

    G043FW01 V0

    Resolución:

    Interfaz:

    Temperatura de funcionamiento:

    -20℃~70℃

    Brillo (cd/m²):

    500

    Compatible con pantallas táctiles:

    Tipo de pantalla:
