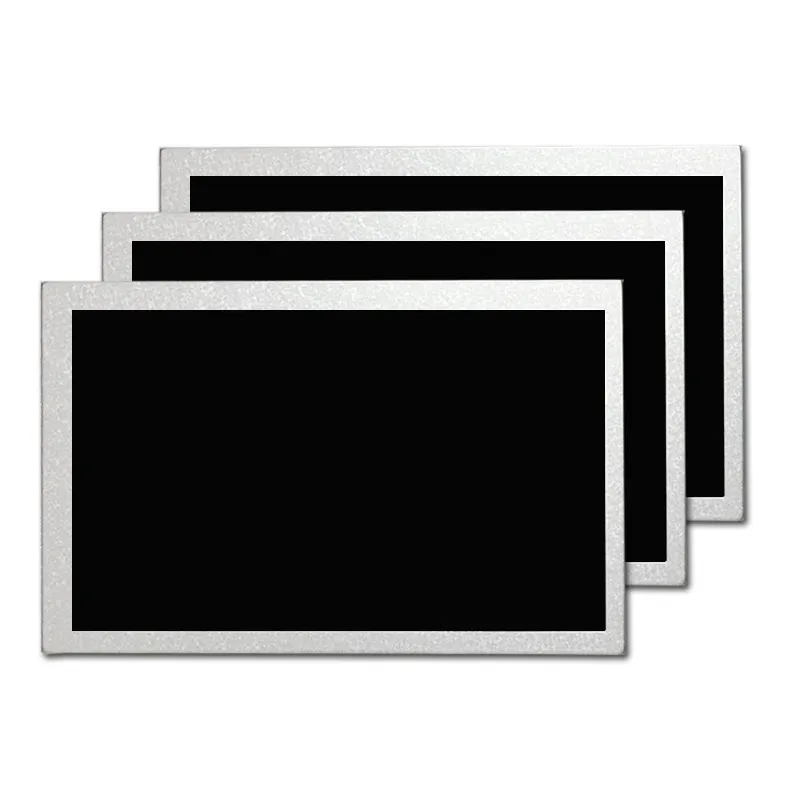

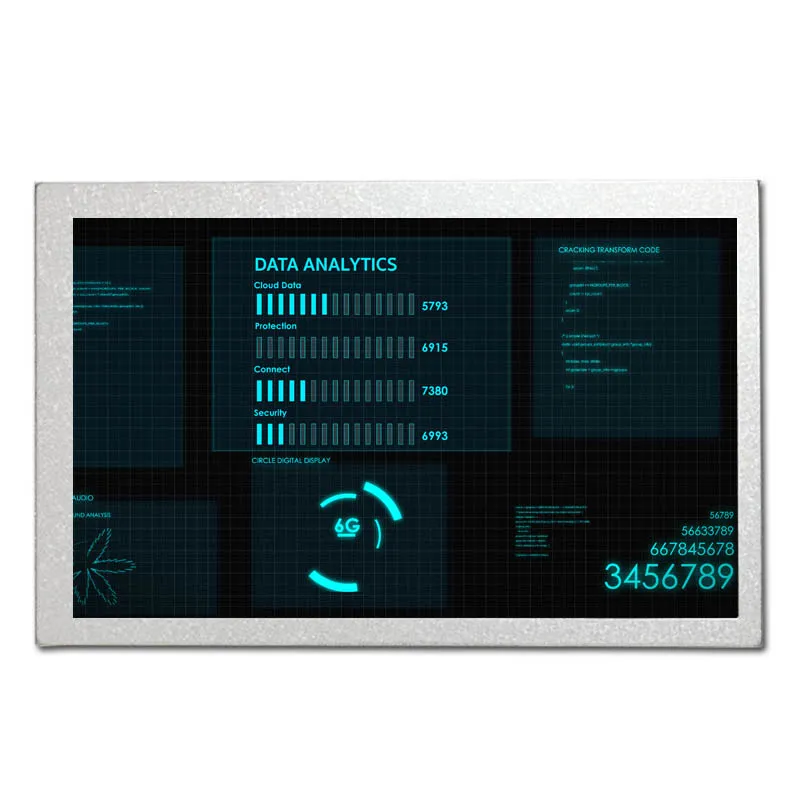

G070ACE-LH2 7 inch 800×480 IPS LCD – -40°C~90°C Wide Temperature Display 500cd/m² Brightness

SKU: DS50223
Número de modelo

G070ACE-LH2

Compatible con pantallas táctiles:

Tipo de pantalla:

Interfaz:

Resolución:

Tamaño:

Temperatura de funcionamiento:

-30℃~ 85℃

Recursos:

Innolux G070ACE-LH2 Impact-Proof Industrial LCD: 9.35mm Reinforced Frame Surviving Ore Conveyor Shocks & Arc Furnace EMF.

Solicitar precios por volumen







    Descripción

    G070ACE-LH2 General Desription

    Innolux G070ACE-LH2 7 inch Built to endure Earth’s extremes, this display powers liquid nitrogen tank monitoring in -40°C biobanks and molten aluminum casting line interfaces at 85°C. The vibration-resistant design maintains clarity on quarry rock crusher dashboards and artillery tow vehicle consoles. IPS 89°×4 viewing enables accurate color judgment in pharmaceutical freeze-drying control rooms and collaborative emergency response in nuclear reactor containment units. LVDS reliability ensures uninterrupted operation in electromagnetic pulse-rich environments like railway traction substations. Its -40°C storage tolerance allows deployment in Siberian oil pipeline SCADA systems, while IP69K-sealed variants monitor high-pressure washdown zones in meat processing plants. Ideal for vibrating environments like tunnel boring machine controls and Antarctic ice core drilling rigs.



    Aplicación y rendimiento

    Built to endure Earth’s extremes, this display powers liquid nitrogen tank monitoring in -40°C biobanks and molten aluminum casting line interfaces at 85°C. The vibration-resistant design maintains clarity on quarry rock crusher dashboards and artillery tow vehicle consoles. IPS 89°×4 viewing enables accurate color judgment in pharmaceutical freeze-drying control rooms and collaborative emergency response in nuclear reactor containment units. LVDS reliability ensures uninterrupted operation in electromagnetic pulse-rich environments like railway traction substations. Its -40°C storage tolerance allows deployment in Siberian oil pipeline SCADA systems, while IP69K-sealed variants monitor high-pressure washdown zones in meat processing plants. Ideal for vibrating environments like tunnel boring machine controls and Antarctic ice core drilling rigs.

    7.0" Product Specifications

    Tamaño diagonal 7.0 inch
    Número de píxeles 800×480
    Luminancia 500
    Tamaño del módulo 170×110×9.35
    Área activa 152.4×91.44
    Dirección de visualización IPS
    Ángulo de visión (U/D/R/L) 89/89/89/89
    Interfaz LVDS
    Relación de contraste 800 : 1
    Temperatura de funcionamiento -30~85℃
    Temperatura de almacenamiento -40~90℃
    Vida útil del LED 50000
    Soporte de pantalla táctil Sin
    Fuente de alimentación 3.3V
    Tipo de pantalla TFT en color

    Innolux LCD Display Soluciones a Medida

    Optimice sus soluciones de cableado

    Ajuste la longitud, la posición y el pinout de sus cables, o añada conectores adicionales para mejorar la funcionalidad. Obtenga una solución de cable personalizada diseñada para agilizar sus conexiones y garantizar un rendimiento seguro y fiable.

    Modificaciones de PCB

    Elija entre una gran variedad de variaciones en la forma de la placa de circuito impreso, el tamaño, la disposición de las patillas y los componentes para que se adapte totalmente a su aplicación.

    Mejore la experiencia del usuario con la tecnología de pantalla táctil

    Mejore su experiencia de usuario con tecnología de pantalla táctil capacitiva o resistiva. Personalizaremos el grosor del cristal y la forma del panel táctil para garantizar un ajuste perfecto a sus requisitos de diseño.

    custom touch

    Tapa de cristal a medida

    Equipe su pantalla con una cubierta de cristal cortada a medida para aumentar la durabilidad y el rendimiento. Elija entre varios grosores y opte por la adhesión óptica para protegerla de la humedad y la suciedad, garantizando una solución duradera y fiable.

    Innolux G070ACE-LH2 7-Inch LCD Replacement FAQ

    How do I confirm that I need the Innolux G070ACE-LH2?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 7-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the Innolux G070ACE-LH2?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How does the Innolux G070ACE-LH2 compare with the AUO G070VAN01.1?

    Both catalog listings show 7 inches, 800 × 480 and LVDS. The catalog lists −30 °C to +85 °C for the Innolux panel and −20 °C to +70 °C for the AUO panel. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Compare AUO G070VAN01.1

    Is the Innolux G070ACE-LH2 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Información complementaria

    Número de modelo

    G070ACE-LH2

    Compatible con pantallas táctiles:

    Tipo de pantalla:

    Interfaz:

    Resolución:

    Tamaño:

    Temperatura de funcionamiento:

    -30℃~ 85℃
