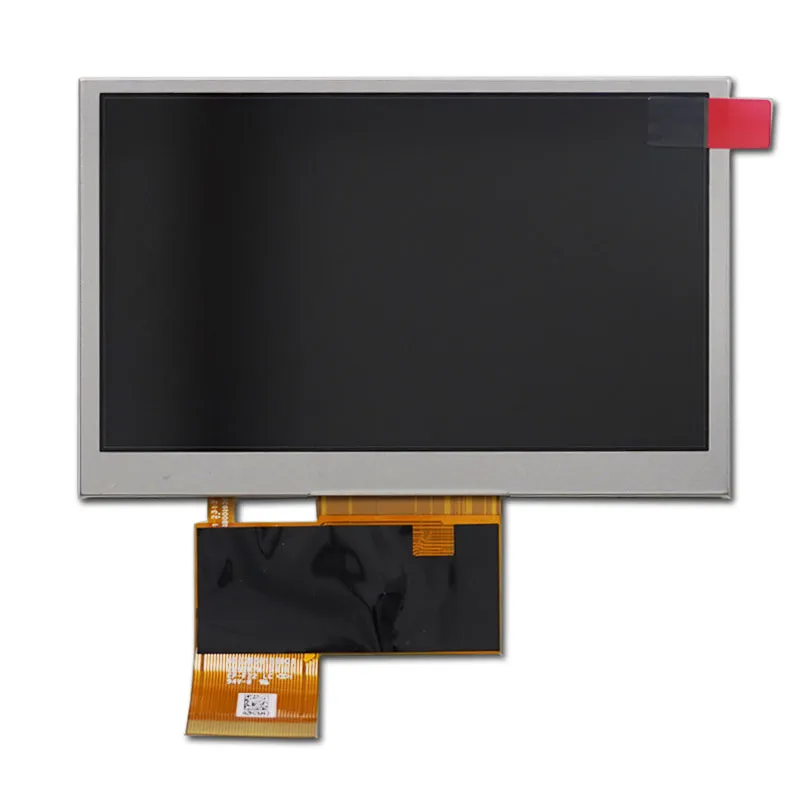

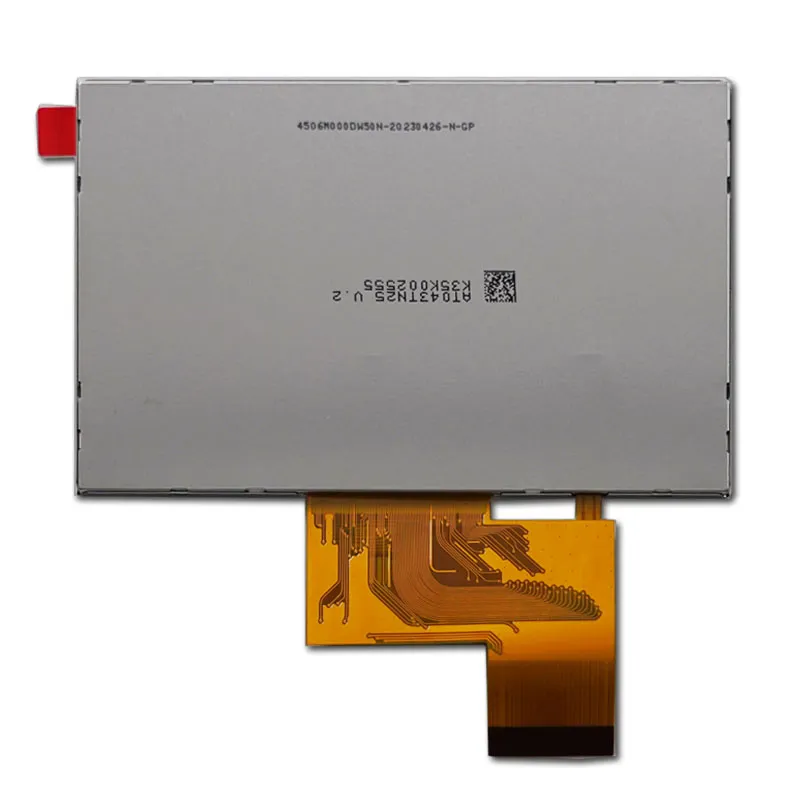

Innolux AT043TN25V.2 TFT LCD Screen 4.3 inch 480*272 Brightness 500cd/m²

SKU: DS50071
Tamaño:

Número de modelo

AT043TN25V.2

Resolución:

Interfaz:

Temperatura de funcionamiento:

-20℃~70℃

Brillo (cd/m²):

500

Compatible con pantallas táctiles:

Tipo de pantalla:

Recursos:

AT043TN25V.2 from Brand Innolux, Resolution 480*272, Wide Temperature from -20~70℃ idear for Industrial application  RGB, 40 pins FPC, without touch, Original A grade

Solicitar precios por volumen







    Descripción

    Innolux AT043TN25V.2 General Description

    The Innolux AT043TN25V.2 is a 4.3 inch TFT LCD Screen tailored for industrial applications, featuring a resolution of 480 x 272 pixels. Designed to operate in a wide temperature range of -20°C to 70°C, it ensures reliable performance in demanding environments. With an RGB interface and a 40-pin FPC connector, this Original A grade display offers high quality and durability, making it ideal for handheld devices, industrial control systems, and portable equipment where clarity and robustness are essential.



    AT043TN25V.2 TFT LCD Screen Application

    The Innolux AT043TN25V.2 TFT LCD Screen is well-suited for a variety of applications, particularly in automotive and portable device sectors. Its 4.3 inch size and robust features make it ideal for automotive displays, providing clear visuals for navigation and infotainment systems. The display's high brightness of 500 cd/m² and wide viewing angles ensure excellent visibility in various lighting conditions, enhancing user experience in portable navigation devices and multimedia players like MP3 and PMP units.

    4.3" TFT-LCD Product Specifications

    Número de modelo AT043TN25V.2
    Talla 4.3
    Resolución 480(RGB)×272
    Contorno Dimensión 105.5×67.1×2.95
    Área activa 95.04×53.856
    Brillo(cd/m²) 500
    Interfaz RGB 40pin
    Ver Dirección TN
    Temperatura de funcionamiento -20~70
    Temperatura de almacenamiento -30~80
    Vida útil del LED 20000
    Soporte de pantalla táctil Sin
    Relación de contraste 1000:1
    Fuente de alimentación 3.3V
    Tipo de pantalla LCD en color

    4.3" TFT LCD Custom Solutions

    Optimice sus soluciones de cableado

    Ajuste la longitud, la posición y el pinout de sus cables, o añada conectores adicionales para mejorar la funcionalidad. Obtenga una solución de cable personalizada diseñada para agilizar sus conexiones y garantizar un rendimiento seguro y fiable.

    Modificaciones de PCB

    Elija entre una gran variedad de variaciones en la forma de la placa de circuito impreso, el tamaño, la disposición de las patillas y los componentes para que se adapte totalmente a su aplicación.

    Mejore la experiencia del usuario con la tecnología de pantalla táctil

    Mejore su experiencia de usuario con tecnología de pantalla táctil capacitiva o resistiva. Personalizaremos el grosor del cristal y la forma del panel táctil para garantizar un ajuste perfecto a sus requisitos de diseño.

    custom touch

    Tapa de cristal a medida

    Equipe su pantalla con una cubierta de cristal cortada a medida para aumentar la durabilidad y el rendimiento. Elija entre varios grosores y opte por la adhesión óptica para protegerla de la humedad y la suciedad, garantizando una solución duradera y fiable.

    Innolux AT043TN25V.2 4.3-Inch LCD Replacement FAQ

    How do I confirm that I need the Innolux AT043TN25V.2?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 4.3-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing RGB cable and controller with the Innolux AT043TN25V.2?

    For the listed RGB interface, match data width, pixel clock, sync polarities and blanking to the panel timing sheet. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How does the Innolux AT043TN25V.2 compare with the AUO G043FTT01.0?

    Both catalog listings show 4.3 inches, 480 × 272 and RGB. The catalog lists −20 °C to +70 °C for the Innolux panel and 0 °C to +70 °C for the AUO panel. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Compare AUO G043FTT01.0

    Is the Innolux AT043TN25V.2 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Información complementaria

    Tamaño:

    Número de modelo

    AT043TN25V.2

    Resolución:

    Interfaz:

    Temperatura de funcionamiento:

    -20℃~70℃

    Brillo (cd/m²):

    500

    Compatible con pantallas táctiles:

    Tipo de pantalla:
