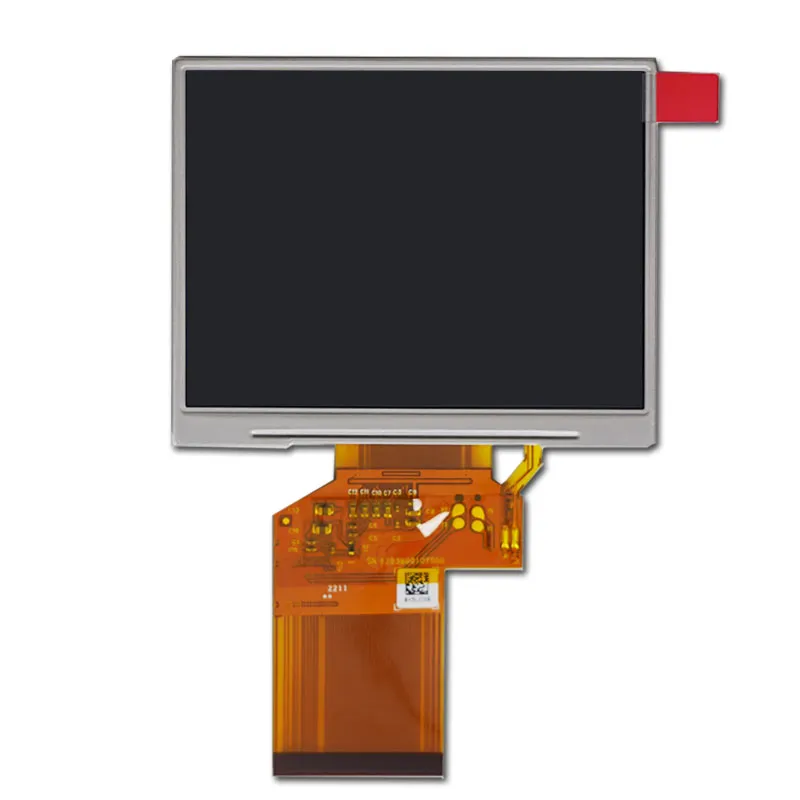

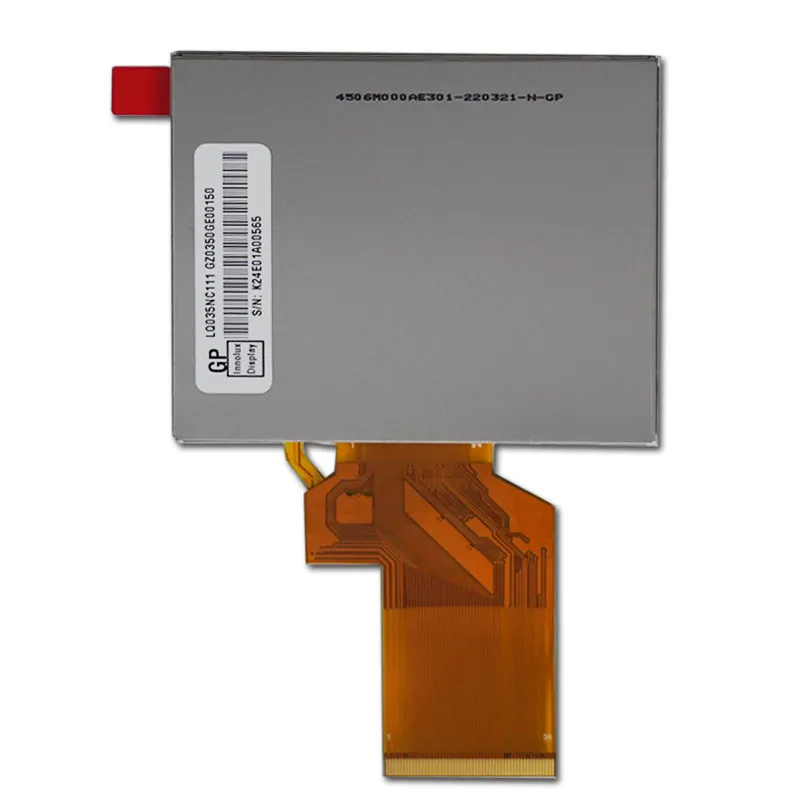

Innolux LQ035NC111 TFT LCD Display 3.5 inch 320*240 Brightness 300cd/m²

SKU: DS50069
Tamaño:

Número de modelo

LQ035NC111

Resolución:

Interfaz:

Temperatura de funcionamiento:

-20℃~70℃

Brillo (cd/m²):

300

Compatible con pantallas táctiles:

Tipo de pantalla:

Recursos:

LQ035NC111 from Brand AUO, Resolution 320*240, Wide Temperature from -20~70℃ idear for Industrial application  RGB (8/24-bit) + SPI, CCIR601/656 , 54 pins FPC, Original A grade

Solicitar precios por volumen







    Descripción

    LQ035NC111 General Description

    This Innolux LQ035NC111 is developed for industrial application, with a resolution 320*240, Standard horizontal screen, it operates effectively in a wide temperature range of -20°C to 70°C, brightness 300 cd/m², it is suitable for outdoor reading.



    LQ035NC111 LCD Display Application

    The Innolux LQ035NC111 display is a versatile 3.5 inch a-Si TFT-LCD panel ideal for various industrial and commercial applications, including handheld devices like portable navigation systems and digital cameras, as well as industrial control panels and automotive dashboards. Its wide operating temperature range of -20°C to 70°C, high brightness of 300 cd/m², and 400:1 contrast ratio ensure clear visibility in diverse environments. With a compact design, it is suitable for integration into smart home devices, medical equipment, and gaming consoles, making it a reliable choice for applications that require durability, performance, and exceptional visual quality.

    3.5" TFT-LCD Product Specifications

    Número de modelo LQ035NC111
    Talla 3.5
    Resolución 320(RGB)×240
    Contorno Dimensión 76.9×63.9×3.46
    Área activa 70.08×52.56
    Brillo(cd/m²) 300
    Interfaz RGB +SPI 54pin
    Ver Dirección TN
    Temperatura de funcionamiento -20~70
    Temperatura de almacenamiento -30~80
    Vida útil del LED 10000
    Soporte de pantalla táctil Sin
    Relación de contraste 400:1
    Fuente de alimentación 3.3V
    Tipo de pantalla LCD en color

    3.5" TFT LCD Custom Solutions

    Optimice sus soluciones de cableado

    Ajuste la longitud, la posición y el pinout de sus cables, o añada conectores adicionales para mejorar la funcionalidad. Obtenga una solución de cable personalizada diseñada para agilizar sus conexiones y garantizar un rendimiento seguro y fiable.

    Modificaciones de PCB

    Elija entre una gran variedad de variaciones en la forma de la placa de circuito impreso, el tamaño, la disposición de las patillas y los componentes para que se adapte totalmente a su aplicación.

    Mejore la experiencia del usuario con la tecnología de pantalla táctil

    Mejore su experiencia de usuario con tecnología de pantalla táctil capacitiva o resistiva. Personalizaremos el grosor del cristal y la forma del panel táctil para garantizar un ajuste perfecto a sus requisitos de diseño.

    custom touch

    Tapa de cristal a medida

    Equipe su pantalla con una cubierta de cristal cortada a medida para aumentar la durabilidad y el rendimiento. Elija entre varios grosores y opte por la adhesión óptica para protegerla de la humedad y la suciedad, garantizando una solución duradera y fiable.

    Innolux LQ035NC111 3.5-Inch LCD Replacement FAQ

    How do I confirm that I need the Innolux LQ035NC111?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 3.5-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing RGB cable and controller with the Innolux LQ035NC111?

    For the listed RGB interface, match data width, pixel clock, sync polarities and blanking to the panel timing sheet. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How do I qualify a different panel as a replacement for the Innolux LQ035NC111?

    Use 320 × 240 to shortlist a candidate while keeping the complete interface and mechanical requirements in your acceptance criteria. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Is the Innolux LQ035NC111 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Información complementaria

    Tamaño:

    Número de modelo

    LQ035NC111

    Resolución:

    Interfaz:

    Temperatura de funcionamiento:

    -20℃~70℃

    Brillo (cd/m²):

    300

    Compatible con pantallas táctiles:

    Tipo de pantalla:
