IVO M104GNX1 R1 10.4'' Display Panel 1024x768 LVDS 75/75/75/75 TN 30K Hrs -20℃~70℃

SKU: DS50091
Tamaño:

Número de modelo

M104GNX1 R1

Resolución:

Interfaz:

Compatible con pantallas táctiles:

Tipo de pantalla:

Brillo (cd/m²):

350

Temperatura de funcionamiento:

-20℃~70℃

Recursos:

10.4'' Display Panel (XGA 1024x768) with LVDS, 80/80/80/80 viewing. Built for extreme temps (-20℃~70℃) & 30K-hour durability. OEM-ready solutions.

Solicitar precios por volumen







    Descripción

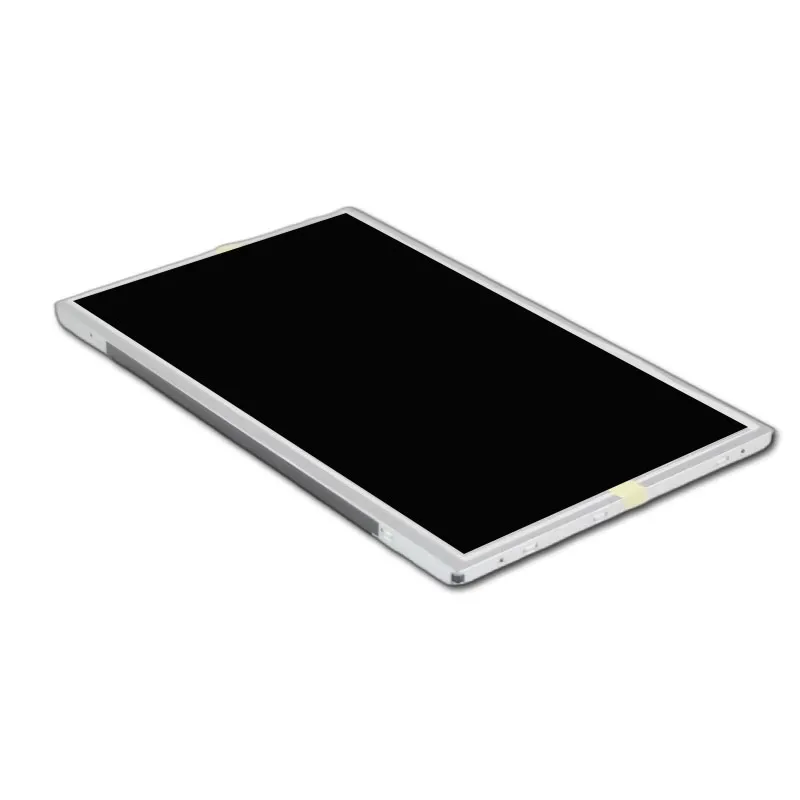

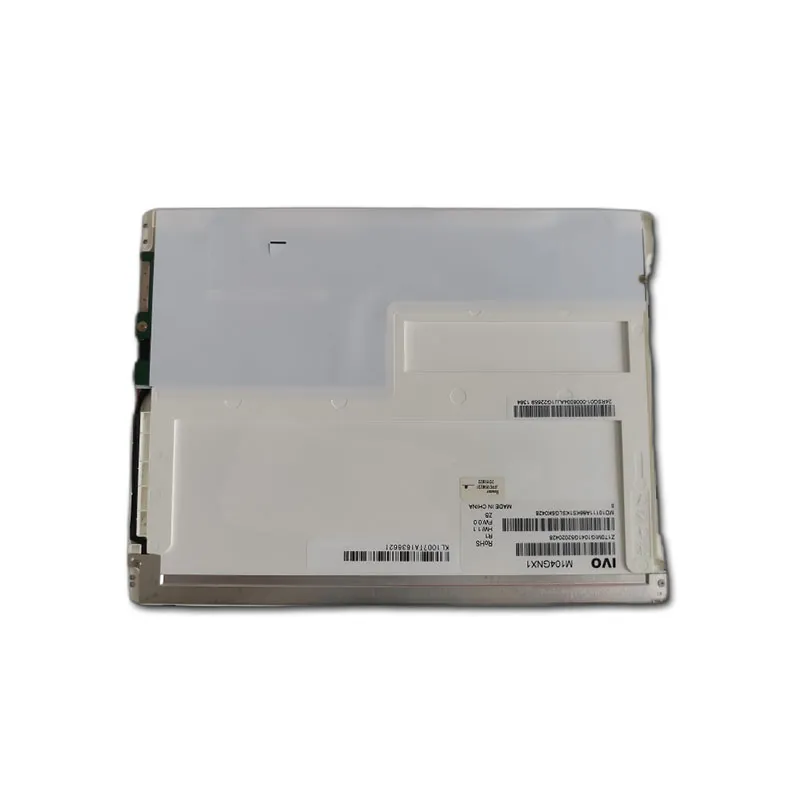

    IVO m104gnx1 r1 General Description

    The IVO M104GNX1 R1 is a 10.4-inch TFT LCD panel designed for demanding environments requiring high-resolution display and robust performance. Featuring a 1024x768 (XGA) resolution and LVDS interface, this TN panel ensures crisp image quality and compatibility with industrial control systems, medical devices, and embedded applications. Built to withstand extreme temperatures (-20℃ to 70℃), it delivers reliable operation in outdoor, automotive, or factory settings.



    Key Features:

    ✓ XGA Clarity (1024×768) – High-resolution TN panel for sharp text/graphics in control panels and diagnostic equipment.
    ✓ Industrial-Grade Reliability – Operates in -20℃~70℃ extremes with a 30,000-hour lifespan (MTBF).
    ✓ Cost-Optimized TN Tech – Balances performance and budget for automation, POS, and rugged displays.
    ✓ RoHS Compliance – Meets global environmental standards for sustainable procurement.

    10.4" TFT-LCD Product Specifications

    Número de modelo  M104GNX1 R1
    Talla 10.4
    Resolución 1024(RGB)×768
    Contorno Dimensión 236×176.9×6.3
    Área activa 211.2×158.4
    Brillo(cd/m²) 350
    Interfaz LVDS 20pin
    Ver Dirección TN
    Temperatura de funcionamiento -20~70
    Temperatura de almacenamiento -30~80
    Vida útil del LED 30000
    Soporte de pantalla táctil Sin
    Relación de contraste 900:1
    Fuente de alimentación 3.3V
    Tipo de pantalla LCD en color

    10.4" TFT LCD Custom Solutions

    Optimice sus soluciones de cableado

    Ajuste la longitud, la posición y el pinout de sus cables, o añada conectores adicionales para mejorar la funcionalidad. Obtenga una solución de cable personalizada diseñada para agilizar sus conexiones y garantizar un rendimiento seguro y fiable.

    Modificaciones de PCB

    Elija entre una gran variedad de variaciones en la forma de la placa de circuito impreso, el tamaño, la disposición de las patillas y los componentes para que se adapte totalmente a su aplicación.

    Mejore la experiencia del usuario con la tecnología de pantalla táctil

    Mejore su experiencia de usuario con tecnología de pantalla táctil capacitiva o resistiva. Personalizaremos el grosor del cristal y la forma del panel táctil para garantizar un ajuste perfecto a sus requisitos de diseño.

    custom touch

    Tapa de cristal a medida

    Equipe su pantalla con una cubierta de cristal cortada a medida para aumentar la durabilidad y el rendimiento. Elija entre varios grosores y opte por la adhesión óptica para protegerla de la humedad y la suciedad, garantizando una solución duradera y fiable.

    IVO M104GNX1 R1 10.4-Inch LCD Replacement FAQ

    How do I confirm that I need the IVO M104GNX1 R1?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 10.4-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the IVO M104GNX1 R1?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How does the IVO M104GNX1 R1 compare with the AUO G104XVN01.0?

    Both catalog listings show 10.4 inches, 1024 × 768 and LVDS. The catalog lists −20 °C to +70 °C for the IVO panel and −30 °C to +80 °C for the AUO panel. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Compare AUO G104XVN01.0

    Is the IVO M104GNX1 R1 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Información complementaria

    Tamaño:

    Número de modelo

    M104GNX1 R1

    Resolución:

    Interfaz:

    Compatible con pantallas táctiles:

    Tipo de pantalla:

    Brillo (cd/m²):

    350

    Temperatura de funcionamiento:

    -20℃~70℃
