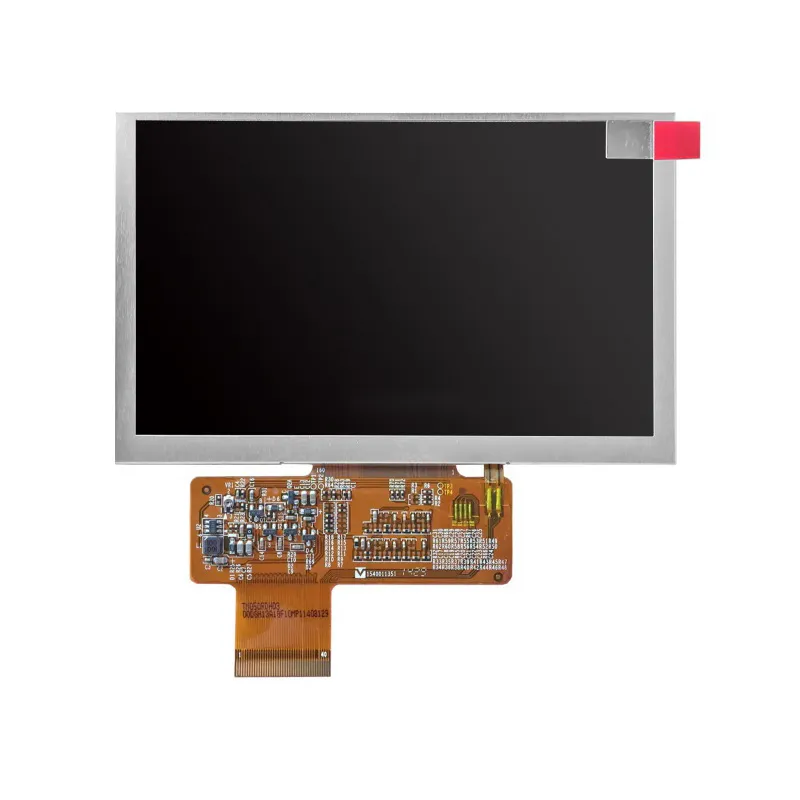

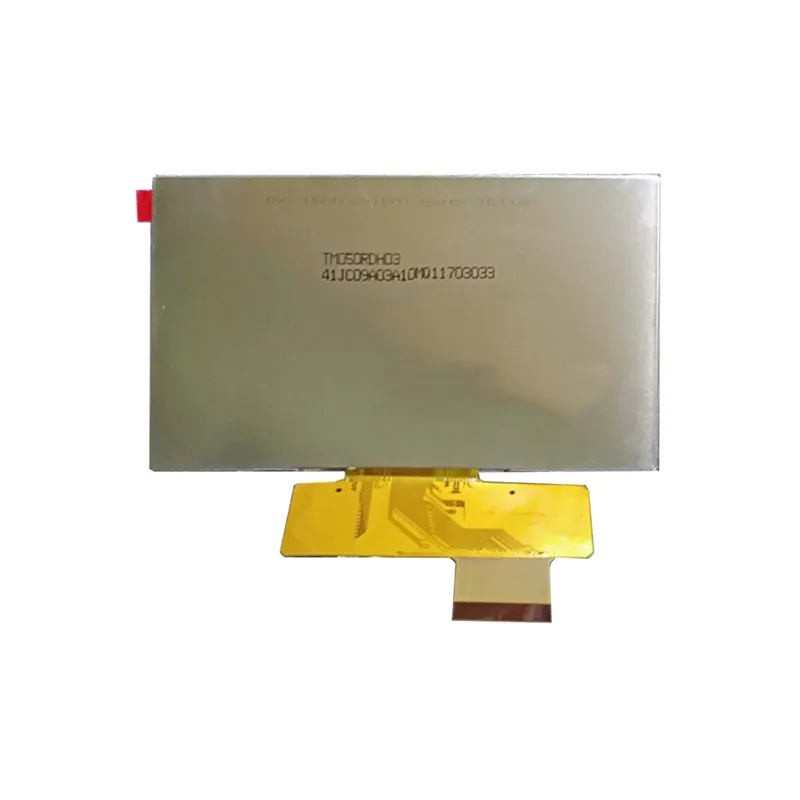

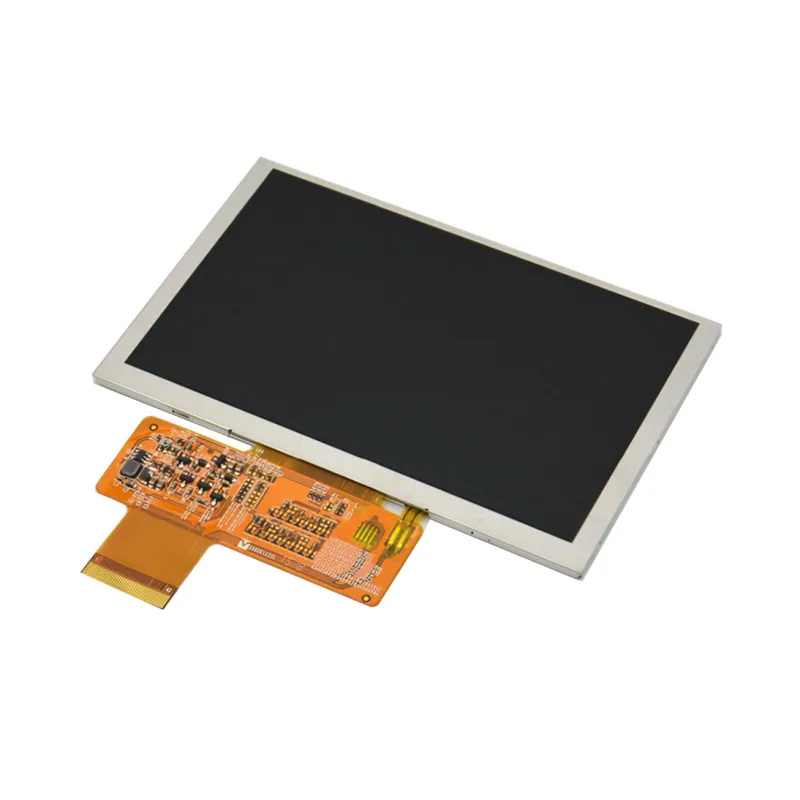

TIANMA TM050RDH03-41 5.0 inch High-Performance LCD for Industrial & Embedded Systems

SKU: DS50256
Tamaño:

Número de modelo

M050RDH03-41

Resolución:

Interfaz:

Temperatura de funcionamiento:

-20℃~70℃

Compatible con pantallas táctiles:

Tipo de pantalla:

TIANMA TM050RDH03-41 250cd/m² 5 inch 800×480 Sunlight-Readable LCD for Harsh Industrial Environments (-20°C~70°C).

Solicitar precios por volumen







    Descripción

    TM050RDH03-41 General Desription

    The TIANMA TM050RDH03-41 is a 5.0-inch color LCD module with 800×480 resolution, delivering sharp visuals for critical applications. Featuring 250 cd/m² brightness and a 600:1 contrast ratio, it ensures clarity in direct sunlight or low-light environments. Engineered for reliability, it operates in extreme temperatures (-20°C to 70°C) and supports 3.3V low-power operation for energy efficiency. The TN panel with 70/70/50/70 viewing angles and RGB interface guarantees stable performance in industrial automation. With a compact design (120.7×75.8×3.1mm) and 20,000-hour LED lifespan, this non-touch display is built for 24/7 durability in harsh conditions.



    Aplicación y rendimiento

    Ideal for industrial HMIs, medical monitors, and automotive dashboards, the TM050RDH03-41 excels in demanding environments. Its wide temperature tolerance (-20°C~70°C) suits outdoor equipment like solar controllers and construction machinery, while the slim profile fits IoT devices and portable diagnostic tools. The high brightness ensures readability in agricultural sensors and logistics scanners. With fast RGB signal processing, it enables real-time data display for laboratory instruments and smart meters. Ruggedized for vibration resistance, it serves AGVs and factory robots. Medical OEMs leverage its stable performance for patient monitors, while embedded developers value its 3.3V compatibility for battery-powered solutions.

    5.0" Product Specifications

    Tamaño diagonal 5.0 inch
    Número de píxeles 800×480
    Luminancia 400
    Tamaño del módulo 120.7×75.8×3.1
    Área activa 108×64.8
    Dirección de visualización TN
    Ángulo de visión (U/D/R/L) 70/70/50/70
    Interfaz RGB
    Relación de contraste 600 : 1
    Temperatura de funcionamiento -20 ~ 70 °C
    Temperatura de almacenamiento -30 ~ 80 °C
    Vida útil del LED 20000
    Soporte de pantalla táctil Sin
    Fuente de alimentación 3.3V
    Tipo de pantalla TFT en color

    TIANMA LCD Display Custom Solutions

    Optimice sus soluciones de cableado

    Ajuste la longitud, la posición y el pinout de sus cables, o añada conectores adicionales para mejorar la funcionalidad. Obtenga una solución de cable personalizada diseñada para agilizar sus conexiones y garantizar un rendimiento seguro y fiable.

    Modificaciones de PCB

    Elija entre una gran variedad de variaciones en la forma de la placa de circuito impreso, el tamaño, la disposición de las patillas y los componentes para que se adapte totalmente a su aplicación.

    Mejore la experiencia del usuario con la tecnología de pantalla táctil

    Mejore su experiencia de usuario con tecnología de pantalla táctil capacitiva o resistiva. Personalizaremos el grosor del cristal y la forma del panel táctil para garantizar un ajuste perfecto a sus requisitos de diseño.

    custom touch

    Tapa de cristal a medida

    Equipe su pantalla con una cubierta de cristal cortada a medida para aumentar la durabilidad y el rendimiento. Elija entre varios grosores y opte por la adhesión óptica para protegerla de la humedad y la suciedad, garantizando una solución duradera y fiable.

    Tianma TM050RDH03-41 5-Inch LCD Replacement FAQ

    How do I confirm that I need the Tianma TM050RDH03-41?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 5-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing RGB cable and controller with the Tianma TM050RDH03-41?

    For the listed RGB interface, match data width, pixel clock, sync polarities and blanking to the panel timing sheet. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How do I qualify a different panel as a replacement for the Tianma TM050RDH03-41?

    Use 800 × 480 to shortlist a candidate while keeping the complete interface and mechanical requirements in your acceptance criteria. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Is the Tianma TM050RDH03-41 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.
