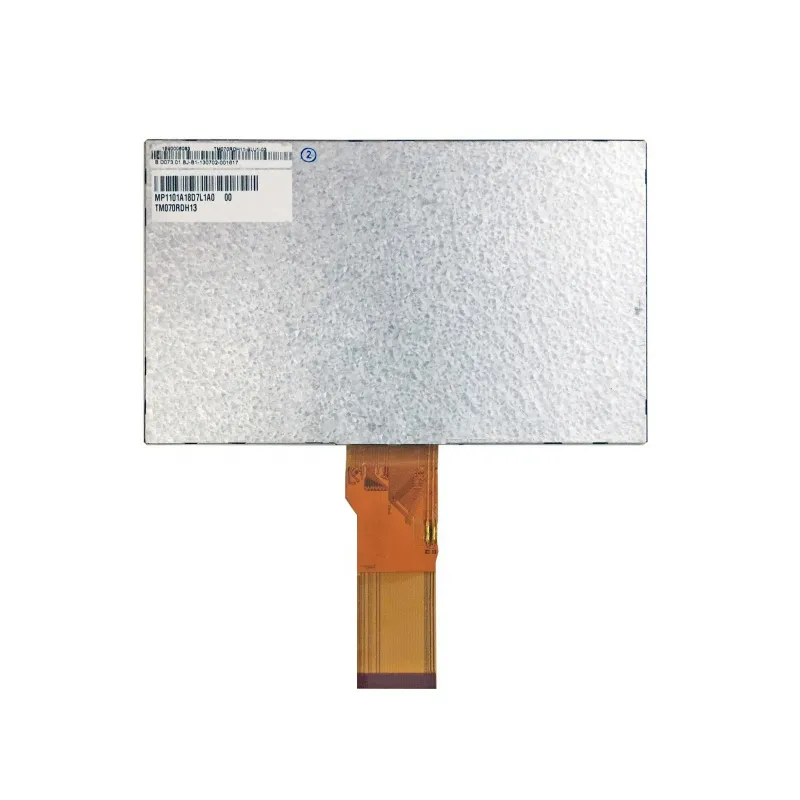

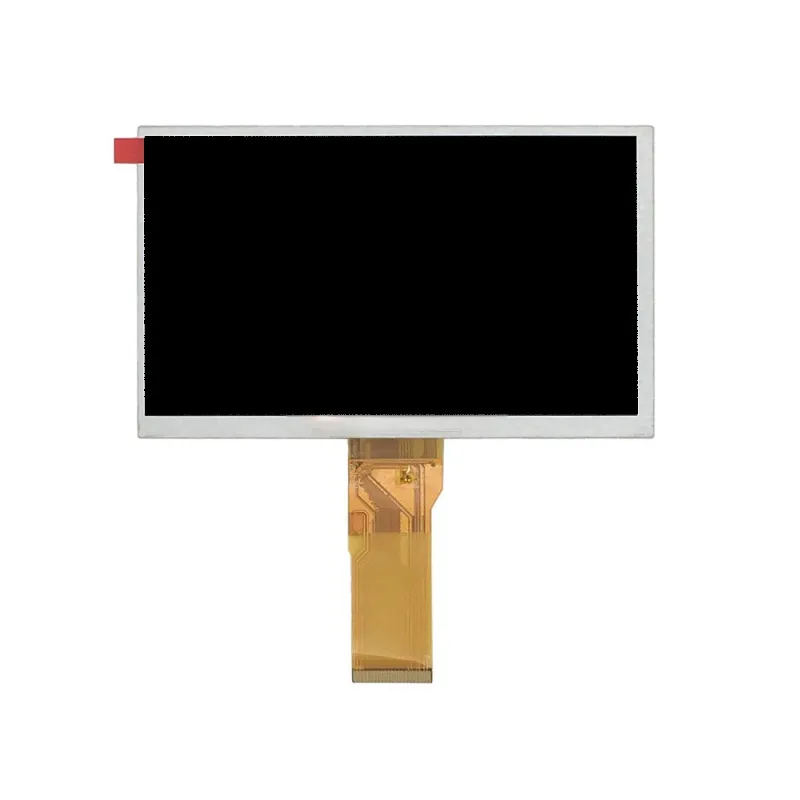

TIANMA TM070RDH13-00 7 inch TN LCD Module with 50k-Hour Lifespan for Rugged Industrial Applications

SKU: DS50254
Tamaño:

Número de modelo

M070RDH13-00

Resolución:

Interfaz:

Temperatura de funcionamiento:

-20℃~70℃

Compatible con pantallas táctiles:

Tipo de pantalla:

TIANMA TM070RDH13-00 7 inch Industrial Display 50k-Hour for Harsh Factories – 800×480 TN Panel & -20°C~70°C Range.

Solicitar precios por volumen







    Descripción

    TM070RDH13-00 General Desription

    The TIANMA TM070RDH13-00 is a 7-inch TN color LCD module offering 800×480 resolution and 250 cd/m² brightness, optimized for readability in cost-sensitive industrial systems. With an ultra-long 50,000-hour LED lifespan and a wide operating temperature range (-20°C to 70°C), it ensures reliability in 24/7 operations. The RGB interface enables stable signal transmission for embedded controls, while its 3.3V low-power design reduces energy consumption. Featuring a 500:1 contrast ratio and 70/70/60/70 viewing angles, this non-touch display delivers consistent performance in harsh environments. Its compact outline (164.9×100×6mm) and -30°C~80°C storage tolerance make it ideal for space-constrained industrial deployments.



    Aplicación y rendimiento

    Designed for industrial HMIs, warehouse logistics displays, and agricultural equipment, the TM070RDH13-00 excels in dusty factories and outdoor installations. Its temperature resilience suits cold storage monitoring systems and desert solar controllers. The TN panel’s balanced performance powers vending machine interfaces, CNC operator panels, and conveyor belt status displays. With 50k-hour durability, it minimizes replacements in factory automation dashboards and public transportation signage. The RGB interface supports legacy industrial PCs in water treatment plants, while its slim profile integrates into portable diagnostic tools and EV charging stations. Ideal for budget-conscious OEMs needing reliable displays for forklift terminals, HVAC controls, and IoT edge devices.

    7.0" Product Specifications

    Tamaño diagonal 7.0 inch
    Número de píxeles 800×480
    Luminancia 250
    Tamaño del módulo 164.9×100×6
    Área activa 154.08×85.92
    Dirección de visualización TN
    Ángulo de visión (U/D/R/L) 70/70/60/70
    Interfaz RGB
    Relación de contraste 500:1
    Temperatura de funcionamiento -20 ~ 70 °C
    Temperatura de almacenamiento -30 ~ 80 °C
    Vida útil del LED 50000
    Soporte de pantalla táctil Sin
    Fuente de alimentación 3.3/10.4/16.0/-7.0V
    Tipo de pantalla TFT en color

    TIANMA LCD Display Custom Solutions

    Optimice sus soluciones de cableado

    Ajuste la longitud, la posición y el pinout de sus cables, o añada conectores adicionales para mejorar la funcionalidad. Obtenga una solución de cable personalizada diseñada para agilizar sus conexiones y garantizar un rendimiento seguro y fiable.

    Modificaciones de PCB

    Elija entre una gran variedad de variaciones en la forma de la placa de circuito impreso, el tamaño, la disposición de las patillas y los componentes para que se adapte totalmente a su aplicación.

    Mejore la experiencia del usuario con la tecnología de pantalla táctil

    Mejore su experiencia de usuario con tecnología de pantalla táctil capacitiva o resistiva. Personalizaremos el grosor del cristal y la forma del panel táctil para garantizar un ajuste perfecto a sus requisitos de diseño.

    custom touch

    Tapa de cristal a medida

    Equipe su pantalla con una cubierta de cristal cortada a medida para aumentar la durabilidad y el rendimiento. Elija entre varios grosores y opte por la adhesión óptica para protegerla de la humedad y la suciedad, garantizando una solución duradera y fiable.

    Tianma TM070RDH13-00 7-Inch LCD Replacement FAQ

    How do I confirm that I need the Tianma TM070RDH13-00?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 7-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing RGB cable and controller with the Tianma TM070RDH13-00?

    For the listed RGB interface, match data width, pixel clock, sync polarities and blanking to the panel timing sheet. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How does the Tianma TM070RDH13-00 compare with the AUO G070VTN02.0?

    Both catalog listings show 7 inches, 800 × 480 and RGB. The catalog lists −20 °C to +70 °C for the Tianma panel and −30 °C to +70 °C for the AUO panel. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Compare AUO G070VTN02.0

    Is the Tianma TM070RDH13-00 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Información complementaria

    Tamaño:

    Número de modelo

    M070RDH13-00

    Resolución:

    Interfaz:

    Temperatura de funcionamiento:

    -20℃~70℃

    Compatible con pantallas táctiles:

    Tipo de pantalla:
