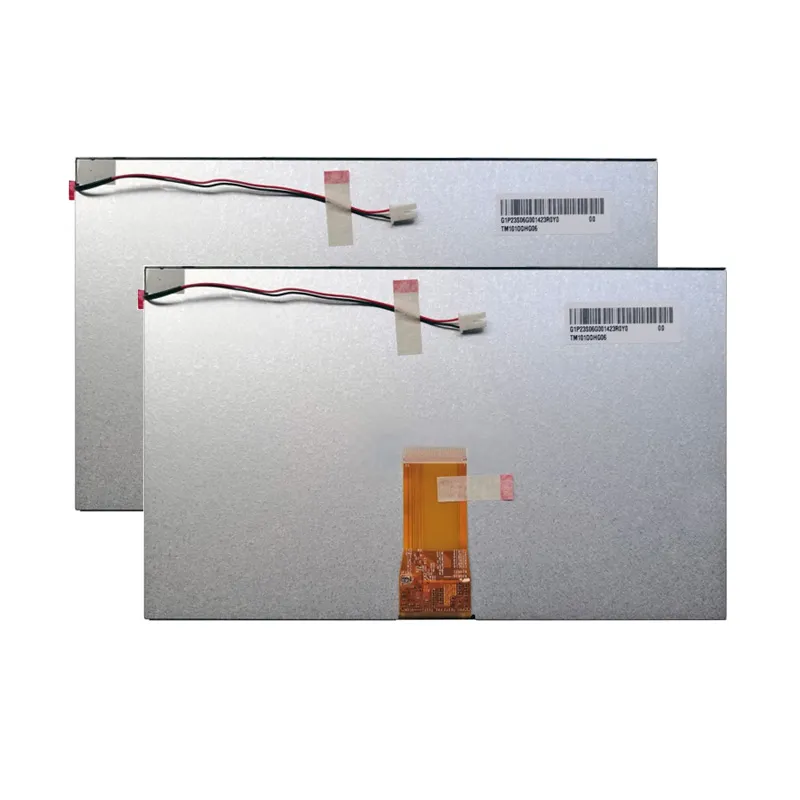

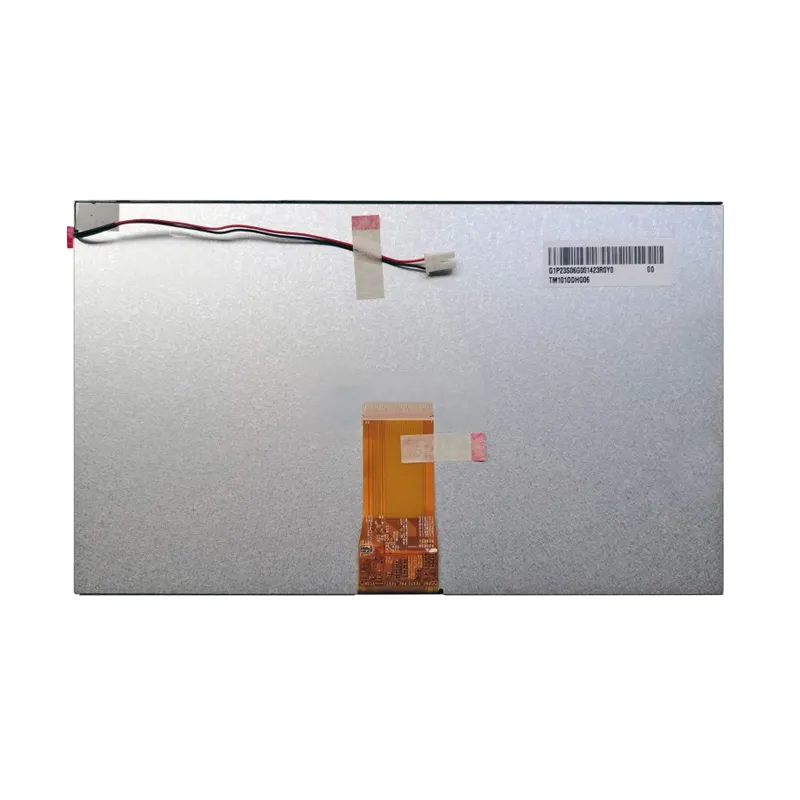

TIANMA TM101DDHG06-00 10.1 inch TTL Interface LCD with 350cd/m² Brightness for Industrial Control & Medical Systems

SKU: DS50250
Tamaño:

Número de modelo

M101DDHG06-00

Resolución:

Interfaz:

Temperatura de funcionamiento:

-20℃~70℃

Compatible con pantallas táctiles:

Tipo de pantalla:

TIANMA tm101ddhg06-00 10.1 inch Medical Display LCD for Industrial PCs – 1024×600 Resolution & -30°C~80°C Durability.

Solicitar precios por volumen







    Descripción

    TM101DDHG06-00 General Desription

    The TIANMA TM101DDHG06-00 is a 10.1-inch TN color LCD module offering 1024×600 resolution and 350 cd/m² brightness, tailored for industrial and medical applications requiring stable signal transmission. Its TTL interface ensures compatibility with legacy industrial PCs and embedded systems, while the 500:1 contrast ratio provides clear visuals in controlled lighting. Built for harsh environments, it operates in -20°C to 70°C and withstands storage in -30°C to 80°C, backed by a 30,000-hour LED lifespan. With a 3.3V low-power design and 75/75/60/60 viewing angles, this slim 235×143×5.5mm display is ideal for fixed-view installations demanding reliability.



    Aplicación y rendimiento

    Optimized for factory automation HMIs, medical diagnostic monitors, and railway control panels, the TM101DDHG06-00 excels in environments requiring TTL compatibility, such as semiconductor manufacturing equipment and laboratory analyzers. Its 350 cd/m² brightness suits indoor industrial kiosks and hospital bedside terminals, while the wide temperature range supports cold-chain logistics displays and oil refinery control rooms. The TTL signal stability powers agricultural machinery dashboards and textile production line interfaces, and its slim profile fits portable inspection devices and vending machine screens. Ideal for security system monitors, pharmaceutical QC stations, and industrial IoT edge devices needing long-term reliability.

    10.1" Product Specifications

    Tamaño diagonal 10,1 pulgadas
    Número de píxeles 1024×600
    Luminancia 350
    Tamaño del módulo 235×143×5.5
    Área activa 222.72×125.28
    Dirección de visualización TN
    Ángulo de visión (U/D/R/L) 75/75/60/60
    Interfaz TTL
    Relación de contraste 500 : 1
    Temperatura de funcionamiento -20 ~ 70 °C
    Temperatura de almacenamiento -30 ~ 80 °C
    Vida útil del LED 30000
    Soporte de pantalla táctil Sin
    Fuente de alimentación 3.3/11/22/-7V
    Tipo de pantalla TFT en color

    TIANMA LCD Display Custom Solutions

    Optimice sus soluciones de cableado

    Ajuste la longitud, la posición y el pinout de sus cables, o añada conectores adicionales para mejorar la funcionalidad. Obtenga una solución de cable personalizada diseñada para agilizar sus conexiones y garantizar un rendimiento seguro y fiable.

    Modificaciones de PCB

    Elija entre una gran variedad de variaciones en la forma de la placa de circuito impreso, el tamaño, la disposición de las patillas y los componentes para que se adapte totalmente a su aplicación.

    Mejore la experiencia del usuario con la tecnología de pantalla táctil

    Mejore su experiencia de usuario con tecnología de pantalla táctil capacitiva o resistiva. Personalizaremos el grosor del cristal y la forma del panel táctil para garantizar un ajuste perfecto a sus requisitos de diseño.

    custom touch

    Tapa de cristal a medida

    Equipe su pantalla con una cubierta de cristal cortada a medida para aumentar la durabilidad y el rendimiento. Elija entre varios grosores y opte por la adhesión óptica para protegerla de la humedad y la suciedad, garantizando una solución duradera y fiable.

    Tianma TM101DDHG06-00 10.1-Inch LCD Replacement FAQ

    How do I confirm that I need the Tianma TM101DDHG06-00?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 10.1-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing TTL cable and controller with the Tianma TM101DDHG06-00?

    For the listed TTL interface, match signal levels, timing and every connector pin before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How do I qualify a different panel as a replacement for the Tianma TM101DDHG06-00?

    Use 1024 × 600 to shortlist a candidate while keeping the complete interface and mechanical requirements in your acceptance criteria. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Is the Tianma TM101DDHG06-00 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Información complementaria

    Tamaño:

    Número de modelo

    M101DDHG06-00

    Resolución:

    Interfaz:

    Temperatura de funcionamiento:

    -20℃~70℃

    Compatible con pantallas táctiles:

    Tipo de pantalla:
