Description
1.14″ SPI TFT Display Module – IPS 135×240 Resolution:
| ✅ Industrial-grade operation (-20℃~60℃ extended range available) ✅ ST7789V driver IC with built-in GRAM (240x135x18-bit) ✅ 400cd/m² high brightness ✅ 3.3V/5V compatible logic interface ✅Preloaded Arduino/Raspberry Pi libraries ✅Certified with CE/RoHS/FCC standards |
 |
| 1.14inch IPS Module | ||||||
| Key Parameters | Display Color | RGB 65K color | Interface | PIN NO. | SYMBOL | DESCRIPTION |
| Screen Size | 1.14(inch) | 1 | GND | LCD Power ground | ||
| Type | IPS | 2 | VCC | LCD power supply is positive (3.3V) | ||
| Driver IC | ST7789V | 3 | SCL | LCD SPI bus clock signal | ||
| Résolution | 135*240 (Pixel) | 4 | SDA | LCD SPI bus write data signal | ||
| Module Interface | 4-line SPI interface | 5 | RES | LCD reset control signal(Low level reset) | ||
| Active Area (AA area) | 14.86×24.91 (mm) | 6 | DC | LCD register / data selection control signal | ||
| Module PCB Size | 30.40×28.00 (mm) | (Low level: register, high level: data) | ||||
| Température de fonctionnement | -20℃~60℃ | 7 | CS | LCD chip select control signal (low level enable) | ||
| Température de stockage | -30℃~70℃ | 8 | BLK | LCD backlight control signal (high level lighting, | ||
| VCC power voltage | 3.3V | if you do not need control, please connect 3.3V) | ||||

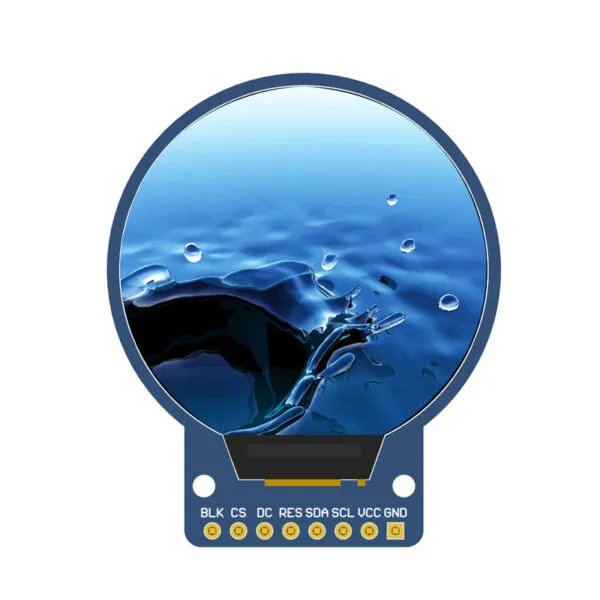

| product picture | ||||||
