13.3 inch TFT LCD Screen LVDS 1920*1080 Pixels

UGS : DS20102
Taille :

Résolution :

Interface :

Température de fonctionnement :

-20℃~70℃

Luminosité (cd/m²) :

400

Prise en charge de l'écran tactile :

Type d'affichage :

13.3 inch TFT LCD Screen  1920*1080 Pixels  IPS Viewing Angle  50000 hours long life span  Serial LVDS Interface

Demande de tarification au volume







    Description

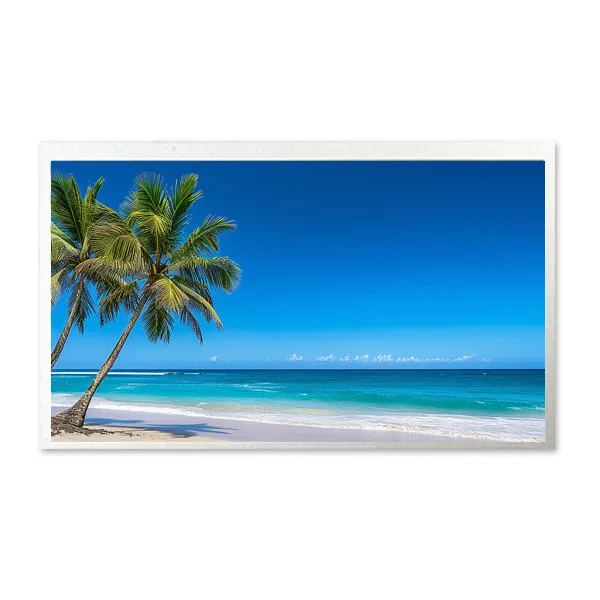

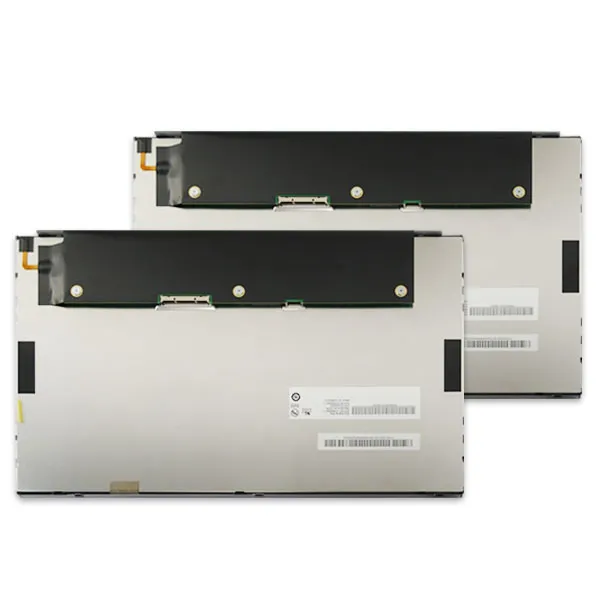

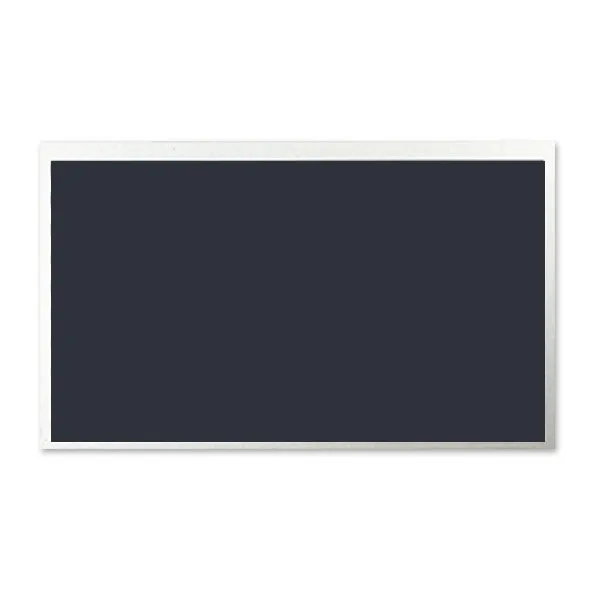

    13.3” TFT LCD Screen Features

    The 13.3” TFT LCD screen features a resolution of 1920 x 1080 pixels, delivering crisp and clear images ideal for high-definition content. It offers a wide viewing angle of 85° in all directions, ensuring excellent visibility from multiple perspectives. The module utilizes an LVDS interface for high-speed data transfer and reliable connectivity. With an LED backlight designed for durability, it boasts a lifetime of 50,000 hours, minimizing the need for frequent replacements.



    13.3” TFT LCD Screen with Long Life Span

    The 13.3-inch LCD Display Module boasts a lifespan of 50,000 hours, significantly reducing the need for frequent replacements and minimizing maintenance costs and downtime. This durability is particularly beneficial in commercial and industrial applications where continuous operation is essential.

    13.3" TFT-LCD Product Specifications

    Numéro de modèle  90-13302-AH1
    Taille 13.3
    Résolution 1920*1080
    Dimension de l'ébauche 309.7*184.1*9.6
    Zone active 293.47*165.08
    Luminosité (cd/m²) 400
    Interface LVDS
    Voir la direction ALL
    Température de fonctionnement -20~70
    Température de stockage -30~80
    Durée de vie des LED 50000
    Prise en charge de l'écran tactile Sans
    Rapport de contraste 1000:1
    Alimentation électrique 3.3V
    Type d'affichage LCD couleur

    13.3" TFT LCD Custom Solutions

    Optimisez vos solutions de câblage

    Ajustez la longueur, la position et le brochage de vos câbles, ou ajoutez des connecteurs supplémentaires pour améliorer la fonctionnalité. Obtenez une solution de câblage personnalisée conçue pour rationaliser vos connexions et garantir des performances sûres et fiables.

    Personnalisation de l'interface LCD

    Choisissez parmi une gamme variée d'options d'interface ou consultez nos experts pour trouver celle qui convient le mieux à votre projet. Nous pouvons intégrer des interfaces HDMI, USB, SPI, VGA et autres dans votre écran, pour vous aider à atteindre efficacement vos objectifs de conception.

    Améliorer l'expérience de l'utilisateur grâce à la technologie de l'écran tactile

    Améliorez votre expérience utilisateur grâce à la technologie des écrans tactiles capacitifs ou résistifs. Nous personnaliserons l'épaisseur du verre et la forme de l'écran tactile pour qu'il réponde parfaitement à vos exigences en matière de conception.

    custom touch

    Verre de couverture sur mesure

    Équipez votre écran d'une vitre de protection découpée sur mesure pour améliorer sa durabilité et ses performances. Choisissez parmi différentes épaisseurs et optez pour le collage optique afin d'assurer une protection contre l'humidité et les débris, garantissant ainsi une solution durable et fiable.

    13.3-Inch 1920 × 1080 LVDS TFT LCD Display Module FAQ

    Will this display fit my enclosure and show the whole interface?

    Use the 13.3-inch diagonal to shortlist display modules, then check the exact drawing for fit. Overlay the visible area, module outline and flex exit on your enclosure drawing. Try your menus and text on a 1920 × 1080 canvas before committing to the enclosure.

    What must my controller support to drive this display module?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Before connecting it, check the power rails and reset sequence in the module documentation.

    How should I compare this display with a similar module for my device?

    For the listed LCD, compare viewing-angle shifts and dark-screen appearance through the front cover. Use the listed 400 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting. Compare the cost and space of any changes to the cable, host board or front cover.

    Can I change the flex cable, add a cover, or integrate touch?

    Send us the mounting drawing, permitted flex exit, connector and cover or touch requirements. We can review which of those changes can be made around the existing display and which require a different module.

    What determines the cost and lead time of a custom display sample?

    Include your display outline, interface, target sample date and estimated annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Solutions d'affichage personnalisées

    Informations complémentaires

    Taille :

    Résolution :

    Interface :

    Température de fonctionnement :

    -20℃~70℃

    Luminosité (cd/m²) :

    400

    Prise en charge de l'écran tactile :

    Type d'affichage :

    Solutions d'affichage personnalisées

    Travaillez avec nos experts en ingénierie pour créer le présentoir parfait pour votre application.
