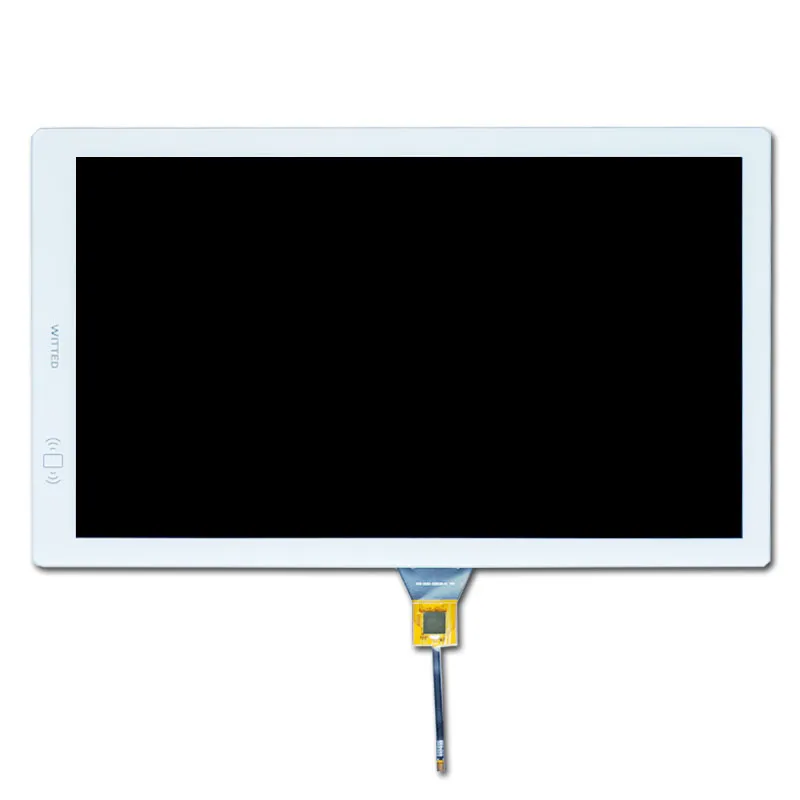

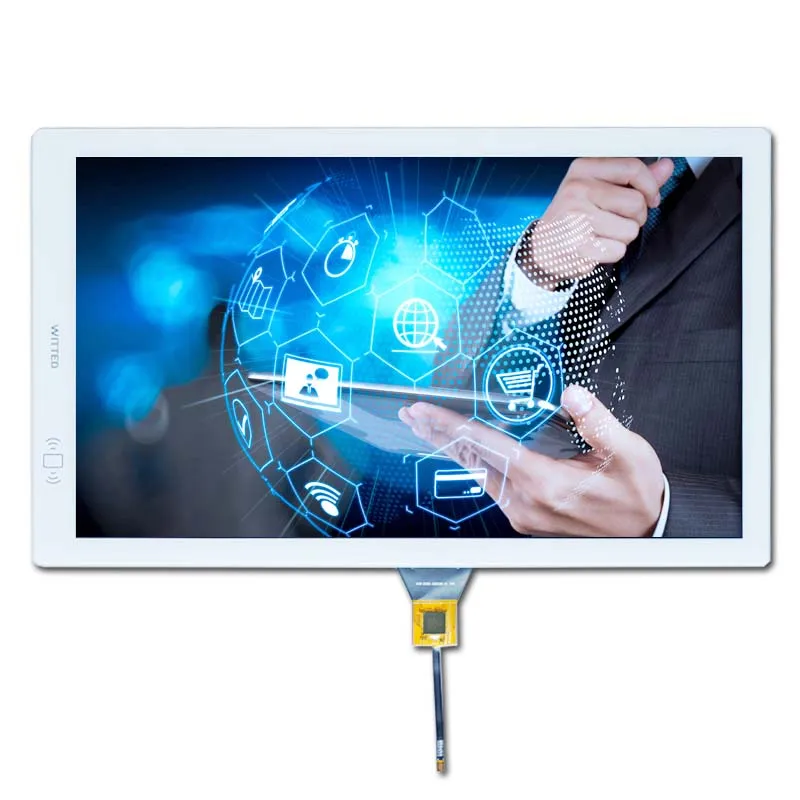

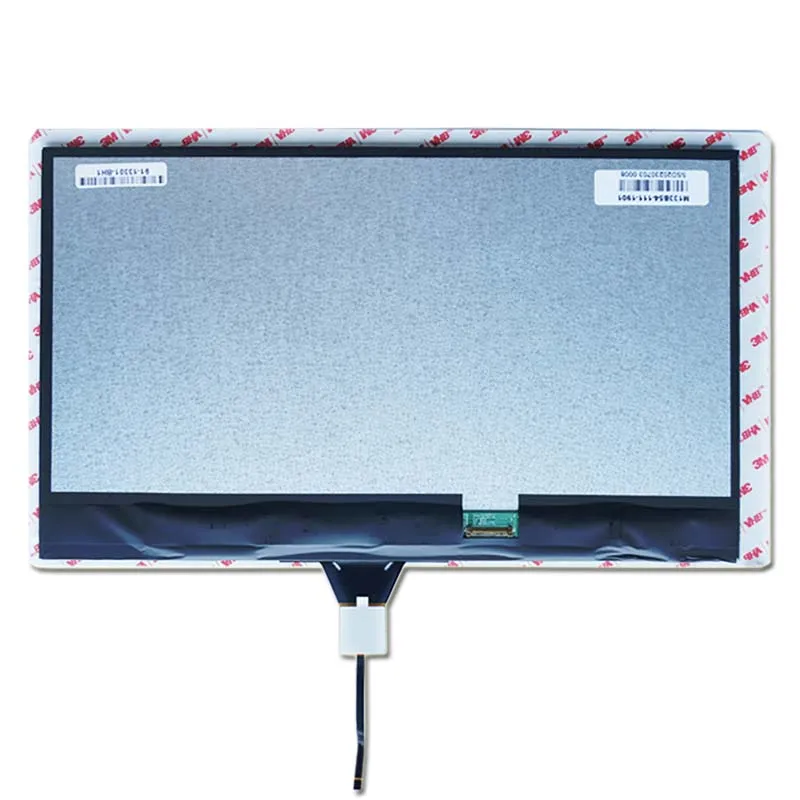

13.3 inch Touch Screen Display 1920*1080 Pixels

UGS : DS20124
Taille :

Résolution :

Interface :

Température de fonctionnement :

-0℃~50℃

Luminosité (cd/m²) :

330

Prise en charge de l'écran tactile :

Type d'affichage :

13.3 inch Touch Screen Display  1920*1080 Pixels  IPS Viewing Direction Serial EDP Interface 30 pin FFC  With Capacitive Touch   -0℃ to 50℃ Operating Temperature  AA 293.8*165.2mm

Demande de tarification au volume







    Description

    13.3” Touch Screen Display Features

    The 13.3 inch Touch Screen Display is a high-performance panel that delivers an exceptional visual experience with a resolution of 1920 x 1080 pixels, making it suitable for various applications, from laptops to interactive kiosks. Utilizing IPS (In-Plane Switching) technology, it offers wide viewing angles for consistent color and clarity. The display features a 30-pin FFC serial EDP interface for easy integration, along with capacitive touch technology for smooth and responsive user interactions. Operating efficiently in temperatures ranging from -0℃ to 50℃, it is ideal for both indoor and controlled outdoor environments. With dimensions of 293.8 x 165.2 mm, this compact display provides an immersive experience, making it a reliable choice for consumer electronics, industrial applications, and interactive displays.



    13.3” Touch Screen Description

    The 13.3 inch Touch Screen Display incorporates advanced capacitive touch technology, featuring a G+G structure that enhances touch sensitivity and provides a smooth, aesthetically pleasing surface. Key features include support for up to 10 touch points, enabling complex gestures like pinch-to-zoom and multi-finger swipes, which enrich user experiences in gaming, design, and navigation. The integrated GT9110 touch IC ensures accurate touch detection and quick response times, optimized for high-performance applications with minimal latency. Additionally, the G+G construction enhances durability against scratches and impacts while maintaining excellent optical clarity, ensuring uncompromised display quality.

    13.3" TFT-LCD Product Specifications

    Numéro de modèle  91-13301-BH1
    Taille 13.3
    Résolution 1920*1080
    Dimension de l'ébauche 305.2*178.2*2.6
    Zone active 293.8*165.2
    Luminosité (cd/m²) 330
    Interface eDP
    Voir la direction ALL
    Température de fonctionnement -0~50
    Température de stockage -20~60
    Durée de vie des LED 20000
    Prise en charge de l'écran tactile capacitif
    Rapport de contraste 800:1
    Alimentation électrique 3.3V
    Type d'affichage LCD couleur

    13.3" TFT LCD Custom Solutions

    Optimisez vos solutions de câblage

    Ajustez la longueur, la position et le brochage de vos câbles, ou ajoutez des connecteurs supplémentaires pour améliorer la fonctionnalité. Obtenez une solution de câblage personnalisée conçue pour rationaliser vos connexions et garantir des performances sûres et fiables.

    Personnalisation de l'interface LCD

    Choisissez parmi une gamme variée d'options d'interface ou consultez nos experts pour trouver celle qui convient le mieux à votre projet. Nous pouvons intégrer des interfaces HDMI, USB, SPI, VGA et autres dans votre écran, pour vous aider à atteindre efficacement vos objectifs de conception.

    Améliorer l'expérience de l'utilisateur grâce à la technologie de l'écran tactile

    Améliorez votre expérience utilisateur grâce à la technologie des écrans tactiles capacitifs ou résistifs. Nous personnaliserons l'épaisseur du verre et la forme de l'écran tactile pour qu'il réponde parfaitement à vos exigences en matière de conception.

    custom touch

    Verre de couverture sur mesure

    Équipez votre écran d'une vitre de protection découpée sur mesure pour améliorer sa durabilité et ses performances. Choisissez parmi différentes épaisseurs et optez pour le collage optique afin d'assurer une protection contre l'humidité et les débris, garantissant ainsi une solution durable et fiable.

    13.3-Inch 1920 × 1080 eDP LCD Display Module FAQ

    Will this display fit my enclosure and show the whole interface?

    Use the 13.3-inch diagonal to shortlist display modules, then check the exact drawing for fit. Overlay the visible area, module outline and flex exit on your enclosure drawing. Try your menus and text on a 1920 × 1080 canvas before committing to the enclosure.

    What must my controller support to drive this display module?

    For the listed eDP interface, match lane count, link rate, power sequencing and connector pinout. Before connecting it, check the power rails and reset sequence in the module documentation.

    How should I compare this display with a similar module for my device?

    For the listed LCD, compare viewing-angle shifts and dark-screen appearance through the front cover. Use the listed 330 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting. Compare the cost and space of any changes to the cable, host board or front cover.

    Can I change the flex cable, add a cover, or integrate touch?

    Send us the mounting drawing, permitted flex exit, connector and cover or touch requirements. We can review which of those changes can be made around the existing display and which require a different module.

    What determines the cost and lead time of a custom display sample?

    Include your display outline, interface, target sample date and estimated annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.
