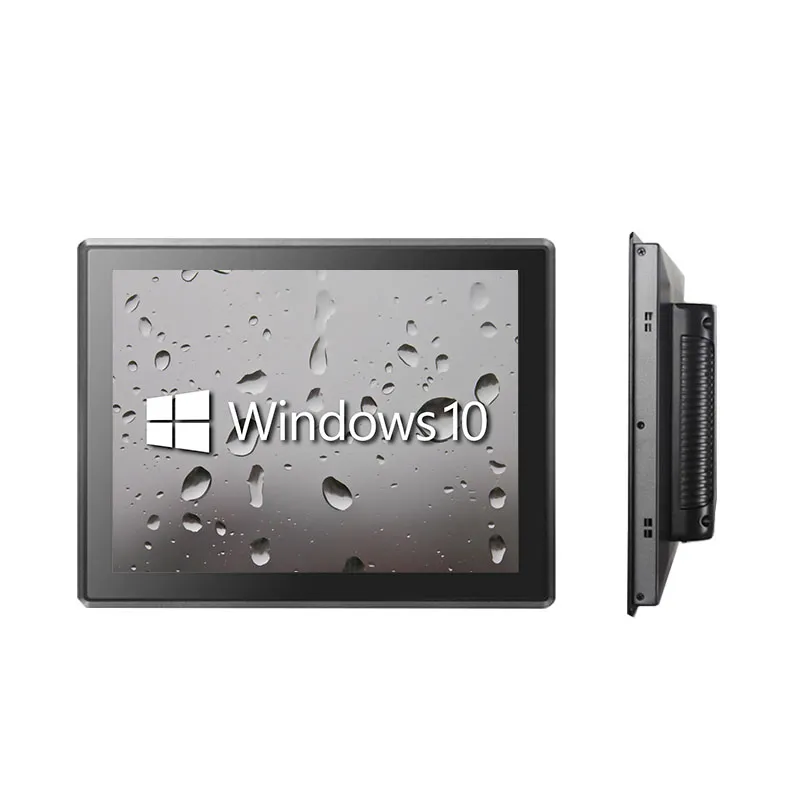

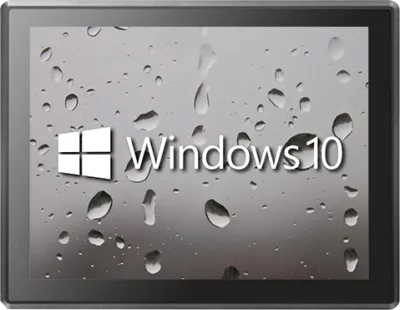

15 inch Industrial Touch Monitor 1024*768 IP65 Waterproof

UGS : DS30022

Taille :	15 inch
Résolution :	1024*768
Interface :	HDMI, DC IN, USB, VGA, Audio
Prise en charge de l'écran tactile :	capacitif

15 inch Industrial Touch Monitor, offer resolution 1024*768, with 10 point capacitive screen, Standard HDMI/VGA display, IP65 waterproof, dust-proof

$99.00

Description

15 inch Industrial Touch Monitor main features:

Original capacitive touch screen, high resolution, fingertip light touch, 3ms can quickly respond to high-speed transmission reaction, one-time correction, strong stability, strong anti-interference.
HDMI+VGA standard interface, we support interface customization and expansion
Multi-hole heat dissipation body, the back shell adopts multi-hole heat dissipation design, which can effectively and timely dissipate heat, so that the machine can work normally and stably for a long time
All-day standby, stable endurance; with 7*24h long-term continuous operation platform capability, providing a stable working environment, the power-on capability can be set through BIOS, and it can still run stably in an unstable environment.

15 inch Industrial Touch Monitor Specification
LCD Display	Taille	15″	Display solution configuration specifications
	Display area	304.128 (H) x 228.096 (V)mm	Interface	VGA*1
	Résolution	1024*768		HDMI*1
	Dot pitch	0.297*0.297mm		Audio*1
	Display ratio	4:3		USB*1 for touch
	Viewing angle (L/R/U/D)	85°/85°/85°/85°(Typ.)	Alimentation électrique	DC 12V(optional DC 9-36V wide voltage, Phoenix terminal interface)
	Rapport de contraste	1500:1	Performance	Industrial-grade motherboard, solid-state capacitor, anti-interference, anti-surge
	Couleur	16.2M	Packing List	Monitor*1
	Response time	15ms		HDMI data cable*1
	Luminosité	300cd/m2		Instruction manual*1
Touch Screen	Touch type	Capacitive touch (G+G), ILITEK solution		Dual male USB cable*1
	Number of supported points	10 point		Adapter*1
	Touch mode	Finger touch	Power Consumption	Rated power ≤16W
	Surface hardness	≥6H		Standby power ≤0.5W
	Response time	<3ms		Rated voltage 100-240V (50/60Hz)
	Transmittance	≥85%	Environment	Storage temperature and humidity: -20~60℃, 20~85RH, no condensation
	Service life	>50 million times	Environment	Working temperature and humidity: 0~50℃, 20~85RH, no condensation
	Linear error	≤2.5mm
	Haze	3%(Max)
Chassis	Appearance size	37829768.8mm
	Opening size	357.5*281.5mm
	Touch step thickness	3mm
	Wall mounting hole position	100*100mm
	Poids net	4.5KG
	Gross weight	5.3KG
	Packing size	395490130mm
Dimensions du produit
