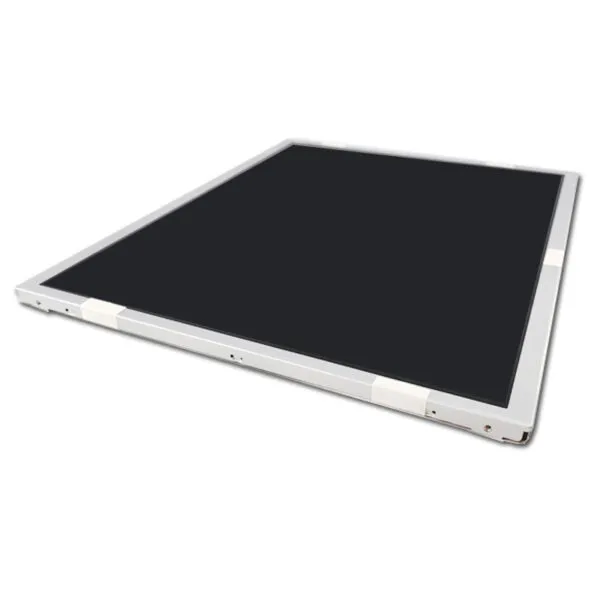

BOE EV121X0M-N10 12.1 inch LCD Industrial Panel 1024x768

UGS : DS50295
Taille :

Numéro de modèle

EV121X0M-N10

Résolution :

Interface :

Température de fonctionnement :

-20℃~70℃

Luminosité (cd/m²) :

500

Prise en charge de l'écran tactile :

Type d'affichage :

BOE EV121X0M-N10, 12” industrial panel, 1024x768 resolution, 88/88/88/88 IPS wide viewing angle, LVDS interface, 50k Long life span

Demande de tarification au volume







    Description

    BOE EV121X0M-N10 TFT Display Description

    BOE EV121X0M-N10

    Wide-temperature design for stable operation in harsh environments
    Long-life panel suitable for medical and industrial applications
    15-year manufacturing expertise with in-house R&D team
    Customizable touch screen and driver solutions available

    Supporting retail and wholesale orders. Contact us for pricing quotes!

    12.1" TFT Display Specifications

    Numéro de modèle EV121X0M-N10
    Taille 12.1
    Résolution 1024*768
    Dimension de l'ébauche 260.5*204*8.7
    Zone active 245.76*184.32
    Luminosité (cd/m²) 500
    Interface LVDS
    Voir la direction ALL
    Température de fonctionnement -20~70
    Température de stockage -30~80
    Durée de vie des LED 50000
    Prise en charge de l'écran tactile No
    Rapport de contraste 1200:1
    Alimentation électrique 3.3V
    Type d'affichage LCD couleur

    12.1" TFT LCD Custom Solutions

    Optimisez vos solutions de câblage

    Ajustez la longueur, la position et le brochage de vos câbles, ou ajoutez des connecteurs supplémentaires pour améliorer la fonctionnalité. Obtenez une solution de câblage personnalisée conçue pour rationaliser vos connexions et garantir des performances sûres et fiables.

    Personnalisation de l'interface LCD

    Choisissez parmi une gamme variée d'options d'interface ou consultez nos experts pour trouver celle qui convient le mieux à votre projet. Nous pouvons intégrer des interfaces HDMI, USB, SPI, VGA et autres dans votre écran, pour vous aider à atteindre efficacement vos objectifs de conception.

    Améliorer l'expérience de l'utilisateur grâce à la technologie de l'écran tactile

    Améliorez votre expérience utilisateur grâce à la technologie des écrans tactiles capacitifs ou résistifs. Nous personnaliserons l'épaisseur du verre et la forme de l'écran tactile pour qu'il réponde parfaitement à vos exigences en matière de conception.

    custom touch

    Verre de couverture sur mesure

    Équipez votre écran d'une vitre de protection découpée sur mesure pour améliorer sa durabilité et ses performances. Choisissez parmi différentes épaisseurs et optez pour le collage optique afin d'assurer une protection contre l'humidité et les débris, garantissant ainsi une solution durable et fiable.

    BOE EV121X0M-N10 LCD Replacement FAQ

    How do I confirm that I need the BOE EV121X0M-N10?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the BOE EV121X0M-N10?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How do I qualify a different panel as a replacement for the BOE EV121X0M-N10?

    Use 1024 × 768 to shortlist a candidate while keeping the complete interface and mechanical requirements in your acceptance criteria. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Is the BOE EV121X0M-N10 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Informations complémentaires

    Taille :

    Numéro de modèle

    EV121X0M-N10

    Résolution :

    Interface :

    Température de fonctionnement :

    -20℃~70℃

    Luminosité (cd/m²) :

    500

    Prise en charge de l'écran tactile :

    Type d'affichage :

    Solutions d'affichage personnalisées

    Travaillez avec nos experts en ingénierie pour créer le présentoir parfait pour votre application.
