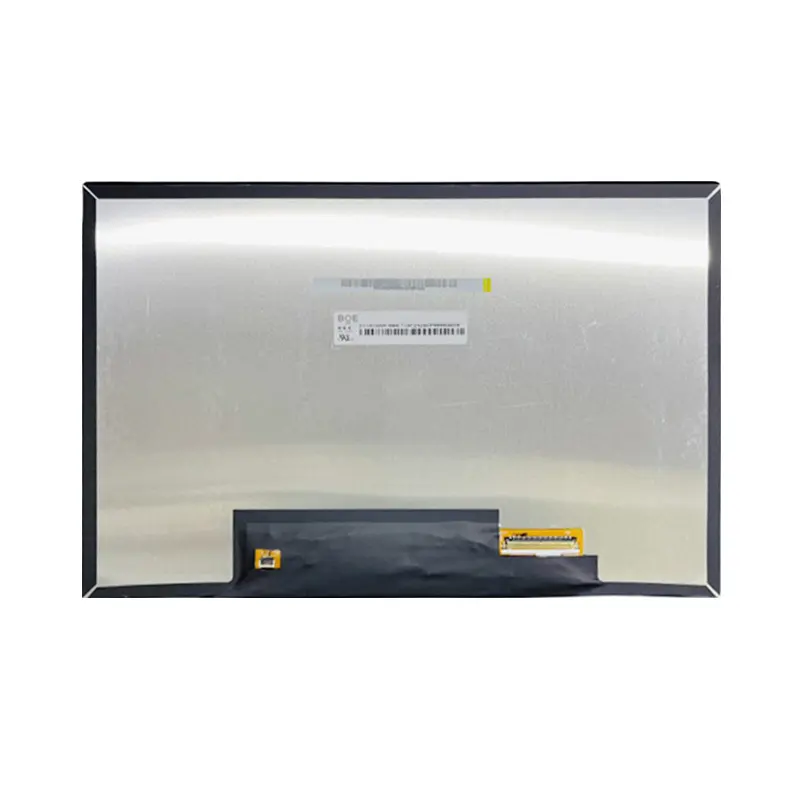

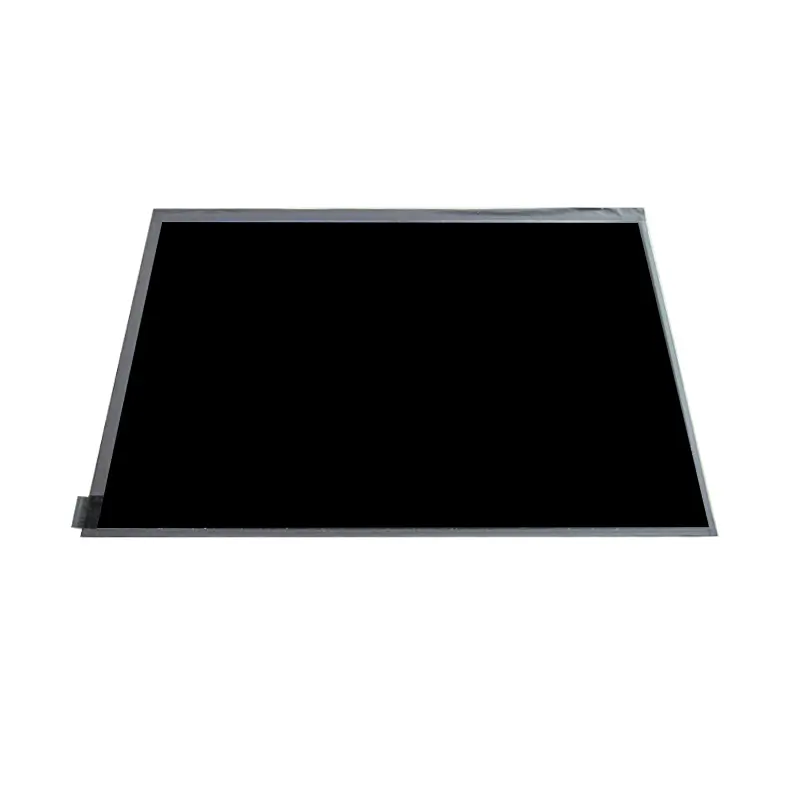

BOE GV101WXM-N80 10.1 inch Rugged IPS LCD Display 500cd/m² Brightness, Wide Temperature

UGS : DS50268
Taille :

Numéro de modèle

V101WXM-N80

Résolution :

Interface :

Température de fonctionnement :

-20℃~70℃

Prise en charge de l'écran tactile :

Type d'affichage :

BOE gv101wxm-n80 10.1 inch IPS LCD with 500cd/m² brightness, 1280×800 resolution -20°C~70°C operation. Ideal for industrial, medical, and outdoor systems.

Demande de tarification au volume







    Description

    GV101WXM-N80 General Desription

    The BOE GV101WXM-N80 is a 10.1-inch color LCD display designed for extreme environments. Boasting a 1280×800 resolution and IPS technology with 85/85/85/85 viewing angles, it ensures vivid visuals from any perspective. With an exceptional 500 cd/m² brightness and 1300:1 contrast ratio, it remains clear even in direct sunlight. Built to withstand temperatures from -20°C to 70°C, its rugged LVDS interface guarantees stable performance in harsh conditions. The ultra-slim 4.9mm profile (228.2×148.85mm) and lightweight design optimize space efficiency, while the 3.3V low-power operation reduces energy costs. Engineered for longevity (30,000-hour LED lifespan), it’s ideal for mission-critical applications requiring reliability and precision.



    Application & Performanc

    Perfect for industrial control panels, outdoor digital signage, and transportation systems, the GV101WXM-N80 thrives in extreme settings. Its high brightness ensures readability in bright outdoor or factory environments, while the wide temperature range supports freezing warehouses or scorching solar installations. The IPS panel’s color accuracy suits medical imaging devices and aviation dashboards, and the ultra-slim design integrates seamlessly into compact machinery or portable equipment. With shock-resistant construction and LVDS signal stability, it excels in robotics, EV charging stations, and ruggedized handheld devices. Energy-efficient and durable, it minimizes downtime and maintenance costs across demanding sectors.

    10.1" Product Specifications

    Diagonal Size11.8 10,1 pouces
    Nombre de pixels 1280×800
    Luminance 250
    Module Size 228.2×148.85×4.9
    Zone active 216.96×135.6
    Direction de visualisation IPS
    View Angle(U/D/R/L) 85/85/85/85
    Interface LVDS
    Rapport de contraste 1300:1
    Température de fonctionnement -20 ~ 70 °C
    Température de stockage -30 ~ 80 °C
    Durée de vie des LED 30000
    Alimentation électrique 3.3V
    Prise en charge de l'écran tactile Sans
    Type d'affichage Color TFT



    BOE LCD Display Custom Solutions

    Optimisez vos solutions de câblage

    Ajustez la longueur, la position et le brochage de vos câbles, ou ajoutez des connecteurs supplémentaires pour améliorer la fonctionnalité. Obtenez une solution de câblage personnalisée conçue pour rationaliser vos connexions et garantir des performances sûres et fiables.

    Modifications de la carte de circuit imprimé

    Choisissez parmi une variété de variations dans la forme du circuit imprimé, la taille, la disposition des broches et des composants pour l'adapter parfaitement à votre application.

    Améliorer l'expérience de l'utilisateur grâce à la technologie de l'écran tactile

    Améliorez votre expérience utilisateur grâce à la technologie des écrans tactiles capacitifs ou résistifs. Nous personnaliserons l'épaisseur du verre et la forme de l'écran tactile pour qu'il réponde parfaitement à vos exigences en matière de conception.

    custom touch

    Verre de couverture sur mesure

    Équipez votre écran d'une vitre de protection découpée sur mesure pour améliorer sa durabilité et ses performances. Choisissez parmi différentes épaisseurs et optez pour le collage optique afin d'assurer une protection contre l'humidité et les débris, garantissant ainsi une solution durable et fiable.

    BOE GV101WXM-N80 10.1-Inch LCD Replacement FAQ

    How do I confirm that I need the BOE GV101WXM-N80?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 10.1-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the BOE GV101WXM-N80?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How does the BOE GV101WXM-N80 compare with the AUO G101EAN02.1?

    Both catalog listings show 10.1 inches, 1280 × 800 and LVDS. The catalog lists −20 °C to +70 °C for the BOE panel and −20 °C to +60 °C for the AUO panel. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Compare AUO G101EAN02.1

    Is the BOE GV101WXM-N80 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Informations complémentaires

    Taille :

    Numéro de modèle

    V101WXM-N80

    Résolution :

    Interface :

    Température de fonctionnement :

    -20℃~70℃

    Prise en charge de l'écran tactile :

    Type d'affichage :
