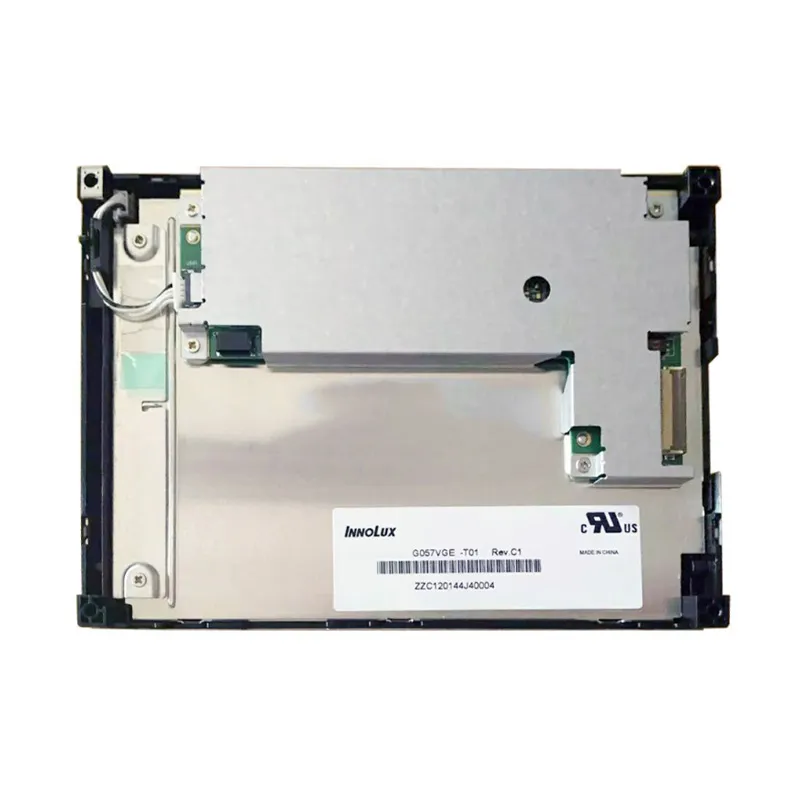

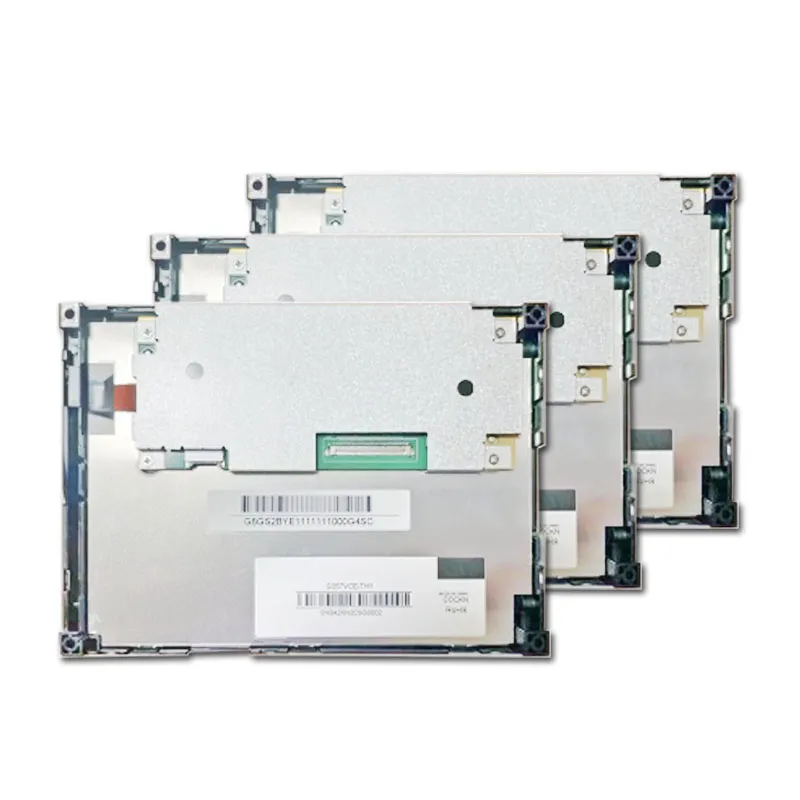

G057VCE-TH1 5.7 inch IPS LCD 450cd/m² Brilliance , -30°C~85°C Operation, Arid Industrial HMIs

UGS : DS50219
Taille :

Numéro de modèle

G057VCE-TH1

Résolution :

Interface :

Température de fonctionnement :

-30℃~ 85℃

Prise en charge de l'écran tactile :

Type d'affichage :

Ressources :

Innolux G057VCE-TH1 5.7 inch Mission-Critical LCD: Military-Temp Endurance & 88° Full View for Defense/Aerospace Control Systems.

Demande de tarification au volume







    Description

    G057VCE-TH1 General Desription

    The Innolux G057VCE-TH1 redefines durability with military-grade -30°C cold-start capability and 85°C heat resistance – surviving desert mining rig dashboards or Alaskan pipeline monitors. Its 450cd/m² IPS panel delivers anti-glare performance under direct sunlight, while 88° ultra-wide viewing angles ensure consistent color accuracy for multi-operator control panels. The RGB interface enables precise color calibration for aviation warning systems, paired with 1000:1 contrast for crisp symbology in low-light environments. With 50,000-hour LED lifespan (5.7 years non-stop), it’s engineered for inaccessible installations like deep-sea ROV controls or nuclear reactor status displays. The 12.8mm ruggedized profile withstands vibration in armored vehicle systems, while 3.3V low-power design integrates seamlessly with battery-powered field equipment.



    Application & Performanc

    Built for Earth’s extremes, this display powers oil drilling BOP control panels in -30°C Arctic fields and solar farm inverters in 85°C desert heat. The 450cd/m² brightness cuts through blizzard conditions in alpine rescue sled HMIs or Saharan border surveillance systems. IPS color stability ensures accurate radar signature displays on naval bridge consoles, while 88° viewing angles aid collaborative monitoring in underground mining control rooms. Its 50K-hour lifespan reduces maintenance in Antarctic research station weather stations and molten metal handling robots. The RGB precision supports color-coded emergency shutdown systems in chemical plants, and 3.3V compatibility enables use in portable bomb disposal robots or high-altitude UAV ground control units.

    5.7" Product Specifications

    Taille de la diagonale 5.7 inch
    Nombre de pixels 640×480
    Luminance 450
    Module Size 144×104.6×12.8
    Zone active 115.2×86.4
    Direction de visualisation IPS
    View Angle(U/D/R/L) 88/88/88/88
    Interface RVB
    Rapport de contraste 1000:1
    Température de fonctionnement -30~85℃
    Température de stockage -40~85℃
    Durée de vie des LED 50000
    Prise en charge de l'écran tactile Sans
    Alimentation électrique 3.3V
    Type d'affichage Color TFT

    Innolux LCD Display Custom Solutions

    Optimisez vos solutions de câblage

    Ajustez la longueur, la position et le brochage de vos câbles, ou ajoutez des connecteurs supplémentaires pour améliorer la fonctionnalité. Obtenez une solution de câblage personnalisée conçue pour rationaliser vos connexions et garantir des performances sûres et fiables.

    Modifications de la carte de circuit imprimé

    Choisissez parmi une variété de variations dans la forme du circuit imprimé, la taille, la disposition des broches et des composants pour l'adapter parfaitement à votre application.

    Améliorer l'expérience de l'utilisateur grâce à la technologie de l'écran tactile

    Améliorez votre expérience utilisateur grâce à la technologie des écrans tactiles capacitifs ou résistifs. Nous personnaliserons l'épaisseur du verre et la forme de l'écran tactile pour qu'il réponde parfaitement à vos exigences en matière de conception.

    custom touch

    Verre de couverture sur mesure

    Équipez votre écran d'une vitre de protection découpée sur mesure pour améliorer sa durabilité et ses performances. Choisissez parmi différentes épaisseurs et optez pour le collage optique afin d'assurer une protection contre l'humidité et les débris, garantissant ainsi une solution durable et fiable.

    Innolux G057VCE-TH1 5.7-Inch LCD Replacement FAQ

    How do I confirm that I need the Innolux G057VCE-TH1?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 5.7-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing RGB cable and controller with the Innolux G057VCE-TH1?

    For the listed RGB interface, match data width, pixel clock, sync polarities and blanking to the panel timing sheet. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How do I qualify a different panel as a replacement for the Innolux G057VCE-TH1?

    Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Is the Innolux G057VCE-TH1 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Informations complémentaires

    Taille :

    Numéro de modèle

    G057VCE-TH1

    Résolution :

    Interface :

    Température de fonctionnement :

    -30℃~ 85℃

    Prise en charge de l'écran tactile :

    Type d'affichage :
