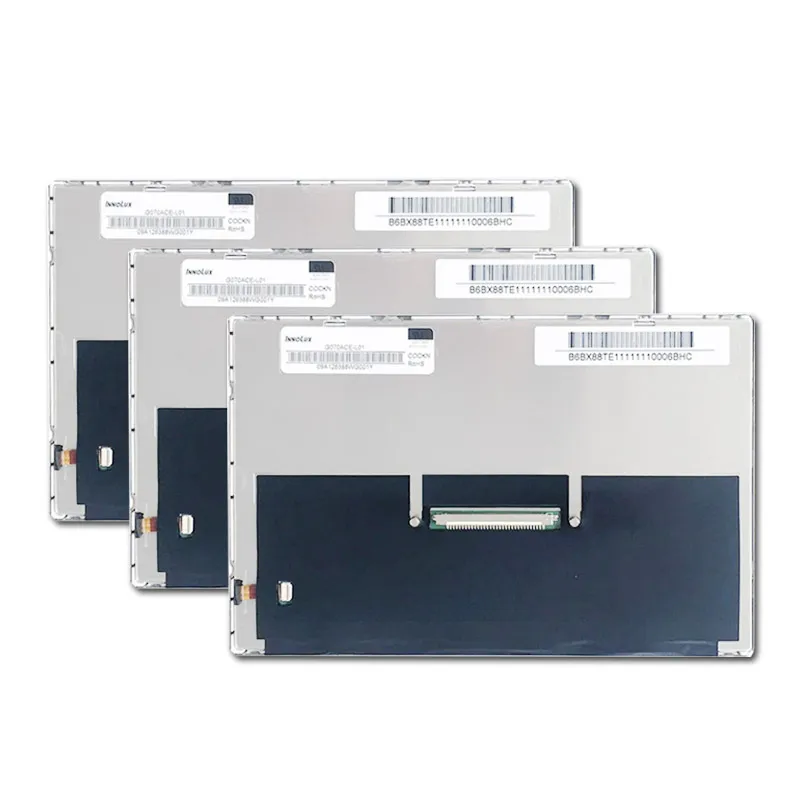

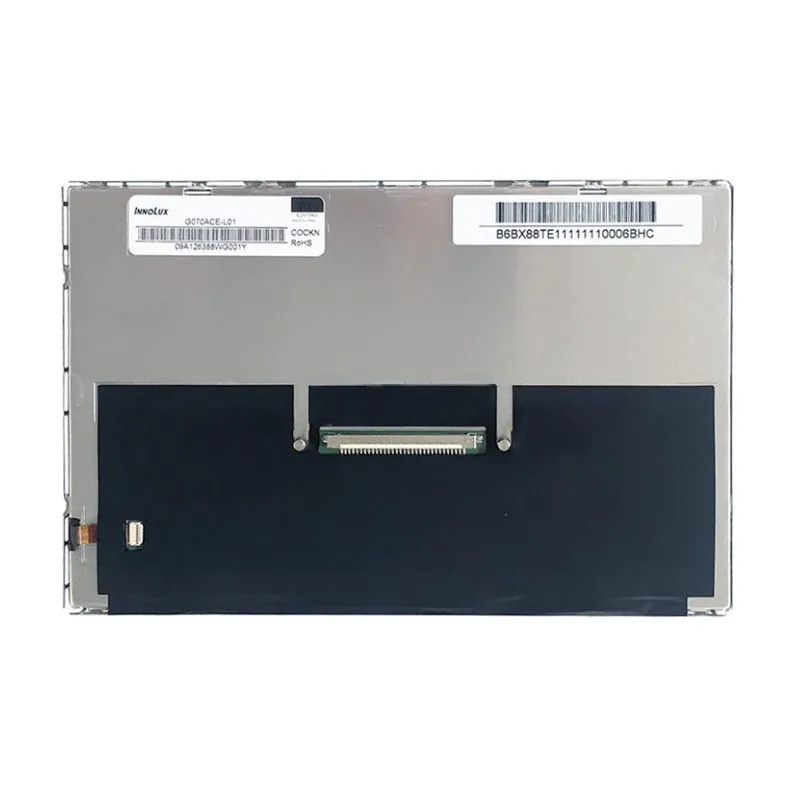

G070ACE-L01 7 inch 800×480 Resolution IPS LCD, -30°C~85°C Wide Temperature

UGS : DS50221
Taille :

Numéro de modèle

G070ACE-L01

Résolution :

Interface :

Température de fonctionnement :

-30℃~ 85℃

Prise en charge de l'écran tactile :

Type d'affichage :

Ressources :

Innolux G070ACE-L01 Battlefield-Proven IPS: 500cd/m² Arctic-to-Desert Visibility & EMP-Hardened LVDS for Military/ Aerospace Systems.

Demande de tarification au volume







    Description

    G070ACE-L01 General Desription

    Engineered for mission-critical visibility, the G070ACE-L01's 500cd/m² IPS panel pierces through blizzard whiteouts and desert glare while maintaining 89° viewing precision from all axes – crucial for multi-operator military command units. Its -30°C cold-cranking capability ensures instant startup in Arctic UAV ground stations, while 85°C heat tolerance withstands engine-compartment displays in armored vehicles. The LVDS interface resists EMI interference in electromagnetic pulse environments, delivering stable video feeds for EOD robot controllers. With 50,000-hour lifespan (5.7 years non-stop), it reduces maintenance in subsea ROV control panels and satellite launch pad monitoring systems. The 8.85mm ruggedized profile withstands 15G vibration in artillery systems, while 3.3V low-power design extends battery life in portable field medical devices.



    Application & Performanc

    This display thrives where others fail: controlling deep-earth tunnel boring machines in 85°C geothermal shafts and providing glacier expedition navigation readouts at -30°C. The 500cd/m² brightness enables daylight readability in jungle reconnaissance drones and open-pit mine blast monitoring systems. Quad-89° viewing angles allow simultaneous diagnosis by surgical teams in mobile field hospitals and collaborative monitoring in nuclear reactor control rooms. LVDS signal integrity ensures uninterrupted operation in radar jamming environments aboard naval destroyers. Its 50K-hour endurance suits Mars rover prototype dashboards testing in Death Valley, while IP68-sealed variants serve offshore oil well Christmas tree controls submerged at 3,000m depths.

    7.0" Product Specifications

    Taille de la diagonale 7.0 inch
    Nombre de pixels 800×480
    Luminance 500
    Module Size 170×110×8.85
    Zone active 152.4×91.44
    Direction de visualisation IPS
    View Angle(U/D/R/L) 89/89/89/89
    Interface LVDS
    Rapport de contraste 800 : 1
    Température de fonctionnement -30~85℃
    Température de stockage -40~90℃
    Durée de vie des LED 50000
    Prise en charge de l'écran tactile Sans
    Alimentation électrique 3.3V
    Type d'affichage Color TFT

    Innolux LCD Display Custom Solutions

    Optimisez vos solutions de câblage

    Ajustez la longueur, la position et le brochage de vos câbles, ou ajoutez des connecteurs supplémentaires pour améliorer la fonctionnalité. Obtenez une solution de câblage personnalisée conçue pour rationaliser vos connexions et garantir des performances sûres et fiables.

    Modifications de la carte de circuit imprimé

    Choisissez parmi une variété de variations dans la forme du circuit imprimé, la taille, la disposition des broches et des composants pour l'adapter parfaitement à votre application.

    Améliorer l'expérience de l'utilisateur grâce à la technologie de l'écran tactile

    Améliorez votre expérience utilisateur grâce à la technologie des écrans tactiles capacitifs ou résistifs. Nous personnaliserons l'épaisseur du verre et la forme de l'écran tactile pour qu'il réponde parfaitement à vos exigences en matière de conception.

    custom touch

    Verre de couverture sur mesure

    Équipez votre écran d'une vitre de protection découpée sur mesure pour améliorer sa durabilité et ses performances. Choisissez parmi différentes épaisseurs et optez pour le collage optique afin d'assurer une protection contre l'humidité et les débris, garantissant ainsi une solution durable et fiable.

    Innolux G070ACE-L01 7-Inch LCD Replacement FAQ

    How do I confirm that I need the Innolux G070ACE-L01?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 7-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the Innolux G070ACE-L01?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How does the Innolux G070ACE-L01 compare with the AUO G070VAN01.1?

    Both catalog listings show 7 inches, 800 × 480 and LVDS. The catalog lists −30 °C to +85 °C for the Innolux panel and −20 °C to +70 °C for the AUO panel. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Compare AUO G070VAN01.1

    Is the Innolux G070ACE-L01 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.
