0 .96" Circular IPS TFT Display - 240x198 SPI Interface, Low-Power & Slim Design

COD: DS20200
Dimensioni:

Risoluzione:

Interfaccia:

Supporto per touchscreen:

Supporto al consiglio di amministrazione

Raspberry Pi

abc

0.96-inch circular TFT module with 240x198 IPS panel, 4-wire SPI interface, 1.25mm slot connector. Ideal for wearables, IoT, and compact devices. Save I/O pins!

Richiesta di prezzi a volume







    Descrizione

    0.96" Circular IPS TFT Display - 240x198 SPI Interface:

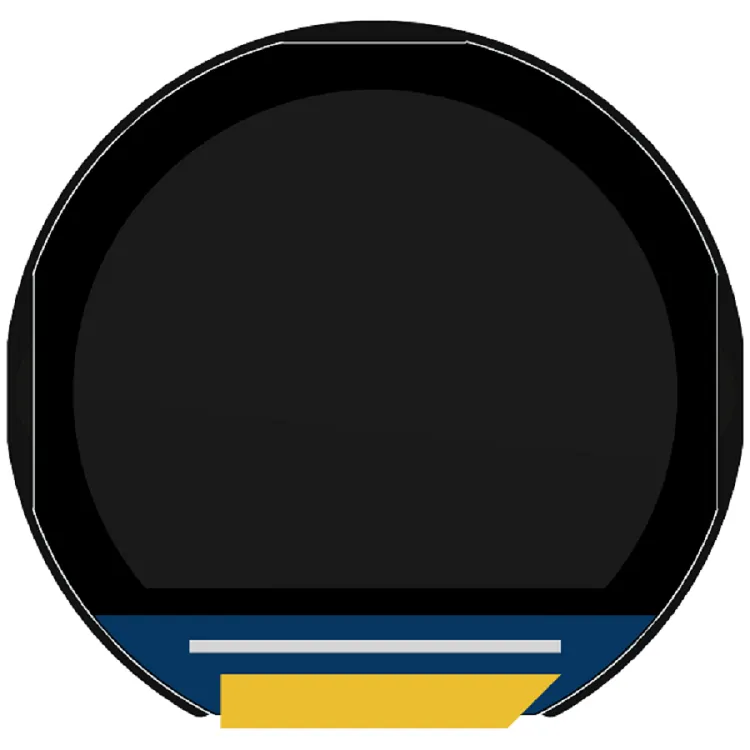

    ✅ 0.96" Circular IPS Screen (240x198)
    ✅ 4-Wire SPI Interface (Save 50% I/O pins)
    ✅ 1.25mm Slot Connector (Anti-vibration design)
    ✅ Wide Operating Voltage: 3.3V/5V
    ✅ Plug-and-play compatibility with open-source libraries
    ✅RoHS certified & EMC-tested for reliability
    ✅Custom firmware/backlight options available

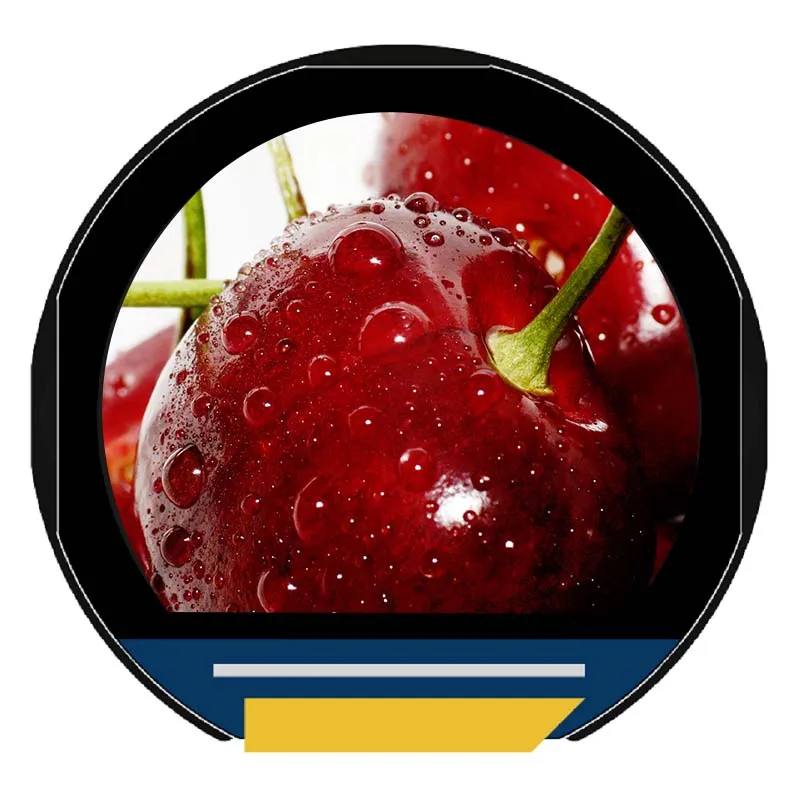

    Circular IPS TFT Display

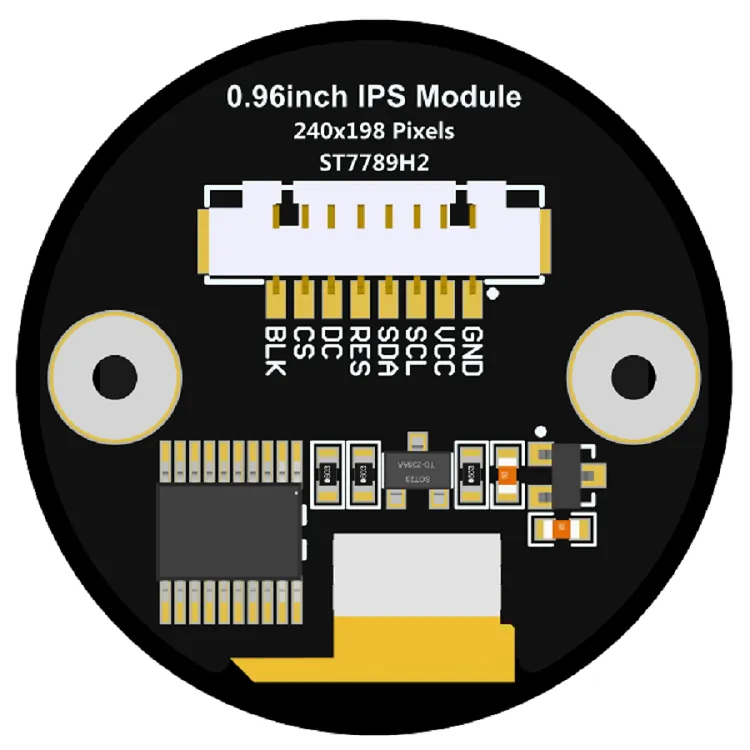

    0.96inch IPS ST7789 Module
    Parametri chiave Dimensione 0.96(inch)
    SKU DS20200
    Risoluzione 240xRGBx198 (pixels)
    Area attiva (area AA) 24.408(W)x20.137(H)(mm)
    TFT Outline Size 27.4±0.2(W)x27.0±0.2(H)x1.31±0.15(D)(mm)(Excluding adhesive backing)
    Module Outline Size NO Glass Cover Plate:29.73(W)x28.14(H)x6.66(D)(mm)(Including positioning columns)
    Have Glass Cover Plate:31.88(W)x31.88(H)x9.65(D)(mm)(Including positioning columns)
    Display Interface 4-Line SPI
    View Angle ALL 0’CLOCK
    Brightness(TYP) 300(cd/m2)
    Operation Temperature -10~60(℃)
    Temperatura di stoccaggio -20~70(℃)
    Working Voltage 5.0 V/3.3V
    Backlight Current 40 mA
    Power 0.09 W
    Backlight Type White LED*2

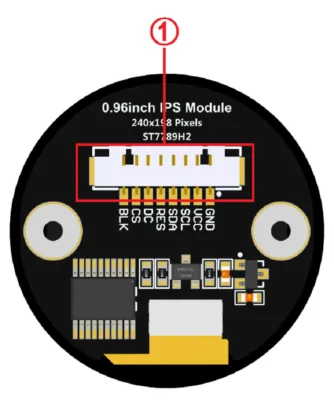

    Hardware Description 0.96 inch Circular TFT Display
    ①8P slot 1.25mm spacing slot, module signal input pins

    Scaricare

    240 × 198 SPI TFT LCD Display Module FAQ

    Can my microcontroller show this interface without clipping or running out of memory?

    Try your smallest text, longest labels and icons on a 240 × 198 canvas before committing to the enclosure. Calculate framebuffer memory for your selected pixel format and buffering strategy, then measure the update time with the intended microcontroller.

    How can I check whether my existing display library will work?

    For the listed SPI interface, check the exact controller, SPI mode, logic levels and update time with a representative screen. Check that the library names the exact display controller and supports its initialization, addressing and orientation. Test a full-screen pattern before porting the UI.

    LCD display interface guide

    Should I choose this display bus or another interface on my controller?

    Compare pin availability, logic levels, code support and measured full-screen update time with your existing host. For the listed LCD, compare viewing-angle shifts and dark-screen appearance through the front cover. Include the space needed for the connector and any adapter.

    Can the connector, flex, or display assembly be adapted to my controller board?

    Send the host schematic or board model, connector, flex length and use case. We can review connector and mounting options and identify the bus mode, logic levels and controller initialization to lock down before sampling.

    What determines the cost and timing of a sample for my MCU project?

    Include the host, preferred controller or bus, cable requirements, sample quantity and target date. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.
