1.44" LCD Arduino Module with SPI Interface & SD Slot - 128x128, 65K Color

COD: DS20204
Dimensioni:

Risoluzione:

Interfaccia:

Supporto per touchscreen:

Supporto al consiglio di amministrazione

Raspberry Pi

abc

1.44-inch IPS TFT module with 16-bit RGB, 128x128 resolution, 4-wire SPI interface & SD card slot. Ideal for embedded systems. Operates at -20°C~60°C.

Richiesta di prezzi a volume







    Descrizione

    1.44" LCD Arduino Module with SPI Interface & SD Slot:

    ✅ 1.44" IPS panel with 65K true-color depth
    ✅ Controllo SPI a bassissima latenza
    Lo slot per schede SD integrato consente di espandere la memorizzazione dei dati senza problemi, supportando gli aggiornamenti del firmware, le librerie di immagini o la registrazione dei registri.
    ✅ Ampio intervallo di temperatura e rivestimento antiriflesso
    Dimensioni compatte del PCB: 31,49 mm x 43,95 mm

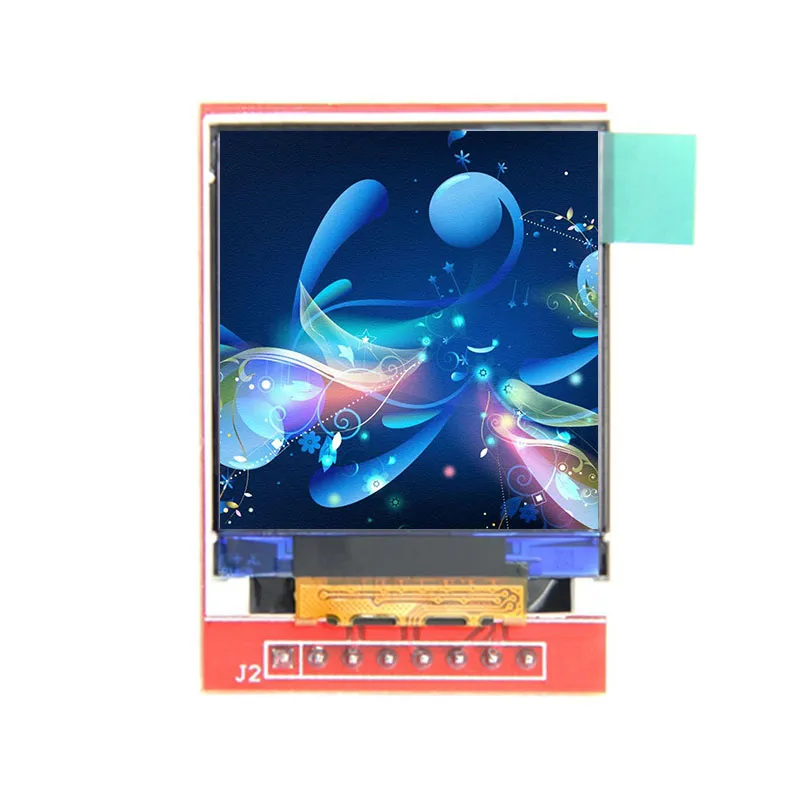

    LCD Arduino Module



    Modulo Arduino SPI da 1,44 pollici

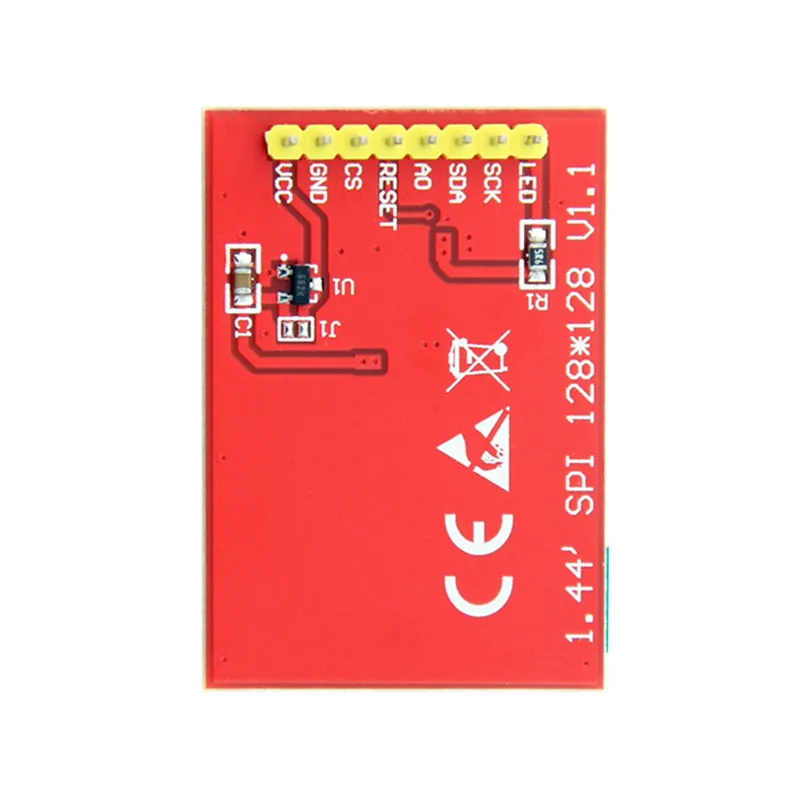

    Parametri chiave Colore del display Colore 16BIT RGB 65K Interfaccia PIN NO. SIMBOLO DESCRIZIONE
    Dimensioni dello schermo 1,44 (pollici) 1 VCC Alimentazione LCD positiva (3,3V~5V)
    Tipo TFT 2 GND Massa di alimentazione LCD
    Driver IC ST7735S 3 GND Massa di alimentazione LCD
    Risoluzione 128*128 (pixel) 4 NC Non definito, riservato
    Interfaccia del modulo Interfaccia SPI a 4 fili 5 NC Non definito, riservato
    Area attiva (area AA) 26.2x27.2 (mm) 6 LED Controllo della retroilluminazione, illuminazione di alto livello,
    se non è controllato, collegare 3,3V sempre acceso
    Dimensioni del modulo PCB 31.49x43.95 (mm) 7 CLK Segnale di clock del bus SPI LCD
    Temperatura di esercizio -20℃~60℃ 8 SDI Segnale dati di scrittura del bus SPI LCD
    Temperatura di stoccaggio -30℃~70℃ 9 RS Segnale di selezione del registro LCD/dati,
    livello alto: registro, livello basso: dati
    Tensione di alimentazione VCC 5V/3,3V 10 RST Segnale di reset LCD, reset a basso livello
    11 CS Segnale di selezione del chip LCD, abilitazione a basso livello

    Scaricare

    1.44-Inch 128 × 128 SPI LCD Display Module FAQ

    Can my microcontroller show this interface without clipping or running out of memory?

    Try your smallest text, longest labels and icons on a 128 × 128 canvas before committing to the enclosure. Calculate framebuffer memory for your selected pixel format and buffering strategy, then measure the update time with the intended microcontroller.

    How can I check whether my existing display library will work?

    For the listed SPI interface, check the exact controller, SPI mode, logic levels and update time with a representative screen. Check that the library names the exact display controller and supports its initialization, addressing and orientation. Test a full-screen pattern before porting the UI.

    LCD display interface guide

    Should I choose this display bus or another interface on my controller?

    Compare pin availability, logic levels, code support and measured full-screen update time with your existing host. For the listed LCD, compare viewing-angle shifts and dark-screen appearance through the front cover. Include the space needed for the connector and any adapter.

    Can the connector, flex, or display assembly be adapted to my controller board?

    Send the host schematic or board model, connector, flex length and use case. We can review connector and mounting options and identify the bus mode, logic levels and controller initialization to lock down before sampling.

    What determines the cost and timing of a sample for my MCU project?

    Include the host, preferred controller or bus, cable requirements, sample quantity and target date. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.
