1.3" IPS TFT LCD Module 240x240 RGB, 4-Wire SPI Interface | Industrial Grade

COD: DS20203
Dimensioni:

Risoluzione:

Interfaccia:

Supporto per touchscreen:

Supporto al consiglio di amministrazione

Raspberry Pi

abc

1.3" TFT LCD Module with 240x240 resolution & 65K colors. 4-wire SPI control, minimal I/O required. -10~60℃ operating temp. Ideal for industrial HMI, IoT devices.

Richiesta di prezzi a volume







    Descrizione

    1.3" TFT LCD Module 240x240 RGB, 4-Wire SPI Interface:

    ✅  Vivid Visuals: 1.3-inch IPS panel delivers 240x240 resolution & 65K RGB colors with 170° wide viewing angles, ensuring clarity in any orientation.
    ✅ Simplified Integration: 4-wire SPI serial interface reduces MCU I/O consumption. Effortless to drive with embedded controllers like STM32/ESP32/Raspberry Pi.
    ✅  Industrial Reliability: Operates stably at -10℃ to 60℃, compliant with MIL-STD-810G vibration standards. 50,000+ hours MTBF for 24/7 mission-critical systems.
    ✅ Compact & Versatile: Ultra-thin 2.8mm profile. Ideal for portable medical devices, smart wearables, automotive dashboards, and ruggedized IoT terminals.
    ✅ Free SDK & technical documentation (Arduino/C/Python libs)

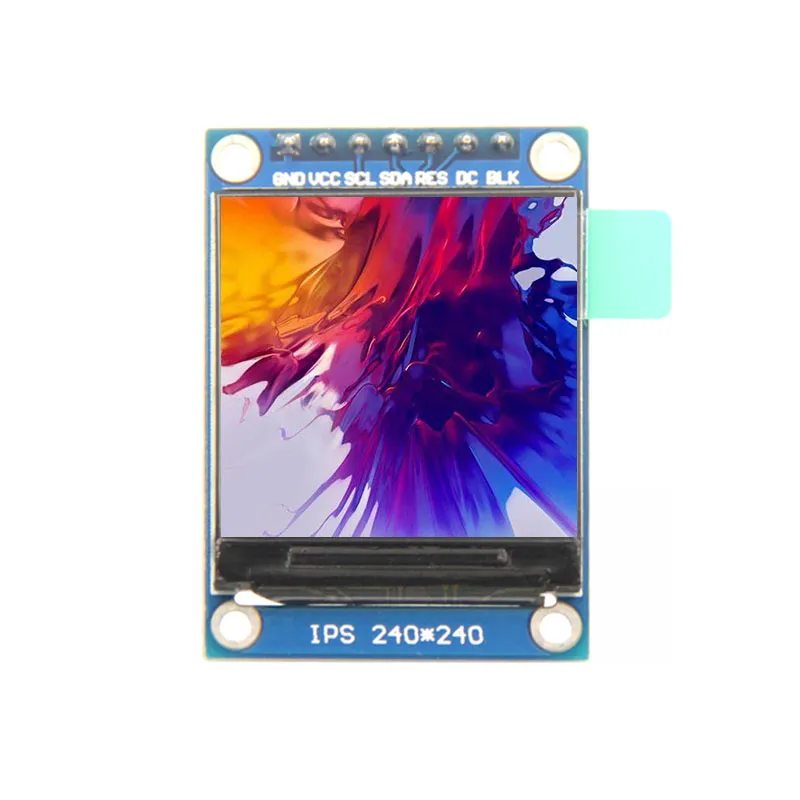

    TFT LCD Module



    1.3 inch TFT LCD Module
    Parametri chiave Colore del display RGB 65K color Interfaccia PIN NO. SIMBOLO DESCRIZIONE
    Dimensioni dello schermo 1.3(inch) 1 GND Massa di alimentazione LCD
    Tipo IPS 2 VCC LCD power supply is positive (3.3V)
    Driver IC GC9A01 3 SCL Segnale di clock del bus SPI LCD
    Risoluzione 240*240 (Pixel) 4 SDA Segnale dati di scrittura del bus SPI LCD
    Interfaccia del modulo 4-line SPI interface 5 RES LCD reset control signal(Low level reset)
    Area attiva (area AA) 23.40x23.40 (mm) 6 DC LCD register / data selection control signal (Low level: register, high level: data)
    Dimensioni del modulo PCB 39.22x27.78 (mm)
    Temperatura di esercizio -10℃~60℃ 7 BLK LCD backlight control signal (high level lighting,if you do not need control, please connect 3.3V)
    Temperatura di stoccaggio -20℃~70℃
    Tensione di alimentazione VCC 3.3V

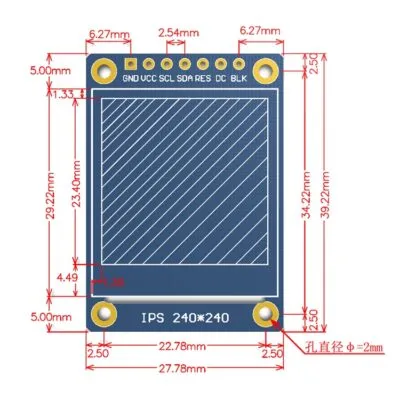

    product picture lcd module price

    Scaricare

    1.3-Inch 240 × 240 SPI TFT LCD Display Module FAQ

    Can my microcontroller show this interface without clipping or running out of memory?

    Try your smallest text, longest labels and icons on a 240 × 240 canvas before committing to the enclosure. Calculate framebuffer memory for your selected pixel format and buffering strategy, then measure the update time with the intended microcontroller.

    How can I check whether my existing display library will work?

    For the listed SPI interface, check the exact controller, SPI mode, logic levels and update time with a representative screen. Check that the library names the exact display controller and supports its initialization, addressing and orientation. Test a full-screen pattern before porting the UI.

    LCD display interface guide

    Should I choose this display bus or another interface on my controller?

    Compare pin availability, logic levels, code support and measured full-screen update time with your existing host. For the listed LCD, compare viewing-angle shifts and dark-screen appearance through the front cover. Include the space needed for the connector and any adapter.

    Can the connector, flex, or display assembly be adapted to my controller board?

    Send the host schematic or board model, connector, flex length and use case. We can review connector and mounting options and identify the bus mode, logic levels and controller initialization to lock down before sampling.

    What determines the cost and timing of a sample for my MCU project?

    Include the host, preferred controller or bus, cable requirements, sample quantity and target date. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.
